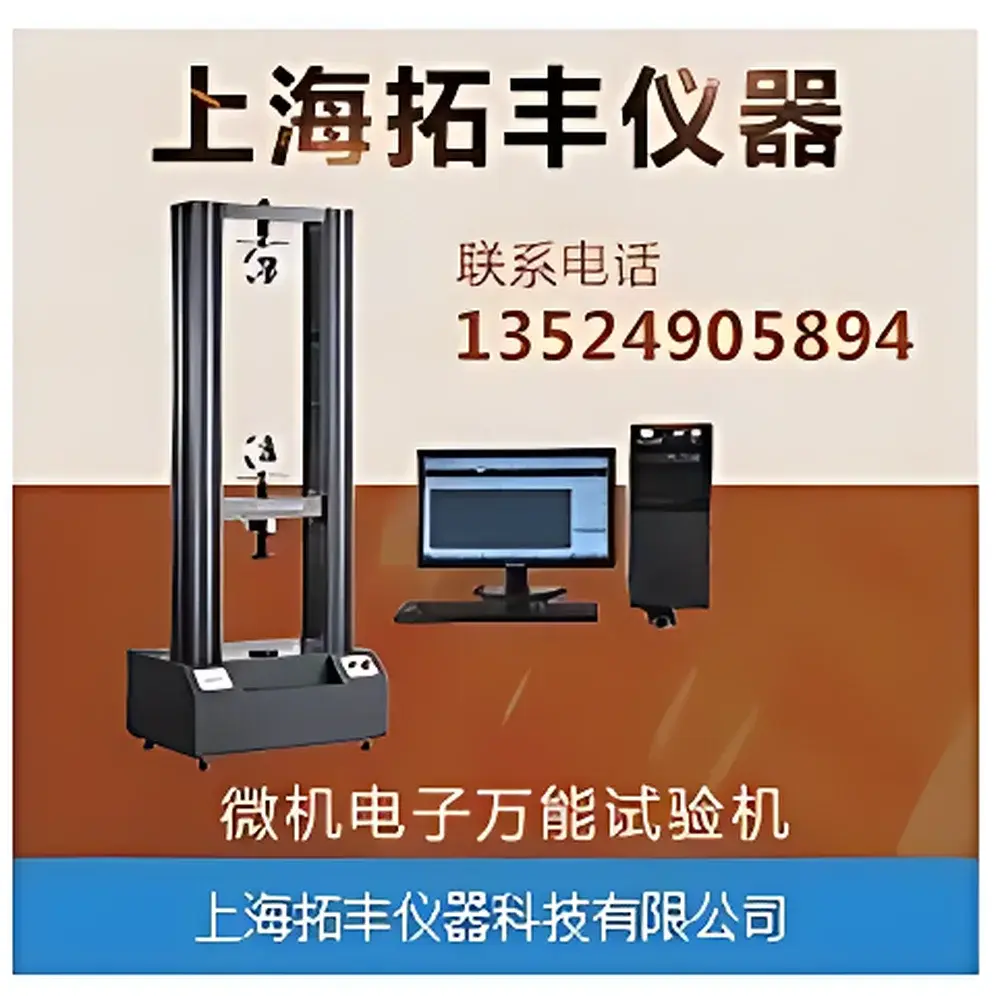

Tuofeng TFW-24 Universal Testing Machine for Composite Materials

Overview

The Tuofeng TFW-24 Universal Testing Machine is an electromechanical, dual-column, microprocessor-controlled system engineered for high-fidelity mechanical characterization of composite materials, metals, polymers, elastomers, and advanced laminates. It operates on the principle of controlled axial force application through a precision servo-driven ball screw actuator, enabling static tensile, compressive, flexural, shear, tear, peel, and puncture testing under programmable load/displacement/time conditions. Designed to meet international metrological and structural integrity requirements, the TFW-24 delivers traceable force measurement with 0.5-class accuracy per GB/T 16491–2008 and JJG 475–2008, and supports full compliance with ASTM E4 (force verification), ASTM E8/E21 (tensile testing of metals), ISO 6892-1 (metallic materials), ISO 178 (flexural properties), and ISO 14129 (composite interlaminar shear). Its rigid frame architecture, thermally stable load cell integration, and real-time closed-loop control ensure repeatability better than ±0.5% across the full 20 kN capacity range.

Key Features

• High-resolution force sensing: 1/±500,000 internal resolution with no auto-ranging—maintains consistent sensitivity from 0.2% to 100% of full scale (20 kN).
• True dual-speed crosshead actuation: Independent fast (up to 500 mm/min) and fine-adjustment (0.001 mm/min) modes enable rapid positioning and creep-sensitive testing.
• Modular extensometry support: Compatible with clip-on axial extensometers (for modulus and yield determination) and non-contact video extensometers (optional upgrade) for brittle or high-strain composites.
• Integrated safety architecture: Triple-redundant protection including electronic end-limit switches, hardware-based emergency stop circuitry, and software-enforced overload cutoff at 110% of rated capacity.
• Thermally compensated load cell: Temperature drift <0.01% per °C ensures stability during extended environmental chamber coupling or multi-hour fatigue pre-conditioning.
• Industrial-grade mechanical design: Precision-ground ball screws, preloaded angular contact bearings, and vibration-damped base plate minimize parasitic deflection and improve stiffness-to-weight ratio.

Sample Compatibility & Compliance

The TFW-24 accommodates standardized and custom geometries—from ASTM D3039 flat coupons and ISO 527-4 dog-bone specimens to thick-section CFRP laminates and sandwich core shear samples (ASTM C273). With a 600 mm effective test width and 800 mm vertical stroke (extendable), it handles large-format composites used in aerospace primary structures and wind turbine blade validation. All firmware and calibration procedures conform to ISO/IEC 17025 requirements for accredited testing laboratories. The system satisfies FDA 21 CFR Part 11 data integrity criteria when configured with audit-trail-enabled software (optional), and supports GLP/GMP documentation workflows via timestamped, user-locked test reports. Certificates of conformity include traceable calibration against NIST-traceable deadweight standards.

Software & Data Management

Tuofeng’s proprietary TensilePro v5.2 software runs natively on Windows 10/11 and provides six primary control modes: constant rate of extension (CRE), constant rate of loading (CRL), stress/strain ramping, load holding, displacement holding, and cyclic profiling. Real-time plotting includes synchronized force–displacement, stress–strain, and time-based parameter overlays. Data export is supported in CSV, XML, and PDF formats; all raw acquisition streams (force, displacement, strain, time) are stored at ≥1 kHz sampling rate with metadata tagging (operator ID, sample ID, standard reference, environmental notes). Software modules support statistical batch analysis (mean, SD, CV%), curve superposition for comparative laminate layup evaluation, and automated report generation compliant with ASTM E122 and ISO 5725. Firmware updates and calibration patches are delivered via secure HTTPS portal with version-controlled changelogs.

Applications

The TFW-24 serves as a primary mechanical validation platform in R&D and QA/QC environments for fiber-reinforced polymer (FRP) systems—including carbon/epoxy, glass/vinyl ester, and bio-based resin composites. Typical use cases include interlaminar shear strength (ILSS) per ASTM D2344, compression-after-impact (CAI) per ASTM D7137, flexural stiffness mapping for automotive thermoplastic composites (ISO 178), and peel resistance quantification of adhesive joints in hybrid metal-composite assemblies. In academic settings, it supports fracture mechanics studies (e.g., G_Ic, G_IIc) using modified double-cantilever beam fixtures. Industrial users leverage its programmable hold functions for long-term creep compliance testing per ISO 899-1 and environmental aging correlation under coupled thermal-humidity profiles.

FAQ

What standards does the TFW-24 support out-of-the-box?
It includes pre-loaded test templates for ASTM D3039, ASTM D6641, ISO 527-4, ISO 14129, GB/T 3354, and EN 2561, with editable parameters for custom method development.
Can the system be integrated with environmental chambers?
Yes—the controller features analog I/O ports (±10 V, 16-bit) for synchronized temperature/humidity feedback and chamber door interlock signaling.
Is third-party calibration certification available?
Tuofeng provides ISO/IEC 17025-accredited calibration certificates issued by CNAS-recognized labs, valid for 12 months.
Does the software support multi-user role-based access control?
Yes—administrator, technician, and viewer roles enforce password-protected method editing, result modification, and report approval workflows.
What is the warranty coverage and service response time?
Standard 24-month parts-and-labor warranty; on-site technical support within 72 business hours in Tier-1 cities across EU, NA, and APAC regions.
