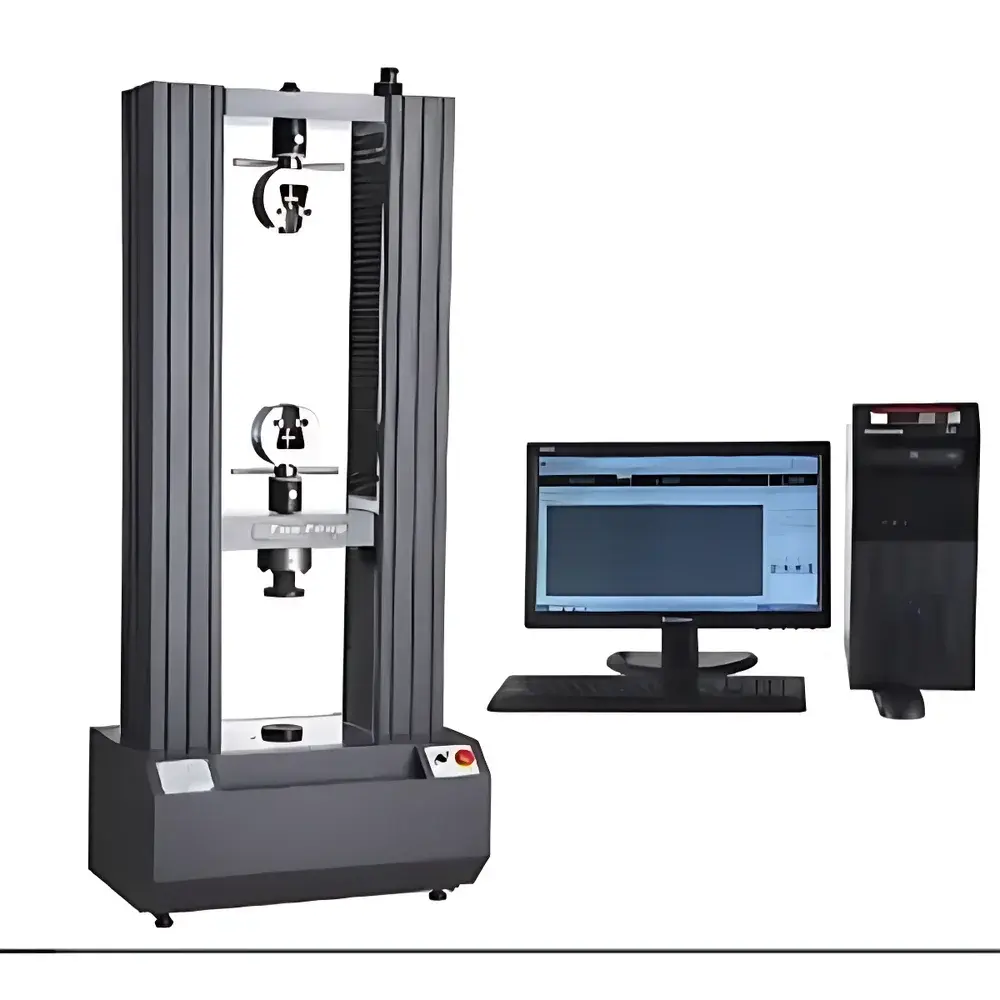

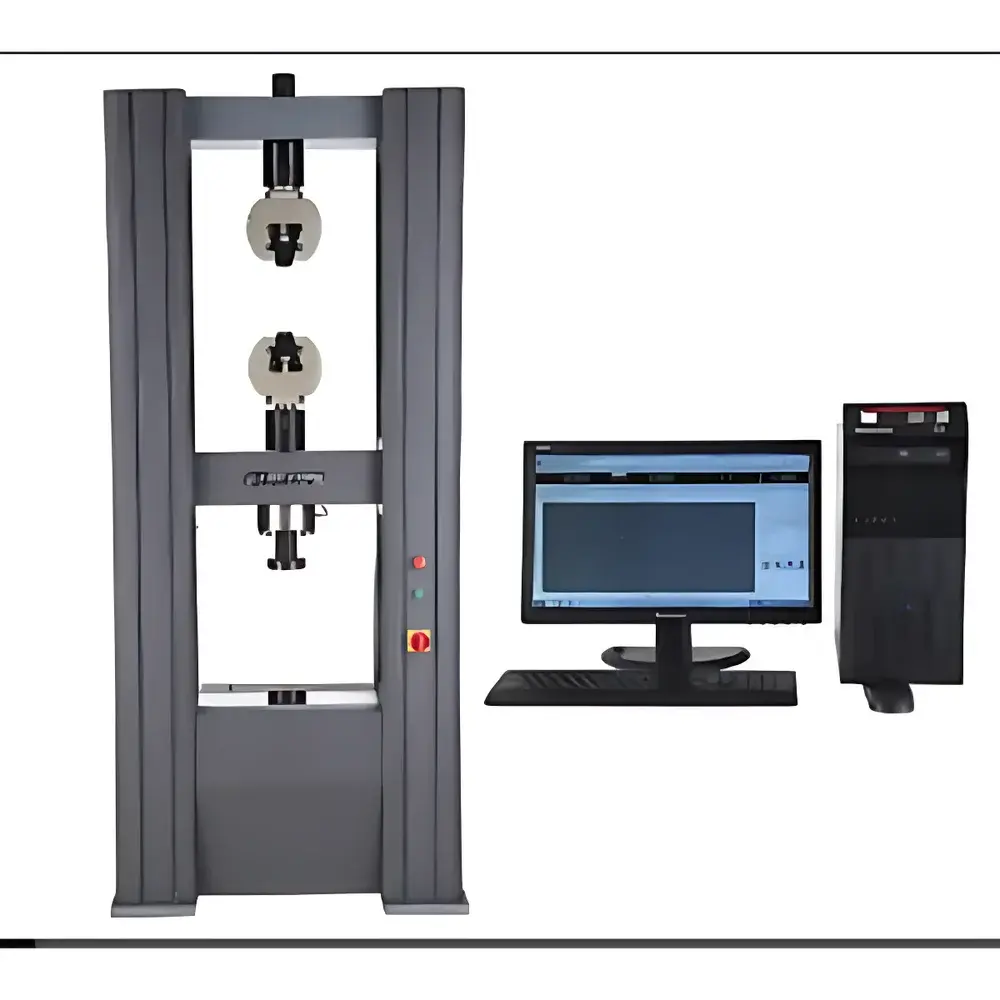

Tuofeng TFW-256 Microcomputer-Controlled Universal Testing Machine

Overview

The Tuofeng TFW-256 Microcomputer-Controlled Universal Testing Machine is a high-precision electromechanical system engineered for static mechanical property characterization of metallic, polymeric, composite, and ceramic materials under uniaxial loading conditions. Based on the principle of controlled displacement actuation via a closed-loop servo-driven ball screw mechanism, it delivers traceable force application and metrologically validated displacement measurement in accordance with international standards for materials testing. Its architecture integrates real-time load-cell feedback, optical encoder-based position tracking, and programmable motion control to ensure high reproducibility across tensile, compression, bending, shear, tear, peel, and puncture test modes. Designed for laboratory and industrial QA/QC environments, the TFW-256 meets the stringent requirements of ISO/IEC 17025-accredited testing laboratories and supports full auditability for GLP and GMP-regulated workflows.

Key Features

• 0.5-class accuracy certified per GB/T 16491–2008 and ISO 7500-1, enabling reliable determination of tensile strength, yield strength, modulus of elasticity, elongation at break, compressive strength, flexural modulus, and fracture toughness parameters.
• Constant-resolution force measurement system (1:500,000 full-scale) eliminates range-switching artifacts and ensures linearity across the entire 0.2–100% test range — critical for low-force compliance testing and high-load structural validation.
• Imported high-torque servo motor coupled with a backlash-free worm-gear reducer and preloaded ball screw guarantees smooth, noiseless operation and sub-micron positioning repeatability.
• Dual-speed crosshead control (fast jog + fine positioning) enhances operational efficiency during specimen setup and post-test recovery, while electronic limit switches and hardware-based emergency cutoff meet IEC 61800-5-2 functional safety requirements.
• Modular extensometry support: Compatible with both clip-on axial extensometers (for ASTM E83 Class B-1 compliance) and non-contact video extensometers (optional), enabling strain measurement down to 0.001% with traceable calibration certificates.
• Rigid four-column frame with reinforced base and adjustable leveling feet minimizes deflection under peak loads up to 256 kN, ensuring mechanical stability during high-stiffness material testing.

Sample Compatibility & Compliance

The TFW-256 accommodates specimens ranging from thin films (≥0.05 mm thick) to structural steel coupons (up to 80 mm wide × 40 mm thick), with customizable grip configurations including wedge-action tensile jaws, compression platens, three/four-point bend fixtures, pneumatic peel clamps, and custom-designed shear adapters. All mechanical interfaces conform to dimensional tolerances specified in ASTM E1012 (alignment verification) and ISO 204 (axial alignment). The system is fully compliant with GB/T 228.1–2021 (metallic materials), ASTM D638/D790 (plastics), ISO 527/178 (polymer tensile/flexural), ISO 11339 (adhesive peel), and JIS K 6251 (rubber tensile), and supports automated test sequence execution per USP mechanical testing protocols.

Software & Data Management

The Windows-based Tuofeng TestSuite v5.2 software provides full 21 CFR Part 11 compliance through role-based user authentication, electronic signatures, immutable audit trails, and encrypted data storage. It supports multiple test control modes — including force-controlled ramp, displacement-controlled hold, strain-rate-controlled creep, and cyclic loading — with real-time plotting of up to six synchronized channels (load, displacement, extension, stress, strain, time). Raw data are stored in vendor-neutral CSV and XML formats; graphical reports include ASTM/ISO-compliant curve annotations, statistical summaries (mean, SD, CV%), and comparative overlay of up to 32 test curves. All calibration coefficients, operator IDs, environmental metadata (temperature/humidity), and instrument configuration logs are embedded directly into result files for full traceability.

Applications

This system serves as a primary mechanical characterization platform in R&D labs and production QA departments across aerospace (e.g., titanium alloy fastener validation per AMS 2300), automotive (high-strength steel sheet tensile mapping per VDA 238-100), medical device manufacturing (polymer suture tensile strength per ISO 10993-12), construction materials certification (rebar yield verification per ASTM A615), and battery component testing (separator tensile integrity under thermal cycling). Its versatility extends to advanced applications such as low-cycle fatigue pre-screening, weld joint qualification (per AWS D1.1), and additive manufacturing part anisotropy assessment using standardized dog-bone geometries.

FAQ

What international standards does the TFW-256 support out-of-the-box?
The system includes preloaded test templates for ASTM E8/E21, ISO 6892-1, GB/T 228.1, DIN 50145, and JIS Z 2241, with automatic calculation of all required parameters per standard clauses.
Is third-party calibration certification available?
Yes — NIST-traceable calibration certificates (including force, displacement, and strain channels) are provided with each delivery, and annual recalibration services are supported under ISO/IEC 17025 scope.
Can the system integrate with LIMS or MES platforms?
Via optional OPC UA or REST API module, raw test data and summary reports can be exported directly to enterprise systems without manual intervention.
What is the warranty and service coverage?
Standard 24-month parts-and-labor warranty; extended service plans include remote diagnostics, on-site preventive maintenance, and software update assurance.
Does the machine support high-temperature or environmental chamber integration?
Yes — the frame and load train are designed for seamless coupling with commercial furnaces (−70°C to +1200°C) and humidity chambers, with feedthrough-rated cabling and thermal expansion compensation algorithms in firmware.
