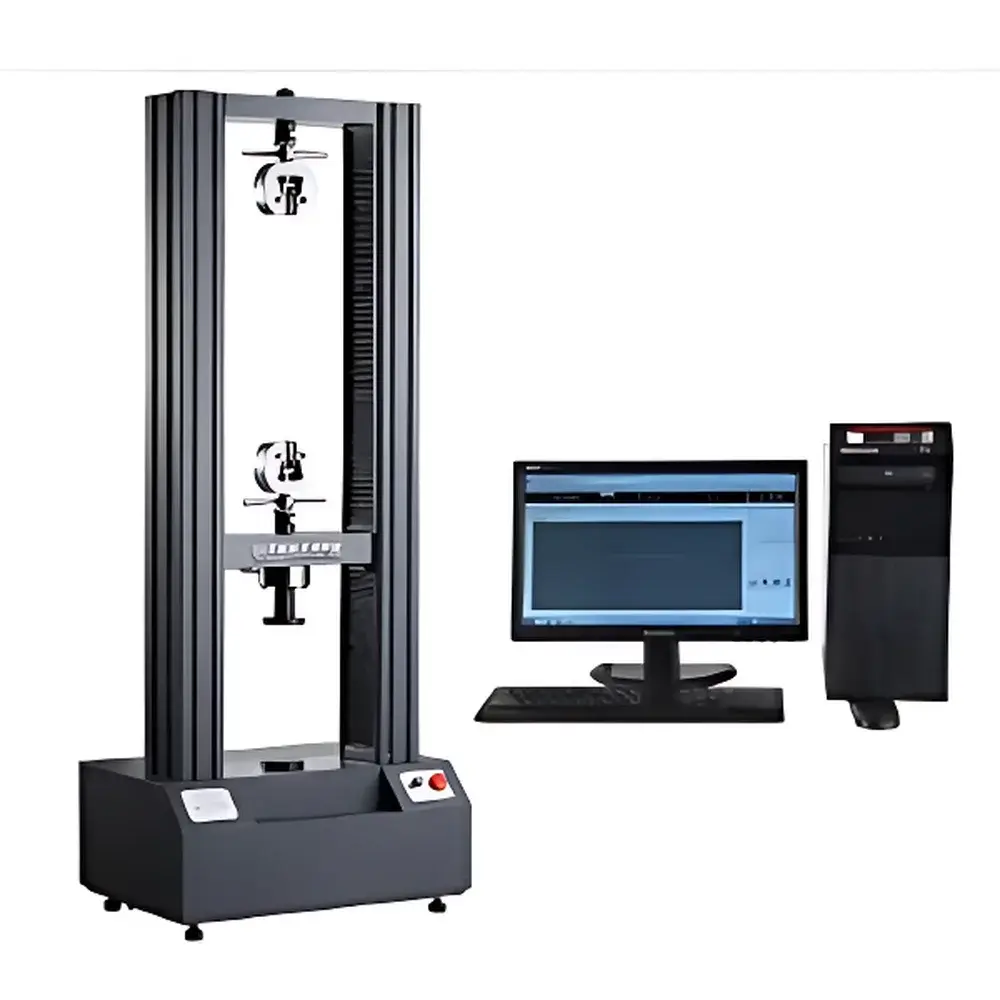

Tuofeng TFW-27 Dual-Column Microcomputer-Controlled Electronic Universal Testing Machine

Overview

The Tuofeng TFW-27 is a dual-column, microcomputer-controlled electromechanical universal testing machine engineered for high-precision mechanical characterization of geosynthetic materials, soils, civil engineering composites, and structural reinforcement elements. Based on the fundamental principles of axial force–displacement transduction via precision load cells and high-resolution optical encoders, the system delivers traceable, repeatable measurements of tensile strength, elongation at break, modulus of elasticity, yield behavior, compressive resistance, flexural rigidity, and shear response under controlled displacement or load-rate conditions. Its rigid frame architecture—constructed with high-strength steel and integrated with preloaded ball-screw actuation—minimizes deflection and ensures compliance with ISO 7500-1 Class 0.5 static force calibration requirements. Designed explicitly for geotechnical laboratories, quality control departments in infrastructure projects, and R&D units evaluating soil-nail interfaces, geogrids, geotextiles, geomembranes, and reinforced earth systems, the TFW-27 supports standardized evaluation across multiple international regulatory frameworks.

Key Features

• Dual-column steel frame with optimized stiffness-to-weight ratio, minimizing lateral deflection during high-load tensile or compression tests on bulky soil specimens or layered composites.
• Imported servo motor coupled with worm-gear reduction and preloaded recirculating ball screw—ensuring smooth, backlash-free motion and long-term positional stability over 100,000+ test cycles.
• Single-range force measurement system with 500,000-count resolution (1/500,000 FS), eliminating range-switching artifacts and maintaining consistent signal fidelity from 0.2% to 100% of 20 kN capacity.
• Programmable crosshead speed from 0.001 to 500 mm/min—enabling slow-strain-rate creep testing per ASTM D2274 and rapid dynamic loading simulations aligned with ISO 13428.
• Integrated safety triad: hardware-based electronic limit switches, redundant emergency stop circuitry, and real-time overload cutoff (>110% FS) compliant with EN 61800-5-2 functional safety guidelines.
• Motorized crosshead with independent fast/slow modes and programmable auto-return—reducing operator intervention and improving throughput in batch testing environments.

Sample Compatibility & Compliance

The TFW-27 accommodates diverse specimen geometries typical in geotechnical and civil materials testing: wide-width geotextile strips (up to 600 mm effective width), confined soil columns, grouted anchor samples, geogrid junctions, and multi-layered composite membranes. Custom fixtures—including pneumatic clamps, wedge-action grips, compression platens, and bending supports—are available per ASTM D4595 (geotextile tensile), ASTM D6637 (geogrid tensile), ISO 10319 (geosynthetic wide-width tensile), and GB/T 17639–2008 (Chinese standard for geotextile testing). All mechanical and software functions conform to metrological traceability requirements outlined in JJG 475–2008 (China National Verification Regulation) and GB/T 16491–2008 (General Requirements for Electronic UTM). Calibration certificates are NIST-traceable and support GLP-compliant audit trails.

Software & Data Management

The Windows-based TFW Control Suite supports multi-mode test control (constant rate of extension, constant load, hold, cyclic ramp-hold), real-time visualization of up to four synchronized plots (e.g., stress–strain, load–time, displacement–time, strain–time), and automated parameter extraction per ISO 527-2 and ASTM D638. Units are freely convertible between SI, imperial, and CGS systems; language interface toggles among English, Simplified Chinese, and Traditional Chinese without reinstallation. Raw data export is supported in CSV, Excel, and XML formats; all test logs include timestamped metadata (operator ID, environmental temperature/humidity if linked to optional sensors), instrument serial number, calibration expiry date, and digital signature fields. The software satisfies FDA 21 CFR Part 11 requirements for electronic records and signatures when deployed with user access controls, audit trail logging, and password-protected method templates.

Applications

• Tensile performance evaluation of nonwoven and woven geotextiles under dry/wet conditions per ASTM D4595 and ISO 10319.
• Creep and stress relaxation behavior of HDPE geomembranes at elevated temperatures (up to 60°C with environmental chamber integration).
• Interface shear strength testing between soil and geosynthetic reinforcements using direct shear fixtures per ASTM D5321.
• Mechanical qualification of fiber-reinforced soil nails and grouted anchors per EN 1537 and ASTM D7244.
• Compression modulus determination of compacted clay–geosynthetic composite liners.
• Quality assurance testing for prefabricated vertical drains (PVDs), erosion control mats, and turf reinforcement meshes.

FAQ

Does the TFW-27 support ASTM D5321 direct shear testing?
Yes—when equipped with the optional direct shear fixture and displacement-controlled actuation mode, the system meets all kinematic and loading requirements specified in ASTM D5321 for soil–geosynthetic interface evaluation.
Can deformation be measured without contact during tensile tests on soft soils or gels?
Non-contact measurement is not natively supported; however, the system accepts third-party digital image correlation (DIC) systems via analog voltage output or Ethernet API integration for full-field strain mapping.
Is the software validated for GxP-regulated environments?
The base software includes configurable audit trail, electronic signature, and role-based access control modules—fully deployable under GLP/GMP frameworks when installed on validated IT infrastructure and operated per documented SOPs.
What maintenance intervals are recommended for long-term reliability?
Preventive maintenance—including ball screw lubrication, load cell zero-check, encoder alignment verification, and firmware update—is advised every 12 months or after 5,000 test cycles, whichever occurs first.
Are calibration certificates provided with initial delivery?
Yes—each unit ships with a factory calibration certificate traceable to CNAS-accredited standards, covering force, displacement, and speed channels, valid for 12 months under normal operating conditions.
