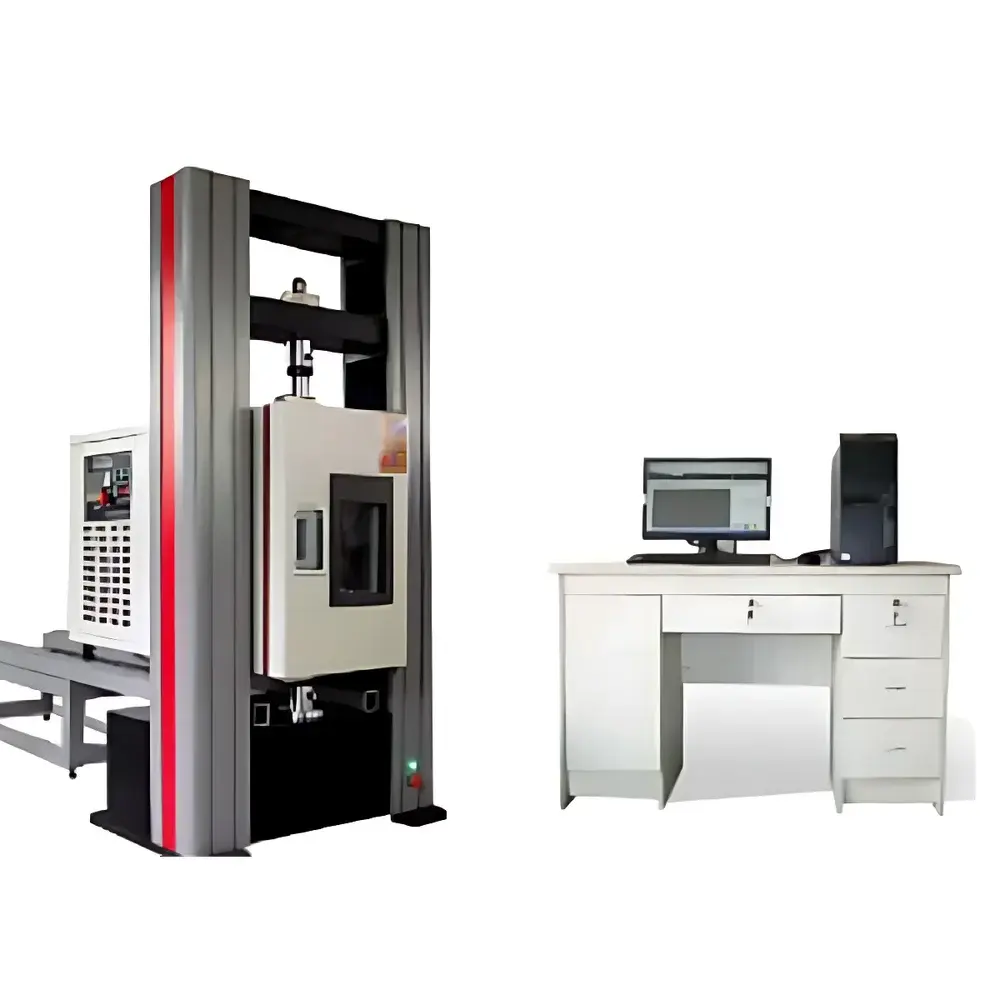

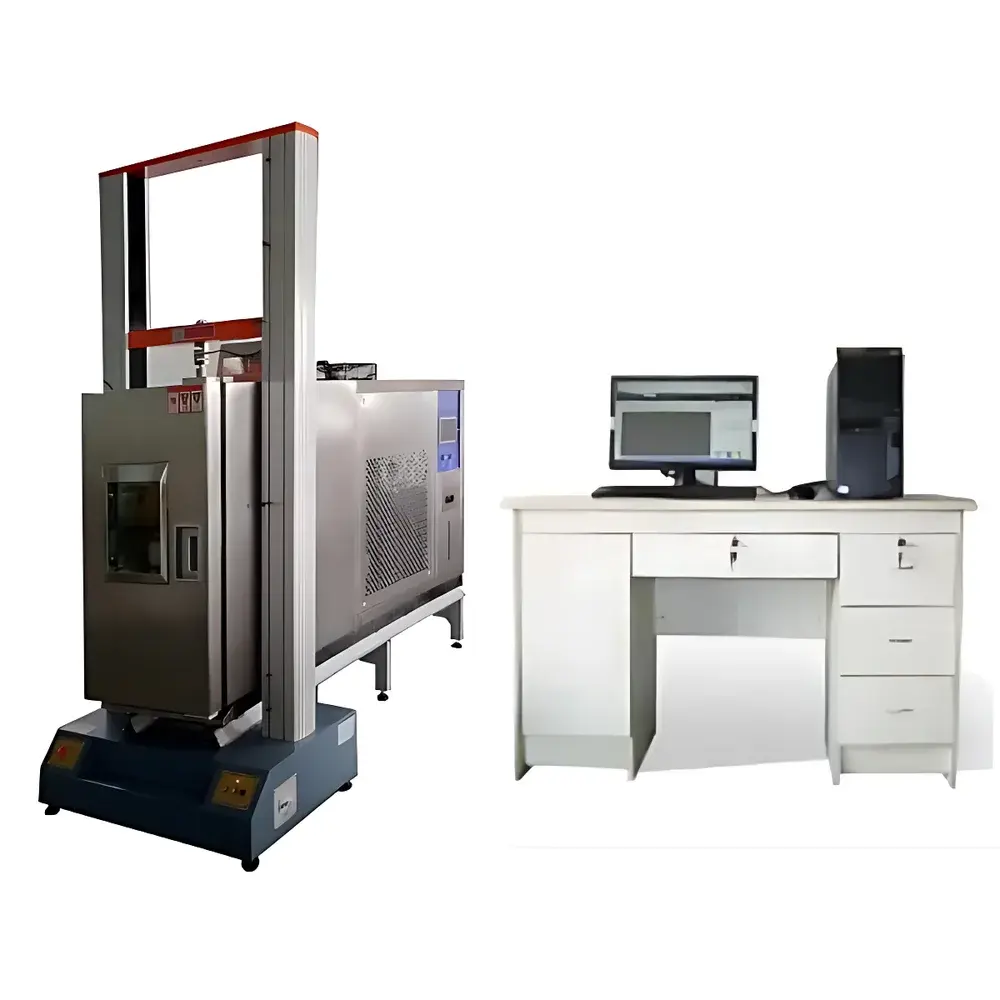

Tuofeng TFW-284 High-Low Temperature Electronic Universal Testing Machine

Overview

The Tuofeng TFW-284 High-Low Temperature Electronic Universal Testing Machine is a precision-engineered electromechanical system designed for static mechanical property characterization under controlled thermal conditions. It integrates a high-stiffness dual-column load frame with a programmable environmental chamber capable of stable operation from −40 °C to +100 °C. The system operates on the principle of servo-controlled displacement actuation, where a brushless AC motor drives a precision ball-screw mechanism to apply calibrated axial loads while synchronously measuring force, displacement, and strain via high-fidelity transducers. This architecture enables compliant execution of tensile, compressive, flexural, peel, tear, and shear tests per ISO 6892-1, ASTM E8/E21, ASTM D638/D790/D1876/D3330, GB/T 228.1, JIS Z2241, and DIN 50125 standards—both at ambient temperature and across defined thermal profiles.

Key Features

• 0.5-class accuracy certified force measurement system with ±0.5% full-scale error tolerance and 1/500,000 resolution—ensuring traceable, repeatable results across the entire 0.01 N–300 kN dynamic range.
• Integrated high-uniformity environmental chamber constructed with 304 stainless steel exterior and 316 mirror-finish interior, insulated with ceramic fiber; equipped with dual-mode thermal regulation (compressor cooling + NiCr alloy heating) and real-time PID control via Pt100 RTD sensors.
• Programmable thermal ramping and dwell capability, with verified equilibration stability of ±2 °C over 100 mm longitudinal zone and sub-5-minute stabilization time across the full operating range.
• Rigid load frame featuring 840 mm column spacing and 1000 mm crosshead travel—optimized for large specimens and multi-zone clamping configurations including wedge-action grips, pneumatic holders, and custom fixtures.
• Digital closed-loop control architecture with synchronized sampling of force, displacement, and extensometer signals at ≥1 kHz, supporting high-fidelity curve capture for strain-rate-sensitive materials.
• Comprehensive safety subsystem including leakage current protection, thermal cutoffs, emergency stop circuitry, and mechanical overload limit switches—fully compliant with IEC 61000-6-2/6-4 EMC requirements.

Sample Compatibility & Compliance

The TFW-284 accommodates metallic alloys (e.g., aluminum, titanium, stainless steels), polymers (thermoplastics, elastomers, composites), ceramics, adhesives, textiles, and thin films—provided specimen geometry conforms to standard gauge lengths and clamping constraints. Specimen mounting interfaces support ASTM E8 dog-bone, ISO 527-2 Type 1B, and GB/T 1040.2 dumbbell configurations. All test protocols align with GLP documentation requirements: audit trails, user access controls, electronic signatures, and raw data immutability are enforced in software mode. The system meets structural and electrical safety criteria per EN 61000-6-2 (immunity) and EN 61000-6-4 (emission), and supports FDA 21 CFR Part 11 compliance when configured with validated software modules.

Software & Data Management

Control and analysis are executed via Windows-based Tuofeng TestMaster™ v4.2 software—a modular platform supporting real-time test sequencing, multi-channel acquisition, and automated parameter derivation (e.g., Young’s modulus, yield strength, elongation at break, fracture energy). The software generates ISO/ASTM-compliant reports with embedded metadata (operator ID, calibration certificate numbers, environmental log files). Raw data exports in CSV, XML, and universal .tdms formats ensure interoperability with MATLAB, Python (NumPy/Pandas), and LIMS environments. Optional modules include batch test scheduling, statistical process control (SPC) dashboards, and cloud-synced data archiving with AES-256 encryption.

Applications

This system serves as a primary qualification tool in R&D and QC laboratories across aerospace (fastener cold-temperature embrittlement screening), automotive (polymer sealant low-temperature flexibility), electronics (PCB substrate thermal expansion coefficient mapping), biomedical (suture tensile performance at body-relevant temperatures), and energy sectors (battery electrode binder cohesion testing under thermal cycling). Universities utilize it for graduate-level mechanics of materials instruction, while national metrology institutes employ its traceable force chain for inter-laboratory round-robin validation studies.

FAQ

What temperature uniformity can be achieved inside the chamber during a test?
Temperature uniformity is maintained within ±2 °C over any 100 mm longitudinal segment of the test zone, verified per ASTM E2203 and IEC 60068-3-5.
Is the system compatible with extensometers for true strain measurement?
Yes—standardized interfaces support clip-on, video, and non-contact laser extensometers with analog/digital outputs, configurable via software calibration routines.
Can test sequences be programmed to include temperature ramps mid-test?
Absolutely—the environmental chamber controller synchronizes with the main test sequence, enabling predefined thermal profiles (e.g., hold at −20 °C for 10 min, ramp to +80 °C at 5 °C/min, then load).

Does the software support multi-user role-based access control?
Yes—administrator, operator, and reviewer roles enforce differential permissions for method editing, test execution, and report approval, satisfying ISO/IEC 17025 clause 7.11.2 requirements.
What is the maximum specimen height accommodated with the high-temperature chamber installed?
With the standard chamber mounted, usable crosshead travel reduces to approximately 720 mm due to chamber height constraints; custom low-profile chambers are available upon request for extended travel applications.
