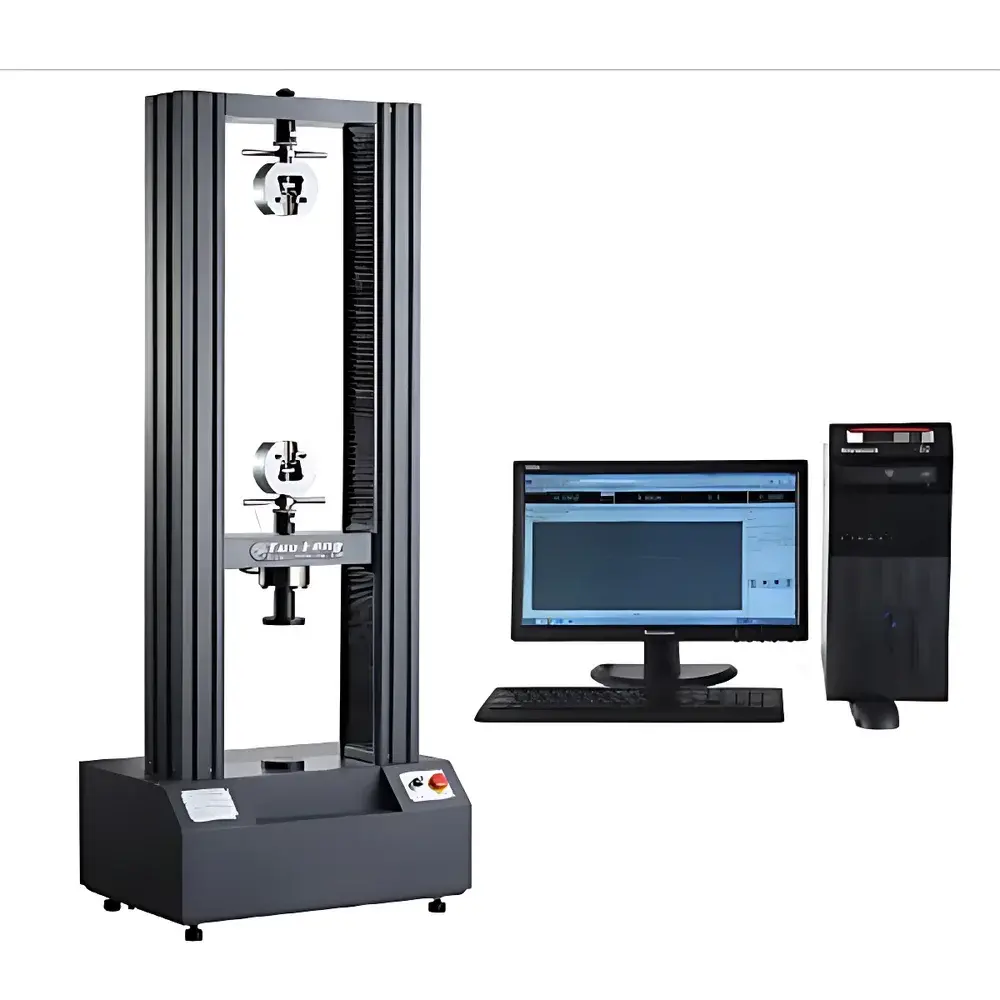

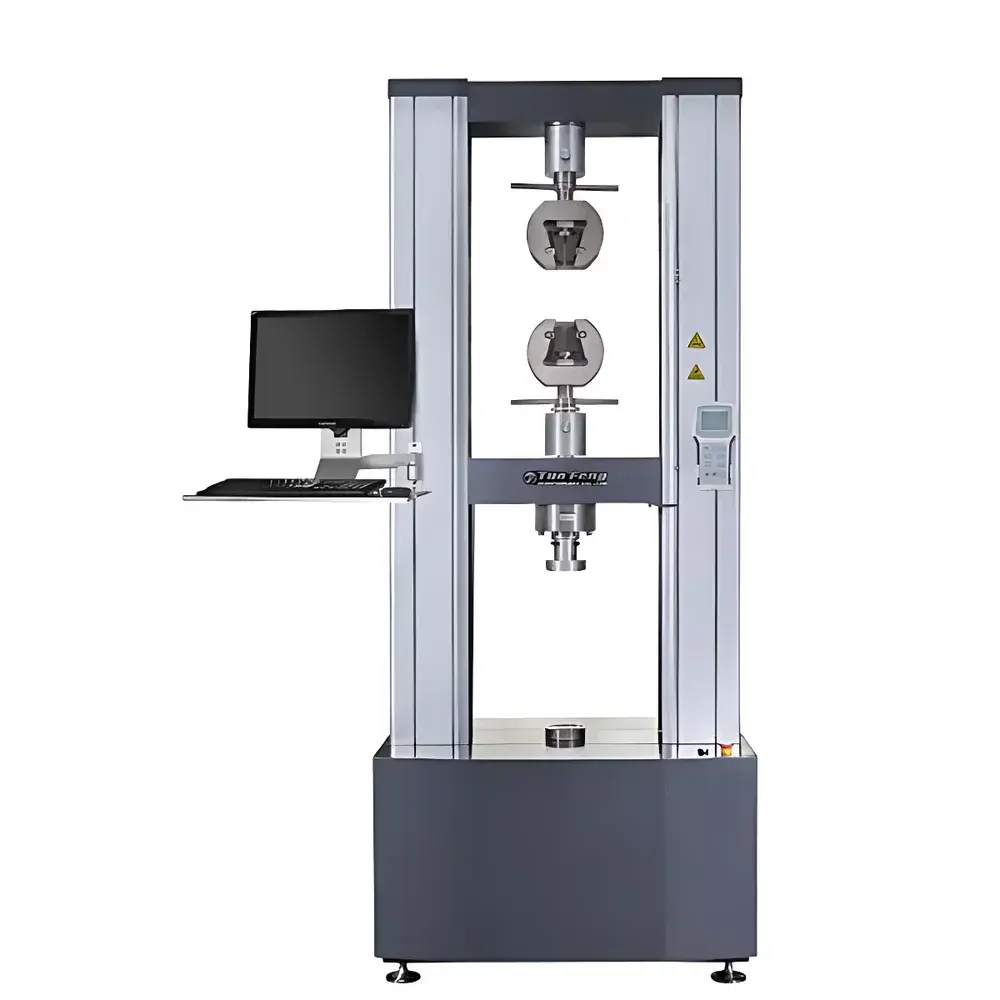

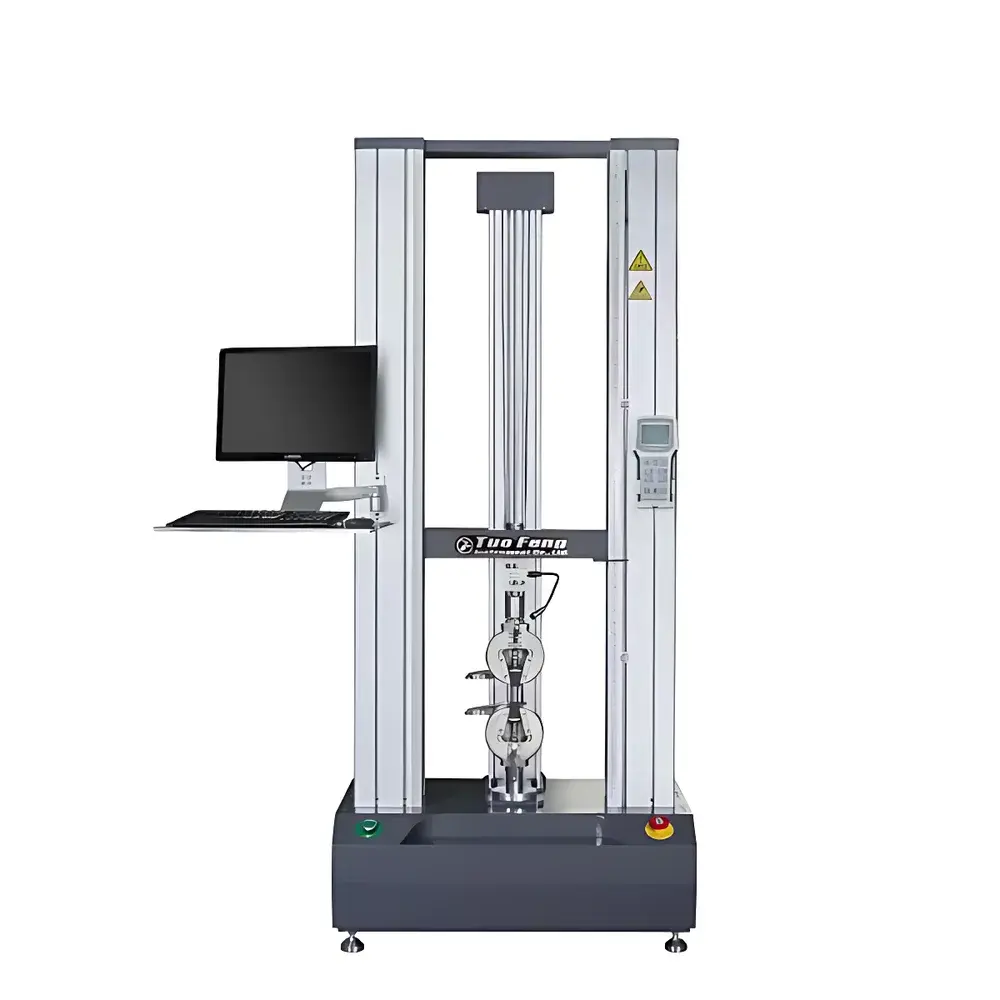

Tuofeng TFW-304 Universal Servo Electromechanical Testing Machine

Overview

The Tuofeng TFW-304 Universal Servo Electromechanical Testing Machine is an ISO 7500-1 Class 0.5-compliant static mechanical testing system engineered for high-precision tensile, compressive, flexural, shear, peel, tear, and puncture characterization of metallic, polymeric, composite, ceramic, and elastomeric materials. Based on the fundamental principles of Hooke’s law and quasi-static load-displacement transduction, the system employs a high-rigidity, four-column frame architecture coupled with a precision-ground ball-screw actuation train and a high-torque imported servo motor. Its closed-loop digital control architecture ensures stable force ramping, dwell maintenance, and displacement tracking across the full operational envelope—from sub-newton preload conditioning to 300 kN ultimate load application. Designed for traceable metrology, the machine meets national and international verification standards including GB/T 16491–2008, JJG 475–2008, ASTM E4, and ISO 7500-1, supporting audit-ready calibration documentation required under GLP and GMP environments.

Key Features

• Rigid four-column structural frame with preloaded crosshead—minimizes frame deflection and ensures axial alignment fidelity during high-load testing
• High-resolution load measurement system: 1/500,000 internal resolution, ±0.5% full-scale accuracy, verified per ISO 7500-1 Annex A
• True dual-range displacement sensing: optical encoder for gross motion (±0.005% reading) + optional clip-on or non-contact extensometer for localized strain (ASTM E83 Class B compliant)
• Infinitely variable test speed control from 0.001 to 500 mm/min, enabling both slow-rate creep compliance and rapid fracture propagation studies
• Integrated safety architecture: redundant electronic limit switches, hardware-triggered emergency stop, and software-enforced over-travel and overload cutoff (>110% FS)
• Motorized crosshead with dual-speed (fast/slow) positioning and programmable auto-return function—reduces operator intervention and improves throughput
• Modular tooling interface compatible with standardized wedge-action grips, compression platens, bend fixtures, peel jigs, and custom-designed adapters per ASTM D638, D790, D1876, D624, and ISO 527, 178, 1133

Sample Compatibility & Compliance

The TFW-304 accommodates specimens ranging from thin polymer films (<0.1 mm thick) to structural steel coupons (up to 80 mm diameter), composites (CFRP, GFRP), rubber compounds, adhesives, textiles, and biomedical implants. Its configurable test width (standard 400 mm, extendable to 600 mm) and vertical travel (800 mm, expandable) support both standard coupon geometries and full-scale component-level validation. All mechanical tests are executed in strict accordance with internationally recognized standards—including ASTM E4 (load verification), ASTM E8/E21 (tensile properties of metals), ASTM D638/D790 (plastics), ISO 527/178 (polymer mechanical testing), and GB/T 228.1 (metallic materials tensile testing). The system supports full traceability via built-in calibration certificate management and meets the data integrity requirements of FDA 21 CFR Part 11 when configured with audit-trail-enabled software modules.

Software & Data Management

Control and analysis are performed using Tuofeng’s Windows-native testing platform, compliant with IEC 62304 for medical device software lifecycle management. The software supports multiple control modes—force-controlled ramping, displacement-controlled stepping, strain-controlled cycling, and hold-dwell protocols—with real-time parameter adjustment. It provides synchronized multi-curve visualization: load vs. time, stress vs. strain, displacement vs. time, and extension vs. load—all with user-definable axes scaling and annotation tools. Raw data streams are captured at up to 1,000 Hz and stored in open-format ASCII or XML files for third-party post-processing. Reporting modules generate PDF/Excel outputs with embedded metadata (operator ID, timestamp, calibration ID, environmental conditions), statistical summaries (mean, SD, CV%), and comparative overlays across batches or material lots. Optional modules include fatigue waveform generation (sinusoidal, triangular, random), ISO 6892-1 cyclic testing workflows, and automated report templating aligned with ISO/IEC 17025 laboratory accreditation requirements.

Applications

• Mechanical property certification of aerospace-grade aluminum alloys and titanium fasteners per AMS and MIL-STD specifications
• Quality assurance of automotive thermoplastic elastomer (TPE) bushings and brake hose assemblies under ISO 8564 and SAE J2236
• Validation of biodegradable polymer scaffolds for tissue engineering under ASTM F2150 and ISO 10993-12
• Compliance testing of construction rebar, prestressed concrete tendons, and grouted anchor systems per EN 10080 and ASTM A615
• R&D evaluation of battery electrode coatings’ adhesion strength (peel) and current collector foil ductility (tensile)
• Process development support for powder metallurgy sintered parts, including green strength and sintered density correlation studies

FAQ

What international standards does the TFW-304 comply with for force calibration and verification?
The system conforms to ISO 7500-1 (static calibration), ASTM E4 (verification of force-measuring instruments), and JJG 475–2008 (Chinese national verification regulation). Certificate of conformity includes traceability to NIM (National Institute of Metrology, China) or equivalent national metrology institutes.
Can the machine perform cyclic or fatigue testing?
Yes—when equipped with the optional high-frequency servo amplifier and waveform generator module, it supports sinusoidal, trapezoidal, and block-loading profiles up to 5 Hz, meeting ISO 1099 and ASTM E466 requirements for low-cycle fatigue.
Is the software validated for regulated environments (e.g., pharmaceutical or medical device labs)?
The base software meets general laboratory use requirements; for 21 CFR Part 11 compliance, the optional “Audit Trail & e-Signature” package enables electronic records with role-based access control, immutable audit logs, and digital signature enforcement.
What extensometer options are supported for strain measurement?
Standard compatibility includes ASTM E83 Class B clip-on extensometers (10–50 mm gauge lengths), non-contact video extensometry (for brittle or high-temperature samples), and large-deformation sensors for elastomers and foams per ISO 9513.
Does the system support automated test sequencing for unattended operation?
Yes—the software allows creation of multi-step test sequences (e.g., preload → ramp → hold → unload → retest), with conditional branching based on real-time pass/fail criteria and automatic sample indexing via external PLC integration.
