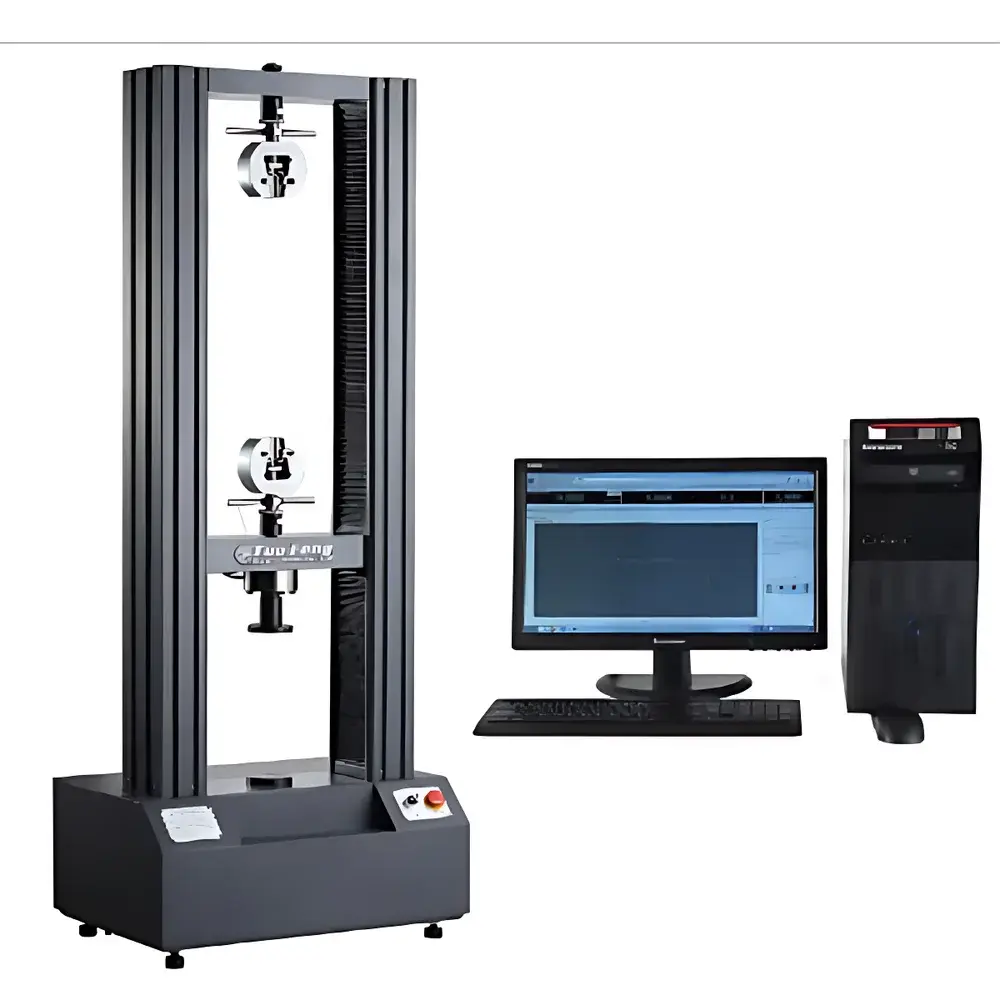

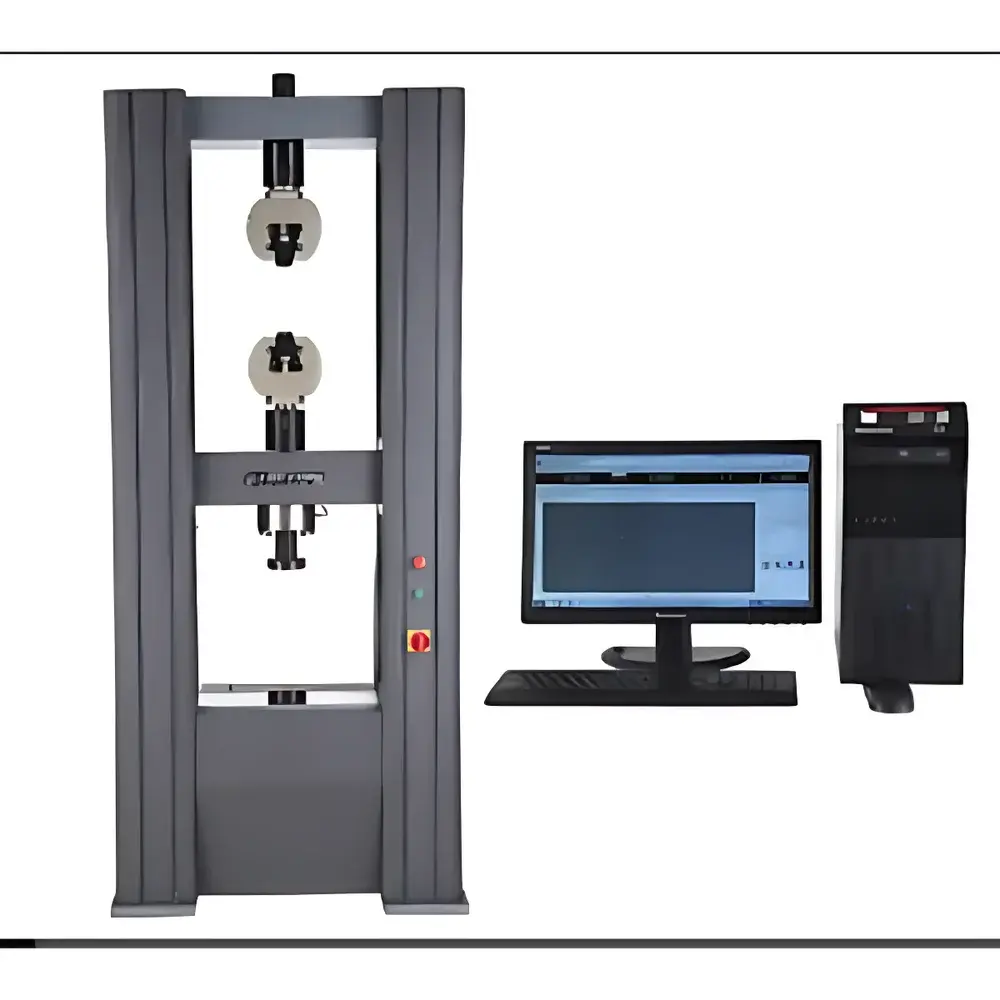

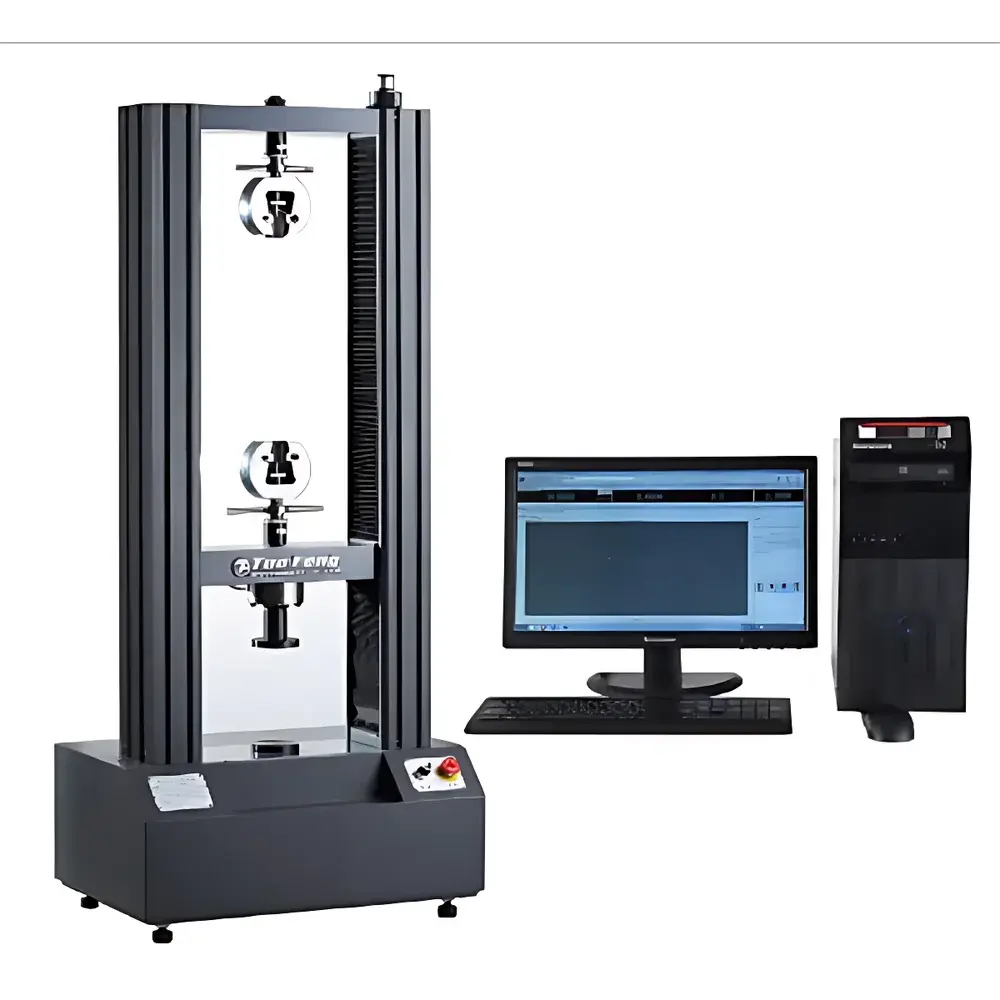

Tuofeng TFW-312 Microcomputer-Controlled Electronic Universal Testing Machine
| Brand | Tuofeng |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Model | TFW-312 |
| Load Capacity | 300 kN |
| Load Accuracy | ±0.5% |
| Test Standard Compliance | GB/T 16491-2008, JJG 475-2008, ASTM E4, ISO 7500-1, DIN 51221, JIS B 7721 |
| Accuracy Class | 0.5 |
| Effective Force Range | 0.2–100% of full scale |
| Force Resolution | 1/500,000 full-scale code (fixed resolution, no range switching) |
| Speed Range | 0.001–500 mm/min (infinitely variable) |
| Displacement Accuracy | ±0.005% of reading |
| Extensometer Compatibility | Clip-on electronic extensometer or large-deformation extensometer (optional) |
| Safety Protection | Dual-limit electronic positioning, emergency stop, overload protection (>110% FS), automatic return after test |
Overview
The Tuofeng TFW-312 Microcomputer-Controlled Electronic Universal Testing Machine is an electromechanical force-testing system engineered for high-reproducibility mechanical characterization of metallic, non-metallic, and composite materials. Based on servo-controlled electro-mechanical actuation and precision load cell transduction, it implements standardized uniaxial tensile, compressive, flexural, shear, tear, peel, and puncture testing per internationally recognized methodologies. Its architecture adheres to the metrological requirements of ISO 7500-1 (Class 0.5 calibration), ASTM E4 (verification of force-measuring systems), and GB/T 16491-2008 (Chinese national standard for electronic UTM design and performance). Designed for laboratory-grade consistency and long-term stability, the TFW-312 integrates a high-rigidity dual-column frame, preloaded precision ball screws, and a closed-loop PID-controlled AC servo drive—enabling precise displacement control, load ramping, and hold protocols essential for material property derivation such as Young’s modulus, yield strength, ultimate tensile strength, fracture elongation, and Poisson’s ratio.
Key Features
- High-force capacity of 300 kN with ±0.5% load accuracy across 0.2–100% of full scale—validated per ISO 7500-1 and JJG 475-2008
- Fixed-resolution force measurement at 1 part in 500,000 full-scale codes—eliminating range-switching artifacts and ensuring linearity integrity
- Infinitely variable crosshead speed from 0.001 to 500 mm/min, supporting quasi-static to high-rate mechanical response evaluation
- Dual-speed motorized crosshead adjustment with jog control and programmable auto-return to initial position post-test
- Comprehensive safety architecture: electronic upper/lower limit switches, hardware emergency stop circuit, and software-enforced over-load cutoff (>110% FS)
- Modular fixture interface compatible with standardized grips (pneumatic, wedge, hydraulic), bending jigs, peel fixtures, and custom tooling per ASTM D638, D790, D1876, D3330, etc.
- Thermally stable load cell with temperature-compensated strain gauge bridge and low-drift signal conditioning
Sample Compatibility & Compliance
The TFW-312 accommodates specimens ranging from thin polymer films (≥0.05 mm thick) to structural steel coupons (up to 60 mm width × 25 mm thickness), concrete cylinders (Φ100 × 200 mm), and composite laminates (up to 300 mm span in three-point bend). It supports standardized test geometries defined in ASTM D638 (tensile plastics), ASTM D3039 (composite tensile), ISO 527-2 (plastics), ISO 6892-1 (metals), EN 10002-1 (metallic materials), and GB/T 228.1 (Chinese metal tensile standard). All mechanical outputs—including stress-strain curves, modulus calculations, and failure mode annotations—are traceable to NIST-traceable calibration certificates. The system meets GLP documentation requirements and supports audit-ready data logging compliant with FDA 21 CFR Part 11 when configured with user authentication, electronic signatures, and immutable audit trails.
Software & Data Management
The Windows-based testing software provides multi-mode control (constant rate of extension, constant load, constant strain, load hold, displacement hold) and real-time visualization of up to four synchronized plots: load–time, load–displacement, displacement–time, and stress–strain. Units are freely convertible between SI, imperial, and legacy systems (e.g., MPa/kPa, psi, kgf, lbf, mm/inch, %). Raw data streams are recorded at ≥1 kHz sampling rate and stored in ASCII-compatible .csv format for third-party analysis (MATLAB, Python, Excel). The software includes automated parameter extraction—yield point (0.2% offset method), tensile strength, elongation at break, modulus (secant/tangent), compression set, and peel adhesion energy—with customizable pass/fail thresholds. Batch reporting supports statistical summarization (mean, SD, CV%) across specimen groups, curve overlay comparison, and PDF/printer-ready reports with embedded metadata (operator ID, calibration date, environmental conditions).
Applications
The TFW-312 serves as a primary mechanical validation platform across R&D, QA/QC, and regulatory submission workflows. In aerospace, it characterizes carbon-fiber prepreg tensile behavior under elevated temperature fixtures. In automotive supply chains, it verifies rubber bushing compression set and thermoplastic elastomer tear resistance per SAE J2236. In medical device manufacturing, it validates suture tensile strength (ISO 10993-12) and catheter shaft kink resistance (ASTM F2476). Construction labs use it for rebar yield verification (ASTM A615), while polymer compounders rely on it for masterbatch dispersion assessment via tensile modulus variation. Academic institutions deploy it for fundamental viscoelastic modeling (time–temperature superposition) and fracture mechanics studies (J-integral estimation using compliance methods).
FAQ
Does the TFW-312 support ASTM E8/E8M for metallic tensile testing?
Yes—the system meets all dimensional, alignment, and measurement accuracy requirements specified in ASTM E8/E8M, including extensometer compatibility for strain measurement and verified grip alignment per Annex A3.
Can the software generate GLP-compliant audit trails?
When deployed with optional user-role management and digital signature modules, the software logs operator actions, calibration events, and data modifications with timestamps and immutable hashes—fully satisfying GLP and 21 CFR Part 11 electronic record requirements.
Is thermal expansion compensation available for high-temperature testing?
The base configuration does not include integrated furnace or environmental chamber control; however, the machine’s mechanical frame and load train are rated for ambient operation (10–35°C, ≤80% RH). Optional high-temperature test chambers (up to 1000°C) can be interfaced via analog I/O and synchronized through the software’s external device protocol.
What is the warranty and service coverage?
Tuofeng provides a 24-month parts-and-labor warranty, lifetime firmware updates, and remote diagnostic support. On-site calibration and preventive maintenance services are available globally through authorized service partners with ISO/IEC 17025-accredited laboratories.
Are custom test methods programmable without coding?
Yes—the software includes a graphical test sequence editor allowing users to define multi-step protocols (e.g., preload → ramp to 50% FS → hold 60 s → ramp to failure) using drag-and-drop logic blocks, with no programming required.
