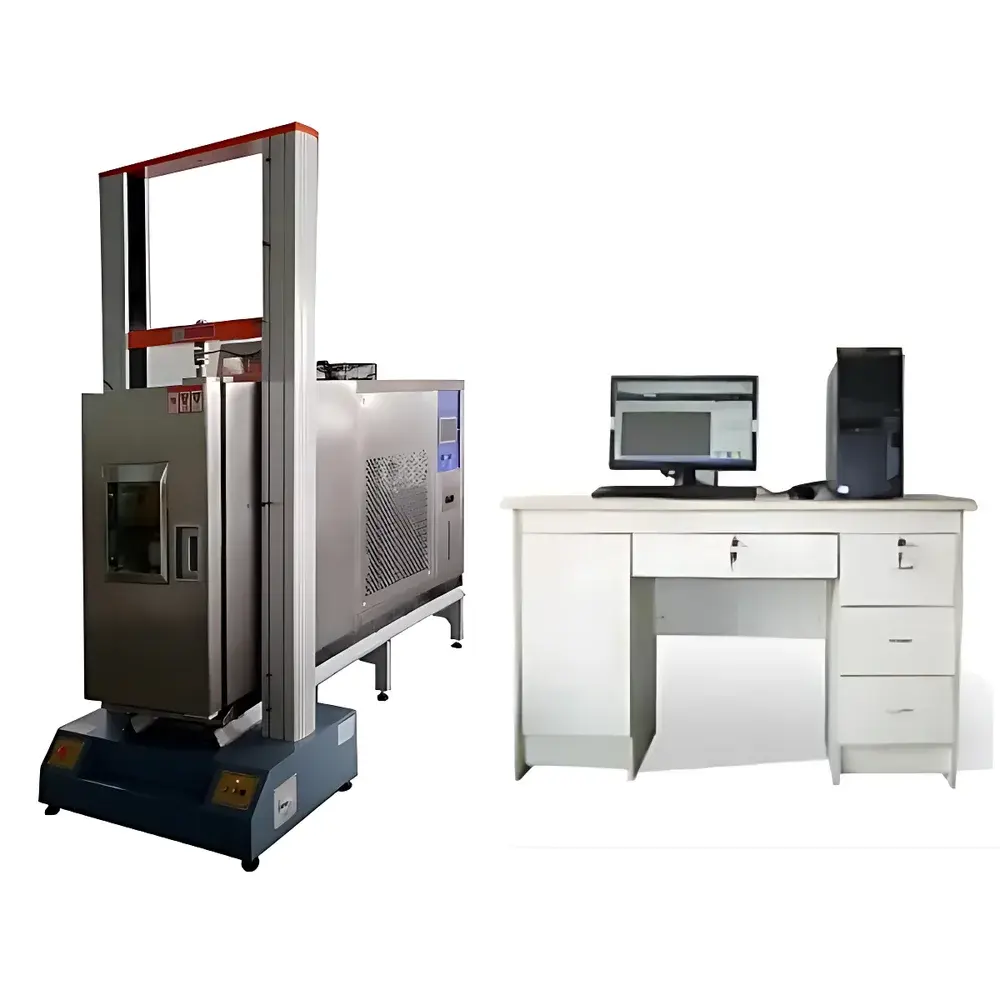

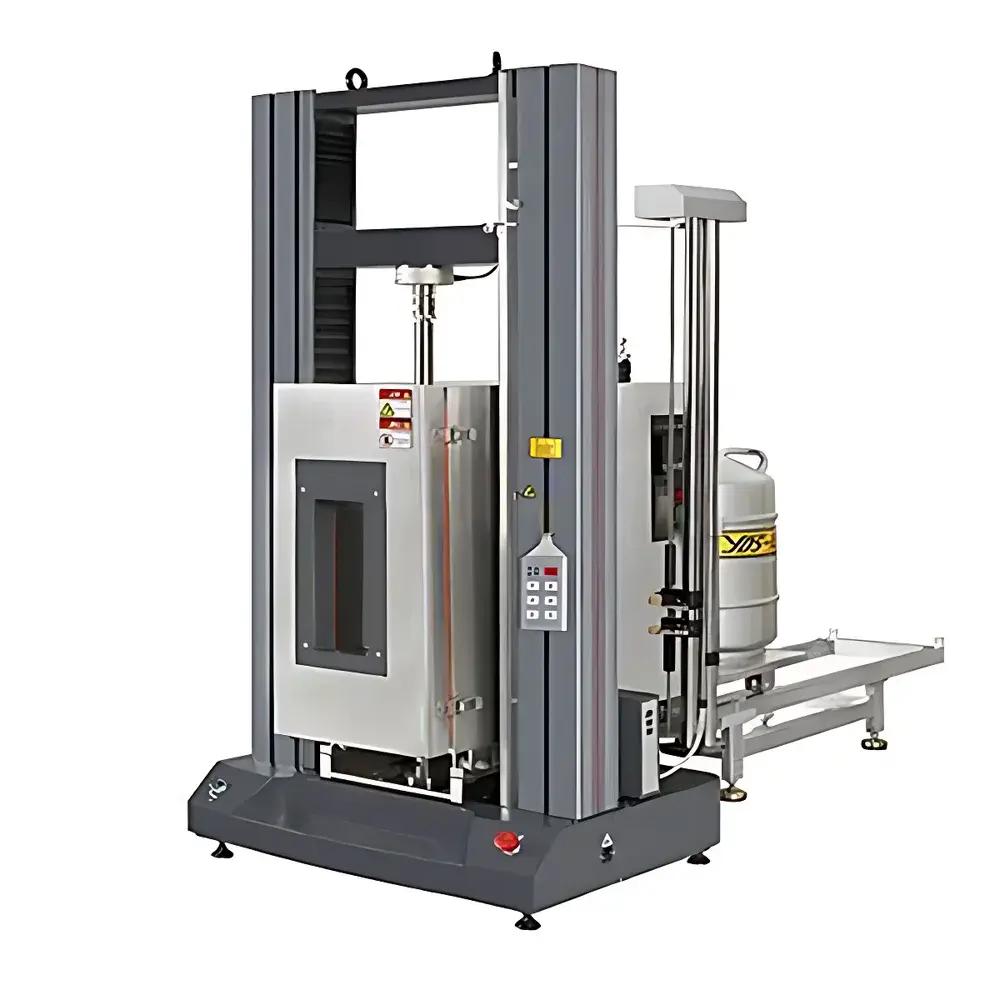

Tuofeng TFW-318 Intelligent Universal Testing Machine with Integrated Environmental Chamber

Overview

The Tuofeng TFW-318 Intelligent Universal Testing Machine is a fully integrated electromechanical testing system engineered for high-precision mechanical characterization of materials across extreme thermal conditions. Unlike conventional ambient-only testers, the TFW-318 incorporates a rigorously validated environmental chamber—designed and calibrated to maintain stable, programmable temperature profiles from –40 °C to +100 °C—enabling standardized tensile, compression, flexural, tear, peel, and shear testing per ISO 6892-1, ASTM E8 (metals), ASTM D638 (plastics), ASTM D790 (rigidity), and ASTM D143 (wood). Its load frame features a rigid dual-column architecture with 840 mm internal clearance and 1000 mm vertical travel (adjustable per chamber configuration), supporting specimen geometries compliant with international test method requirements. The system operates on closed-loop servo control with real-time digital signal processing, delivering traceable force measurement across its full 0.02 N–300 kN range at ≤±0.5% accuracy relative to reading—certified to ISO 7500-1 Class 0.5.

Key Features

• Integrated environmental chamber with programmable temperature control (–40 °C to +100 °C), ±2 °C uniformity over 100 mm axial zone, and ≤5 min thermal stabilization time above and below 0 °C
• High-resolution force transduction: 1/500,000 full-scale resolution, no range switching required; maintains consistent fidelity across entire load span
• Strain measurement capability via extensometer interface (optional) or crosshead displacement tracking with ±0.5% positional error
• Modular chamber design featuring 316 stainless steel interior, ceramic fiber insulation, dual-stage thermal isolation (front/rear pull-out shields), and 50 mm-diameter top/bottom access ports for seamless specimen loading
• Windows-based control software compliant with FDA 21 CFR Part 11 (audit trail, electronic signature, user role management) and GLP/GMP documentation workflows
• Automatic calculation of standard mechanical parameters—including ultimate tensile strength (UTS), yield strength (Rp0.2), modulus of elasticity, elongation at break, compressive yield stress, flexural modulus, and peel adhesion energy—per configurable test templates

Sample Compatibility & Compliance

The TFW-318 accommodates metallic specimens (rods, sheets, wires), polymeric films and molded parts, elastomeric compounds, composite laminates, ceramics, adhesives, textiles, and biomedical polymers. Specimen grips include pneumatic, wedge, hydraulic, and custom-threaded options rated to 300 kN. All test procedures align with regulatory and industrial standards including ISO 527 (plastics), ISO 178 (flexure), ISO 1133 (melt flow index correlation), ASTM D412 (rubber tension), ASTM D3039 (composite tensile), and EN 10002-1. Chamber performance is verified per IEC 60068-3-5 (thermal shock) and ASTM E220 (temperature uniformity mapping). System calibration certificates are issued in accordance with ISO/IEC 17025-accredited protocols.

Software & Data Management

The embedded Windows 10–based TestMaster™ software provides real-time data acquisition at up to 10 kHz sampling rate, synchronized multi-channel logging (load, displacement, temperature, strain), and automated curve fitting (e.g., Young’s modulus via initial linear slope). Users define test sequences using drag-and-drop workflow builder, assign pass/fail criteria against specification limits, and generate PDF/Excel reports with embedded metadata (operator ID, calibration date, environmental log, raw data export). Raw binary files (.tdf) retain full traceability; audit logs record all parameter modifications, report generation events, and user authentication actions. Optional integration with LIMS and MES platforms supports enterprise-level data governance.

Applications

This platform serves quality assurance laboratories in aerospace component suppliers (e.g., titanium alloy tensile verification at –40 °C), polymer compounders validating low-temperature impact resistance of PP/EPDM blends, R&D teams assessing thermal aging effects on silicone elastomer modulus, battery material developers characterizing separator film tensile retention after thermal cycling, and academic researchers studying cryogenic deformation mechanisms in shape-memory alloys. It is routinely deployed in third-party certification labs accredited to ISO/IEC 17025 for issuing EN 10204 3.1 mill test reports and ASTM-certified material property declarations.

FAQ

Does the TFW-318 meet ISO 17025 calibration traceability requirements?
Yes—force sensors, displacement encoders, and chamber temperature probes are calibrated using NIST-traceable standards, with certificates issued by an ILAC-MRA signatory laboratory.
Can the environmental chamber be operated independently of mechanical testing?
Yes—the chamber functions as a standalone thermal conditioning unit with full programmable ramp/soak profiles and independent data logging.
What is the maximum specimen height accommodated when the chamber is installed?
With standard chamber mounting, usable vertical stroke is 1000 mm; custom configurations support up to 1200 mm upon request.
Is ASTM E23 (notched bar impact) testing supported?
No—impact testing requires separate Charpy/Izod hardware; however, the TFW-318 supports quasi-static fracture toughness evaluation (e.g., ASTM E399) using pre-cracked specimens.
How is temperature uniformity validated across the test zone?
Pre-delivery validation includes 9-point thermocouple mapping per IEC 60068-3-5, with deviation ≤±2 °C reported in the factory acceptance test (FAT) report.
