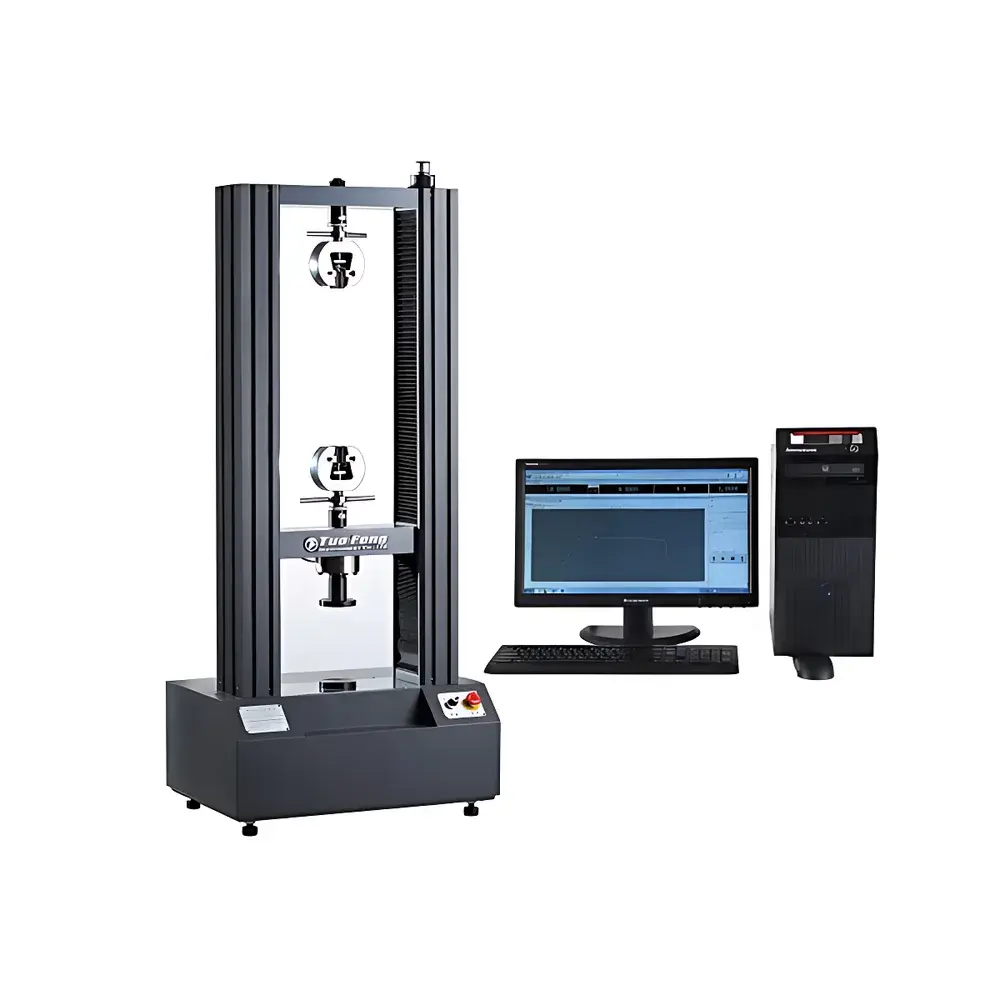

Tuofeng TFW-40 Universal Testing Machine for Rubber and Plastic Materials

Overview

The Tuofeng TFW-40 Universal Testing Machine is an electromechanical, dual-column, microprocessor-controlled system engineered for high-fidelity mechanical property characterization of polymeric, elastomeric, composite, and metallic materials. Based on the principle of controlled axial force application via precision servo-driven ball screw actuation, the instrument delivers traceable, repeatable, and compliant measurements of tensile, compressive, flexural, shear, tear, peel, and puncture behavior. Its closed-loop control architecture ensures dynamic load and displacement regulation across a wide operational envelope—from quasi-static creep testing at 0.001 mm/min to high-speed rupture analysis up to 500 mm/min—enabling rigorous evaluation of both linear elastic and nonlinear viscoelastic response under standardized conditions.

Key Features

• 0.5-class accuracy certified per GB/T 16491–2008 and JJG 475–2008, with force resolution of 1 part in ±500,000 full-scale and consistent linearity across 0.2–100% of rated capacity (40 kN)
• Imported servo motor coupled to a backlash-free worm gear reducer and preloaded high-precision ball screw, ensuring smooth motion, minimal hysteresis, and long-term dimensional stability
• Dual-speed motorized crosshead with programmable fast/slow modes, emergency stop circuitry, electronic travel limits, and overload cutoff (>110% FS) for operator and specimen safety
• Modular extensometry support: compatible with clip-on axial extensometers (for modulus and yield determination) and large-deformation video or mechanical gauges (for rubber elongation >500%)
• Robust structural frame (steel-reinforced welded base and uprights) with 400 mm effective test width and 800 mm vertical stroke—expandable per ASTM E4 requirements for oversized specimens
• Integrated digital signal conditioning with real-time filtering, anti-aliasing, and synchronized sampling (≥1 kHz) for force, displacement, and optional strain channels

Sample Compatibility & Compliance

The TFW-40 accommodates standard and non-standard specimens per ISO 527 (plastics), ASTM D638 (tensile), ASTM D790 (flexure), ISO 178 (flexural strength), ASTM D624 (tear), ASTM D903 (peel), and ISO 1133 (melt flow index correlation). Its modular grip system supports pneumatic, wedge, hydraulic, and custom-designed fixtures—including rubber dumbbells, plastic films, fiber-reinforced laminates, and elastomer O-rings. The system complies with national and international metrological standards: GB/T 16491–2008 (Chinese universal testing machine specification), JJG 475–2008 (verification regulation), and aligns with traceability frameworks required under ISO/IEC 17025. It supports audit-ready documentation for GLP and GMP environments when paired with optional 21 CFR Part 11–compliant software modules.

Software & Data Management

The Windows-based Tuofeng TestSuite v5.2 provides multi-language UI (English, Simplified/Traditional Chinese), customizable unit systems (N/kN/lbf, mm/in, MPa/psi), and six real-time display modes: Load–Time, Load–Displacement, Displacement–Time, Stress–Strain, Load–Extension, and custom user-defined plots. All curves are overlaid with statistical overlays (max/min/mean), automatic parameter extraction (UTS, YS, E, %Elongation, %Reduction in Area, Tear Strength, Peel Adhesion), and batch comparison tools. Raw data exports to CSV, Excel, and XML; reports include metadata (operator ID, timestamp, calibration certificate ID, environmental conditions). Audit trails log all user actions, method changes, and calibration events. Firmware and software upgrades are provided free of charge for the lifetime of the instrument.

Applications

The TFW-40 serves as a primary mechanical characterization platform in R&D labs and QC departments across rubber compounding, thermoplastic extrusion, automotive NVH component validation, medical device polymer qualification, aerospace sealant certification, and cable sheath integrity testing. Typical use cases include: determining Mooney viscosity–correlated tensile set in EPDM compounds; evaluating fracture toughness of TPU films under ASTM D882; validating compression set resistance of silicone gaskets per ASTM D395; quantifying peel adhesion of pressure-sensitive adhesives on PET substrates (ASTM D903); and assessing flexural rigidity of biodegradable PLA composites per ISO 178. Its repeatability (CV < 0.8% for tensile modulus on standard PP specimens) meets ISO 527–2 interlaboratory precision requirements.

FAQ

Does the TFW-40 meet ASTM and ISO standard compliance requirements for accredited testing labs?

Yes—the system’s mechanical design, metrological performance, and software validation protocols align with ASTM E4, ISO 7500-1, and ISO 527 series. Calibration certificates include uncertainty budgets traceable to NIM (China) or NIST-equivalent references.
Can the machine perform cyclic loading or dwell tests?

Yes—TestSuite supports programmed load/strain hold, ramp-hold-ramp sequences, and staircase fatigue profiles with user-defined step counts, dwell durations, and amplitude modulation.
Is third-party calibration and IQ/OQ/PQ documentation available?

Yes—Tuofeng provides factory calibration reports, and qualified service partners offer on-site IQ/OQ/PQ execution per ISO 13485 and FDA guidance for regulated industries.
What is the warranty coverage and service response time?

Standard 24-month parts-and-labor warranty; extended service contracts include remote diagnostics, annual preventive maintenance, and <72-hour onsite response for critical failures within mainland China.
Are test methods pre-loaded for common polymer standards?

Yes—over 40 method templates are embedded (e.g., ASTM D638 Type I, ISO 527–2 1A, ASTM D790 3-point bend), each with default parameters, pass/fail criteria, and report formatting per standard annexes.
