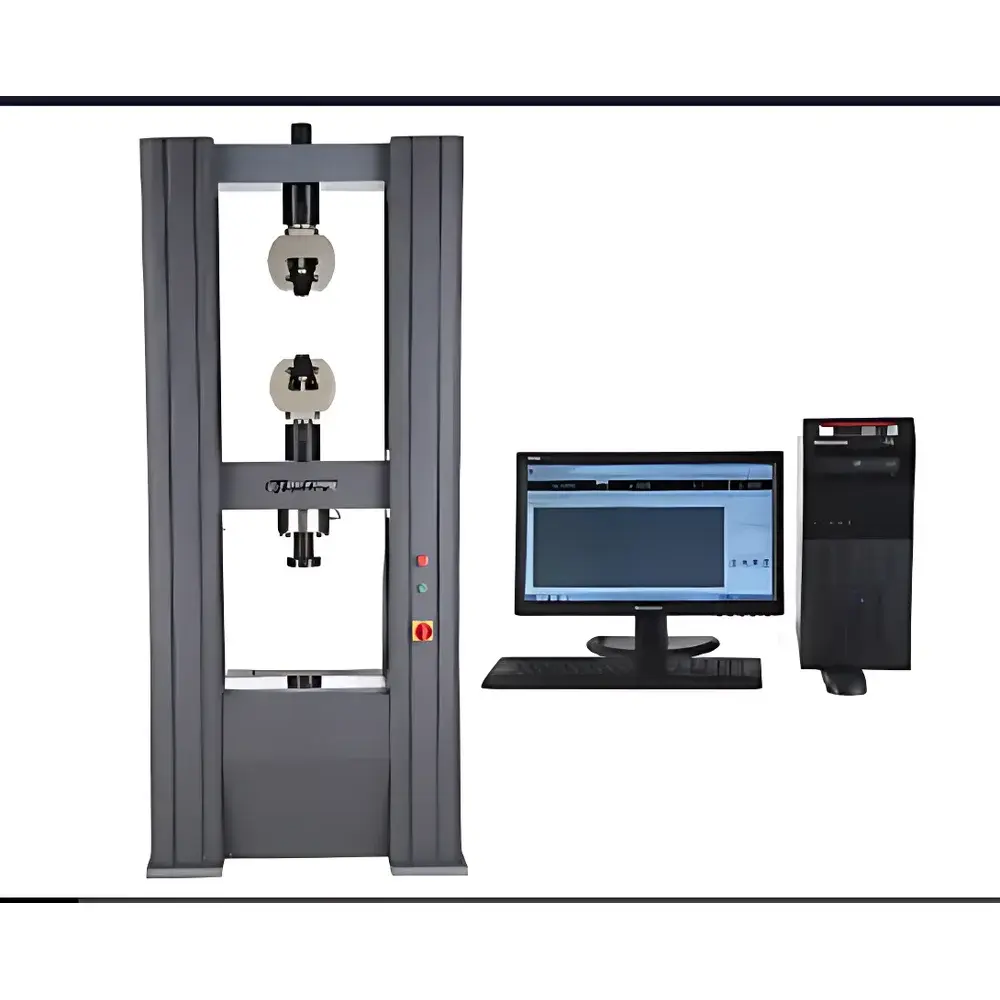

Tuofeng TFW-66 Microcomputer-Controlled Electromechanical Universal Testing Machine

Overview

The Tuofeng TFW-66 is a microcomputer-controlled electromechanical universal testing machine engineered for high-precision static mechanical property evaluation of geosynthetic materials, soils, geomembranes, geotextiles, geogrids, and related civil engineering construction materials. Based on the fundamental principles of uniaxial tensile loading under controlled displacement or load rate, the system applies calibrated axial force via a high-rigidity dual-column frame and precision ball-screw actuation, enabling compliant execution of tension, compression, bending, shear, tear, peel, and puncture tests per standardized protocols. Its architecture adheres to ISO 7500-1 Class 0.5 accuracy requirements for force measurement and incorporates real-time closed-loop control of crosshead motion—ensuring reproducible strain rates across the full operational range (0.001–500 mm/min). Designed specifically for geotechnical laboratories, quality assurance departments in infrastructure contractors, and third-party certification bodies, the TFW-66 delivers traceable, auditable mechanical data essential for compliance with international design specifications and regulatory acceptance.

Key Features

• High-capacity load frame rated for 200 kN maximum static load, with structural rigidity optimized to minimize deflection during high-force geosynthetic tensile testing
• Force transducer calibrated to ±0.5% of reading over 0.2–100% full-scale range, certified per ISO 376 and traceable to national metrology institutes
• Precision ground ball-screw drive system coupled with imported servo motor and planetary gearbox, delivering smooth, low-backlash motion control
• Displacement resolution of 0.001 mm achieved via high-resolution optical encoder, with position accuracy of ±0.005% of reading
• Dual-speed automatic crosshead adjustment (fast/slow modes) and programmable return-to-start function for efficient multi-specimen throughput
• Integrated safety subsystem including electronic limit switches, emergency stop circuitry, and overload protection (auto-shutdown at >110% FS)
• Modular fixture interface supporting ASTM D4595 (geotextile tensile), ASTM D6637 (geogrid tensile), ISO 10319 (geosynthetic wide-width tensile), and EN ISO 13432 (peel strength) configurations

Sample Compatibility & Compliance

The TFW-66 accommodates specimens up to 600 mm effective test width and 1000 mm travel height—enabling full-width testing of geotextiles per ISO 10319 and ASTM D4595 without edge-effect bias. Standard configurations include pneumatic wedge grips, roller grips for low-modulus geomembranes, and specialized peel fixtures for geocomposite bonding assessment. All mechanical measurements comply with ISO/IEC 17025 technical requirements for testing laboratories. The system meets mandatory verification criteria outlined in JJG 475–2008 (China National Verification Regulation for Electronic Universal Testing Machines) and conforms to the design and performance benchmarks of GB/T 16491–2008. It supports full traceability for GLP/GMP environments through audit-ready calibration records and instrument qualification documentation.

Software & Data Management

The embedded Windows-based testing software provides ISO 17025-aligned data integrity controls, including user-level access permissions, electronic signatures, and FDA 21 CFR Part 11-compliant audit trails for all test parameter changes and result exports. Users may select from multiple control modes—including constant-rate-of-traverse (CRT), constant-rate-of-load (CRL), load-hold, displacement-hold, and stress-relaxation protocols. Real-time visualization includes synchronized force–displacement, stress–strain, and time-series plots with on-screen readouts of peak load, yield point, modulus (secant/tangent), elongation at break, and energy absorption. Raw data export is supported in CSV, Excel, and XML formats; curve overlay functionality enables comparative analysis across material batches or supplier qualifications. Software supports multilingual UI (English, Simplified/Traditional Chinese), customizable unit systems (N/kN/lbf, mm/in, MPa/psi), and automated report generation compliant with ASTM E29, ISO 5725, and internal QA templates.

Applications

• Tensile strength and elongation testing of nonwoven and woven geotextiles per ASTM D4595 and ISO 10319
• Mechanical characterization of HDPE, LLDPE, and PVC geomembranes under uniaxial and biaxial loading conditions
• Peel strength evaluation of laminated geocomposites and geosynthetic clay liners (GCLs)
• Compressive behavior analysis of geocells and expanded polystyrene (EPS) geofoam blocks
• Bending stiffness and flexural modulus determination of geogrids per ASTM D6637
• Quality conformance testing for ISO 9001-certified manufacturing facilities and CE-marked product declarations
• Research-grade mechanical modeling input for finite element analysis (FEA) of reinforced soil structures

FAQ

What standards does the TFW-66 support for geosynthetic testing?
The system natively supports ASTM D4595, D6637, D6364, ISO 10319, ISO 13432, EN 13266, and GB/T 17639–2008, with configurable test templates and reporting formats aligned to each standard’s requirements.
Can the machine perform creep or stress relaxation tests?
Yes—the software includes dedicated modules for time-dependent mechanical testing, allowing users to define hold durations, ramp rates, and recovery phases under load or displacement control.
Is third-party calibration and IQ/OQ/PQ documentation available?
Tuofeng provides factory calibration certificates traceable to CNAS-accredited labs; optional IQ/OQ/PQ packages are available upon request for regulated environments requiring GxP validation.
What is the warranty and service coverage?
Standard warranty covers parts and labor for 24 months from commissioning; lifetime software updates and remote technical support are included at no additional cost.
How is data security ensured during long-term testing campaigns?
All test files are automatically timestamped, digitally signed, and stored in encrypted local databases; network-enabled versions support secure FTP/SFTP transfer to centralized LIMS platforms with role-based access controls.
