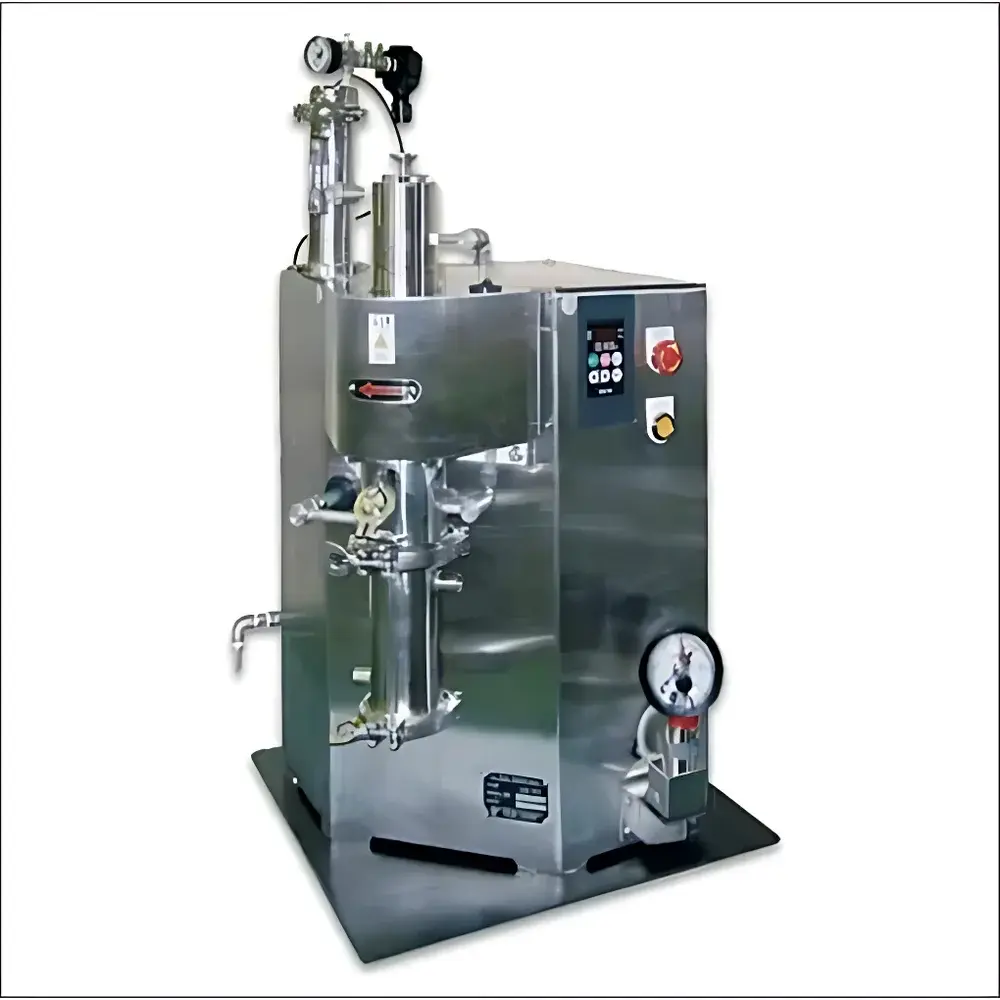

Ultra Apexmill Ultra-Fine Bead Mill by HM&M (Japan)
| Key | Brand: HM&M (Japan) |
|---|---|
| Origin | Japan |
| Equipment Type | Vertical Bead Mill |
| Model | Ultra Apexmill |
| Grinding Media Size Range | Φ15 µm – Φ1 mm |
| Feed Particle Size | >10 µm |
| Final Particle Size | <10 µm (down to 20 nm in optimized slurry dispersion) |
| Batch Processing Volume | 60 mL |
| Drive Motor Power | 2.2–55 kW (model-dependent) |
| Bead Separation Principle | Centrifugal Bead Separator (Patented) |
Overview
The Ultra Apexmill is a high-precision vertical bead mill engineered for ultra-fine comminution and nanoscale dispersion of challenging solid materials in liquid suspensions. Developed and manufactured in Japan by HM&M, it operates on the principle of wet grinding via high-energy collision and shear forces between rotating agitator elements and precisely selected grinding media. Its defining innovation—the world’s first centrifugal bead separator—enables stable, clog-free retention of sub-100 µm beads (down to Φ15 µm), a capability unmatched by conventional screen- or dynamic-gap-based separation systems. This architecture allows consistent processing of slurries containing ceramics, electronic oxides (e.g., BaTiO₃, ITO, ZnO), organic pigments, pharmaceutical active ingredients (APIs), and high-performance optical coatings. The system is designed for laboratory-scale process development and pilot-scale validation under reproducible, scalable conditions aligned with Good Manufacturing Practice (GMP) and GLP frameworks.
Key Features
- Centrifugal Bead Separation Technology: Patented separator operates at peripheral speeds of 8–12 m/s, enabling reliable retention of grinding media from Φ15 µm to Φ1 mm without mechanical adjustment—eliminating downtime during media changeover.
- Nanoscale Dispersion Capability: Validated performance down to 20 nm median particle size (D₅₀) in aqueous and organic slurries, demonstrated across ceramic precursors, conductive nanoparticles (Ag, ITO), and pharmaceutical APIs.
- Multi-Scale Grinding Flexibility: Single-unit operation supports both coarse pre-milling (using Φ0.5–1 mm beads) and final nanodispersion (using Φ0.015–0.1 mm beads), reducing cross-contamination risk and streamlining multi-stage workflows.
- Hygienic Design & Cleanability: Fully drainable vertical chamber with minimal dead volume; optimized gasket geometry and crevice-free sealing surfaces meet stringent requirements for pharmaceutical, cosmetic, and food-grade applications per ISO 22000 and FDA 21 CFR Part 11 traceability guidelines.
- Modular Scalability: Seven standard models (UAM-015 to UAM-30) cover internal volumes from 0.15 L to 30 L, motor power from 2.2 kW to 55 kW, and throughput scalability while maintaining identical fluid dynamics and stress profiles.
Sample Compatibility & Compliance
The Ultra Apexmill accommodates a broad spectrum of brittle, semi-brittle, and composite materials—including metal oxides (Al₂O₃, SiO₂), piezoelectric ceramics, polymer nanocomposites, crystalline pigments, and amorphous pharmaceutical intermediates. It is routinely employed in R&D environments where regulatory documentation is critical: full audit trails for operational parameters (speed, temperature, pressure, batch ID) are supported via optional data logging modules compliant with 21 CFR Part 11. The equipment meets CE machinery directive standards (2006/42/EC) and conforms to ISO 13857 (safety distances) and ISO 14120 (guarding). For GMP facilities, IQ/OQ documentation packages and material-of-construction certificates (SS316L contact parts, EPDM/FKM seals) are available upon request.
Software & Data Management
While the base Ultra Apexmill operates via analog controls with digital tachometer and thermal monitoring, optional integrated control units provide RS-485/Modbus RTU or Ethernet/IP connectivity for integration into centralized lab management systems (LIMS). Process parameters—including agitator speed, jacket temperature, inlet/outlet pressure differential, and total processing time—are logged at user-defined intervals (1–60 s resolution) with timestamped CSV export. All firmware adheres to IEC 62443-3-3 cybersecurity principles for industrial control systems. Audit trail functionality ensures immutable records required for FDA inspections and internal quality audits.
Applications
- Preparation of nanosized BaTiO₃ dispersions for high-k dielectric inks
- Deagglomeration of ITO and ATO nanoparticles for transparent conductive films
- Size reduction of organic pigment crystals (e.g., phthalocyanines) to ≤50 nm for inkjet colorants
- Top-down nanomilling of API particles to enhance dissolution kinetics (e.g., 200 nm target for BCS Class II compounds)
- Stabilization of ZnO and TiO₂ suspensions for UV-filter cosmetics with optical transparency preservation
- Production of monodisperse silica abrasives for CMP slurries with D₉₀ < 30 nm
FAQ
What is the smallest grinding media diameter supported?
The Ultra Apexmill is validated for Φ15 µm (0.015 mm) ceramic or zirconia beads—the smallest commercially deployed size in industrial bead mills.
Can the same unit process both micron- and nano-scale dispersions?
Yes. By switching between Φ0.5–1 mm beads for coarse milling and Φ0.015–0.1 mm beads for final dispersion, one system replaces two dedicated units without recalibration.
Is cleaning validation support available for pharmaceutical use?
Yes. HM&M provides swab test protocols, residue limit calculations per ICH Q5C, and surface roughness (Ra) certification for all wetted parts.
Does the centrifugal separator require periodic maintenance?
No scheduled maintenance is required. The separator has no moving parts, wear surfaces, or replaceable filters—only routine inspection of rotor balance and bearing lubrication per OEM schedule.
What documentation accompanies the system for regulatory submissions?
Standard delivery includes Factory Acceptance Test (FAT) report, Material Certificates (EN 10204 3.1), EC Declaration of Conformity, and electrical safety test reports (IEC 61000-6-2/6-4).
