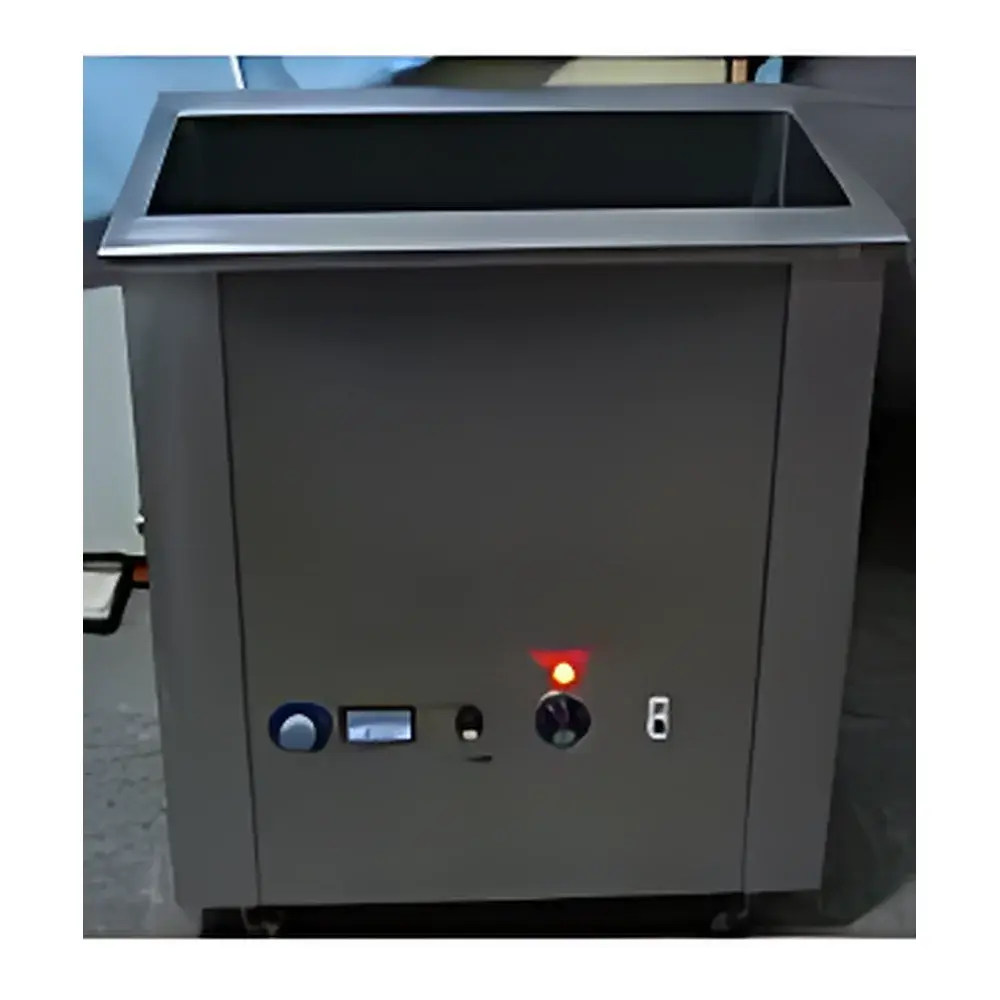

Ultrasound Tech QT1000 / QTR1000 Industrial Ultrasonic Cleaner – 72L Capacity, 40 kHz, 1000 W

Overview

The Ultrasound Tech QT1000 and QTR1000 are industrial-grade ultrasonic cleaning systems engineered for high-reliability operation in laboratory, medical device reprocessing, precision manufacturing, and quality assurance environments. These 72-liter units operate at a fundamental frequency of 40 kHz—optimized to balance cavitation intensity, penetration depth, and surface compatibility across diverse substrates. Unlike consumer-grade cleaners relying on passive ceramic transducers prone to thermal degradation, the QT/QTR series integrates 20 actively cooled, high-efficiency piezoelectric transducers mounted directly to the tank bottom. Each transducer is constructed using proprietary bonding techniques and thermally stable ferroelectric ceramics, enabling continuous duty cycles without performance drift or premature failure. The system’s acoustic architecture ensures uniform energy distribution throughout the entire tank volume, validated via calibrated hydrophone mapping per ASTM E1000-22 guidelines. All electrical components—including power drivers, control logic, and thermal protection circuits—are sourced from Fairchild Semiconductor (USA), ensuring long-term signal integrity and compliance with IEC 61800-5-1 functional safety requirements for industrial equipment.

Key Features

• Robust 1.5 mm AISI 304 stainless steel deep-drawn tank—resistant to corrosion, pitting, and ultrasonic erosion under prolonged exposure to aqueous and mild alkaline solutions.
• 20 individually impedance-matched piezoelectric transducers—engineered for >10,000 hours MTBF (Mean Time Between Failures) and rated for ambient temperatures up to 45 °C.
• Digitally controlled 0–30 minute timer with audible end-of-cycle alert and auto-shutdown; ultrasonic power adjustable in 10% increments (20–100%) to optimize cleaning efficacy vs. part fragility.
• QTR1000 variant includes PID-controlled heating module (0–80 °C range, ±1.5 °C accuracy) with independent overtemperature cutoff (95 °C mechanical fuse) compliant with EN 60335-1 Annex BB.
• Integrated brass drain valve with ISO 228-1 G½” thread enables rapid fluid evacuation—critical for GLP-compliant cleaning validation protocols requiring documented rinse water exchange.
• Stainless steel noise-dampening lid included standard—reduces airborne sound pressure level to ≤68 dB(A) at 1 m distance, meeting OSHA 29 CFR 1910.95 workplace exposure limits.

Sample Compatibility & Compliance

The QT/QTR1000 accommodates complex geometries including hollow-bore surgical instruments, MEMS assemblies, optical lenses, dental prostheses, and microfluidic components. Its uniform cavitation field supports cleaning validation per ISO 15883-1 (washer-disinfectors) and AAMI ST33 (ultrasonic cleaning process verification). Compatible with deionized water, USP-grade ethanol/water blends, and low-foaming enzymatic formulations—no dedicated solvent required for routine maintenance. Not recommended for use with flammable solvents, strong acids (pH <2), or chlorinated hydrocarbons due to material compatibility and safety constraints. Meets RoHS 2011/65/EU and REACH SVHC screening requirements. Documentation package includes Factory Acceptance Test (FAT) report, transducer calibration certificate traceable to NIST standards, and full CE Declaration of Conformity.

Software & Data Management

While standalone operation requires no software, optional RS-485 Modbus RTU interface (available as QT-IO-485 add-on) enables integration into centralized lab asset management platforms. Logged parameters include cycle start/stop timestamps, actual power delivered (W), real-time bath temperature (QTR1000 only), and cumulative operational hours—stored in non-volatile memory with audit trail capability compliant with FDA 21 CFR Part 11 (electronic records/signatures) when paired with validated third-party SCADA systems. Firmware updates are performed via secure USB port with SHA-256 signature verification.

Applications

• Pre-sterilization cleaning of reusable surgical instruments per AAMI TIR30 and ISO 17664.
• Removal of flux residues, solder paste, and oxide films from PCBAs prior to AOI inspection.
• Restoration of optical clarity in endoscope lenses and ophthalmic tools without surface abrasion.
• Routine maintenance of inkjet printheads—validated with OEM-specified water-only protocols.
• Cleaning of orthodontic appliances, dentures, and hearing aid components under ISO 13485 quality system controls.
• Decontamination of reusable laboratory glassware, volumetric flasks, and HPLC sample vials prior to analytical use.

FAQ

What is the maximum recommended operating temperature for the QT1000 (non-heating model)?
For optimal cavitation efficiency and transducer longevity, bath temperature should not exceed 65 °C. Above this threshold, vapor blanket formation reduces effective energy transfer and accelerates transducer fatigue.
Can the QTR1000 be used with organic solvents?
No. Only aqueous-based cleaning solutions are permitted. Organic solvents pose fire hazard, degrade gasket materials, and violate EN 60335-1 explosion-protection clauses.
Is validation support documentation available?
Yes. Upon request, Ultrasound Tech provides IQ/OQ templates aligned with ISO 13485 and EU MDR Annex XIV, including ultrasonic intensity mapping reports and thermal uniformity test data.
What warranty coverage applies to transducers?
All transducers are covered under the standard 36-month parts-and-labor warranty. Extended service plans (up to 60 months) include annual performance verification and transducer impedance profiling.
Does the unit meet GMP requirements for pharmaceutical equipment?
Yes—when operated within defined parameters and maintained per the provided Preventive Maintenance Logbook, the QT/QTR1000 satisfies Annex 15 qualification expectations for ancillary cleaning equipment used in Grade C/D cleanrooms.
