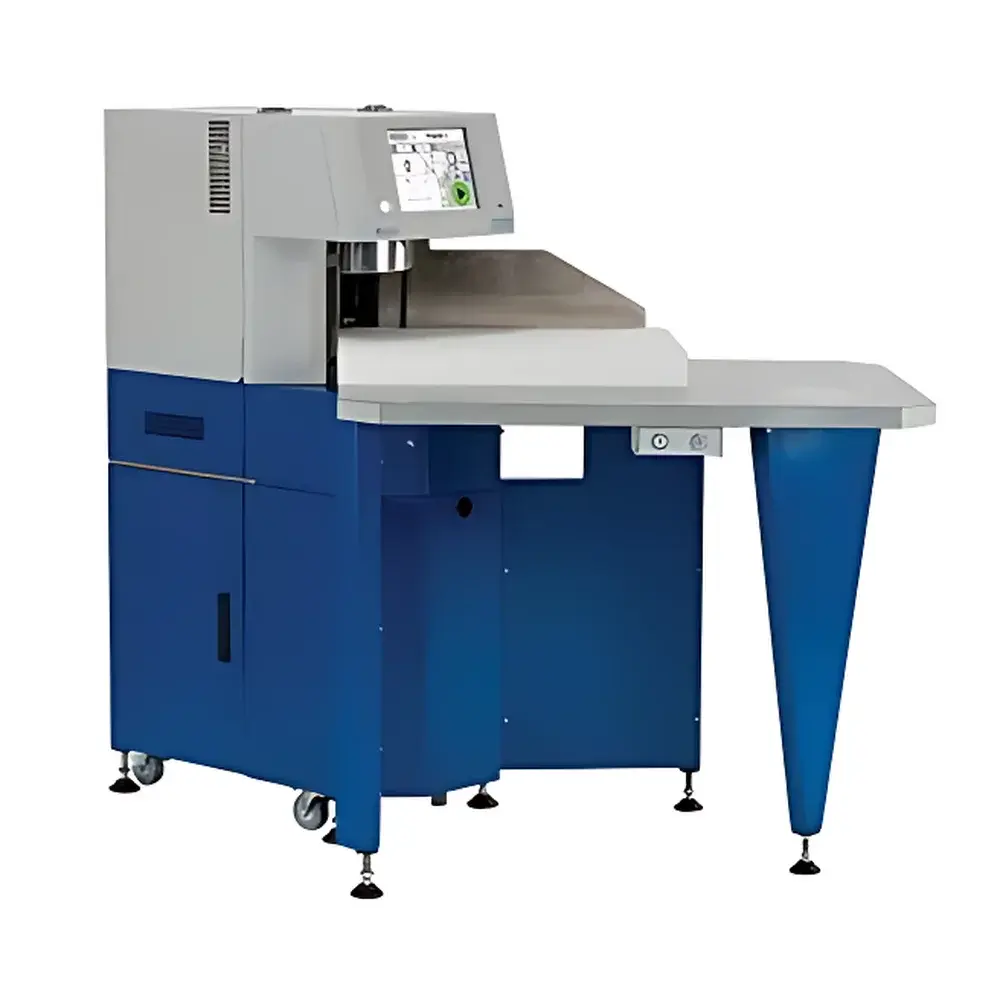

Vacuumatic Vicount 3 PB BT Counting Machine

Overview

The Vacuumatic Vicount 3 PB BT is a high-precision, industrial-grade sheet counting machine engineered for mission-critical applications in commercial printing, security document production, banknote handling, and paper manufacturing environments. Developed by Vacuumatic — the original inventor of mechanical sheet counting technology since 1951 — the Vicount 3 PB BT implements a proven flap-type (flapper-based) separation principle to reliably isolate individual sheets from stacks using controlled air-assisted mechanical actuation. Unlike vacuum-based or friction-fed systems, this method ensures consistent separation across variable paper grammages (25–200 gsm), surface finishes (coated, uncoated, embossed), and dimensional tolerances without slippage or double-feeding. The machine operates at a rated throughput of 2,500 sheets per minute under standard conditions and maintains metrological repeatability within ±1 sheet per 10,000 counts — a performance benchmark validated across decades of ISO 9001-certified production deployments.

Key Features

• Full-color 10.1-inch capacitive touchscreen interface with icon-driven navigation — eliminates reliance on operator training and supports multilingual UI localization.
• Embedded industrial PC running real-time deterministic firmware; supports password-protected user profiles, audit trail logging, and export of count logs in CSV/Excel-compatible format.
• Modular flapper assembly with interchangeable suction blades and adjustable dwell timing — optimized for consistent separation of low-basis-weight papers (e.g., 25 gsm banknote substrates) and high-stiffness board stocks.
• Integrated stack-height sensor with auto-compensation algorithm — dynamically adjusts feed timing as pile height decreases during operation.
• Compliance-ready architecture: Firmware supports time-stamped event logging, user authentication, and configurable data retention — aligned with GLP and internal QA documentation requirements.
• Robust cast-iron frame with vibration-damped mounting; designed for continuous-duty cycles in ambient temperatures ranging from 15°C to 30°C and relative humidity up to 65% non-condensing.

Sample Compatibility & Compliance

The Vicount 3 PB BT accommodates a broad spectrum of sheeted media, including offset-printed forms, MICR-encoded checks, polymer banknotes, laminated ID cards, and corrugated board blanks. Its mechanical separation mechanism remains insensitive to static charge, surface coating variations, or minor edge curl — eliminating false counts common in optical or electrostatic systems. All units are CE-marked and comply with EN 61000-6-2 (immunity) and EN 61000-6-4 (emissions). Electrical safety conforms to EN 61010-1 for laboratory and industrial equipment. While not certified to FDA 21 CFR Part 11 out-of-the-box, the embedded software architecture permits integration with validated LIMS or MES platforms via RS-232, USB HID, or optional Ethernet TCP/IP interface for regulated environments requiring electronic record integrity.

Software & Data Management

The onboard operating system features a deterministic real-time kernel ensuring sub-millisecond response to sensor inputs and actuator commands. Count records include timestamp (YYYY-MM-DD HH:MM:SS), operator ID, batch ID, count mode (single/batch/cumulative), and error flags (e.g., “double-feed detected”, “stack depletion warning”). Data export is supported via USB mass storage or network share; no proprietary drivers required. Audit log entries are write-once and tamper-evident — modifications trigger automatic flagging and timestamped annotation. Optional firmware upgrade packages enable custom report templates compliant with internal SOPs or external standards such as ISO/IEC 17025 clause 7.10 (reporting results).

Applications

• Commercial print finishing lines: High-speed verification of cut-sheet output prior to binding or packaging.
• Financial institutions: Final reconciliation of check batches, deposit slips, and ATM receipt rolls.
• Security printing facilities: In-process verification of serialized tax stamps, passports, and lottery tickets.
• Paper mills and converters: Quality assurance sampling and reel-to-sheet yield validation.
• Industrial packaging: Counting of die-cut corrugated blanks, foam inserts, and molded pulp trays.

FAQ

What sheet thicknesses can the Vicount 3 PB BT handle?

It processes sheets from 0.05 mm to 0.35 mm thickness, corresponding to the specified 25–200 gsm range for standard cellulose-based papers.
Is calibration required before each shift?

No routine recalibration is needed; the system performs self-diagnostic checks at power-up and validates sensor alignment automatically. Annual traceable verification against NIST-traceable reference stacks is recommended.
Can it integrate with existing ERP or MIS systems?

Yes — via ASCII protocol over RS-232 or Modbus TCP (optional module); integration kits include documentation for SAP, Oracle E-Business Suite, and Epicor ERP.
Does it support mixed-size batches?

Batch counting requires uniform sheet dimensions per run; however, programmable job presets allow rapid reconfiguration between common formats (e.g., A4, Letter, SRA3) with one-touch recall.
What maintenance intervals are recommended?

Daily visual inspection of flapper edges and air channels; quarterly lubrication of cam followers; annual replacement of suction blade elastomers — all documented in the included maintenance logbook and accessible via the touchscreen service menu.
