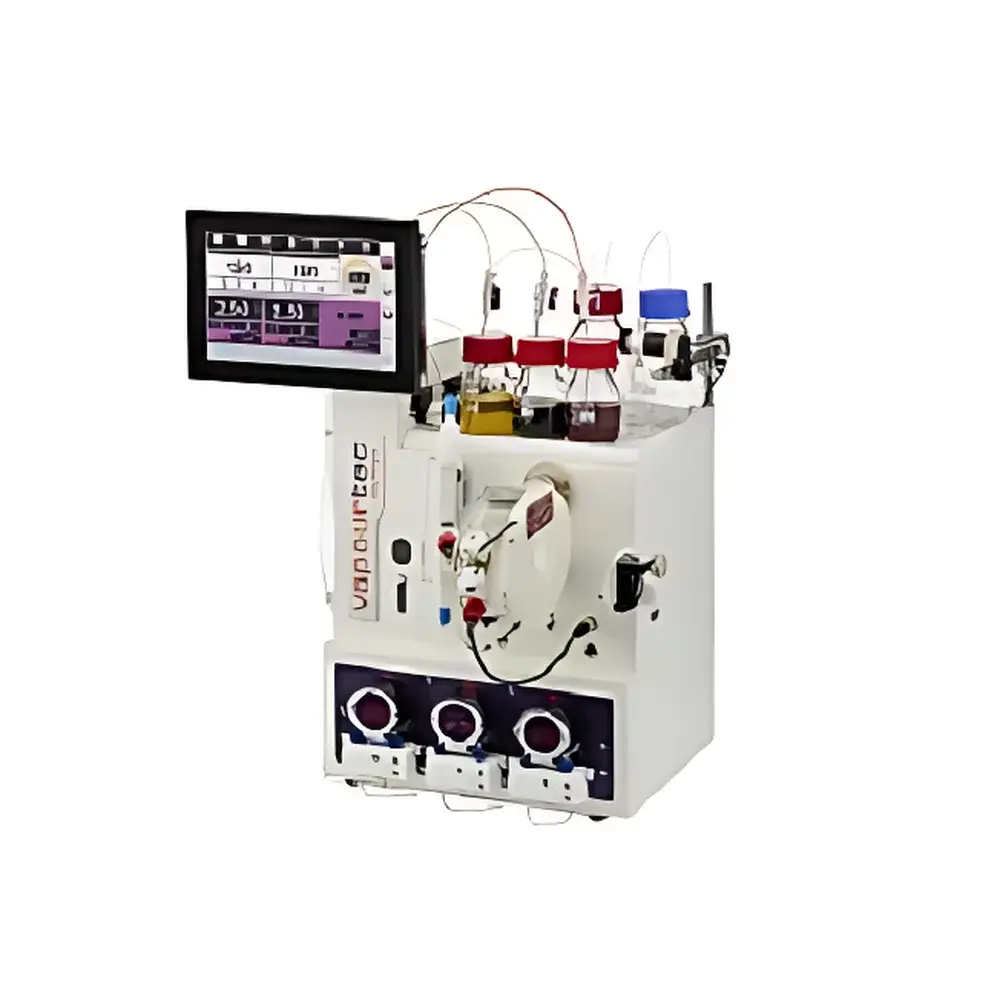

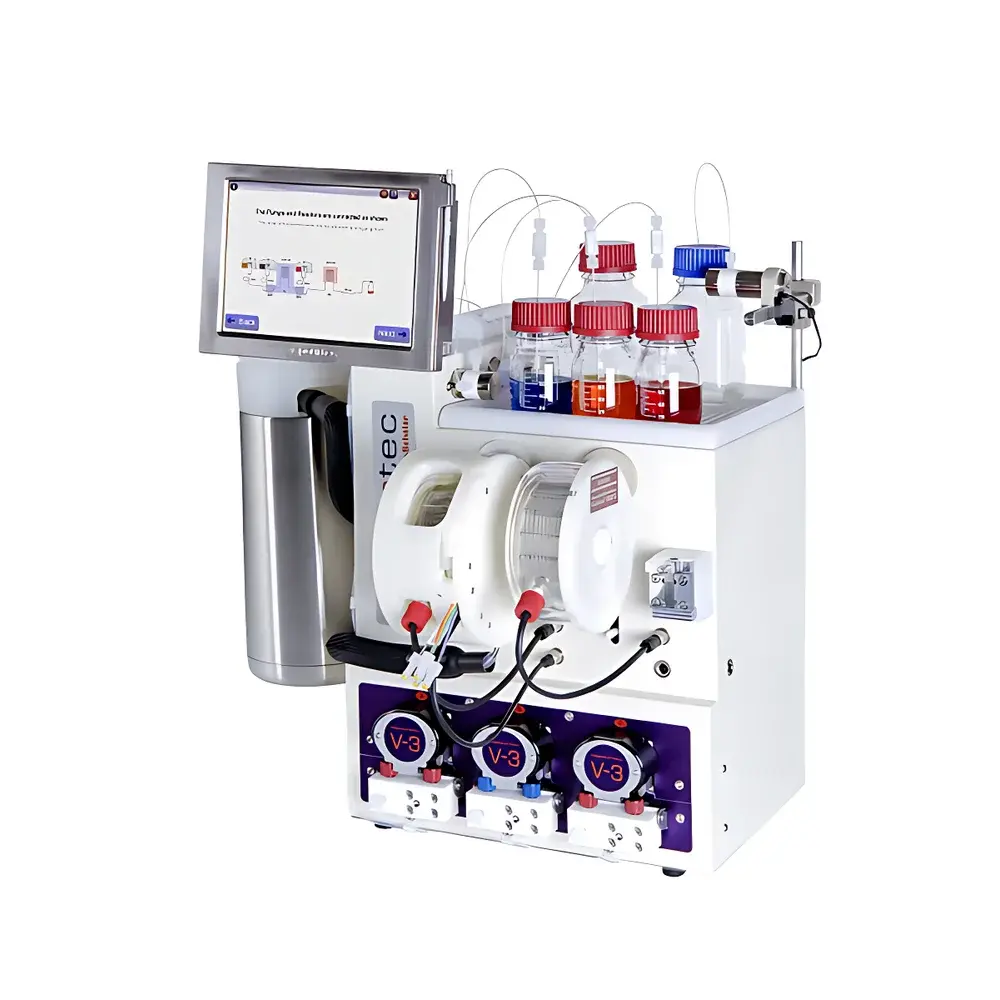

Vapourtec Easy-Series Photochemical Flow Synthesizer
| Brand | Vapourtec |
|---|---|
| Origin | United Kingdom |
| Model | Easy-Series |
| Temperature Range | −70 °C to 250 °C |
| Temperature Control Accuracy | ±1 °C |
| Number of Reaction Units | 3 |
| Reaction Volumes | 2 mL, 5 mL, 10 mL |
Overview
The Vapourtec Easy-Series Photochemical Flow Synthesizer is a modular, benchtop continuous-flow chemical synthesis platform engineered for reproducible photochemical and thermal reaction execution under precisely controlled conditions. Based on microfluidic flow chemistry principles, the system integrates high-precision peristaltic pumping, actively temperature-regulated reaction modules, and UV–vis-compatible optical pathways to enable scalable photoinduced transformations—including C–H activation, cross-coupling, asymmetric photocatalysis, and late-stage functionalization—without batch-to-batch variability. Designed for laboratories prioritizing safety, scalability, and regulatory traceability, the Easy-Series supports seamless transition from milligram-scale discovery to multi-gram process development while maintaining strict adherence to GLP-compliant operational protocols.
Key Features
- Modular architecture with up to three independently addressable reaction units—each accommodating interchangeable reactor types without tools in under five seconds.
- Vapourtec V-3 dual-channel peristaltic pumps delivering stable, pulseless flow across 0.100–10 mL/min; chemically resistant to strong acids (e.g., HCl, H₂SO₄), organometallics (e.g., Grignard reagents), slurries, and immiscible solvent systems.
- Forced-air convection heating/cooling modules ensuring uniform thermal distribution across all reactor geometries, with real-time PID-controlled temperature stability at ±1 °C over the full operating range (−70 °C to 250 °C).
- Integrated 7-inch capacitive touchscreen interface featuring intuitive workflow navigation, preloaded calculation utilities (solvent vapor pressure, Arrhenius-based residence time estimation, kinetic parameter modeling), and one-touch system initialization.
- Back-pressure regulation compatible with both acidic and basic media; pressure-tolerant design validated to 20 bar, supporting heterogeneous catalysis and gas–liquid reactions.
Sample Compatibility & Compliance
The Easy-Series accommodates diverse chemistries through its standardized reactor interchangeability: PFA coil reactors (up to 150 °C), high-temp alloy coil reactors (up to 250 °C), cryogenic coil reactors (down to −70 °C), packed-bed column reactors (−40 °C to 150 °C), photoreactors with integrated LED arrays (−5 °C to 80 °C), and silicon-based micro-mixing chips (−40 °C to 150 °C). All reactor housings are constructed from inert fluoropolymers or electropolished stainless steel to prevent metal leaching and ensure compatibility with USP Class VI and ISO 10993-compliant synthetic workflows. The system meets mechanical safety requirements per EN 61000-6-2/6-4 and is designed to support audit-ready data integrity under FDA 21 CFR Part 11 when paired with optional electronic logbook modules.
Software & Data Management
The embedded control firmware records timestamped event logs—including pump speed, temperature setpoints, pressure readings, and UV irradiance intensity—for each run. Exportable CSV datasets include full parameter metadata, enabling direct import into LIMS or statistical analysis platforms (e.g., JMP, Python pandas). Optional Vapourtec Connect software extends functionality with remote monitoring, automated method scheduling, and version-controlled protocol libraries. Audit trails capture user identity, session timestamps, and configuration changes—fully compliant with ALCOA+ data governance principles required for GMP-regulated pharmaceutical development.
Applications
- Photo-redox catalysis using Ir(III) or Ru(II) complexes under tunable 365–450 nm illumination
- High-temperature heterocycle formation (e.g., Buchwald–Hartwig amination, Suzuki–Miyaura coupling) in sealed coil reactors
- Cryogenic enolate generation and trapping below −40 °C using integrated cooling modules
- Gas–liquid hydrogenation and ozonolysis via segmented flow with inline mass flow controllers
- Multi-step telescoped synthesis combining photolysis, thermal cyclization, and inline quenching
- Reaction optimization studies leveraging Design of Experiments (DoE) automation via external API integration
FAQ
What reactor types are supported natively by the Easy-Series?
The system accepts all Vapourtec R-series reactors—including PFA coil, Hastelloy coil, cryo-coil, packed-bed columns, LED-integrated photoreactors, and microfluidic mixing chips—without adapter kits or recalibration.
Is the system suitable for GMP process validation?
Yes, when configured with optional electronic signature and audit trail modules, the Easy-Series supports 21 CFR Part 11 compliance for regulated environments including API manufacturing and clinical trial material synthesis.
Can I integrate external analytical tools such as inline IR or UV-Vis?
All models feature standard 1/4″ Swagelok ports and TTL-triggered I/O interfaces compatible with third-party flow cells, fraction collectors, and real-time spectrometers.
How is temperature uniformity verified across large-volume reactors?
Each heating/cooling module undergoes factory calibration using NIST-traceable thermocouples at ≥5 spatial points; users may perform periodic verification using the built-in temperature mapping utility.
Does the V-3 pump require routine maintenance beyond tubing replacement?
No consumables other than peristaltic tubing are required; the pump head assembly is sealed and lubrication-free, with service intervals exceeding 10,000 hours of continuous operation.
