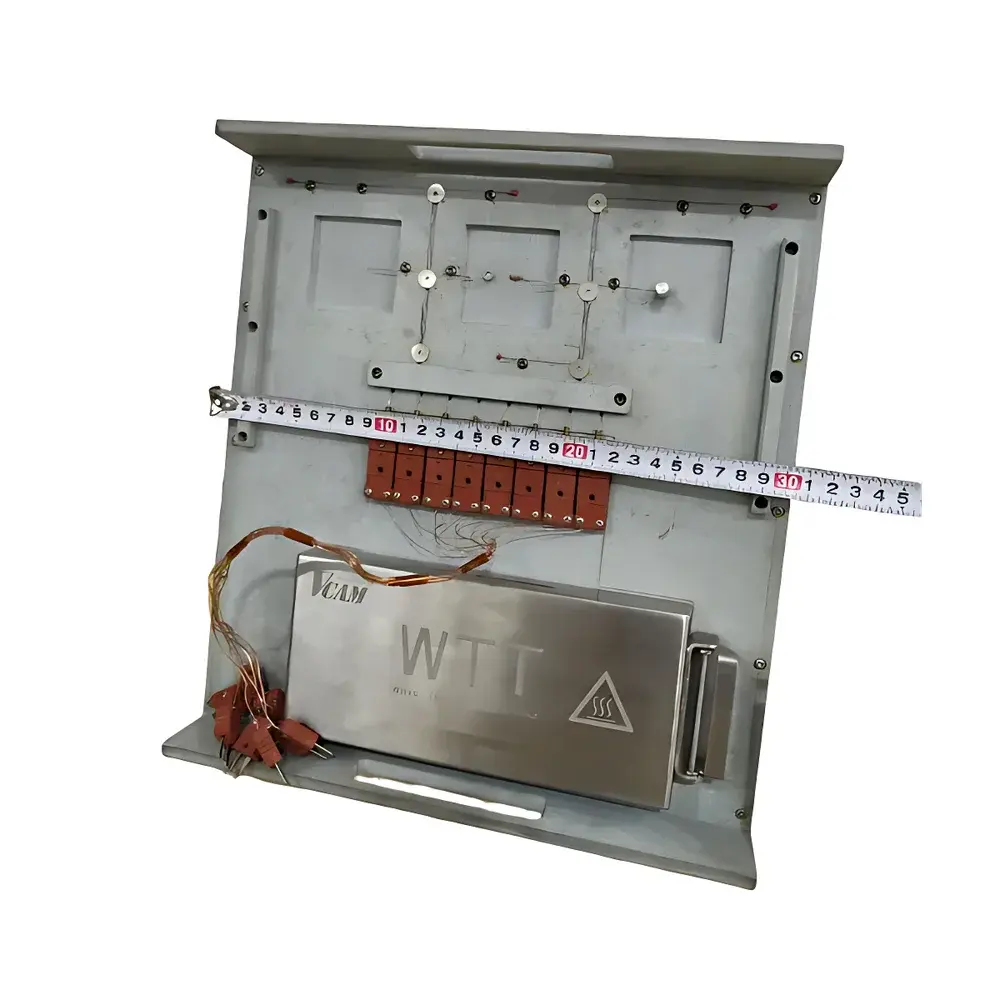

Vcam WTT-100 Wave Soldering Thermal Performance Monitoring Kit
| Brand | Vcam |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Authorized Distributor |
| Region of Manufacture | Domestic (China) |
| Model | WTT-100 |
| Pricing | Available Upon Request |
Overview
The Vcam WTT-100 Wave Soldering Thermal Performance Monitoring Kit is an engineered instrumentation system designed for real-time, non-invasive thermal process characterization in leaded and lead-free wave soldering lines. It operates on the principle of synchronized thermocouple-based thermal profiling combined with kinematic chain-speed sensing and empirical thermal modeling to quantify critical process variables—including component-level thermal exposure, solder contact dynamics, and substrate thermal gradient evolution. Unlike generic temperature loggers, the WTT-100 integrates multi-point thermal acquisition with time-synchronized motion tracking and proprietary PIS (Process Window Index) computation, enabling quantitative assessment of thermal process capability against IPC-J-STD-001, IPC-A-610, and JIS Z 3197 benchmarks. Its architecture supports closed-loop feedback for process window validation, making it suitable for high-reliability electronics manufacturing environments requiring statistical process control (SPC) compliance and traceable thermal history documentation.
Key Features
- Multi-channel thermal profiling: Simultaneous acquisition of up to 12 thermocouple inputs with ±0.5 °C accuracy (calibrated per ASTM E230), covering component body, lead, board bottom, and wave crest zones.
- Dynamic solder contact analysis: Time-resolved detection of solder wetting onset, dwell duration, and peak temperature at the pad–lead interface using synchronized thermal transition algorithms.
- Chain speed monitoring with anomaly detection: Integrated optical encoder interface captures conveyor velocity with 1 mm positional resolution; triggers pre-alarms when deviation exceeds user-defined thresholds relative to nominal setpoint.
- Real-time Process Window Index (PIS) calculation: Computed per IPC-TM-650 2.6.25 methodology, integrating thermal profile metrics (soak time, peak temperature, liquidus time, cooling rate) into a single normalized index for process robustness evaluation.
- Embedded temperature prediction engine: Utilizes historical thermal profiles and machine learning–assisted regression to forecast board-level thermal response under varying preheat settings or conveyor speeds.
- Modular hardware design: Supports field expansion via optional IR thermal imaging module (WTT-IR100) and nitrogen atmosphere sensor integration for inerted wave soldering validation.
Sample Compatibility & Compliance
The WTT-100 is validated for use with standard FR-4, polyimide, and metal-core PCBs ranging from 0.4 mm to 3.2 mm thickness and up to 450 mm × 350 mm footprint. It accommodates both through-hole and mixed-technology assemblies, including QFP, SOIC, and large-area BGAs. All firmware and data handling modules comply with ISO/IEC 17025 requirements for measurement uncertainty reporting and support GLP/GMP-aligned audit trails. Data export formats (CSV, XML, PDF) are compatible with enterprise MES platforms and satisfy FDA 21 CFR Part 11 requirements for electronic records when deployed with validated user authentication and electronic signature workflows.
Software & Data Management
The included VcamTherm v4.2 software provides a calibrated graphical interface for real-time thermal visualization, SPC charting (X̄-R, X̄-S, Cpk/Ppk), and automated CPK calculation per ANSI/ASQ B1–B3 standards. Raw thermal datasets are timestamped, digitally signed, and stored in encrypted SQLite databases with configurable retention policies. The software supports batch-level comparison, tolerance band overlay, and automated report generation compliant with IPC-A-610 Rev. H Annex G. Audit logs record all user actions—including parameter edits, calibration events, and export operations—with immutable timestamps and operator ID linkage.
Applications
- Wave soldering line qualification and requalification per IPC-CC-830B and IPC-WP-019.
- Thermal process optimization for lead-free alloys (SAC305, SN100C) under nitrogen or air ambients.
- Root cause analysis of solder bridging, insufficient wetting, tombstoning, and thermal delamination.
- Preventive maintenance scheduling based on thermal drift trends across heater zones and pump performance metrics.
- Supplier qualification audits requiring documented thermal process capability evidence (Cpk ≥ 1.33).
- Training and certification of process engineers using simulated “what-if” thermal scenario modeling.
FAQ
Does the WTT-100 require calibration traceable to NIST or equivalent national metrology institutes?
Yes—each thermocouple probe is supplied with individual calibration certificates traceable to CNAS-accredited laboratories (ISO/IEC 17025), and annual recalibration services are available with full uncertainty budgets.
Can the system interface with existing factory SCADA or MES platforms?
Yes—it supports OPC UA (v1.04) and Modbus TCP protocols for real-time data streaming, and includes RESTful API endpoints for profile metadata exchange and alarm event ingestion.
Is PIS calculation configurable for custom process specifications beyond IPC standards?
Yes—the software allows user-defined weighting factors and threshold limits for each thermal parameter, enabling alignment with internal process specifications or customer-specific acceptance criteria.
What is the maximum sampling rate supported during thermal profiling?
Up to 100 Hz per channel, with synchronized timestamping resolution of 1 ms, ensuring accurate capture of transient thermal events during wave entry and exit phases.
How is data integrity ensured during extended logging sessions (>8 hours)?
The system employs cyclic memory buffering with automatic failover to redundant SD card storage and periodic SHA-256 checksum verification to detect media corruption or write errors.
