VortexPro Series Torsion Testing System by ENSOUL

Overview

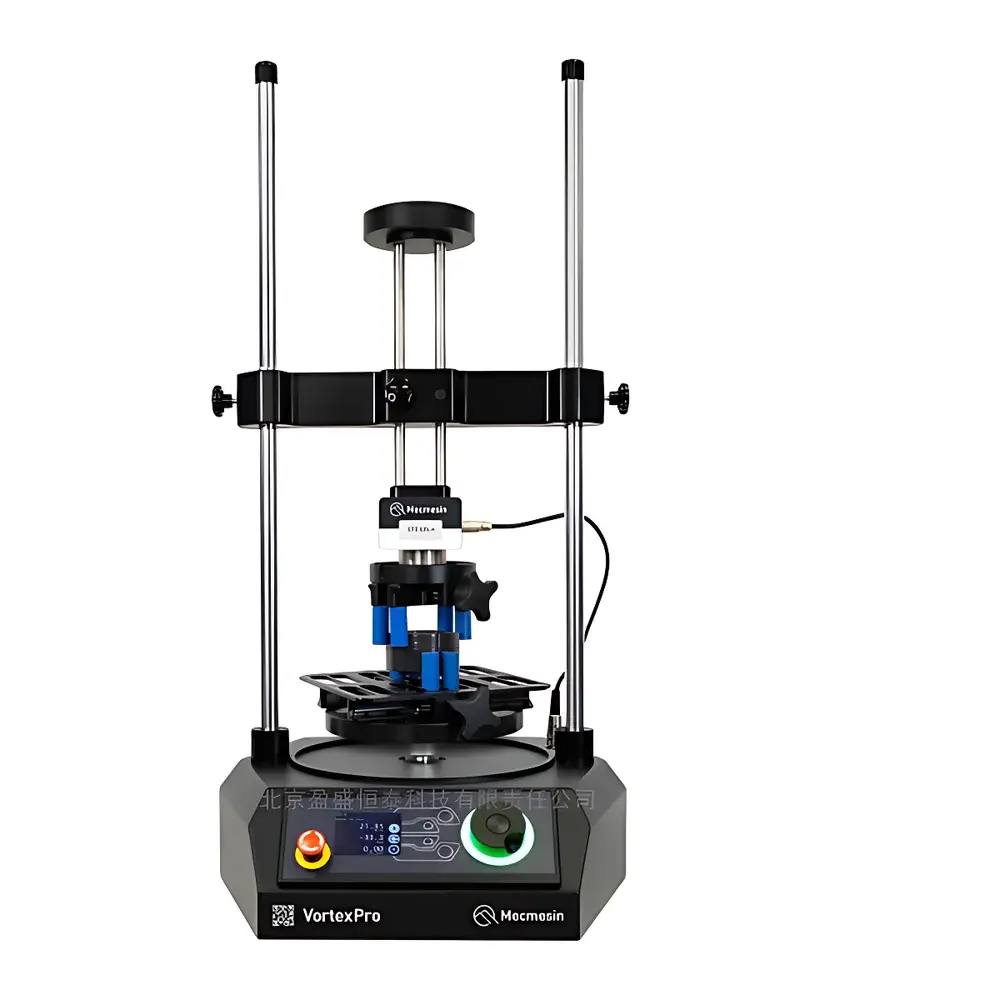

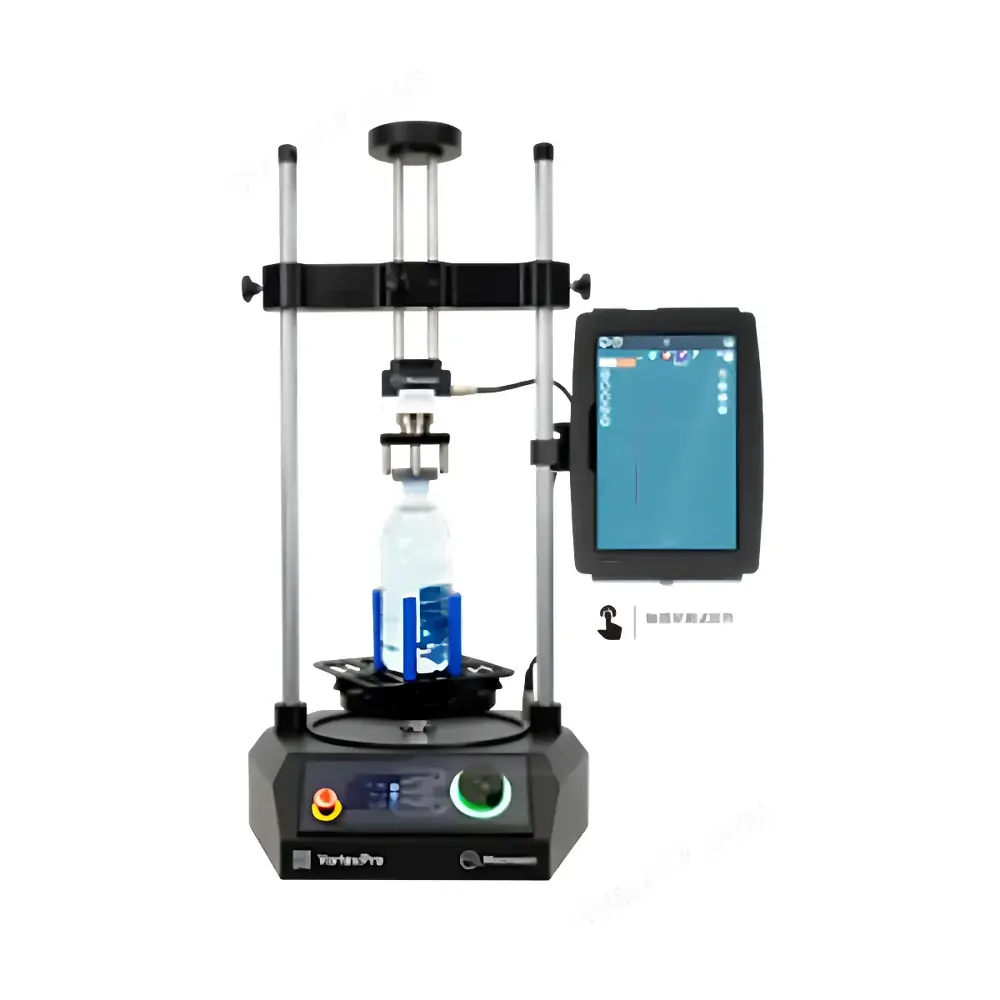

The VortexPro Series Torsion Testing System is a precision-engineered electromechanical instrument designed for static torque measurement and controlled rotational testing of closures, caps, containers, fasteners, medical device components, and engineered assemblies. Built upon a dual-column structural architecture, the system delivers mechanical stability and axial rigidity essential for high-reproducibility torsional characterization. It operates on the principle of controlled motor-driven angular displacement, where torque is measured via high-fidelity strain-gauge-based load cells integrated into interchangeable sensor modules. Unlike dynamic rheometers or rotational viscometers, the VortexPro is optimized for discrete, endpoint-oriented torque verification—making it especially suitable for packaging integrity validation, assembly process qualification, and regulatory-compliant release testing in GMP environments.

Key Features

• Dual-column rigid frame construction ensures minimal deflection under load, supporting consistent torque transmission across the full 0.3–10 N·m sensor range.
• Bi-directional motorized actuation enables precise clockwise and counterclockwise torque application, programmable via absolute angle, rotation speed, or torque threshold termination.
• Six interchangeable torque sensors (0.3, 1, 1.5, 3, 6, and 10 N·m) allow optimal resolution matching to application requirements—each calibrated to NIST-traceable standards and supplied with documented calibration certificates.
• High-resolution data acquisition at 1:50,000 internal resolution and ±0.5% full-scale accuracy meets ISO 7500-1 Class 1 requirements for force measurement systems.
• Modular test fixture interface accommodates custom adapters for vials, syringes, IV bags, aerosol actuators, screw caps, and child-resistant closures—supporting ASTM D3474, ISO 8503-2, and USP <661> test protocols.
• Integrated thermal management and low-noise servo control minimize drift during extended hold tests, enabling reliable dwell-time torque decay analysis.

Sample Compatibility & Compliance

The VortexPro accommodates samples up to 440 mm in height and 280 mm in width—enabling evaluation of large-format industrial containers, automotive fluid reservoirs, and multi-component medical delivery systems. Fixture adaptability supports standardized test geometries per ASTM D2069 (cap torque), ASTM D3474 (closure removal torque), and ISO 11607-1 (sterile barrier integrity). All hardware and firmware are designed in alignment with IEC 61000-6-2/6-4 electromagnetic compatibility standards. The system’s mechanical design conforms to ISO 12100 for functional safety of machinery, and its operational documentation supports GLP and GMP audit readiness.

Software & Data Management

VectorPro software serves as the central control and analytical engine for the VortexPro platform. Its architecture incorporates role-based user permissions (Administrator, Supervisor, Operator), electronic signatures, and immutable audit trails—fully compliant with FDA 21 CFR Part 11 for electronic records and signatures. Test methods are created using a drag-and-drop workflow editor, supporting conditional logic, multi-step sequences (e.g., “apply torque to 2.5 N·m → hold for 5 s → ramp to failure”), and pass/fail limits with automatic flagging. Real-time torque-angle curves are rendered with sub-millisecond timestamping. Raw data exports include CSV, XML, and PDF report formats—with metadata embedded for traceability (operator ID, timestamp, sensor serial number, calibration due date). Data archiving supports network drive mapping and integration with LIMS via configurable ODBC endpoints.

Applications

• Pharmaceutical packaging: Verification of child-resistant closure efficacy, blister peel strength consistency, and pre-filled syringe plunger engagement torque.
• Medical device manufacturing: Validation of torque-to-yield behavior in orthopedic implant screws, catheter hub retention, and dialysis connector sealing integrity.
• Consumer goods R&D: Optimization of dispensing pump actuation force, aerosol valve crimping torque, and cosmetic bottle cap opening/closing effort profiles.
• Automotive component QA: Testing of fuel cap sealing torque, HVAC blend door actuator output, and EV battery module fastener retention under thermal cycling.
• Academic materials research: Characterization of torsional stiffness and yield behavior in polymer composites, shape-memory alloys, and bioresorbable sutures.

FAQ

What torque ranges are supported, and how do I select the appropriate sensor?
The VortexPro series offers six calibrated sensor modules (0.3, 1, 1.5, 3, 6, and 10 N·m). Sensor selection should be based on expected peak torque: ideal operating range is 10–90% of full scale. For example, a 3 N·m sensor provides optimal resolution for tests targeting 0.3–2.7 N·m.
Is the system compliant with FDA 21 CFR Part 11 for regulated laboratories?
Yes. VectorPro software includes electronic signature workflows, audit trail logging, and permission-tiered access controls—validated for use in pharmaceutical QC and medical device manufacturing under 21 CFR Part 11 and EU Annex 11 requirements.
Can test data be exported to external databases or LIMS?
Yes. VectorPro supports automated export to network shares and direct database ingestion via ODBC-compliant drivers. Custom field mapping and scheduled export intervals are configurable.
Does the system support third-party fixture integration?
Yes. The universal mounting plate and API-accessible command set (SCPI over TCP/IP) enable integration with custom jigs, robotic loaders, and inline production test stations.
What calibration documentation is provided with each sensor?
Each sensor ships with a NIST-traceable calibration certificate documenting as-found/as-left values, uncertainty budgets, and environmental conditions at time of calibration—valid for 12 months under normal usage.
