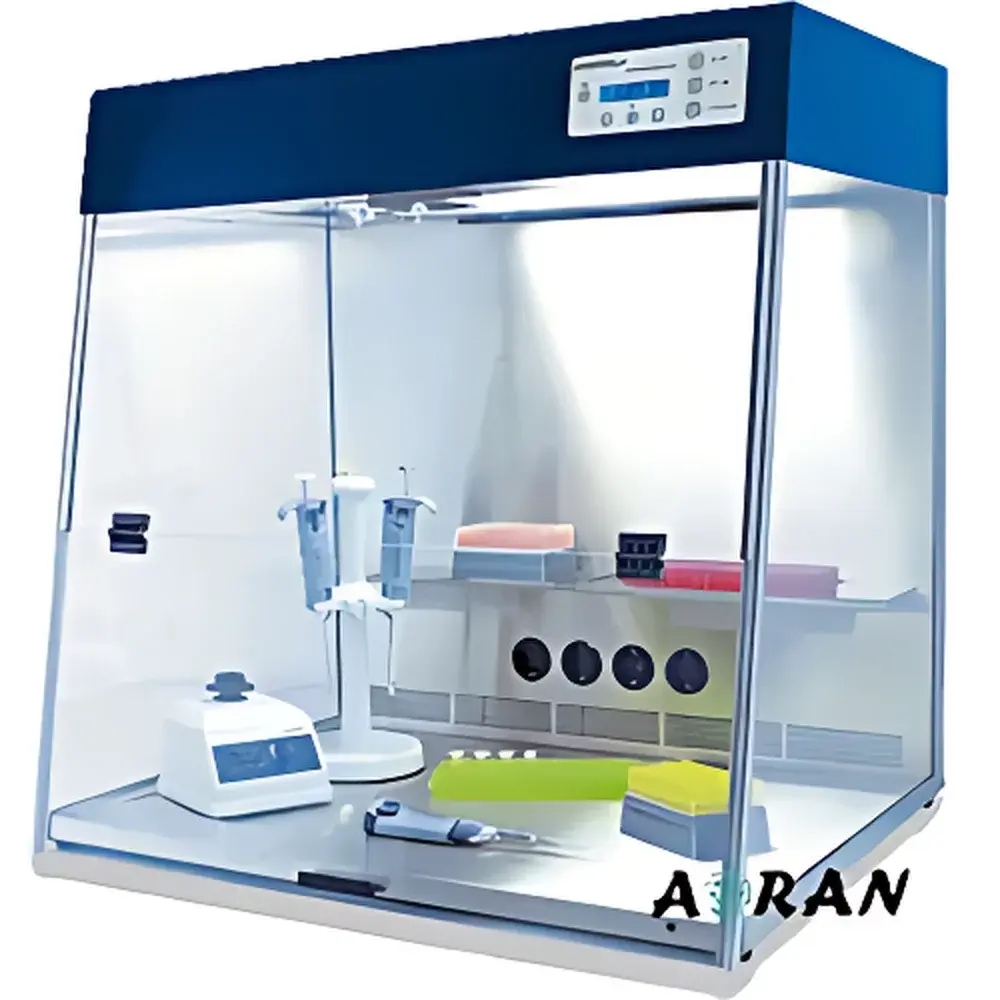

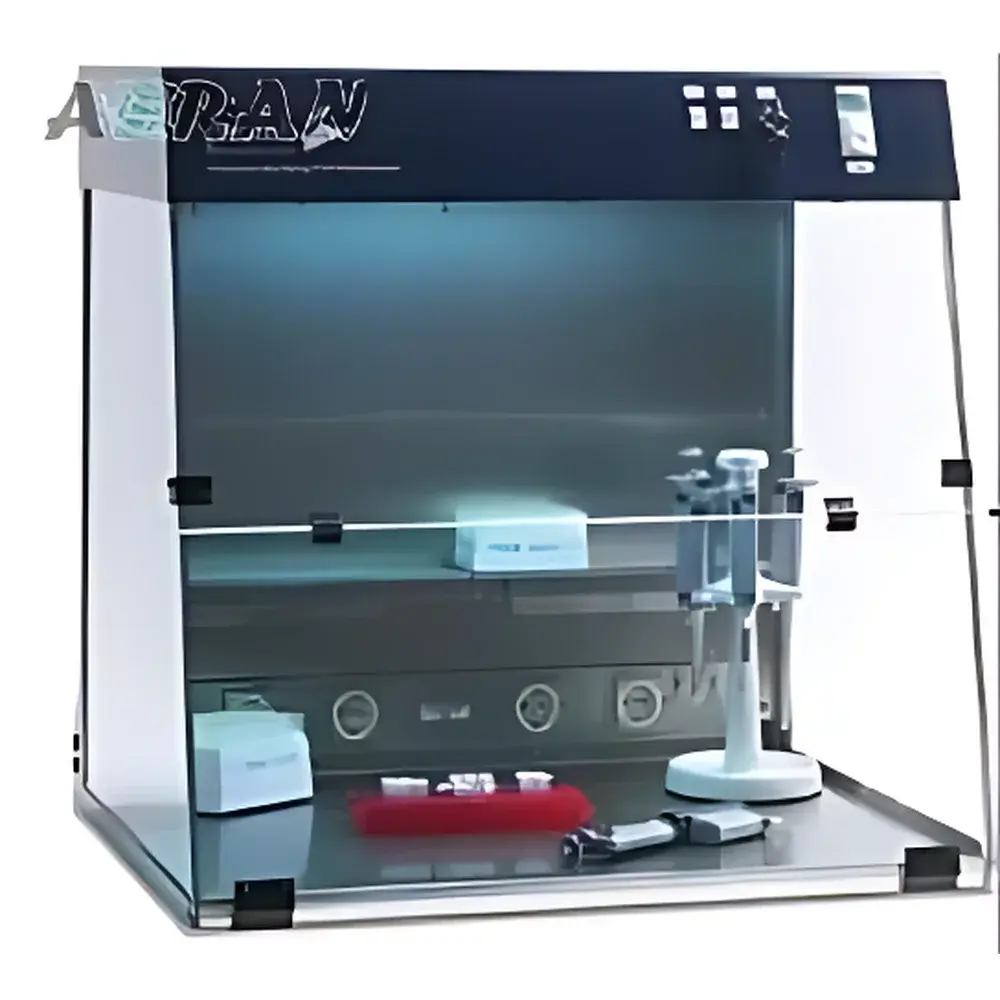

VWR PCR Workstation PRO Class I Biological Safety Cabinet

Overview

The VWR PCR Workstation PRO is a purpose-engineered Class I biological safety cabinet designed specifically for contamination-sensitive molecular biology workflows—primarily polymerase chain reaction (PCR) setup, nucleic acid handling, and pre-amplification sample preparation. Unlike laminar flow hoods, this unit provides personnel and environmental protection through inward airflow containment and integrated ultraviolet (UV) decontamination, while maintaining a sterile, particle-free work environment without recirculating unfiltered air into the operator’s breathing zone. Its engineering adheres to EN 12469:2000 for Class I cabinets and incorporates TÜV-certified safety mechanisms to ensure compliance with European occupational health and laboratory safety standards. The cabinet operates on a unidirectional inward airflow principle, drawing ambient air through the front aperture, passing it over the work surface, and exhausting it via a dedicated ducted or thimble-connected system—eliminating cross-contamination risks inherent in open-bench PCR preparation.

Key Features

• Integrated dual-stage UV decontamination: Two top-mounted 254 nm, 25 W germicidal lamps for surface sterilization, plus one dedicated 254 nm, 8 W UV lamp within a light-tight recirculation chamber for continuous air disinfection
• Zero UV exposure risk: Automatic UV shutoff upon sash opening, reinforced by 8 mm polycarbonate side and front panels blocking all radiation below 400 nm
• Intuitive LCD control panel displaying real-time UV irradiation status, elapsed time, and remaining cycle duration (adjustable in 5-minute increments from 0–30 min)
• Visual operational feedback: LED status indicator on the cabinet crown confirms active air recirculation and UV disinfection mode
• Large ergonomic workspace: 720 × 540 mm stainless steel work surface with antimicrobial finish, supported by a removable perforated stainless steel backshelf for pipette and tube organization
• Onboard power infrastructure: Four integrated 220 V / 50 Hz AC outlets positioned within the work chamber, enabling concurrent operation of thermal cyclers, centrifuges, or vortex mixers without external cable routing
• Acoustically optimized design: Noise emission < 51 dB(A) at 1 m distance ensures compatibility with quiet laboratory environments
• TÜV-certified mechanical and electrical safety, including grounding continuity, insulation resistance, and UV leakage testing per DIN EN 61000-6-3 and DIN EN 62471

Sample Compatibility & Compliance

The PCR Workstation PRO accommodates standard microcentrifuge tubes (0.2–2.0 mL), PCR plates (96- and 384-well), strip tubes, and benchtop instruments up to 12 cm in height. Its Class I configuration meets ISO 14644-1 Class 5 (ISO Class 5) particulate cleanliness requirements when installed with appropriate exhaust ducting. The cabinet supports GLP-compliant workflows through traceable UV exposure logging (via manual timestamping), and its construction materials—including AISI 304 antimicrobial stainless steel surfaces—facilitate validated cleaning protocols aligned with ISO 15223-1 and CLSI EP22-A guidelines. While not certified for handling Risk Group 2+ agents, it fulfills critical containment needs for low-risk molecular diagnostics, academic research, and clinical PCR prep labs operating under local biosafety level 1 (BSL-1) or BSL-2 adjunct protocols.

Software & Data Management

This workstation operates without embedded firmware or networked software; all controls are hardware-based via the front-panel LCD interface. UV cycle parameters (duration, start delay, repeat intervals) are programmable and retained in non-volatile memory. Though no digital audit trail is generated internally, the device supports integration into lab-wide electronic lab notebook (ELN) systems via manual entry of disinfection logs. For regulated environments requiring 21 CFR Part 11 compliance, users may pair the cabinet with external time-stamped video monitoring or integrate its outlet circuits with smart power strips that record usage events. Documentation packages—including TÜV test reports, CE Declaration of Conformity, and EN 12469 conformance statements—are supplied with each unit.

Applications

• PCR master mix preparation and template addition under low-particulate conditions
• Cloning workflow staging: restriction digests, ligations, and transformation plate setup
• RNA handling pre-RT-qPCR to minimize RNase-mediated degradation
• Pre-sequencing library preparation (e.g., tagmentation, adapter ligation)
• Quality control sample staging prior to NGS or digital PCR analysis
• Teaching lab environments where reproducible, contamination-free technique training is required
• Diagnostic support labs performing high-sensitivity infectious disease assays (e.g., SARS-CoV-2, HPV, TB detection)

FAQ

Is the PCR Workstation PRO certified as a Class I biosafety cabinet under EN 12469?
Yes—TÜV SÜD has verified full compliance with EN 12469:2000 for Class I cabinets, including inward airflow velocity validation (≥0.45 m/s), containment integrity testing, and UV safety certification.
Can this unit be used for handling live pathogens?
No—it provides personnel and environmental protection only; it does not protect samples from ambient contamination and is not rated for use with Risk Group 2 or higher biological agents.
Does it require external ducting?
Yes—exhaust must be vented outdoors or through a thimble connection to a building’s dedicated exhaust system; recirculation to the room is not permitted.
What maintenance is required for the UV lamps?
Lamp output degrades over time; manufacturers recommend replacement every 1,000 hours of cumulative UV operation or annually—whichever occurs first—to maintain germicidal efficacy per ISO 15714.
Is HEPA filtration available as an option?
Yes—a HEPA-filtered recirculating variant (PCR Workstation PRO-H) is offered separately for applications requiring both sample protection and air purification within space-constrained labs.
