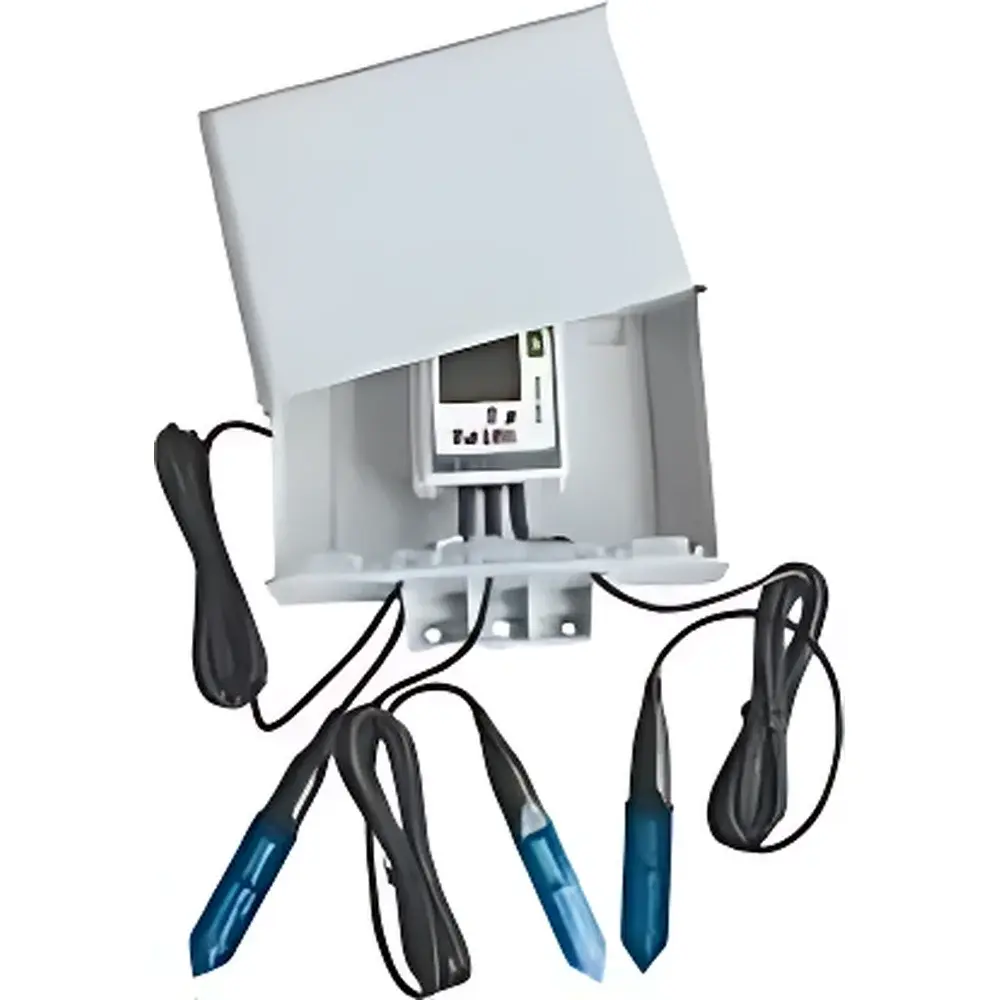

WatchDog 1400 Automated Soil Moisture Monitoring System

Overview

The WatchDog 1400 Automated Soil Moisture Monitoring System is a field-deployable, low-power environmental monitoring platform engineered for long-term, unattended measurement of volumetric water content (VWC) and temperature in agricultural and ecological soils. Built upon Spectrum Technologies’ proprietary frequency-domain reflectometry (FDR) sensing principle, the system operates at a stable 80 MHz oscillation frequency to detect changes in dielectric permittivity—directly correlated with soil moisture status. Unlike time-domain reflectometry (TDR) systems requiring high-speed pulse generation and complex signal analysis, the WatchDog 1400 leverages robust FDR electronics for consistent performance across diverse soil textures (sandy loam to clay), with validated accuracy of ±3% VWC under typical field EC conditions (< 8 mS/cm). Its integrated data logger features non-volatile memory capable of storing up to 10,080 timestamped records—enabling continuous operation for over 200 days at 30-minute sampling intervals—without external power or network connectivity.

Key Features

• Four-channel expandable architecture supporting simultaneous connection of up to four calibrated FDR soil moisture sensors
• Onboard monochrome LCD display for real-time visualization of current VWC, temperature, battery status, and sampling interval
• Low-power embedded microcontroller optimized for battery longevity—up to 12 months on standard alkaline batteries under typical duty cycles
• Field-serviceable design with IP67-rated enclosure ensuring protection against dust ingress and temporary water immersion
• User-configurable sampling intervals from 1 to 60 minutes via intuitive button interface—no software required for basic setup
• Standard analog voltage output (0.5–1.5 V) compatible with third-party dataloggers and SCADA systems when used in standalone sensor mode

Sample Compatibility & Compliance

The WatchDog 1400 is validated for use in mineral soils ranging from coarse sand to heavy clay, provided bulk electrical conductivity remains below 8 mS/cm—a threshold aligned with ASTM D5892-22 guidelines for FDR-based soil moisture instrumentation. Each sensor’s compact sensing volume (6 cm × 2 cm × 0.3 cm) minimizes spatial averaging error while enabling precise placement within root zones. The system complies with FCC Part 15 Class B emissions standards for residential/commercial environments and meets IEC 60529 IP67 mechanical protection requirements. While not certified for regulated GxP environments (e.g., FDA 21 CFR Part 11), its deterministic data logging architecture—including immutable timestamps and sequential record indexing—supports GLP-aligned field data integrity when deployed with documented calibration and maintenance procedures.

Software & Data Management

Data retrieval is performed via USB-to-serial cable using Spectrum’s free WatchDog Software (v5.x), compatible with Windows 10/11. The application enables batch download, time-series visualization, unit conversion (VWC → matric potential via user-defined pedotransfer functions), and export to CSV, Excel, or XML formats. All datasets include embedded metadata: sensor ID, sampling timestamp (RTC-synchronized), battery voltage, and firmware version. Audit trails are maintained through local log files tracking download events and configuration changes. For integration into enterprise environmental monitoring platforms, raw ASCII data streams can be parsed programmatically using documented serial protocol specifications (9600 baud, N-8-1).

Applications

• Irrigation scheduling and deficit irrigation optimization in row crops, orchards, and vineyards
• Soil moisture budget modeling for watershed-scale hydrological studies
• Long-term phenological monitoring in ecological restoration sites and climate change observatories
• Validation of satellite-derived soil moisture products (e.g., SMAP, Sentinel-1)
• Calibration and ground-truthing of distributed wireless sensor networks
• Undergraduate and graduate field research in soil physics, agronomy, and environmental science curricula

FAQ

What is the recommended installation depth for the soil moisture sensors?

Sensors should be installed horizontally at depths representative of active root zones—typically 10–30 cm for annual crops and 30–60 cm for perennial systems—to avoid surface evaporation artifacts and ensure mechanical stability.
Can the WatchDog 1400 operate in saline soils?

Accuracy degrades above 8 mS/cm bulk EC; for high-salinity environments (e.g., coastal agriculture or reclaimed soils), consider supplemental EC measurements and empirical correction using published calibration curves.
Is firmware upgrade supported in the field?

Yes—firmware updates are delivered via WatchDog Software and applied through the same USB interface used for data download.
Does the system support external power input?

No—the WatchDog 1400 is designed exclusively for battery operation; no DC input jack or solar charging circuitry is included.
How is sensor calibration traceability maintained?

Each sensor ships with individual factory calibration coefficients stored in onboard memory; users may perform field recalibration using gravimetric reference samples following ISO 11274:2020 protocols.
