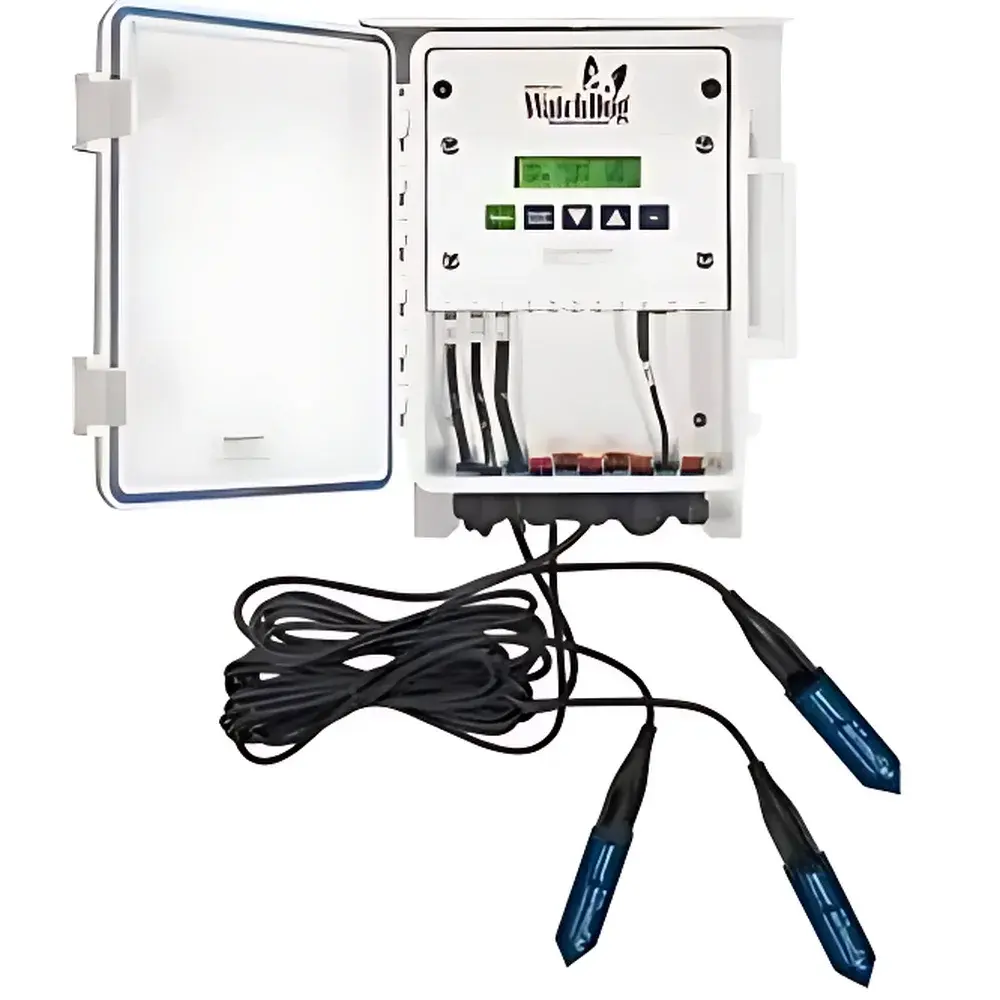

WatchDog 2800 Soil Moisture Monitoring Station
| Origin | USA |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | WatchDog 2800 |
| Instrument Type | Soil Moisture / Water Potential Analyzer |
| Channel Capacity | 9 External Input Channels (up to 8 Soil Moisture Sensors Supported) |
| Display | Integrated LCD Screen for Real-Time Data Viewing |
| Data Storage | Onboard Non-Volatile Memory |
| Data Transfer | USB Cable to PC |
Overview
The WatchDog 2800 Soil Moisture Monitoring Station is a field-deployable, microcontroller-based environmental data acquisition system engineered for long-term, unattended monitoring of soil water status in agricultural research, ecological studies, and irrigation management applications. It operates on the principle of time-domain reflectometry (TDR) or capacitance-based dielectric measurement—depending on the connected sensor type—to quantify volumetric water content (θ, m³/m³) and, when paired with compatible sensors, soil water potential (kPa). The system integrates a ruggedized data logger with nine configurable analog/digital input channels, enabling flexible sensor expansion and multi-depth profiling. Designed for outdoor deployment in diverse climatic conditions, the WatchDog 2800 features an IP67-rated enclosure, wide operating temperature range (–20 °C to +60 °C), and low-power consumption optimized for solar or battery operation over extended intervals (typically 6–12 months per charge, depending on sampling frequency).
Key Features
- 9-channel expandable data logger with programmable sampling intervals (1 minute to 24 hours)
- Supports up to eight third-party or Spectrum Technologies’ certified soil moisture sensors—including TDR, capacitance, and gypsum block types—via standardized 0–2.5 V or 4–20 mA analog inputs
- Integrated backlit LCD display for real-time parameter viewing, channel status verification, and on-device configuration without external software
- Onboard non-volatile memory (128 KB standard) retains >1 million data points; automatic rollover prevents data loss during extended outages
- USB 2.0 interface for direct connection to Windows/macOS systems; no proprietary drivers required
- Configurable alarm thresholds with visual LED indicators for rapid field-level anomaly detection (e.g., drought onset or saturation events)
- Time-synchronized logging via internal RTC (Real-Time Clock) with ±2 min/month accuracy; optional GPS module support for geotagged deployments
Sample Compatibility & Compliance
The WatchDog 2800 is sensor-agnostic by design, compatible with industry-standard soil moisture probes meeting ASTM D5103 (Standard Test Method for Determining Water Content of Soils by Time-Domain Reflectometry) and ISO 11274 (Soil Quality — Determination of Soil Water Retention Characteristics). When deployed with calibrated sensors traceable to NIST standards, it supports GLP-compliant data collection workflows. While the logger itself does not require FDA or EPA certification, its architecture enables audit-ready data integrity when used in USDA NRCS-approved monitoring networks or USDA ARS field trials. All firmware updates are digitally signed and version-logged to ensure traceability—a requirement for peer-reviewed environmental datasets.
Software & Data Management
Data retrieval and analysis are supported through Spectrum Technologies’ free, cross-platform WatchDog Software (v4.5+), which provides intuitive graphing, statistical summary tools (mean, min/max, standard deviation per channel), and export to CSV, Excel, and XML formats. The software enforces metadata tagging—including site ID, sensor depth, calibration date, and operator notes—ensuring FAIR (Findable, Accessible, Interoperable, Reusable) data principles. For integration into enterprise platforms, the system supports MODBUS RTU protocol over RS-485 (with optional adapter), enabling interoperability with SCADA, IoT gateways, and cloud-based environmental dashboards (e.g., AWS IoT Core, Azure IoT Hub). Audit trails record all configuration changes, download events, and firmware updates—supporting ISO/IEC 17025 documentation requirements for accredited labs.
Applications
- Long-term soil moisture profiling across crop root zones in precision agriculture trials
- Calibration and validation of satellite-derived soil moisture products (e.g., SMAP, Sentinel-1)
- Hydrological modeling input for watershed-scale evapotranspiration estimation
- Ecological monitoring of riparian zone dynamics and drought stress response in native vegetation
- Irrigation scheduling optimization using real-time deficit accumulation metrics
- Educational use in university soil physics and environmental science curricula
FAQ
What sensor types are officially validated for use with the WatchDog 2800?
Spectrum Technologies certifies compatibility with its own SM100, EC-5, and 10HS series capacitance sensors, as well as third-party TDR probes compliant with 0–2.5 V output and 12-bit resolution minimum.
Can the WatchDog 2800 operate independently without a computer after initial setup?
Yes—the device functions autonomously once programmed; no continuous PC connection is required for data logging or display functionality.
Is the onboard memory expandable?
No; memory is fixed at 128 KB. However, scheduled data offloading via USB or optional cellular telemetry modules mitigates capacity constraints.
Does the system support remote access or wireless transmission?
Wireless capability is not built-in but can be added via third-party GSM/LTE or LoRaWAN telemetry adapters connected to the auxiliary serial port.
How is time synchronization maintained during power interruption?
The integrated RTC uses a replaceable CR2032 coin-cell backup battery to retain time and date for up to 3 years without main power.
