Water Doctor Dr-M1202P Portable Ammonia Nitrogen Analyzer

Overview

The Water Doctor Dr-M1202P Portable Ammonia Nitrogen Analyzer is a field-deployable, electrochemical instrumentation system engineered for rapid, reagent-free quantification of ammonia nitrogen (NH₃–N) in aqueous matrices. It operates on the principle of potentiometric ion-selective electrode (ISE) detection, where a solid-state or polymer-membrane ammonia-selective electrode generates a Nernstian potential response proportional to the logarithm of free ammonium ion activity in solution. Unlike colorimetric or enzymatic methods, this approach eliminates the need for hazardous reagents (e.g., Nessler’s reagent or salicylate), thereby ensuring zero chemical waste generation, operator safety, and compliance with green laboratory practices. The instrument is calibrated against traceable NH₄⁺ standards and incorporates real-time temperature compensation via integrated Pt1000 thermistor sensing—critical for maintaining measurement fidelity across variable environmental conditions typical of wastewater outfalls, surface water monitoring stations, aquaculture ponds, and drinking water distribution networks.

Key Features

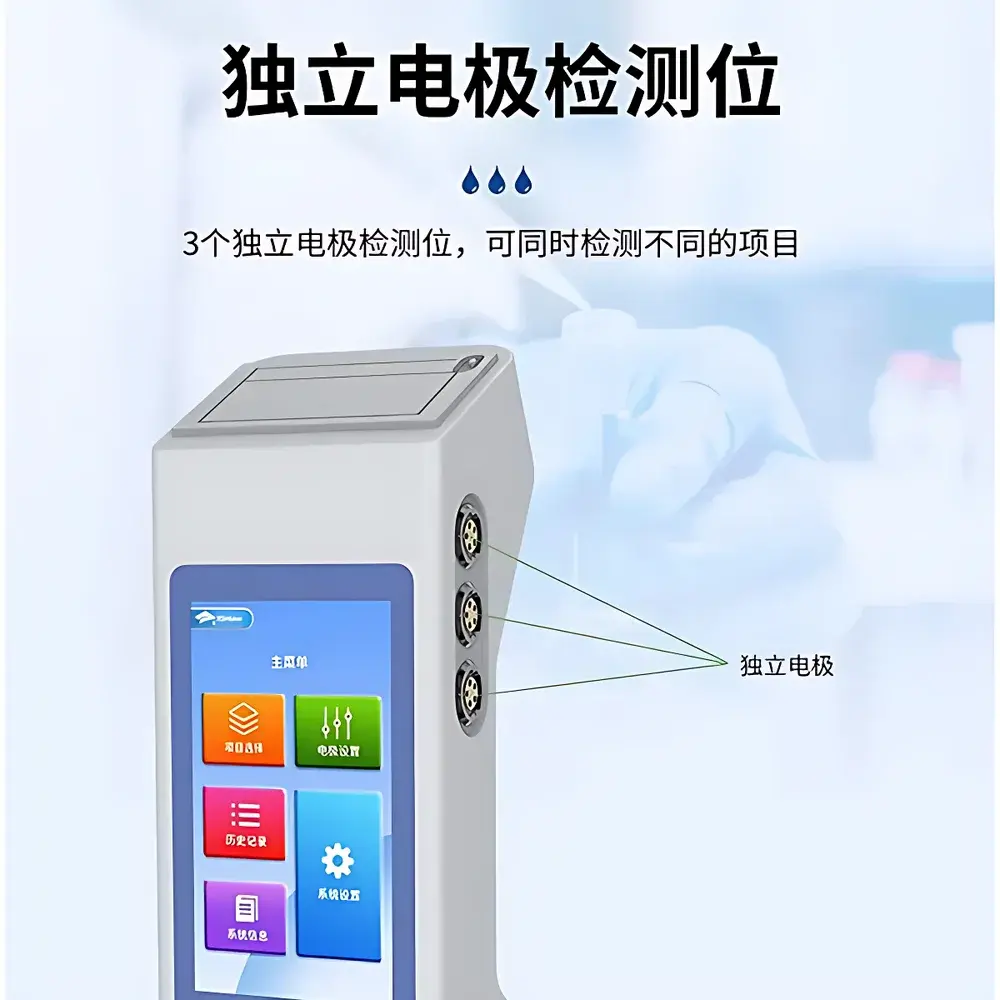

• Triple independent electrode measurement positions enable parallel analysis of up to three samples or simultaneous multi-parameter verification (e.g., NH₃–N, pH, and conductivity with compatible electrodes).
• Plug-and-play digital ISE interface ensures automatic electrode recognition and parameter mapping—no manual calibration coefficient entry or sensor ID configuration required.
• Dual-power architecture: high-capacity lithium-ion battery supports >12 hours of continuous operation under typical field duty cycles; USB Type-C port enables simultaneous charging, data transfer, and firmware updates.

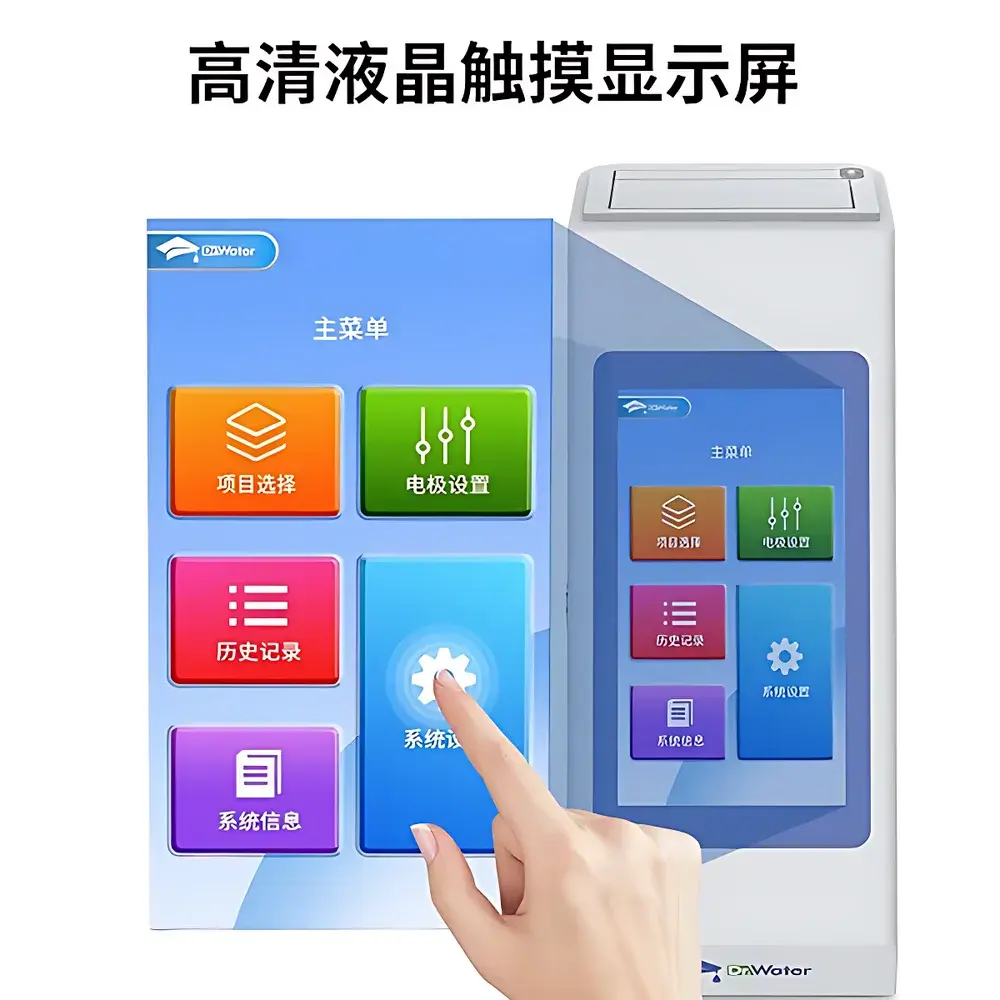

• 5-inch capacitive touchscreen with anti-glare coating and glove-compatible responsiveness facilitates intuitive navigation in outdoor or humid environments.
• Three programmable reading modes—real-time (continuous analog output), timed endpoint (user-defined stabilization window), and interval logging (scheduled autonomous sampling)—support method flexibility aligned with EPA Method 350.1, ISO 7150-1, and ASTM D1426-15 guidelines.
• Configurable auto-sleep function minimizes standby power draw, extending battery life without compromising startup readiness.

Sample Compatibility & Compliance

The Dr-M1202P is validated for use with freshwater, wastewater, seawater (with salinity compensation), effluent, aquaculture recirculation systems, and potable water sources. Its IP68-rated electrodes tolerate immersion, particulate-laden slurries, and exposure to weak acids/bases encountered in industrial discharge monitoring. While not certified to IEC 61000-6-2/4 for EMC immunity or ISO/IEC 17025 for accredited testing, the analyzer meets functional performance criteria outlined in US EPA Region 9 Field Screening Guidance and supports GLP-compliant data integrity through timestamped, non-erasable storage and audit-ready export logs. All firmware and calibration routines are version-controlled and traceable.

Software & Data Management

Onboard firmware provides full measurement lifecycle control: calibration curve management (single-point or multi-point), QC check execution, outlier flagging, and statistical summary (mean, SD, CV%). Stored datasets include metadata such as operator ID, location tag (manual entry), ambient temperature, electrode serial number, and calibration history. Data export is supported via USB mass-storage mode—generating CSV files compatible with LIMS platforms (e.g., LabWare, STARLIMS) and regulatory reporting tools. No cloud dependency or proprietary software installation is required; raw files are human-readable and interoperable with Excel, R, or Python-based QA/QC pipelines.

Applications

This analyzer serves operational needs across municipal utilities (influent/effluent monitoring at WWTPs), environmental consultancies conducting Tier 1 site assessments, aquaculture facilities managing nitrogen loading thresholds, pharmaceutical manufacturing sites verifying clean-in-place (CIP) rinse water quality, and photovoltaic wafer fabrication plants tracking process water purity. Its portability and rapid turnaround make it especially suitable for emergency spill response, regulatory inspection support, and decentralized water safety surveillance programs aligned with WHO Guidelines for Drinking-water Quality and China’s HJ 535–2009 standard.

FAQ

Does the Dr-M1202P require routine electrode maintenance beyond cleaning?
Yes—electrodes must be stored hydrated, cleaned weekly with mild detergent and deionized water, and recalibrated before each field deployment or after extended idle periods.
Can the instrument store calibration curves for multiple electrode batches?
Yes—up to 20 unique calibration profiles can be saved onboard, each tagged with date, operator, and standard lot information.

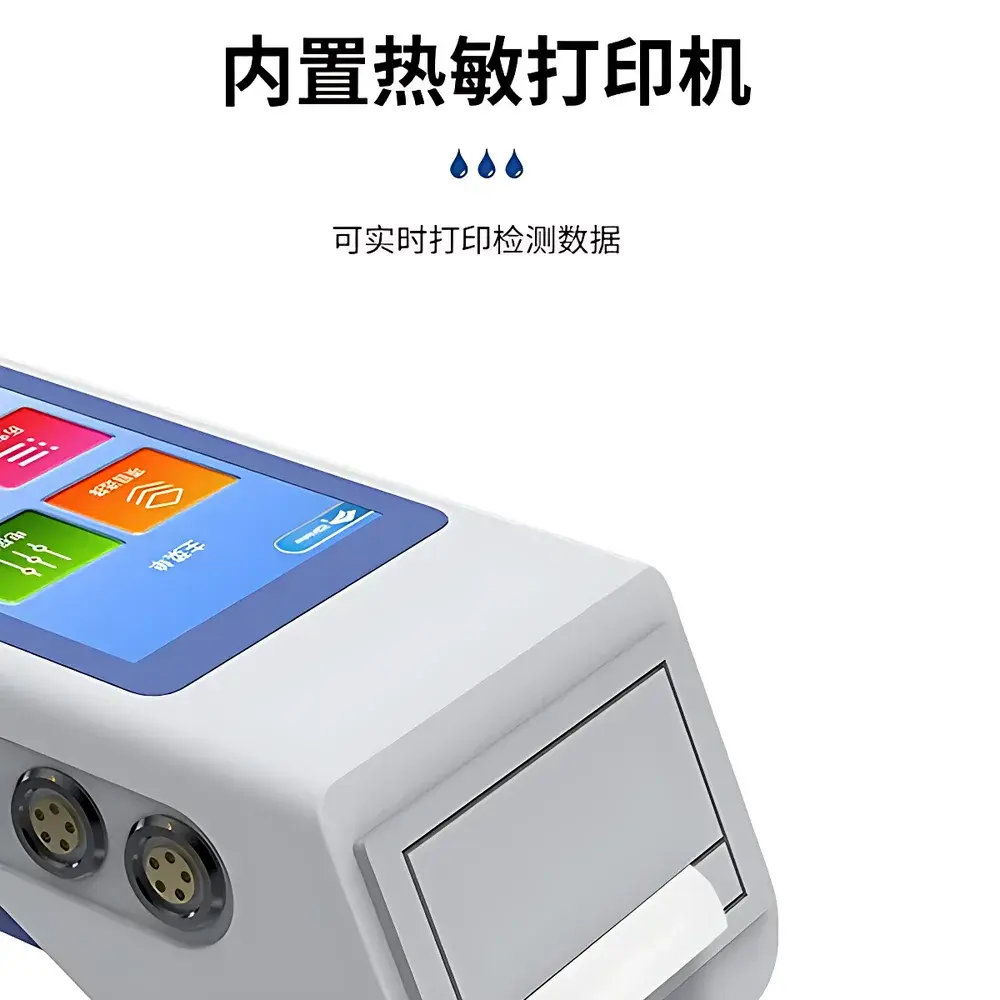

Is the thermal printer compatible with third-party label stock?
No—the built-in thermal printer uses proprietary 57 mm roll media optimized for field durability and fade resistance over 5 years.
What is the recommended verification frequency for accuracy checks?
A daily bracketing check using two certified reference materials (e.g., 2 mg/L and 50 mg/L NH₃–N) is advised for regulated applications.
Does the device support Bluetooth or Wi-Fi connectivity?
No—wireless modules are omitted to ensure electromagnetic robustness in industrial zones and extend battery longevity.
