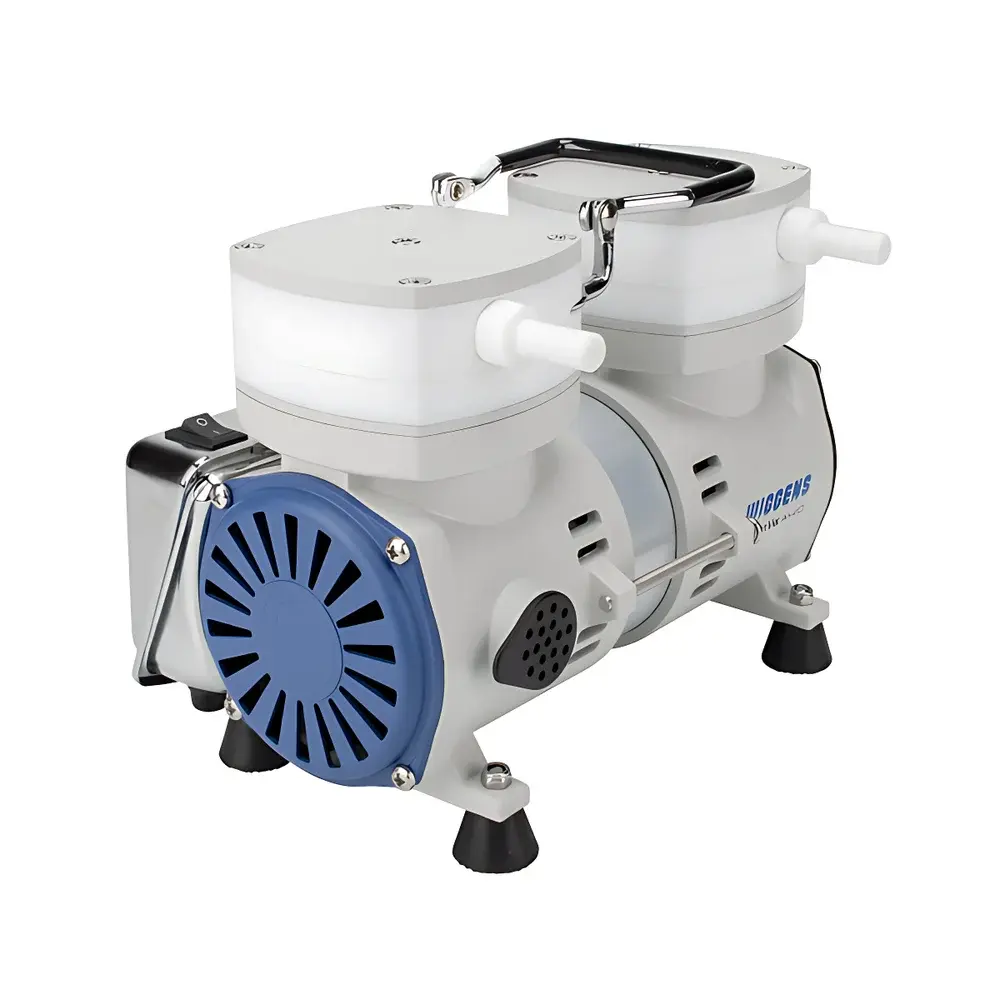

WIGGENS A410 Corrosion-Resistant Diaphragm Vacuum Pump

Overview

The WIGGENS A410 Corrosion-Resistant Diaphragm Vacuum Pump is an engineered solution for laboratories requiring reliable, oil-free vacuum generation in chemically aggressive environments. Designed on the principle of positive displacement via elastomeric diaphragm oscillation, the A410 delivers stable vacuum performance without lubricating oil—eliminating vapor backstreaming, oil contamination, and associated disposal liabilities. Its core architecture separates the gas-handling chamber from the mechanical drive train using hermetic sealing, thereby isolating sensitive components from corrosive vapors and condensates. This design enables continuous operation with minimal degradation in performance, even under prolonged exposure to halogenated solvents, acidic fumes (e.g., HCl, HF), or organic vapors commonly encountered in synthesis, extraction, and purification workflows.

Key Features

• Chemically inert wetted parts constructed entirely from PTFE (polytetrafluoroethylene), including diaphragms, valves, and internal tubing—ensuring compatibility with aggressive gases and condensable vapors.
• Double-stage diaphragm configuration achieving ultimate vacuum down to 13 mbar while maintaining a nominal flow rate of 25 L/min at atmospheric inlet pressure.
• Thermal protection circuitry that automatically interrupts power when internal temperature exceeds safe operational limits; auto-restart occurs once thermal equilibrium is restored, supporting unattended overnight operation.
• Noise-optimized motor and vibration-dampening housing yield a sound pressure level of ≤50 dB(A) at 1 m distance—suitable for shared laboratory spaces and ISO Class 5+ cleanroom-adjacent installations.
• Modular accessory interface supporting optional corrosion-resistant vacuum regulators, particulate filters (0.5 µm retention), and inline cold traps—enabling fine-tuned vacuum control and upstream protection against solid carryover or condensate ingress.

Sample Compatibility & Compliance

The A410 is validated for use with volatile organic compounds (VOCs), chlorinated hydrocarbons, low-concentration mineral acid vapors, and aqueous condensates typical in rotary evaporation, vacuum filtration, freeze drying, and gel drying applications. It complies with IEC 61000-6-3 (EMC emission standards) and IEC 61000-6-2 (immunity requirements). While not certified for explosive atmospheres (ATEX/IECEx), its oil-free, spark-free operation aligns with general laboratory safety best practices per OSHA 1910.1200 and EU CLP Regulation (EC No. 1272/2008). The pump meets RoHS Directive 2011/65/EU and REACH SVHC screening criteria for restricted substances.

Software & Data Management

As a standalone analog vacuum source, the A410 does not incorporate digital controllers or embedded firmware. However, it is fully compatible with external vacuum monitoring systems—including analog pressure transducers (0–10 V or 4–20 mA output), programmable logic controllers (PLCs), and LabVIEW-compatible data acquisition modules. When integrated into GLP/GMP-regulated environments, users may deploy third-party logging hardware to capture time-stamped vacuum profiles, runtime hours, and thermal event logs—supporting audit readiness under FDA 21 CFR Part 11 where electronic records are required. Optional vacuum regulators with calibrated needle valves facilitate reproducible setpoint maintenance across multiple instruments.

Applications

• Vacuum-assisted filtration of corrosive filtrates (e.g., nitric acid digestates, perchloric acid washes) using PTFE membrane filters.
• Rotary evaporation of solvent mixtures containing dichloromethane, acetone, or ethyl acetate—without risk of oil contamination in distillates.
• Desiccation of moisture-sensitive catalysts or hygroscopic salts under controlled sub-atmospheric conditions.
• Gel electrophoresis apparatus evacuation and vacuum manifold support for multi-well plate processing.
• Replacement of water aspirators in teaching labs—reducing water consumption by >95% and eliminating wastewater discharge concerns.

FAQ

Is the A410 suitable for continuous duty cycles?

Yes—the pump is rated for indefinite intermittent or continuous operation, provided ambient temperature remains below 40 °C and ventilation clearance ≥5 cm is maintained around all sides.
Can it handle condensable vapors without performance loss?

Yes—its PTFE-lined chambers resist chemical attack from condensed acids or solvents; however, excessive liquid ingress (>1 mL/hour) may impair diaphragm flex life and requires upstream trapping.
Does it meet ISO 8573-1 purity class requirements for compressed air?

Not applicable—the A410 is a vacuum generator, not a compressed air source; however, its exhaust is oil-free and particle-free per ISO 8573-1 Class 0 for contaminants.
What maintenance intervals are recommended?

Diaphragm and valve replacement is advised every 10,000 operating hours or biannually under typical lab usage; no lubrication or oil changes are required.
Is electrical certification available for North American markets?

The standard A410 model carries CE marking; UL/cUL listing is available upon request for specific configurations—contact WIGGENS technical support for regional compliance documentation.
