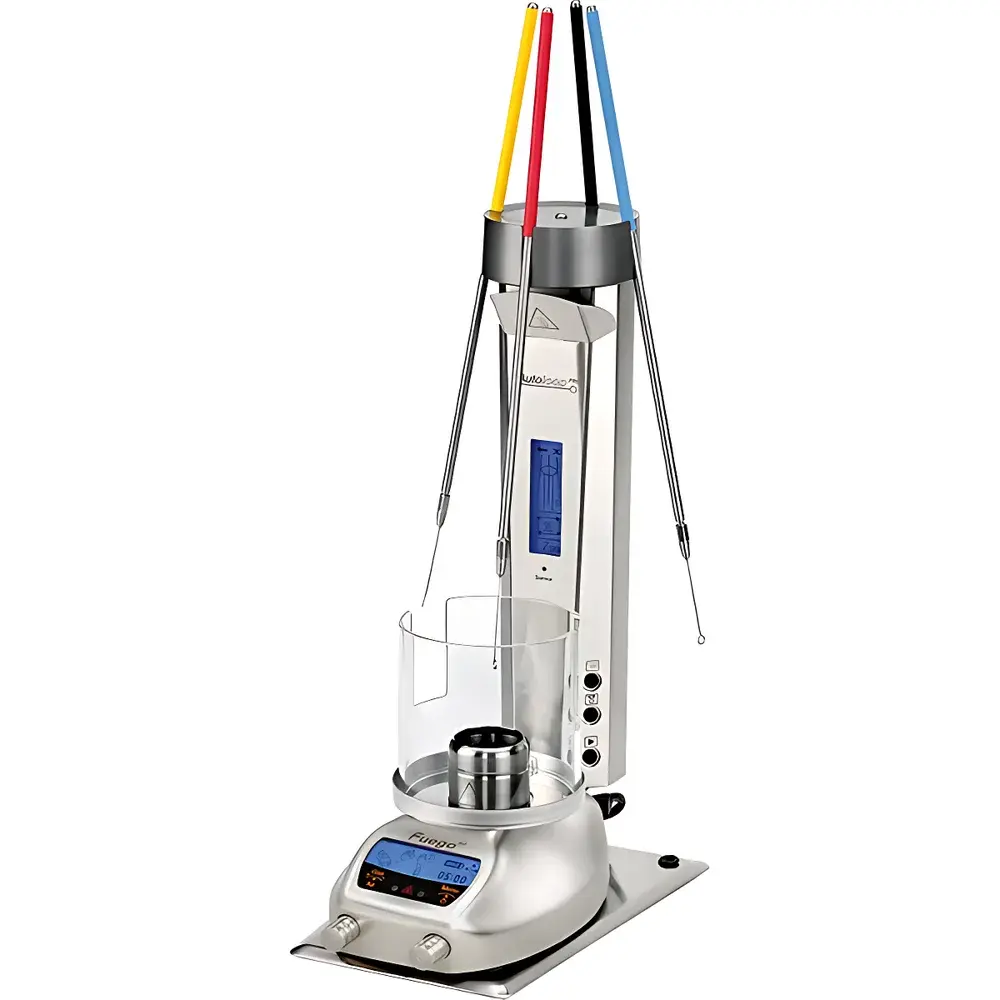

WIGGENS Autoloop Pro Automated Rotating Inoculation Loop Sterilizer

Overview

The WIGGENS Autoloop Pro Automated Rotating Inoculation Loop Sterilizer is an engineered solution for flame-based sterilization of microbiological inoculation loops and needles in regulated laboratory environments. Unlike conventional Bunsen burners or static flame devices, the Autoloop Pro implements a precisely timed, rotationally synchronized thermal decontamination process grounded in controlled open-flame exposure—leveraging the principle that sustained exposure to >800 °C oxidizing flame achieves rapid microbial inactivation (including spores) through protein denaturation and nucleic acid degradation. The system integrates seamlessly with WIGGENS Fuego-series Bunsen burners (e.g., Fuego SCS), enabling full automation of loop insertion, rotation, dwell-time-controlled flaming, post-sterilization cooling, and positional indexing—all without manual handling during active cycles. Its microprocessor-controlled architecture ensures deterministic repeatability across users and shifts, directly supporting audit-ready practices in clinical microbiology, pharmaceutical QC, and academic cell culture labs.

Key Features

• Automated 1–4 loop capacity with optical position detection: Integrated photodetectors confirm loop presence/absence at each station, preventing incomplete sterilization cycles.
• Precise thermal timing control: Sterilization duration adjustable from 1 to 15 seconds in 1-second increments; cooling interval programmable from 1 to 45 seconds—both displayed in real time on the LED interface.
• Dual flame intensity modes: Optimized for rapid loop tip sterilization (high-intensity) or gentle tube neck/flame-sealing applications (low-intensity), reducing thermal stress on stainless steel loops.
• Ergonomic dual-side loop ejection: Symmetrically positioned removal slots accommodate both right- and left-handed operators, minimizing wrist strain during high-throughput plating workflows.
• Footswitch-enabled remote operation: Enables hands-free initiation of loop advancement or retraction—critical when gloves are contaminated or when working within biosafety cabinets.
• Thermal safety architecture: Heat-resistant borosilicate glass overlay protects the display; stainless steel chassis and aluminum oxide-coated surfaces withstand repeated thermal cycling and routine ethanol wiping.
• Energy-efficient flame management: By eliminating prolonged idle burning and optimizing dwell time per loop, fuel consumption is reduced by up to 70% versus manual burner use (per comparative workflow analysis).

Sample Compatibility & Compliance

The Autoloop Pro accommodates standard inoculation loops with diameters of 1 mm, 3 mm, and 5 mm (stainless steel, 0.6 mm shaft diameter), as well as straight or hooked needles up to 245 mm in length. All clamping fixtures are precision-machined from medical-grade stainless steel and designed to maintain consistent loop alignment during rotation—ensuring uniform flame exposure across the entire wire surface. The device operates independently of gas supply regulation but requires integration with a certified laboratory Bunsen burner (e.g., WIGGENS Fuego SCS) meeting EN 13861 and DVGW G 260 standards. While not itself a medical device, its operational repeatability supports adherence to ISO 15189 (clinical labs), USP (microbiological validation), and FDA 21 CFR Part 11-compliant data logging when paired with external timestamped recording systems.

Software & Data Management

The Autoloop Pro features embedded firmware with non-volatile parameter memory—retaining user-defined sterilization and cooling durations, rotation direction, and auto-shutdown settings across power cycles. Though it lacks onboard data export, all operational events (start/stop timestamps, cycle count, flame-on duration per loop, error codes) are logged internally and accessible via diagnostic mode. For GLP/GMP environments, integration with LIMS or electronic lab notebooks (ELN) is achievable using optional RS-232 or USB-to-serial adapters (sold separately). Each sterilization cycle generates a traceable event string including loop position ID, elapsed time, and thermal status (red/green LED state), facilitating retrospective review during internal audits or regulatory inspections.

Applications

• Routine streaking and isolation in clinical microbiology labs performing CLSI M02-A12 compliant culture procedures.
• Aseptic transfer of fastidious organisms (e.g., Neisseria gonorrhoeae, Haemophilus influenzae) where thermal shock must be minimized between successive loops.
• High-frequency subculturing in bioprocessing QC labs verifying sterility of media batches under ISO 11133 guidelines.
• Teaching laboratories requiring standardized, instructor-monitored sterilization protocols aligned with APHL Laboratory Training Standards.
• Cell culture facilities performing antibiotic-free passaging where cross-contamination risk from residual organic carryover must be eliminated.

FAQ

Is the Autoloop Pro compatible with non-WIGGENS Bunsen burners?
Yes—provided the burner produces a stable, vertically oriented flame with sufficient height (≥80 mm) and temperature (>800 °C at tip), and its mounting bracket allows secure mechanical coupling to the Autoloop Pro base.
Does the device include a built-in gas regulator or ignition system?
No. The Autoloop Pro is a mechanical and control module only; it requires connection to an external laboratory-grade Bunsen burner with independent gas flow control and piezoelectric or match-based ignition.
Can sterilization parameters be locked to prevent unauthorized changes?
Parameter locking is not natively supported; however, physical access control to the front-panel buttons and footswitch—combined with procedural SOPs—serves as the primary administrative safeguard per ISO/IEC 17025 clause 7.2.2.
What maintenance is required for long-term reliability?
Monthly inspection of optical sensors for dust accumulation, quarterly cleaning of stainless steel rotation shaft with isopropanol, and annual verification of timer accuracy against a calibrated stopwatch (±0.2 s tolerance).
How does the Autoloop Pro contribute to sustainability goals in the lab?
By reducing average gas consumption by ≥50% compared to continuous manual flaming—and extending loop service life through optimized thermal cycling—it lowers both operational cost and carbon footprint per 1000 sterilization events.
