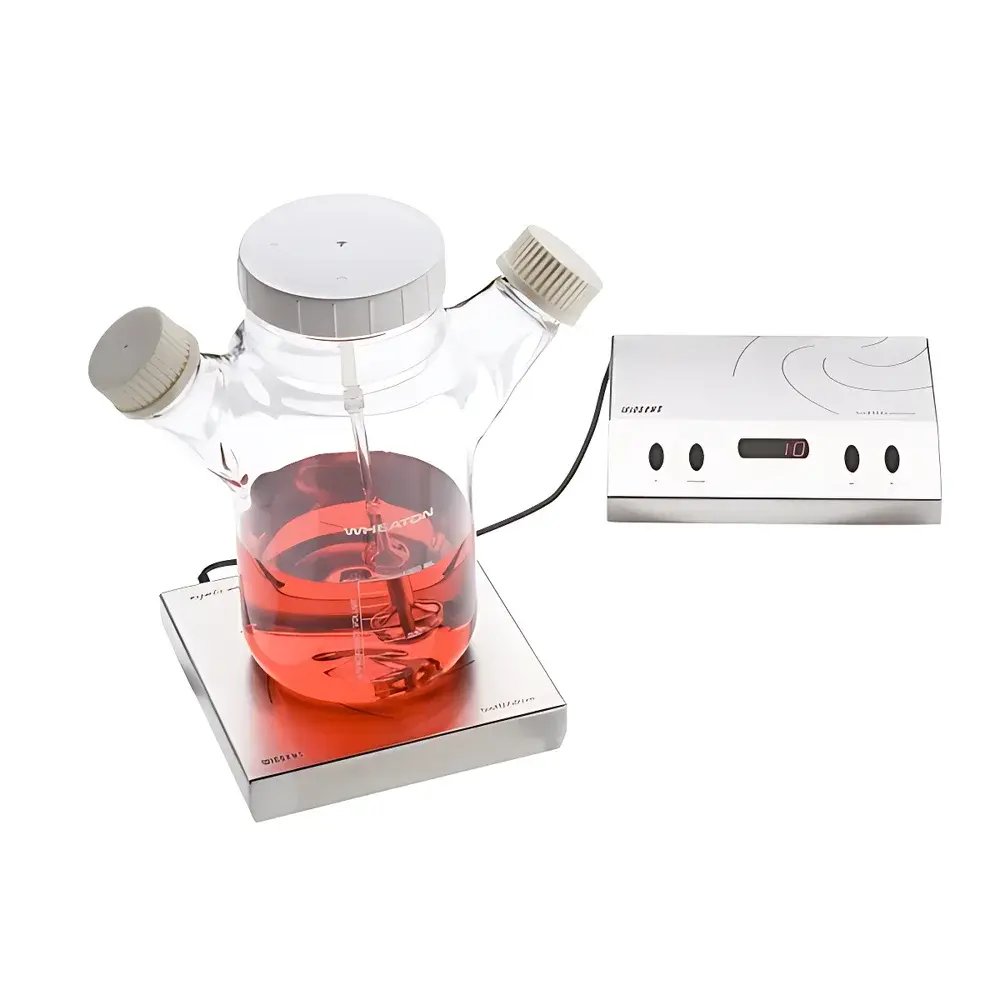

WIGGENS BioMIX Control Magnetic Drive Stirring Controller

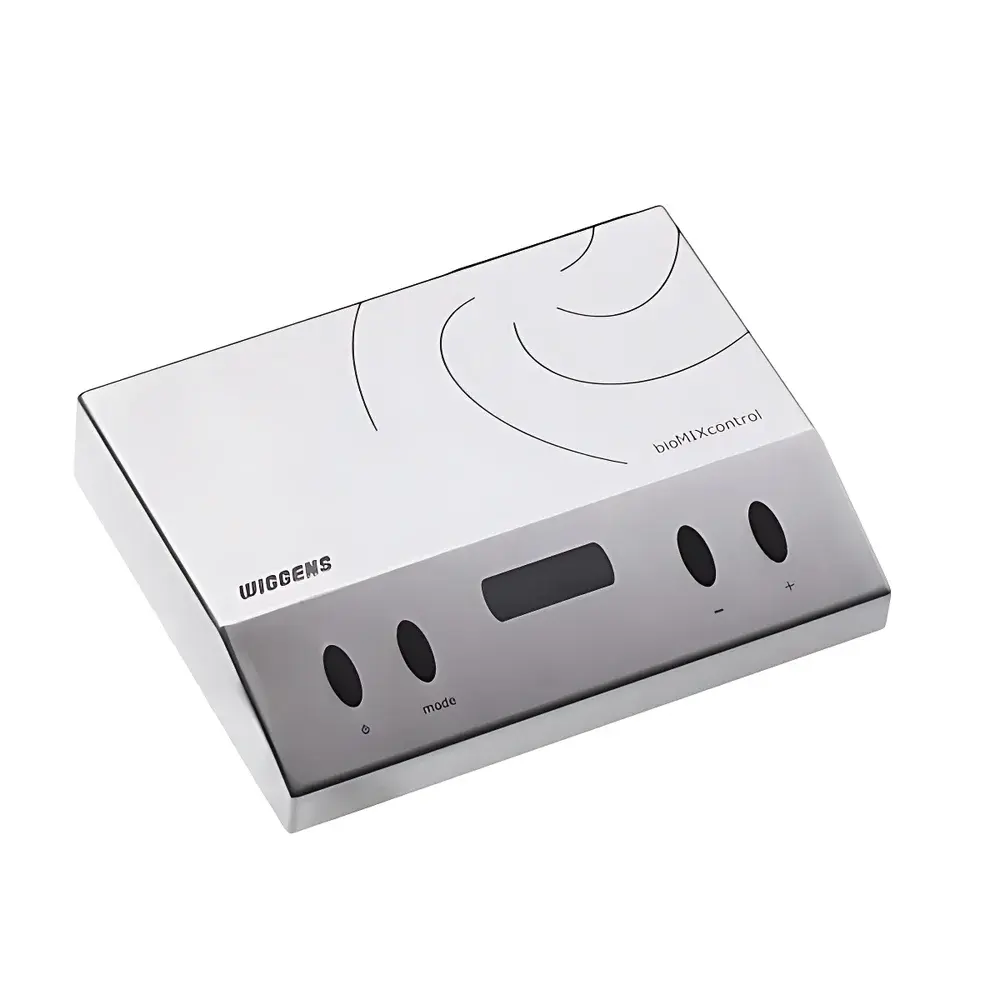

Overview

The WIGGENS BioMIX Control is a precision-engineered magnetic drive stirring controller designed for demanding bioprocess and cell culture applications where thermal stability, long-term reliability, and operational consistency are critical. Unlike conventional electromagnetic stirrers that generate resistive heating in the control unit or baseplate, the BioMIX Control employs a contactless, brushless magnetic coupling architecture—separating the motor-driven actuator (BIOMIX Drive) from the electronic control module. This decoupling eliminates self-heating of the controller, ensuring ambient temperature integrity within sensitive biological environments such as CO₂ incubators, laminar flow hoods, or refrigerated bioreactor setups. The system operates on the principle of synchronous magnetic torque transmission: the controller regulates current to the stator windings of the BIOMIX Drive unit, which in turn rotates the permanent magnet rotor—transferring motion to the magnetic stir bar inside the vessel without mechanical wear or heat conduction. With a stable speed range of 2–250 rpm—including precise low-speed control down to 2 rpm—the BioMIX Control enables gentle yet reproducible mixing of shear-sensitive mammalian cell suspensions, microbial cultures, and protein solutions.

Key Features

• Zero self-heating design ensures no thermal interference with temperature-controlled incubation environments

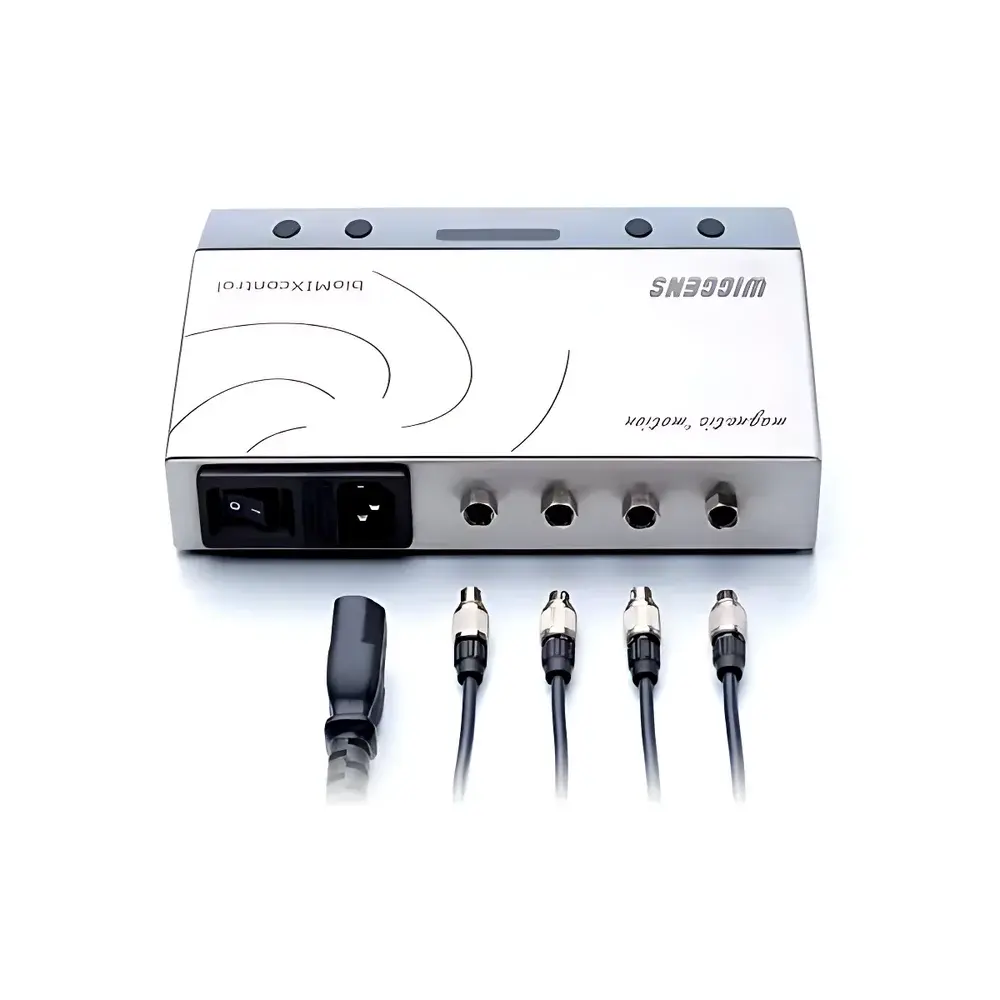

• Dual configuration options: BioMIX Control (single-channel, 40 W output) and BioMIX Control MS4 (quad-channel, 6 W per channel, independent parameter assignment)
• 10-step digital power adjustment (10–100%) optimized for viscosity gradients—from aqueous media to high-density suspension cultures
• Soft-start algorithm prevents abrupt acceleration, minimizing stir bar “jumping” or misalignment during initiation
• Auto-memory function retains the last five user-defined speed and power settings for rapid reconfiguration
• Stainless steel (AISI 304) enclosure rated IP20—chemically resistant, autoclavable-surface compatible, and easy to decontaminate
• Optional industrial-grade analog/digital interfaces (0–10 V, 4–20 mA, RS232, USB, Ethernet) support integration into SCADA, LIMS, or bioreactor control networks
• MIX Watch add-on capability enables autonomous detection of stir bar stall, displacement, or rotational failure—triggering automatic stop, repositioning, and restart without operator intervention

Sample Compatibility & Compliance

The BioMIX Control is validated for use with standard laboratory glassware (Erlenmeyer flasks, baffled bioreactor vessels, spinner flasks) and single-use bioreactors up to 5 L working volume. Its non-contact drive mechanism avoids electromagnetic interference with adjacent analytical instruments (e.g., pH meters, dissolved oxygen probes, or spectrophotometers). The controller meets CE marking requirements under the EU Machinery Directive 2006/42/EC and Electromagnetic Compatibility Directive 2014/30/EU. RoHS 2011/65/EU compliance confirms absence of restricted hazardous substances. While not inherently 21 CFR Part 11 compliant, the optional Ethernet/RS232 interface supports audit-trail-capable third-party software integration for GLP/GMP environments when paired with validated data acquisition systems.

Software & Data Management

The BioMIX Control operates as a hardware-level controller with embedded firmware; no onboard OS or local storage is included. However, its optional communication interfaces enable bidirectional integration with external host systems. Custom OEM software development is available upon request—including LabVIEW VIs, Python API wrappers, and .NET SDKs—for centralized monitoring across multi-vessel cultivation platforms. When configured with MIX Watch, real-time status logs (stir bar RPM, error codes, restart events) can be streamed via RS232 or Ethernet to a central database. All firmware updates are delivered through WIGGENS’ secure engineering portal and require physical USB connection—ensuring version traceability and change control adherence in regulated labs.

Applications

• Long-duration suspension cell culture (CHO, HEK293, hybridoma) in humidified 37 °C incubators
• Microbial fermentation monitoring where consistent O₂ transfer and nutrient homogeneity are essential
• Preparation of uniform hydrogel-based 3D cell scaffolds requiring low-shear, extended mixing cycles
• Buffer and media formulation workflows under ISO Class 5 cleanroom conditions

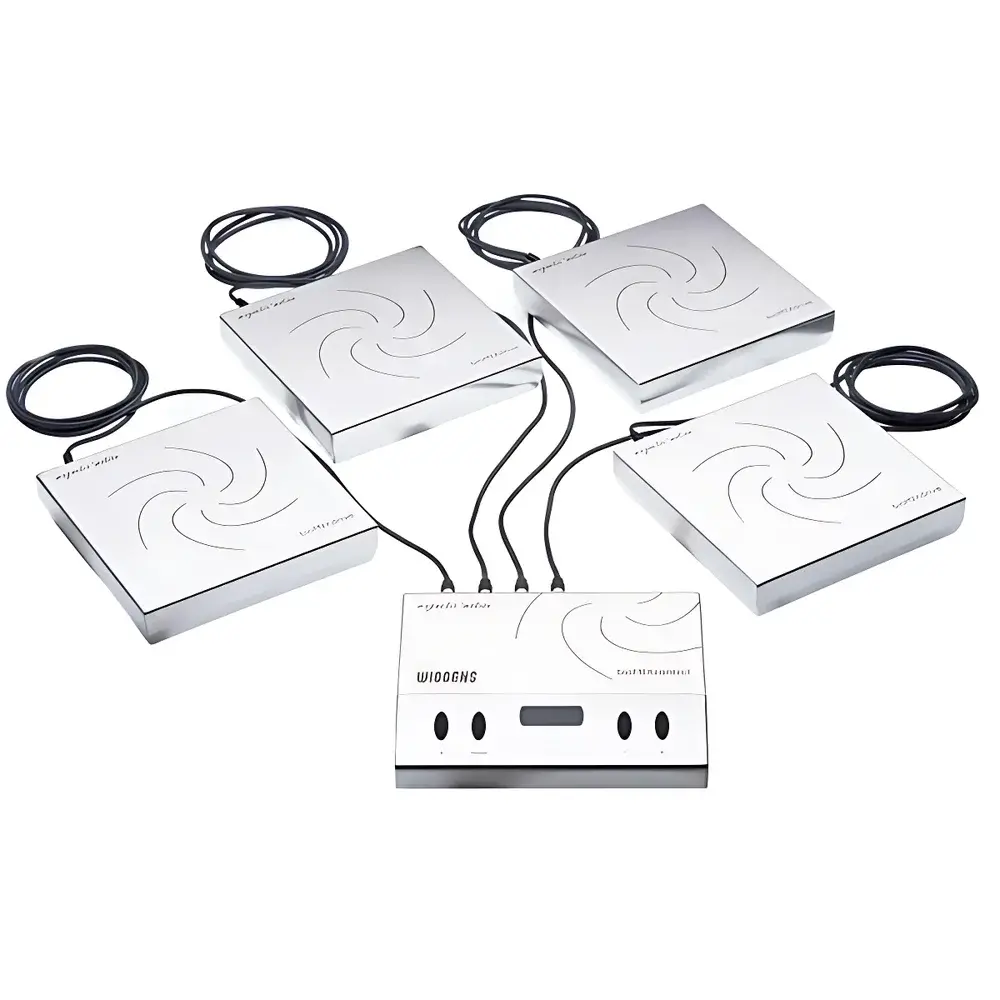

• Automated parallel bioreactor arrays using the MS4 variant for independent vessel optimization
• Stability studies involving temperature-sensitive proteins or liposomes where thermal drift must be minimized

FAQ

Can the BioMIX Control operate inside a CO₂ incubator?
Yes—its zero self-heating design and stainless steel housing allow safe placement directly inside incubators operating at 37 °C and 5% CO₂, provided ambient humidity remains ≤80% RH.
What is the difference between BioMIX Control and BioMIX Control MS4?
The BioMIX Control is a single-output unit driving one BIOMIX Drive; the MS4 variant provides four isolated outputs, each programmable with independent speed and power settings for parallel vessel control.
Is MIX Watch compatible with all BIOMIX Drive models?
MIX Watch is only supported with BIOMIX Drive 1 units—not with Drive 4 or other variants—and requires firmware version ≥2.3.
Does the controller support analog feedback from external sensors?
No—feedback capability is limited to internal diagnostics (e.g., motor current, thermal status); external sensor integration requires host-system-level logic via optional interfaces.
Can I retrofit an existing BIOMIX Drive with the MS4 controller?
Yes—provided the Drive units are BIOMIX Drive 1 models with compatible connector pinouts and firmware revision ≥2.1.
