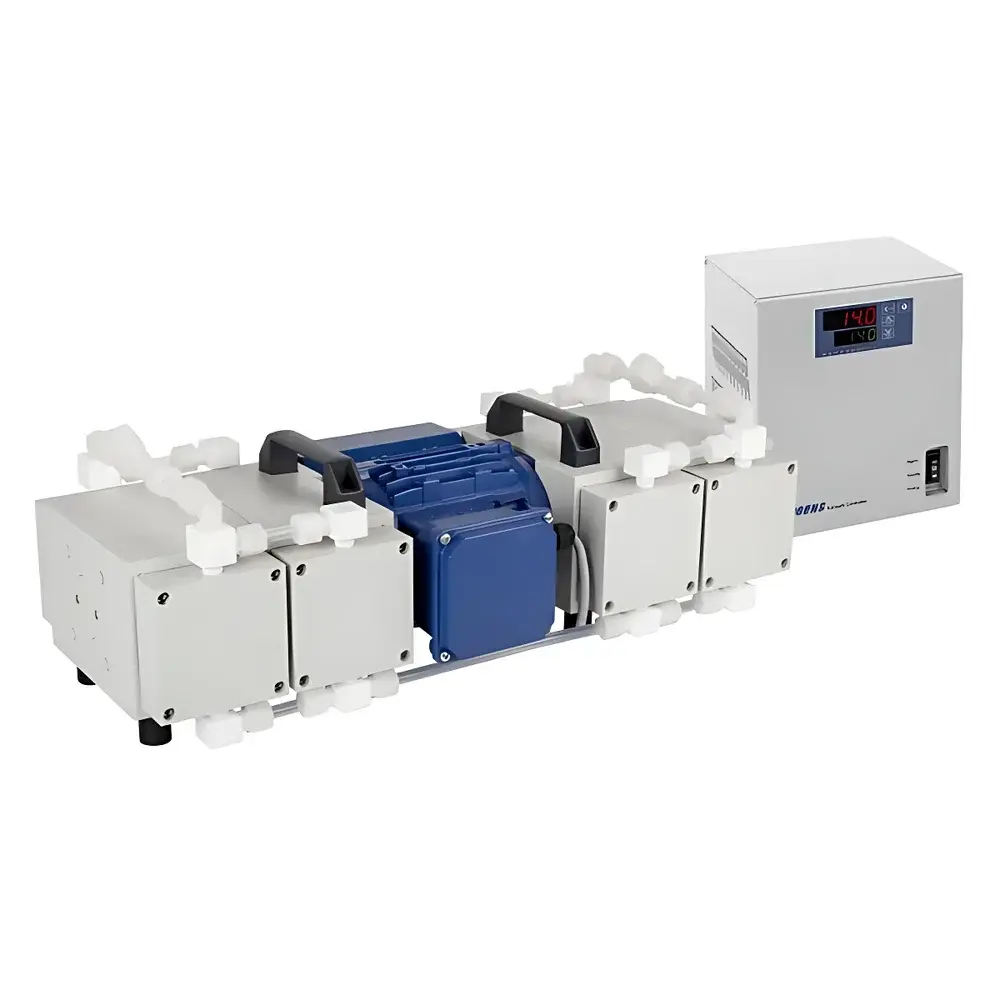

WIGGENS C1450TEF Corrosion-Resistant Variable-Frequency Diaphragm Vacuum Pump System

Overview

The WIGGENS C1450TEF Corrosion-Resistant Variable-Frequency Diaphragm Vacuum Pump System is an integrated, intelligent vacuum solution engineered for demanding chemical, pharmaceutical, and petrochemical laboratory and pilot-scale applications. Unlike conventional fixed-speed or basic PID-controlled diaphragm pumps, the C1450TEF employs a fully adaptive AI-driven auto-tuning PID algorithm embedded in its integrated control unit. This architecture enables real-time dynamic adjustment of proportional-integral-derivative parameters based on system load, gas composition, condensate formation, and ambient thermal conditions—ensuring stable, repeatable vacuum pressure control across variable process states. The pump operates on a dual-stage diaphragm principle, achieving ultimate vacuum levels below 8 mbar while maintaining high volumetric throughput (145 L/min), making it suitable for both coarse evacuation and fine pressure regulation. Its oil-free, dry-running operation eliminates hydrocarbon contamination risks and avoids regulatory burdens associated with used oil disposal—aligning with ISO 14001 environmental management frameworks and supporting GLP-compliant documentation requirements.

Key Features

• Integrated variable-frequency drive (VFD) with AI-based self-tuning PID control for precise, disturbance-resistant vacuum setpoint maintenance
• Full PTFE-wetted path—including diaphragms, valves, inlet/outlet manifolds, and gas-handling chambers—ensuring exceptional resistance to aggressive vapors (e.g., HCl, HF, SO₂, organic solvents) and liquid condensates
• Hermetically sealed separation between gas-exposed and mechanical drive compartments, preventing cross-contamination and extending service life of motor, bearings, and cam mechanism
• Thermal protection circuitry with automatic shutdown at elevated housing temperatures and auto-restart upon safe cooldown—compliant with IEC 60034-11 motor safety standards
• Compact modular footprint (635 × 280 × 200 mm) and low mass (36.5 kg) enabling benchtop integration or mobile cart mounting without structural reinforcement
• IP54-rated motor enclosure for reliable operation in humid, chemically laden environments common in synthesis labs and QC suites
• Noise emission limited to 65 dB(A) at 1 m distance—meeting EU Directive 2000/14/EC noise labeling requirements for laboratory equipment

Sample Compatibility & Compliance

The C1450TEF is validated for continuous duty with corrosive, condensable, and reactive process gases encountered in ASTM E2654 (vacuum-assisted solvent recovery), USP <1058> (analytical instrument qualification), and ISO 20032 (vacuum system performance testing). Its all-PTFE fluid path meets material compatibility requirements per ASTM D543 for fluoropolymer resistance to strong acids and halogenated solvents. As a Class II, Group IIB explosion-protected compatible device (when installed with certified external barriers), it supports operation in Zone 2 hazardous locations per ATEX 2014/34/EU. The system supports audit-ready operation under FDA 21 CFR Part 11 when paired with WIGGENS’ optional Ethernet-enabled data logger (model WL-LOG-VAC-ETH), providing electronic signatures, time-stamped event logs, and immutable vacuum profile records.

Software & Data Management

While the C1450TEF operates as a standalone unit with intuitive front-panel membrane keypad and LED vacuum display, it supports digital integration via RS-485 Modbus RTU protocol (optional interface module). When connected to WIGGENS’ WinVac Control Suite (v3.2+), users gain access to real-time vacuum trajectory plotting, multi-point setpoint scheduling, alarm history export (CSV/PDF), and automated compliance reporting aligned with ISO/IEC 17025 clause 7.7 (equipment monitoring). All parameter changes—including PID coefficients, ramp rates, and hold times—are timestamped and attributed to operator ID, satisfying traceability mandates under GLP and GMP Annex 11.

Applications

• Large-volume rotary evaporation under controlled sub-10 mbar conditions with solvent recovery optimization
• Vacuum-assisted crystallization and fractional distillation in API manufacturing workflows
• High-throughput solid-phase extraction (SPE) manifold evacuation with consistent flow-rate control
• Lyophilization pre-freeze and primary drying stage vacuum stabilization
• Reaction vessel degassing for moisture- and oxygen-sensitive organometallic syntheses
• Thin-film deposition chamber base-pressure conditioning in semiconductor R&D cleanrooms
• Environmental lab purge-and-trap systems handling volatile acidic compounds (e.g., nitric acid fumes)

FAQ

Does the C1450TEF require lubrication or oil changes during operation?
No. It is a true oil-free diaphragm pump with no internal lubricants—eliminating routine oil maintenance, vapor-phase hydrocarbon carryover, and disposal compliance overhead.
Can the pump handle saturated vapors or liquid ingress without damage?
Yes. Its PTFE diaphragms and check valves tolerate intermittent liquid condensate exposure; however, prolonged direct liquid ingestion should be prevented using an inline cold trap or separator.
Is the auto-tuning PID function configurable or user-accessible?
The self-tuning cycle initiates automatically on power-up or after significant setpoint shifts; manual trigger and tuning parameter visibility are restricted to authorized service mode via encrypted firmware access.
What certifications does the C1450TEF hold for international use?
It carries CE marking (LVD 2014/35/EU, EMC 2014/30/EU), RoHS 2011/65/EU compliance, and conforms to EN 61000-6-2/6-4 immunity/emission standards. Factory calibration certificates are traceable to DKD/DAkkS-accredited laboratories.
How does the dual-stage design improve performance over single-stage diaphragm pumps?
Dual-stage compression enables deeper ultimate vacuum (<8 mbar vs. typical 20–30 mbar for single-stage units) while sustaining higher pumping speeds across the mid-vacuum range (10–100 mbar), critical for efficient solvent removal in rotary evaporation and concentration processes.
