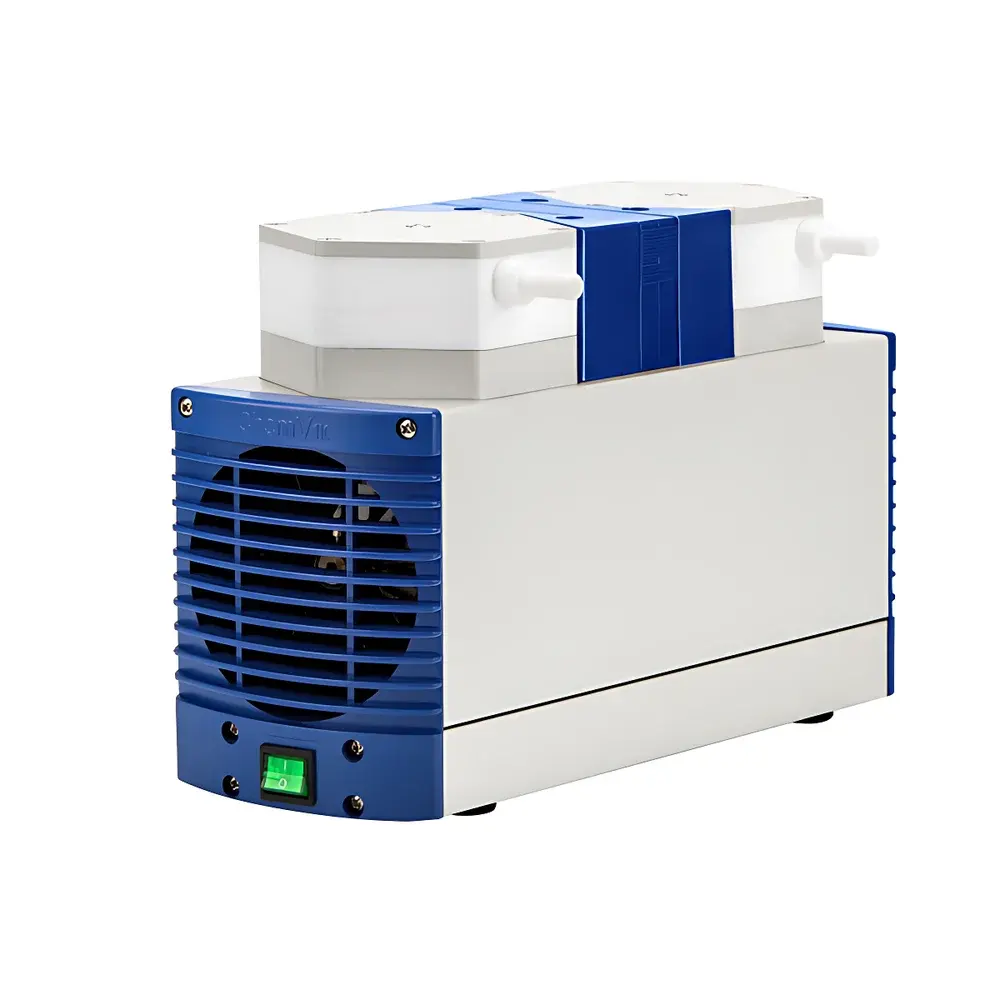

WIGGENS C510 Corrosion-Resistant Diaphragm Vacuum Pump

Overview

The WIGGENS C510 Corrosion-Resistant Diaphragm Vacuum Pump is an engineered solution for laboratories and pilot-scale facilities requiring reliable, oil-free vacuum generation in chemically aggressive environments. Based on positive displacement via elastomeric diaphragm actuation, the C510 operates without lubricating oil—eliminating risks of hydrocarbon contamination, oil backstreaming, or disposal-related regulatory burdens. Its dual-stage configuration enables stable vacuum levels down to 8 mbar (absolute), making it suitable for applications demanding moderate vacuum performance with high chemical resilience. Designed and assembled under German quality standards, the pump integrates a sealed drive chamber physically isolated from the gas path—ensuring long-term mechanical integrity even under continuous operation with corrosive vapors or condensable solvents.

Key Features

• Chemical resistance achieved through full PTFE wetted-path construction: diaphragms, valves, inlet/outlet fittings, and internal chambers are fabricated from virgin polytetrafluoroethylene, providing broad compatibility with acids (e.g., HCl, HNO₃), bases (e.g., NaOH), halogenated solvents (e.g., CH₂Cl₂, CCl₄), and organic vapors.
• Hermetically separated drive mechanism: motor, crankshaft, and connecting rod reside in an oil-free, sealed compartment, preventing exposure to process gases and condensates—significantly extending service life and reducing unplanned downtime.
• Integrated thermal protection system: a bimetallic thermostat monitors housing temperature; if exceeding safe operational limits (typically >70 °C), the pump automatically de-energizes and resumes operation only after passive cooling restores nominal thermal conditions—supporting unattended overnight runs.
• Low-noise operation at 60 dB(A) measured at 1 m distance, compliant with ISO 3744 acoustic testing methodology—suitable for shared laboratory spaces where ambient noise control is mandated by institutional health & safety protocols.
• IP40-rated enclosure provides protection against solid objects ≥1 mm diameter; while not dust-tight or water-resistant, this rating reflects appropriate engineering for indoor, controlled-environment use per IEC 60529.

Sample Compatibility & Compliance

The C510 is validated for handling condensable and non-condensable corrosive media encountered in routine analytical and preparative workflows—including HCl(g), SO₂, Cl₂, HF(aq) vapor, acetone, methanol, ethyl acetate, and tetrahydrofuran. It meets essential electrical safety requirements per EN 61010-1:2019 (Safety Requirements for Electrical Equipment for Measurement, Control, and Laboratory Use) and conforms to RoHS Directive 2011/65/EU regarding hazardous substance restrictions. While not certified to ATEX or IECEx for explosive atmospheres, its design inherently avoids ignition sources—no sparking contacts or hot surfaces are exposed within the gas path. For GLP/GMP-regulated environments, the pump’s consistent performance, absence of consumable oils, and predictable maintenance intervals support audit-ready documentation practices.

Software & Data Management

The C510 operates as a standalone analog device with no embedded firmware, digital interface, or data logging capability. This architecture ensures electromagnetic compatibility (EMC) stability in sensitive instrumentation zones (e.g., adjacent to NMR spectrometers or mass spectrometers) and eliminates cybersecurity concerns associated with networked lab devices. Vacuum regulation is accomplished externally using optional corrosion-resistant vacuum regulators (e.g., PTFE-coated needle valves) or inline stainless-steel/PTFE filter assemblies (part number WIG-VR-FIL-PTFE), which provide particulate retention (≥5 µm) and adjustable pressure setpoints—enabling reproducible vacuum control across filtration, rotary evaporation, or lyophilization protocols.

Applications

• Vacuum-assisted filtration of aggressive filtrates in pharmaceutical API purification and inorganic synthesis.
• Rotary evaporation of acid-sensitive compounds and solvent recovery under reduced pressure.
• Lyophilization pre-freeze and primary drying stages where oil-free vacuum prevents product contamination.
• Gas scavenging in Schlenk-line setups involving moisture- or oxygen-sensitive reagents.
• Replacement of water aspirators in teaching labs—reducing annual freshwater consumption by ~12,000 L per unit—and eliminating wastewater treatment liabilities.
• Supporting solid-phase extraction (SPE) manifolds with multi-channel parallel processing under controlled vacuum gradients.

FAQ

Is the C510 suitable for pumping hydrogen sulfide (H₂S) or ammonia (NH₃)?
Yes—provided concentrations remain below occupational exposure limits (e.g., OSHA PEL: 10 ppm for H₂S; 50 ppm for NH₃) and condensation is minimized via upstream cooling traps. PTFE components exhibit excellent resistance to both gases at ambient temperatures.
Can the pump handle continuous exposure to 60 °C saturated steam?
It is rated for intermittent exposure to steam condensate; however, sustained operation above 40 °C inlet gas temperature may accelerate diaphragm fatigue. Use of a chilled condenser or cold trap upstream is strongly recommended for steam-rich streams.
What maintenance intervals are recommended for routine laboratory use?
Diaphragm and valve kits should be inspected every 6 months or after 1,000 operating hours—whichever occurs first. No lubrication or oil changes are required. Replacement parts are field-serviceable using standard hex tools and require no calibration.
Does the C510 comply with FDA 21 CFR Part 11 for electronic records?
Not applicable—the pump contains no electronic data storage, user-accessible software, or audit-trail functionality. Its analog operation aligns with “low-risk” equipment classification under Annex 11 guidance for computerized systems.
Is a vacuum gauge included with the base unit?
No—vacuum monitoring must be performed externally using a compatible analog or digital vacuum gauge (e.g., capacitance manometer or Pirani sensor) installed downstream of the pump outlet.
