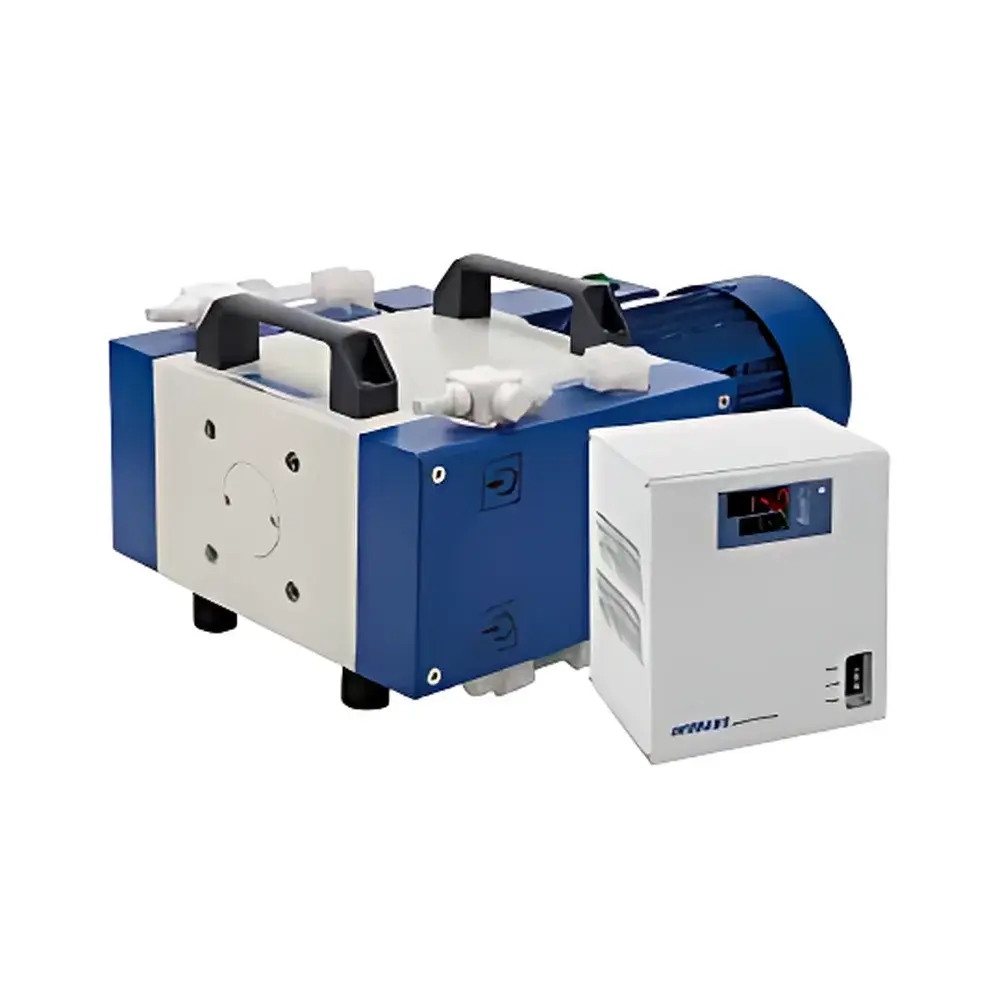

WIGGENS C900EF High-Power Corrosion-Resistant Variable-Frequency Diaphragm Vacuum Pump

Overview

The WIGGENS C900EF is a high-performance, corrosion-resistant, variable-frequency diaphragm vacuum pump engineered for demanding laboratory and pilot-scale applications involving aggressive chemical vapors, solvents, and condensable gases. Unlike oil-lubricated rotary vane pumps, the C900EF operates entirely oil-free—eliminating contamination risk to sensitive processes and reducing maintenance overhead. Its core mechanism relies on a reciprocating PTFE/PVDF-reinforced diaphragm driven by a robust 370 W asynchronous motor, delivering stable vacuum generation down to < 50 mbar while sustaining a maximum pumping speed of 95 L/min. The integrated variable-frequency drive architecture enables precise, stepless regulation of motor speed (and thus vacuum pressure), supporting closed-loop control when paired with external pressure sensors and programmable logic controllers. This design conforms to fundamental principles of positive displacement vacuum generation, where volumetric flow rate and ultimate vacuum are decoupled from inlet pressure—enabling consistent performance across wide process windows. The pump’s structural integrity and chemical resilience make it suitable for continuous operation in GLP-compliant laboratories, pharmaceutical R&D environments, and chemical synthesis workflows requiring ISO 8573-1 Class 0 air quality.

Key Features

• Chemically inert wetted parts constructed entirely from PTFE, PVDF, and FKM elastomers—validated against ASTM D543 and ISO 16000-9 for resistance to halogenated solvents, strong acids, and organic vapors
• PTFE “sandwich” diaphragm design featuring dual-layer reinforcement and embedded support geometry—proven to extend service life by ≥300% versus standard single-layer diaphragms under cyclic load testing (per DIN 28400-3)
• IP54-rated motor housing and sealed electronics compartment—enabling reliable deployment in humid, dusty, or splash-prone laboratory settings
• Variable-frequency motor control supporting 0–10 V analog input or Modbus RTU communication—compatible with third-party SCADA systems and WIGGENS’ optional integrated VFD controller (Order No. 169901B)
• Noise emission limited to 50 dB(A) at 1 m distance—meeting EN ISO 4871 requirements for low-acoustic laboratory equipment
• Soft-start functionality reduces inrush current to < 1.5× rated current—minimizing stress on building electrical infrastructure and extending contactor lifespan

Sample Compatibility & Compliance

The C900EF is designed for direct handling of chemically aggressive media without intermediate traps or scrubbers in most standard applications. Wetted surfaces—including diaphragm, valves, and chamber liners—are fully compatible with hydrochloric acid (up to 37%), sulfuric acid (≤ 70%), nitric acid (≤ 65%), acetone, THF, chloroform, and ethyl acetate vapors. It complies with IEC 61000-6-3 (EMC emissions), IEC 61000-6-2 (immunity), and meets RoHS 2011/65/EU and REACH SVHC criteria. For regulated environments, the pump supports audit-ready operation when used with WIGGENS’ optional VFD controller (169901B), which provides timestamped operational logs, setpoint history, and password-protected parameter access—facilitating alignment with FDA 21 CFR Part 11 data integrity expectations and EU Annex 11 computerized system validation protocols.

Software & Data Management

While the base C900EF model operates as a standalone unit, its VFD interface enables seamless integration into automated vacuum management systems. When configured with the optional 169901B controller, the pump delivers real-time feedback on motor frequency, actual vacuum level (via optional analog pressure sensor input), runtime hours, and thermal status. All parameters are accessible via front-panel LCD or RS-485 Modbus RTU port (addressable up to 247 devices). Logged data can be exported in CSV format for trend analysis in LIMS or ELN platforms. The controller firmware supports configurable alarm thresholds (e.g., overtemperature, pressure deviation > ±5 mbar), automatic shutdown on fault detection, and event-triggered email notifications via Ethernet gateway (sold separately). No proprietary software installation is required—configuration is performed through intuitive menu navigation or ASCII command protocol.

Applications

• Vacuum distillation of thermally labile compounds under controlled pressure gradients
• Pressure-sensitive reaction monitoring in jacketed glass reactors (e.g., Grignard, hydrogenation, lithiation)
• High-throughput vacuum filtration of corrosive filtrates in API purification workflows
• Gentle solvent removal during lyophilization pre-concentration steps
• Controlled drying of moisture-sensitive catalysts and metal-organic frameworks (MOFs)
• Process vacuum conditioning in semiconductor wafer cleaning stations requiring halogen-free dry pumping
• Extraction and concentration of natural product isolates in botanical chemistry labs

FAQ

Is the C900EF suitable for pumping solvent vapors containing water or alcohols?
Yes—the PTFE/PVDF diaphragm and valve assembly exhibit excellent resistance to hydrolysis and alcohol swelling; however, continuous exposure to >80% aqueous ethanol or methanol above 40 °C may accelerate elastomer aging. Use of a cold trap is recommended for high-volume condensable vapor loads.
Can the pump achieve deep vacuum (<10 mbar) with extended runtime?
The C900EF is optimized for medium-vacuum applications (50–500 mbar). While it reaches <50 mbar under standard conditions, sustained operation below 20 mbar requires supplemental backing (e.g., scroll or turbomolecular pump) per ISO 21028-1 guidelines.
What maintenance intervals are recommended for routine operation?
Diaphragm replacement is advised every 6,000–8,000 operating hours under typical chemical load; valve kits every 12 months; and motor bearing inspection every 24 months. Full service kits (including calibrated torque specifications) are available under WIGGENS part numbers C900-DK and C900-VK.
Does the integrated VFD controller support PID pressure regulation?
Yes—the 169901B controller includes built-in PID algorithm with tunable P/I/D coefficients, enabling stable pressure hold within ±1 mbar tolerance when paired with a certified 0–100 mbar piezoresistive sensor.
Is CE marking valid for use in North America?
The C900EF carries CE marking for EMC and LVD directives. For U.S./Canada deployment, units shipped with NEMA 12-rated enclosures and UL-listed power supplies (Order No. 169901B-NA) comply with UL 61010-1 and CSA C22.2 No. 61010-1.
