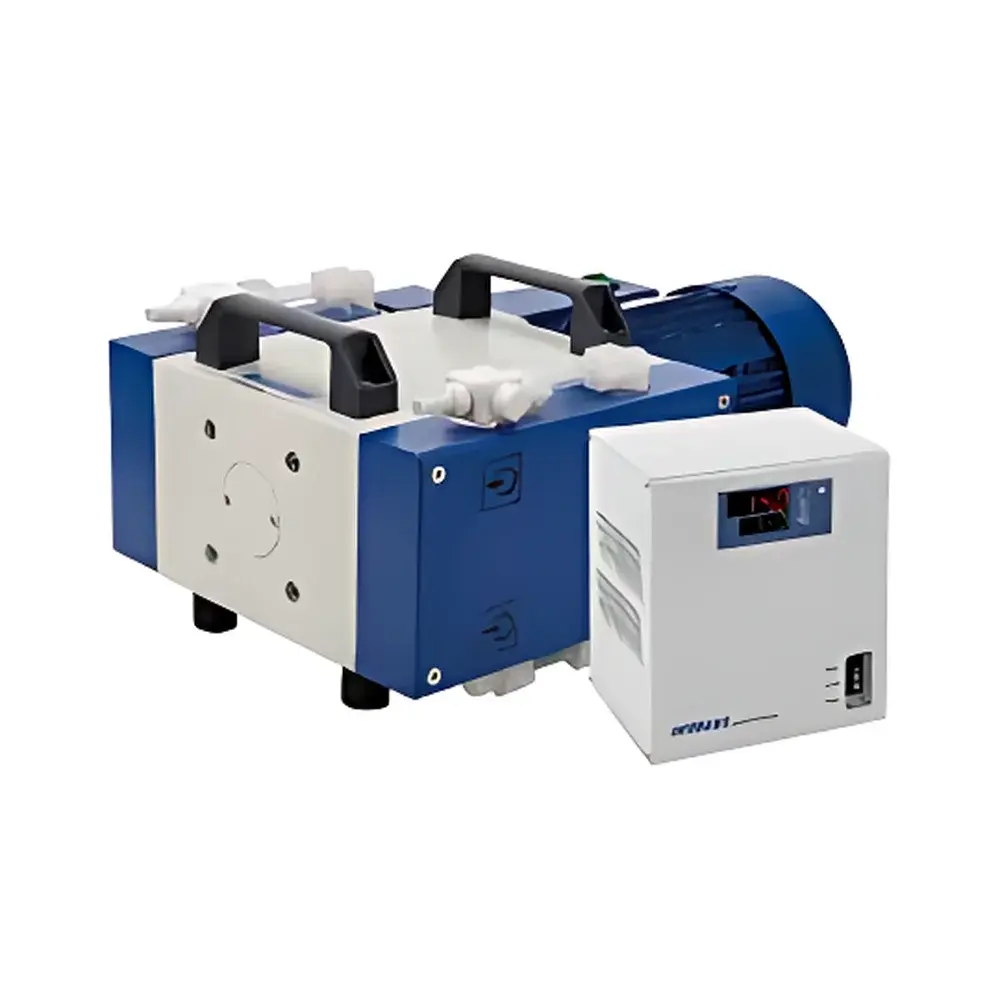

WIGGENS C920ZF High-Power Corrosion-Resistant Variable-Frequency Diaphragm Vacuum Pump

Overview

The WIGGENS C920ZF is a high-performance, two-stage, oil-free diaphragm vacuum pump engineered for continuous, reliable operation in chemically aggressive environments. Unlike rotary vane or scroll pumps, the C920ZF employs a positive-displacement mechanism based on reciprocating PTFE-reinforced diaphragms driven by an induction motor—eliminating lubricants and preventing cross-contamination of vacuum lines. Its ultimate vacuum capability of < 8 mbar and sustained pumping speed of up to 75 L/min at atmospheric pressure make it suitable for demanding applications requiring both deep vacuum and high throughput. The integrated corrosion-resistant construction—featuring PTFE/PVDF wetted components and a proven multi-layer “sandwich” diaphragm design—ensures long-term dimensional stability under cyclic stress and exposure to acidic vapors, halogenated solvents, and condensable process gases. Designed and assembled in Germany, the C920ZF complies with IEC 61000-6-3 (EMC emission) and IEC 61000-6-2 (immunity) standards, and its mechanical architecture meets ISO 8573-1 Class 0 air purity requirements for oil-free vacuum generation.

Key Features

• Two-stage diaphragm architecture delivering enhanced ultimate vacuum (< 8 mbar) while maintaining high volumetric efficiency across the operating range
• Chemically inert fluid path: all gas-contact surfaces constructed from PTFE, PVDF, and perfluoroelastomer (FKM) seals—validated against ASTM D543 and ISO 17462 chemical resistance protocols
• Variable-frequency motor (370 W, 1425 rpm nominal) enabling precise, stepless control of pumping speed via external or factory-integrated VFD—reducing inrush current by >65% compared to fixed-speed equivalents
• Low-noise operation (≤50 dB(A)) and minimal vibration (< 2.5 mm/s RMS) achieved through dynamic balancing, elastomeric motor mounts, and acoustic enclosure design
• IP54-rated housing providing protection against dust ingress and water splashing—suitable for installation in fume hoods, utility corridors, and GMP-compliant production areas
• Modular service design: diaphragm sets, valve plates, and check valves are field-replaceable without specialized tools; mean time between maintenance (MTBM) exceeds 6,000 hours under typical laboratory duty cycles

Sample Compatibility & Compliance

The C920ZF is validated for use with corrosive and condensable media commonly encountered in fine chemical synthesis, API manufacturing, and semiconductor precursor handling—including HCl, HF, SO₂, Cl₂, acetone, THF, dichloromethane, and ethyl acetate vapors. Its PTFE/PVDF wetted materials conform to USP Class VI biocompatibility testing and meet EN 1092-1 flange compatibility requirements for modular vacuum manifold integration. While not intrinsically rated for Zone 1 hazardous areas, the pump may be deployed in non-classified zones adjacent to reactors or distillation units when installed with appropriate vent filtration (e.g., activated carbon + hydrophobic membrane traps). Documentation includes EU Declaration of Conformity (2014/30/EU EMC Directive, 2014/35/EU LVD), RoHS 2011/65/EU compliance certification, and material traceability records for all polymer components.

Software & Data Management

The C920ZF operates as a hardware platform compatible with third-party process control systems. When paired with an externally supplied VFD (e.g., Siemens SINAMICS G120 or Danfoss VLT AutomationDrive), it supports analog 0–10 V or 4–20 mA setpoint inputs and feedback signals for closed-loop pressure regulation. Optional WIGGENS-branded control modules include RS-485 Modbus RTU interface, real-time vacuum monitoring via integrated piezoresistive sensor (±0.5% FS accuracy), and configurable alarm thresholds for overtemperature, overload, or vacuum deviation. Audit trails, parameter change logs, and runtime statistics are exportable in CSV format—supporting alignment with FDA 21 CFR Part 11 electronic record requirements when deployed within validated computerized systems under documented SOPs.

Applications

• Vacuum distillation of thermolabile compounds under controlled pressure gradients
• Continuous solvent removal in jacketed glass reactors with integrated pressure feedback
• High-throughput vacuum filtration of crystalline APIs where filter cake integrity must be preserved
• Concentration of aqueous and organic extracts in rotary evaporator systems requiring stable sub-10 mbar operation
• Lyophilization pre-freeze and primary drying stages where vapor load fluctuates dynamically
• Process vacuum support in semiconductor wafer cleaning stations using aggressive chemistries (e.g., piranha, BOE)

FAQ

Is the C920ZF certified for use in cleanrooms or ISO Class 5 environments?
No—the pump itself is not cleanroom-certified, but its oil-free, particle-free exhaust and low outgassing rate (< 1×10⁻⁶ mbar·L/s per ISO 14644-1 Annex B) allow installation outside classified zones with HEPA-filtered exhaust ducting.
Can the pump handle saturated solvent vapors without liquid carryover?
Yes—its two-stage compression design and integrated condensate trap (optional accessory) mitigate liquid ingress; however, continuous operation above 70% relative saturation requires upstream cold trap integration.
What is the expected service life of the PTFE/PVDF diaphragm under continuous 24/7 operation?
Under typical laboratory vacuum loads (≤ 50% duty cycle, ambient temperature < 35°C), the diaphragm achieves ≥ 12,000 hours MTBF; accelerated aging tests per ASTM D814 show no loss of tensile strength after 5,000 cycles at full stroke amplitude.
Does the pump support analog pressure feedback for integration into PLC-controlled vacuum manifolds?
Yes—when equipped with the optional pressure transducer module, it provides linear 0–10 V output proportional to absolute pressure (range: 0.1–1000 mbar), calibrated per ISO 9001 traceable procedures.
Are spare parts such as valve kits and diaphragm assemblies available with documented lot traceability?
Yes—all consumables are supplied with CoA (Certificate of Analysis), material composition reports, and batch-specific dimensional inspection records compliant with ISO 9001:2015 clause 8.5.2.
