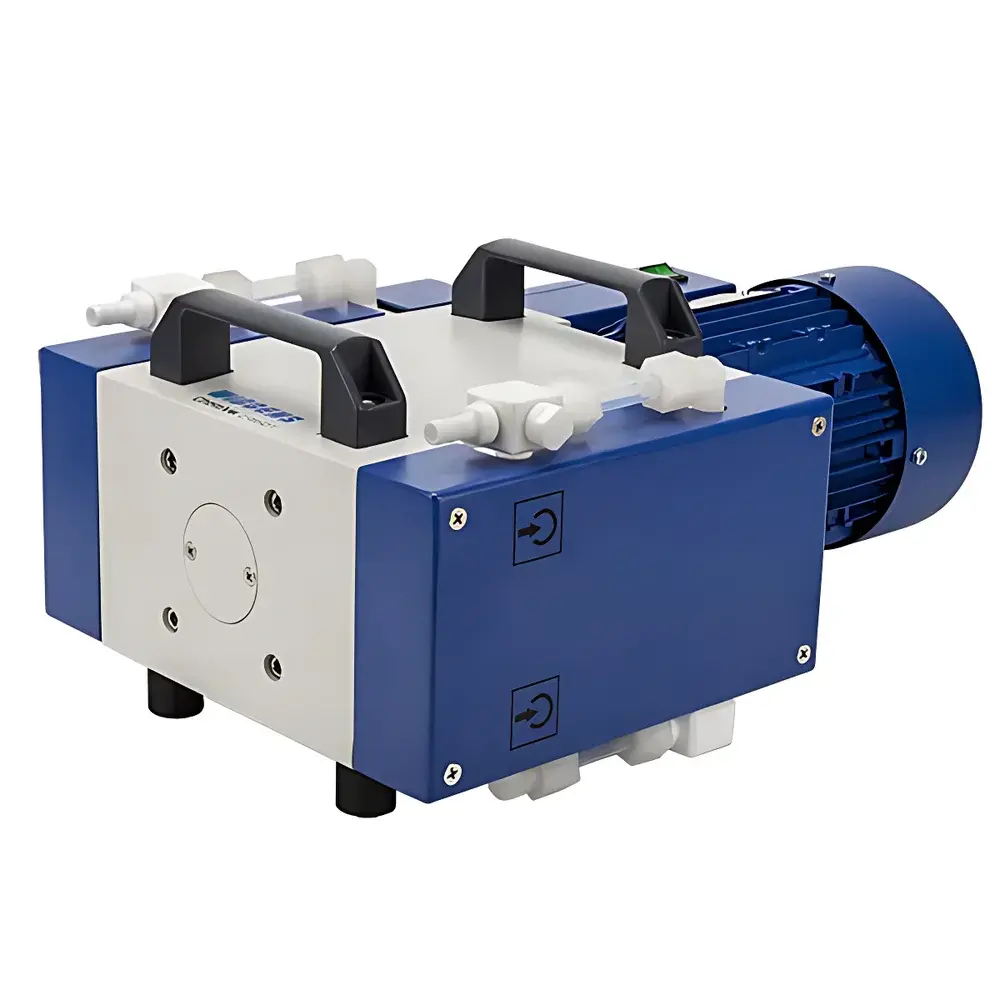

WIGGENS C960T High-Power Chemically Resistant Diaphragm Vacuum Pump

Overview

The WIGGENS C960T is a high-performance, chemically resistant diaphragm vacuum pump engineered for continuous, oil-free evacuation of aggressive vapors and corrosive gases in demanding laboratory and pilot-scale applications. Unlike rotary vane or water-ring pumps, the C960T operates on positive displacement via an elastomeric diaphragm actuated by an eccentric crankshaft—eliminating lubricating oil from the gas path and preventing cross-contamination or degradation under chemical exposure. Its dual-stage configuration achieves an ultimate vacuum of ≤2 mbar while sustaining stable pumping performance across variable process loads, including condensable vapors generated during distillation, concentration, or drying. Designed and assembled in Germany to stringent DIN EN ISO 9001 manufacturing standards, the C960T integrates robust mechanical architecture with material science expertise—specifically utilizing PTFE-laminated “sandwich” diaphragms and PVDF-molded valve assemblies—to ensure long-term dimensional stability and resistance to halogenated solvents, strong acids, alkalis, and organic vapors.

Key Features

• Chemically inert wetted parts: All gas-contact surfaces—including diaphragm, valves, inlet/outlet manifolds, and internal chamber linings—are constructed from PTFE, PVDF, or PTFE-coated stainless steel, validated per ASTM D543 and ISO 178 for resistance to >95% of common laboratory reagents.
• High-torque, low-RPM motor: 370 W induction motor with IP54 ingress protection delivers consistent torque at 1425 rpm, enabling reliable cold-start operation and minimizing thermal stress on diaphragm assemblies.
• Low-noise, low-vibration operation: Precision-balanced crank mechanism and elastomeric mounting feet reduce operational noise to ≤50 dB(A) and vibration amplitude to <0.5 mm/s RMS—critical for integration near sensitive analytical instruments or in shared lab spaces.
• Thermal safety system: Integrated bimetallic overtemperature cutoff automatically de-energizes the motor when internal housing temperature exceeds 85 °C; auto-restart occurs only after cooling to ≤60 °C, complying with IEC 60335-1 safety requirements.
• Modular service design: Front-accessible diaphragm and valve cartridge enables field replacement in <15 minutes without specialized tools—reducing mean time to repair (MTTR) and supporting GLP-compliant maintenance logging.

Sample Compatibility & Compliance

The C960T is certified for use with corrosive and condensable media encountered in chemical synthesis, pharmaceutical processing, and petrochemical QA/QC workflows. It meets EU Machinery Directive 2006/42/EC and EMC Directive 2014/30/EU. Wetted material compatibility has been verified against USP Class VI biological reactivity testing and conforms to FDA 21 CFR Part 11 requirements when paired with WIGGENS’ optional digital control unit (C960TF), which provides audit-trail-capable parameter logging, user-level access control, and electronic signature support. The pump is suitable for applications requiring adherence to ASTM D2873 (vacuum distillation), ISO 2556 (gas permeability testing), and EP 2.2.28 (residual solvent analysis).

Software & Data Management

While the base C960T operates as a fixed-speed unit, the C960TF variant includes an integrated frequency inverter controller with embedded AI-driven PID auto-tuning logic. This controller continuously monitors real-time vacuum pressure via an optional analog or digital pressure transducer (0–10 V or RS485 Modbus RTU output), dynamically adjusting motor speed to maintain setpoint accuracy within ±0.1 mbar—even under fluctuating load conditions such as solvent boiling point shifts during rotary evaporation. All operational parameters—including runtime, fault codes, temperature history, and pressure profiles—are timestamped and exportable in CSV format for traceability. Firmware supports secure remote firmware updates and complies with NIST SP 800-53 controls for data integrity and authentication.

Applications

• Vacuum distillation and fractional distillation of acid-sensitive or halogenated compounds
• Pressure-controlled reaction monitoring in jacketed glass reactors (up to 50 L volume)
• High-throughput vacuum filtration of aggressive precipitates (e.g., metal hydroxides, sulfides)
• Continuous solvent removal in rotary evaporators handling chlorinated or fluorinated solvents
• GMP-compliant lyophilization pre-chamber evacuation and shelf drying cycles
• Gas purging and blanketing in semiconductor wafer cleaning stations
• Environmental sample preparation involving VOCs, H₂S, Cl₂, or HF-containing matrices

FAQ

Is the C960T suitable for pumping condensable vapors such as acetone or methanol?
Yes—the PTFE/PVDF wetted path and thermally isolated diaphragm chamber prevent liquid carryover damage; however, a cold trap is recommended for >10% vapor load to maximize diaphragm service life.
What is the expected diaphragm lifetime under continuous operation?
Under typical lab conditions (≤8 h/day, ambient temperature <35 °C, non-abrasive media), PTFE “sandwich” diaphragms achieve ≥12,000 hours MTBF per ISO 13849-1 reliability assessment.
Can the C960T be integrated into automated lab systems?
Yes—via dry-contact relay outputs (vacuum reached/fault), analog 0–10 V pressure feedback, or Modbus RTU interface for SCADA or LIMS synchronization.
Does the pump require routine oil changes or lubrication?
No—it is a fully oil-free design; only periodic inspection of inlet filters and diaphragm integrity is required per manufacturer’s maintenance schedule.
Is the C960T compliant with cleanroom ISO Class 5 requirements?
While not rated for direct cleanroom installation due to external venting, its zero-oil emission and low particle shedding (<0.1 µm particles/m³ per ISO 21501-4) make it compatible with ISO 5 environments when installed in adjacent utility rooms with HEPA-filtered exhaust routing.
