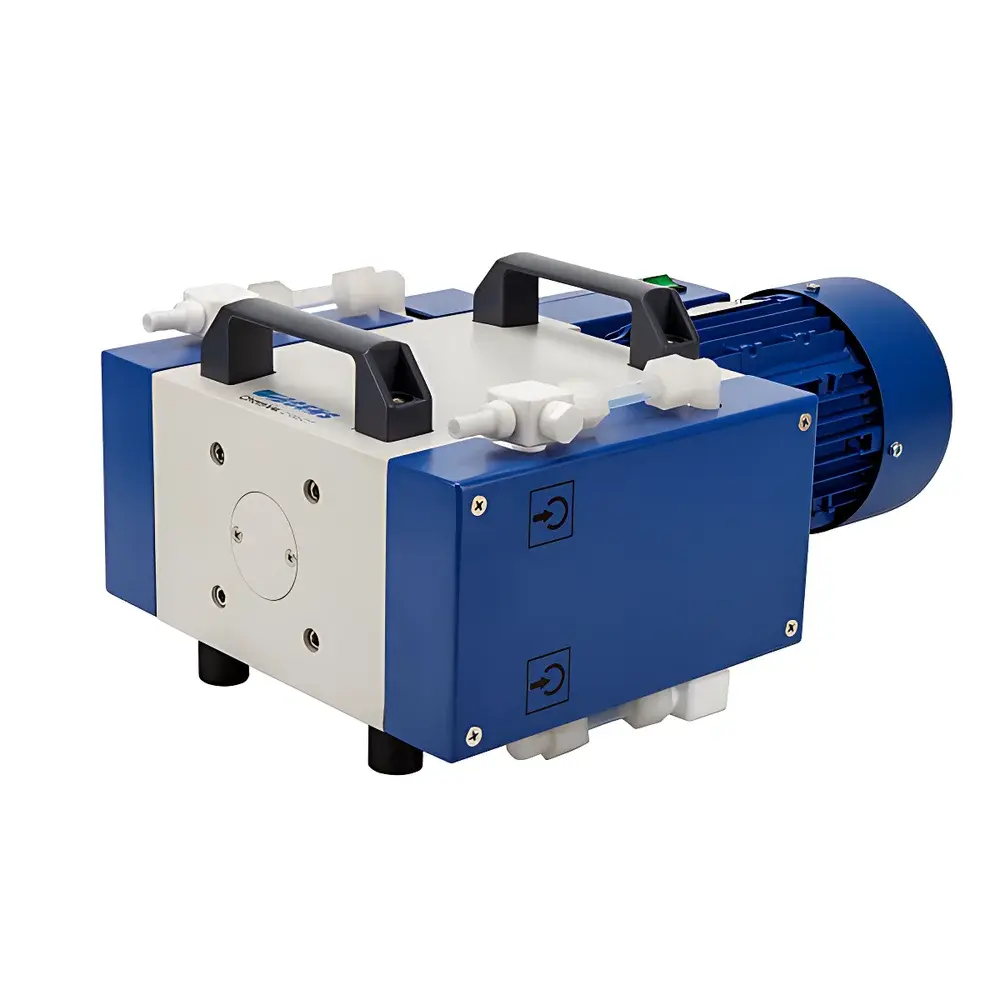

WIGGENS C980V High-Power Chemically Resistant Diaphragm Vacuum Pump

Overview

The WIGGENS C980V is a high-power, chemically resistant diaphragm vacuum pump engineered for continuous, oil-free evacuation of aggressive gases and vapors in demanding laboratory and pilot-scale industrial environments. Unlike rotary vane or scroll pumps, the C980V operates on positive displacement via PTFE-encapsulated elastomeric diaphragms—eliminating lubricants, hydrocarbon contamination, and oil backstreaming risks. Its core architecture leverages a robust, sealed motor coupled to a precision-cranked diaphragm drive mechanism, delivering stable vacuum performance down to <1 mbar while maintaining high volumetric efficiency across variable load conditions. Designed specifically for applications involving halogenated solvents, acidic fumes, organic vapors, and condensable steam, the C980V meets the stringent reliability and chemical compatibility requirements of modern GLP-compliant labs and GMP-regulated pharmaceutical manufacturing facilities.

Key Features

• Chemical resistance achieved through full-wetted-path construction: diaphragms employ a proven PTFE “sandwich” laminated structure; pump head, valves, and gas path components are fabricated from PVDF and PTFE—validated against ASTM D543 and ISO 175 corrosion exposure protocols.
• IP55-rated enclosure ensures operational integrity in humid, dusty, or splash-prone environments—suitable for installation in fume hoods, cleanroom-adjacent utility zones, or mobile process skids.
• Low-noise operation at ≤50 dB(A) and minimal mechanical vibration (<0.5 mm/s RMS) enable integration into sensitive instrumentation setups, including mass spectrometry sample introduction lines and vacuum-manifolded reaction systems.
• High-torque, low-RPM induction motor (1425 rpm) delivers smooth startup and consistent torque output—reducing thermal stress on diaphragms and extending service intervals beyond 10,000 hours under typical duty cycles.
• Modular design supports field-replaceable diaphragm kits and valve assemblies—no specialized tools required; maintenance downtime is typically under 20 minutes per service event.

Sample Compatibility & Compliance

The C980V is certified for use with Class II and III solvents per IEC 60079-0 (Explosive Atmospheres), and its wetted materials comply with USP and cytotoxicity and extractables testing. It is routinely deployed in processes requiring adherence to ASTM E2912 (vacuum drying of pharmaceuticals), ISO 14644-1 (cleanroom vacuum support), and FDA 21 CFR Part 11–aligned vacuum control systems when integrated with validated pressure transducers and audit-trail-capable controllers. The pump does not generate ozone or NO_x byproducts, making it suitable for vacuum distillation of thermolabile compounds and solvent recovery loops where residual oxidation must be avoided.

Software & Data Management

While the base C980V operates as a standalone unit, its optional integrated frequency-inverter control system enables closed-loop vacuum regulation via 4–20 mA or 0–10 V analog input from external pressure sensors. When paired with WIGGENS’ proprietary VAC-CONTROL™ firmware (v3.2+), the system logs timestamped vacuum setpoints, actual pressure readings, motor frequency, runtime hours, and thermal warnings—with data exportable in CSV or .tdms format. All controller firmware updates and configuration backups are performed via USB-C interface, supporting traceability requirements under ISO/IEC 17025 and EU Annex 11. Audit trails include user ID, action timestamp, parameter change history, and digital signature verification.

Applications

• Vacuum distillation and fractional evaporation of corrosive solvents (e.g., HCl-, HF-, or SO₂-laden streams)
• Continuous vacuum drying of API intermediates under controlled residual moisture specifications (≤0.1% w/w)
• Reaction vessel evacuation prior to inert-gas purging in catalytic hydrogenation or Grignard synthesis
• Membrane filtration under vacuum for acid-digested environmental samples (EPA Method 3050B)
• Thin-film deposition chamber rough pumping in semiconductor R&D (compatible with downstream turbomolecular stages)
• Central vacuum manifold distribution for multi-station lyophilizer clusters in biopharma QC labs

FAQ

Is the C980V suitable for pumping condensable vapors such as acetone or methanol?
Yes—the diaphragm and valve materials resist swelling and degradation upon repeated exposure to common organic condensates; however, a cold trap is recommended upstream when vapor loads exceed 10% by volume to prevent internal condensation.
Can the pump be operated continuously at ultimate vacuum?
Yes—it is rated for indefinite operation at <1 mbar under no-load conditions; thermal management is ensured via finned aluminum motor housing and passive convection cooling.
Does the C980V meet FDA or EMA regulatory expectations for pharmaceutical manufacturing?
It complies with material biocompatibility and extractables criteria outlined in ICH Q5A(R2) and is widely accepted as auxiliary equipment in non-sterile API manufacturing; full qualification (IQ/OQ/PQ) documentation packages are available upon request.
What is the expected diaphragm lifetime under typical lab usage?
Under standard operating conditions (≤8 h/day, ambient temperature ≤35°C, non-abrasive media), mean time between replacements exceeds 12,000 hours—validated through accelerated life testing per ISO 13849-1 Category 3 PLd requirements.
Is remote monitoring supported via Ethernet or Modbus?
The standard model lacks native industrial protocol support; however, the optional VAC-CONTROL™ PLC module provides Modbus RTU over RS-485 and can be integrated into SCADA systems via gateway configuration.
