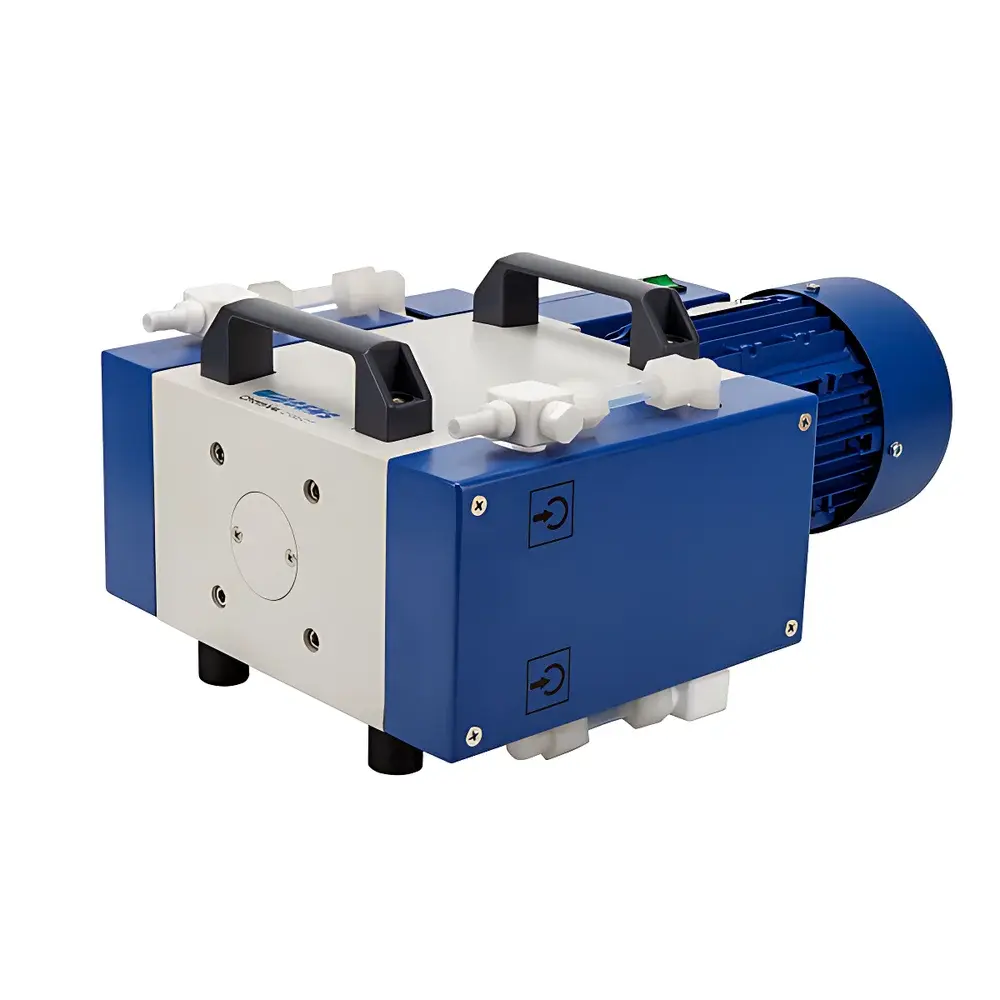

WIGGENS C980VF High-Power Chemically Resistant Variable-Frequency Diaphragm Vacuum Pump

Overview

The WIGGENS C980VF is a high-performance, four-stage, oil-free diaphragm vacuum pump engineered for continuous operation in aggressive chemical environments. Designed as the top-tier variant of the proven C900 series, it employs a robust chemically inert architecture to handle corrosive gases, vapors, and condensable solvents without lubricant contamination or degradation. Its operating principle relies on positive displacement via PTFE-reinforced elastomeric diaphragms actuated by an eccentrically driven crankshaft—eliminating oil vapor backstreaming and ensuring ultra-clean vacuum generation. With an ultimate vacuum level of ≤1 mbar and a stable pumping speed of 50 L/min at atmospheric inlet pressure, the C980VF delivers exceptional performance across demanding laboratory and pilot-scale applications where vacuum integrity, material compatibility, and long-term reliability are critical.

Key Features

• Four-stage diaphragm configuration enabling deep ultimate vacuum (≤1 mbar) while maintaining high volumetric throughput
• Chemically resistant wetted materials: PTFE-coated diaphragms with patented “sandwich” reinforcement, PVDF valve plates, FKM seals, and stainless steel pump head components
• High-torque, low-speed AC motor (1425 rpm) with IP54 ingress protection—suitable for humid, dusty, or splash-prone lab environments
• Integrated variable-frequency drive (VFD) interface supporting external or WIGGENS-supplied controllers for precise, stepless speed regulation (0–100% motor speed)
• Acoustically optimized housing and vibration-damped mounting yielding ≤50 dB(A) noise emission—compatible with shared laboratory spaces
• Modular design with tool-free access to diaphragms and valves; typical diaphragm service life exceeds 10,000 hours under standard operating conditions
• No oil, no mist, no maintenance-intensive filtration—fully compliant with ISO 8573-1 Class 0 air purity requirements for vacuum processes

Sample Compatibility & Compliance

The C980VF is validated for use with a broad spectrum of chemically challenging media, including hydrochloric acid vapors, nitric acid fumes, acetone, THF, chlorinated solvents, and aqueous alkali solutions. All fluid-contact surfaces conform to USP Class VI and FDA 21 CFR 177.1550 standards for polymeric components. The pump meets IEC 61000-6-3 (EMC emission) and IEC 61000-6-2 (immunity) requirements, and its electrical safety complies with EN 61010-1:2019 for laboratory equipment. While not intrinsically safe, optional ATEX-compliant versions (II 2G Ex db IIB T4 Gb) are available upon request for Zone 1 hazardous areas. Documentation includes full Declaration of Conformity (CE), RoHS compliance certificates, and material traceability records for GxP-regulated installations.

Software & Data Management

The C980VF supports analog (0–10 V / 4–20 mA) and digital (RS-485 Modbus RTU) interfaces for integration into centralized lab automation systems. When paired with the optional WIGGENS VAC-CONTROL™ system, users gain real-time monitoring of vacuum setpoint deviation, motor current draw, thermal load, and runtime statistics. Audit trails—including parameter changes, start/stop timestamps, and fault logs—are timestamped and exportable in CSV format, satisfying ALCOA+ data integrity principles. Firmware updates are performed via secure USB interface, and all controller configurations support password-protected user roles aligned with 21 CFR Part 11 electronic record requirements.

Applications

• Vacuum distillation and fractional evaporation of thermally sensitive or corrosive compounds
• Continuous vacuum drying of pharmaceutical intermediates and active pharmaceutical ingredients (APIs)
• Reaction vessel evacuation and inert gas purging in corrosion-resistant glass or Hastelloy reactors
• Membrane filtration under vacuum for aggressive process streams (e.g., caustic lye, spent acid recovery)
• Concentration of acidic digestates in environmental sample preparation (EPA Method 3050B/3051A)
• Thin-film deposition and plasma etching pre-vacuum stages in semiconductor R&D cleanrooms
• Lyophilization support for biologics manufacturing where oil-free vacuum is mandated per USP & Ph. Eur. monographs

FAQ

Is the C980VF suitable for handling solvent vapors that condense inside the pump?
Yes—the four-stage design incorporates staged condensate separation and PTFE-coated diaphragms resistant to swelling or hydrolysis from common organic and inorganic vapors.
Can the pump be operated continuously at full speed without overheating?
Yes—it features thermally stabilized windings and forced-air cooling calibrated for 24/7 duty cycle at ambient temperatures up to 40°C.
What is the recommended preventive maintenance interval?
Diaphragm and valve inspection every 6 months or 2,000 operating hours; full rebuild kit replacement advised at 10,000 hours or per condition-based assessment.
Does the pump meet GLP/GMP documentation requirements?
Yes—factory calibration reports, IQ/OQ templates, and electronic log files support validation protocols compliant with EU Annex 11 and FDA guidance on computerized systems.
Is remote monitoring possible without proprietary software?
Yes—Modbus RTU protocol enables integration with LabVIEW, DeltaV, PI System, or custom SCADA platforms using standard industrial drivers.
