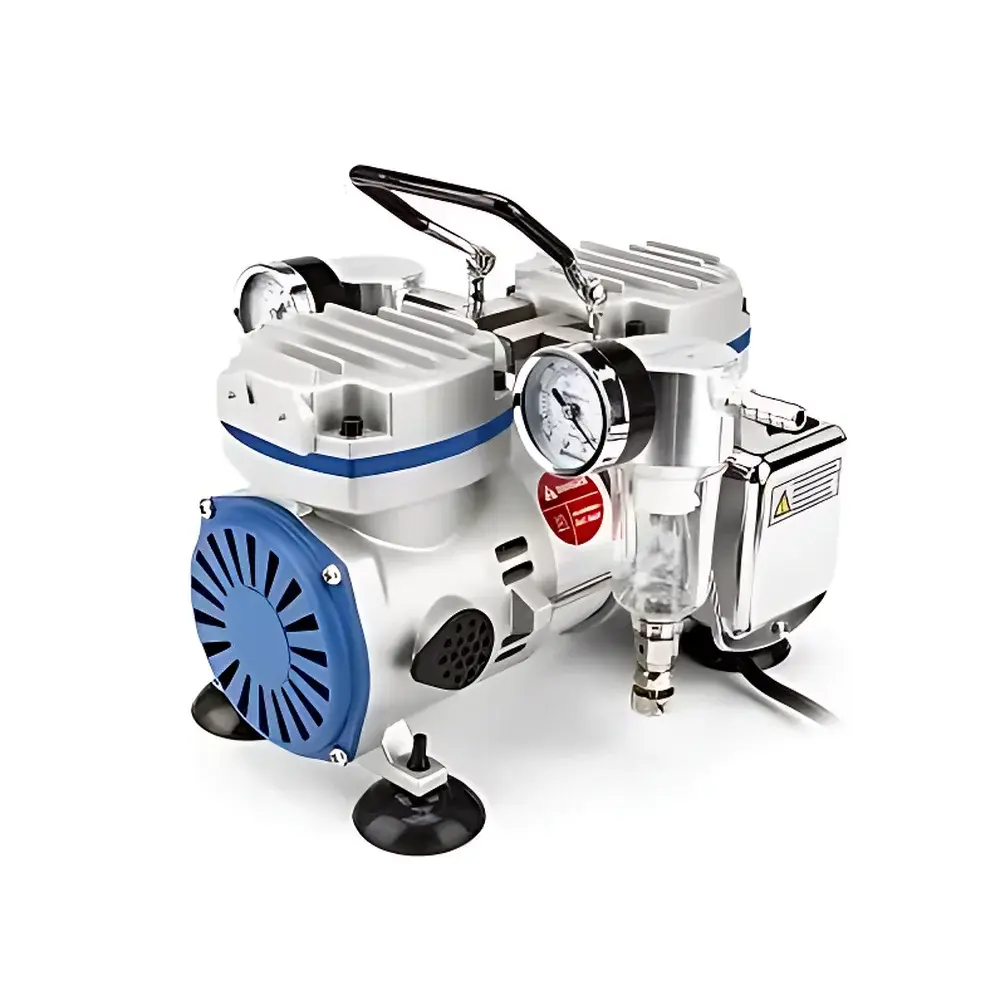

WIGGENS ChemVak V430 Oil-Free Piston Vacuum Pump

Overview

The WIGGENS ChemVak V430 is an oil-free, single-stage piston vacuum pump engineered for precision and reliability in non-corrosive laboratory environments. Utilizing a reciprocating piston mechanism with precision-machined cylinder and PTFE-coated seals, it generates vacuum via positive displacement without lubricating oil—eliminating oil carryover, vapor contamination, and maintenance associated with oil-lubricated systems. Its ultimate vacuum capability of 150 mbar (absolute) and pumping speed of 28 L/min make it suitable for routine vacuum applications requiring clean, dry, and chemically inert aspiration. Designed for continuous operation under moderate load, the V430 complies with IEC 61000-6-3 (EMC emission) and IEC 61000-6-2 (immunity) standards, and its motor conforms to IE2 efficiency class per EU Regulation 640/2009. The unit operates at a low acoustic pressure level of 50 dB(A) at 1 m distance—ensuring compatibility with noise-sensitive analytical laboratories and shared workspaces.

Key Features

• Oil-free piston technology ensures zero hydrocarbon contamination—critical for microbiological assays, food safety testing, and sterile filtration workflows.
• Integrated thermal overload protection automatically interrupts power when internal motor temperature exceeds safe thresholds; auto-resets upon cooling to prevent irreversible winding damage.
• Standard 9 mm inlet port fitted with a replaceable sintered polyethylene filter cartridge that traps particulates and condensable moisture upstream of the cylinder—extending service life of piston rings and cylinder bore.
• Reversible configuration: With optional pressure conversion kit (sold separately), the same unit functions as a pressure source up to +5.5 bar gauge—enabling dual-mode operation for vacuum filtration and pressure-assisted sample transfer or membrane drying.
• Compact footprint (247 × 235 × 200 mm) and lightweight design (5.5 kg) facilitate benchtop integration, mobile cart mounting, or placement inside fume hoods or biosafety cabinets.
• IEC-compliant 220 V / 50 Hz input with robust RFI suppression; meets CE marking requirements for electrical safety (EN 61010-1) and electromagnetic compatibility.

Sample Compatibility & Compliance

The ChemVak V430 is validated for use with aqueous, buffered, and mildly organic media where vapors are non-aggressive and non-condensable below 40 °C. It is not rated for solvents such as acetone, chloroform, or ethyl acetate, nor for acidic, alkaline, or halogenated vapors. Per ISO 8573-1:2010, its exhaust air meets Class 0 purity for oil content (<0.01 mg/m³), supporting GLP-compliant documentation of vacuum source integrity. While not intrinsically safe, it is suitable for general laboratory zones outside ATEX Zone 0/1. All units ship with Declaration of Conformity (DoC) referencing EN 61000-6-2, EN 61000-6-3, EN 61010-1, and RoHS 2011/65/EU.

Software & Data Management

The V430 operates as a standalone analog device with no embedded microcontroller or digital interface. As such, it does not generate electronic logs, support remote monitoring, or comply with FDA 21 CFR Part 11 requirements. However, its stable mechanical performance enables reproducible vacuum delivery across repeated runs—a prerequisite for method validation under ISO/IEC 17025. Users integrating the pump into automated systems may employ external pressure transducers (e.g., calibrated capacitance manometers) and data acquisition hardware to record vacuum profiles and trigger event-based actions in accordance with SOP-defined acceptance criteria.

Applications

• Microbiological membrane filtration (e.g., ASTM D5199 for coliform detection, ISO 9308-1 for E. coli enumeration)
• Vacuum-assisted liquid filtration through 0.22 µm or 0.45 µm PVDF, nylon, or mixed cellulose ester membranes
• Desiccation in vacuum ovens (e.g., ISO 11843-3 for moisture content determination)
• Suspension solid analysis via gravimetric vacuum filtration (e.g., EPA Method 160.1)
• Ambient air sampling using impingers or sorbent tubes per ISO 16000-6
• Oxygen-free sample purging prior to headspace GC analysis
• Low-pressure degassing of culture media or reagent solutions

FAQ

Can the V430 be used with corrosive or solvent vapors?
No. It is strictly intended for non-corrosive, non-condensable, and non-flammable gases and vapors. Exposure to halogenated, acidic, or ketonic vapors will degrade PTFE seals and compromise vacuum integrity.
Is the inlet filter cartridge replaceable, and how often should it be changed?
Yes—the sintered polyethylene filter is user-replaceable (part no. FIL-V430). Replacement frequency depends on particulate load; under typical lab water filtration conditions, replacement every 6–12 months is recommended.
Does the pump require periodic lubrication or seal maintenance?
No. The oil-free piston design eliminates routine oil changes. No scheduled maintenance is required beyond filter replacement and visual inspection of inlet tubing for blockage or cracking.
What is the expected service life under continuous operation?
Rated for ≥10,000 hours of cumulative runtime under nominal load (≤80% of max vacuum duty cycle), assuming ambient temperature ≤35 °C and relative humidity <80% RH.
Can the V430 be mounted vertically or inverted?
No. It must be operated in the supplied horizontal orientation only to ensure proper piston alignment and thermal dissipation. Mounting deviations void warranty and risk premature mechanical failure.
