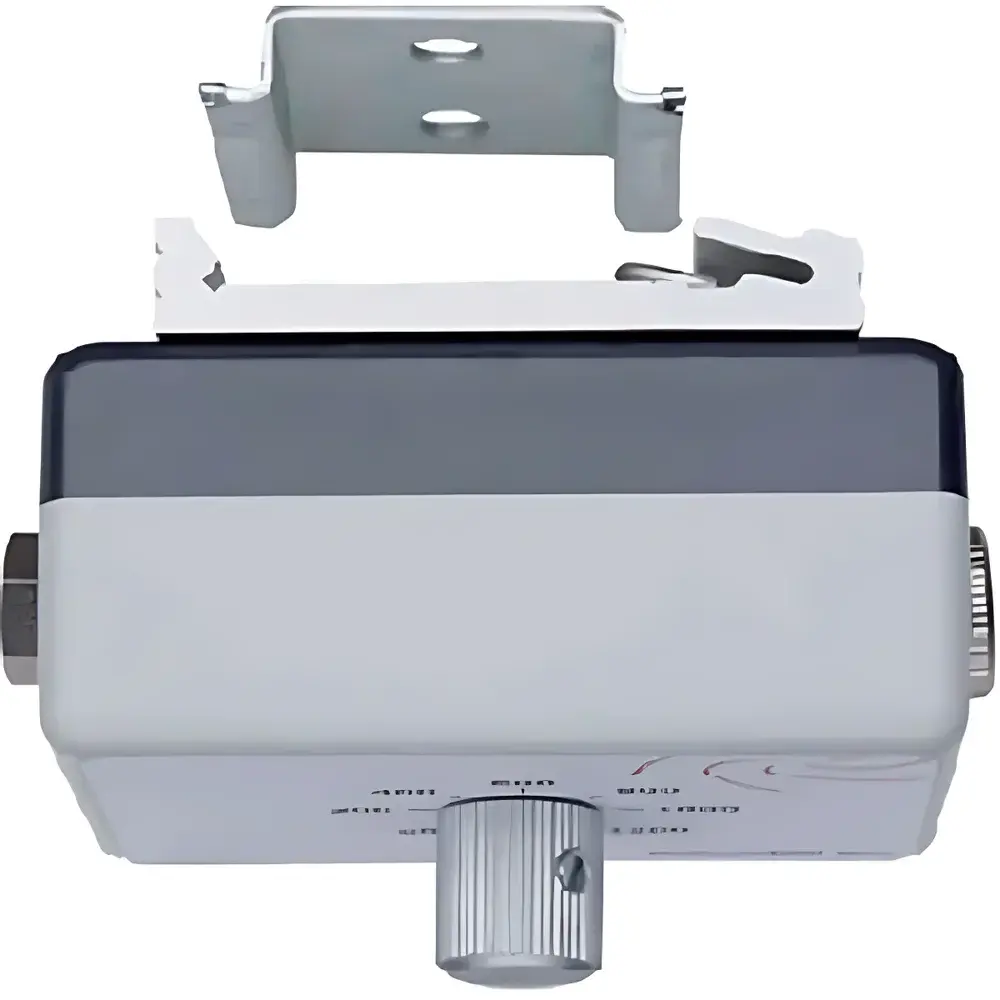

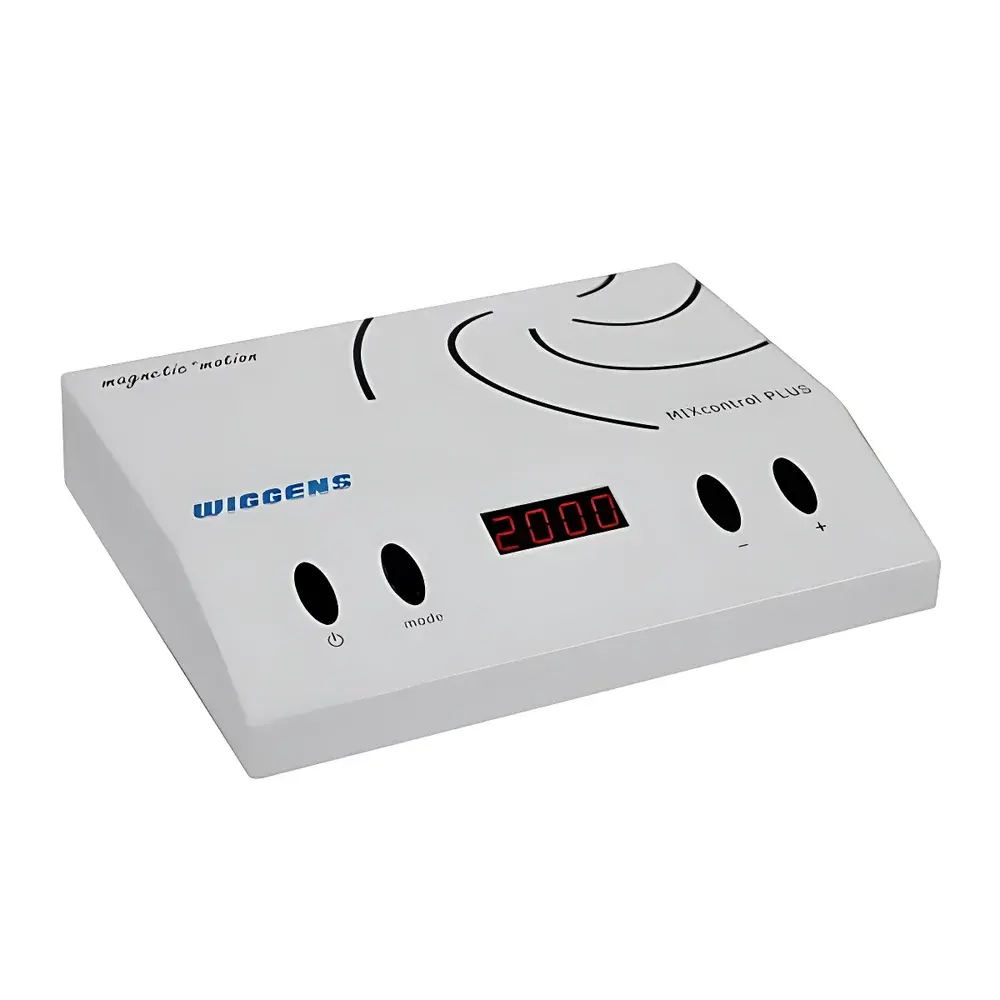

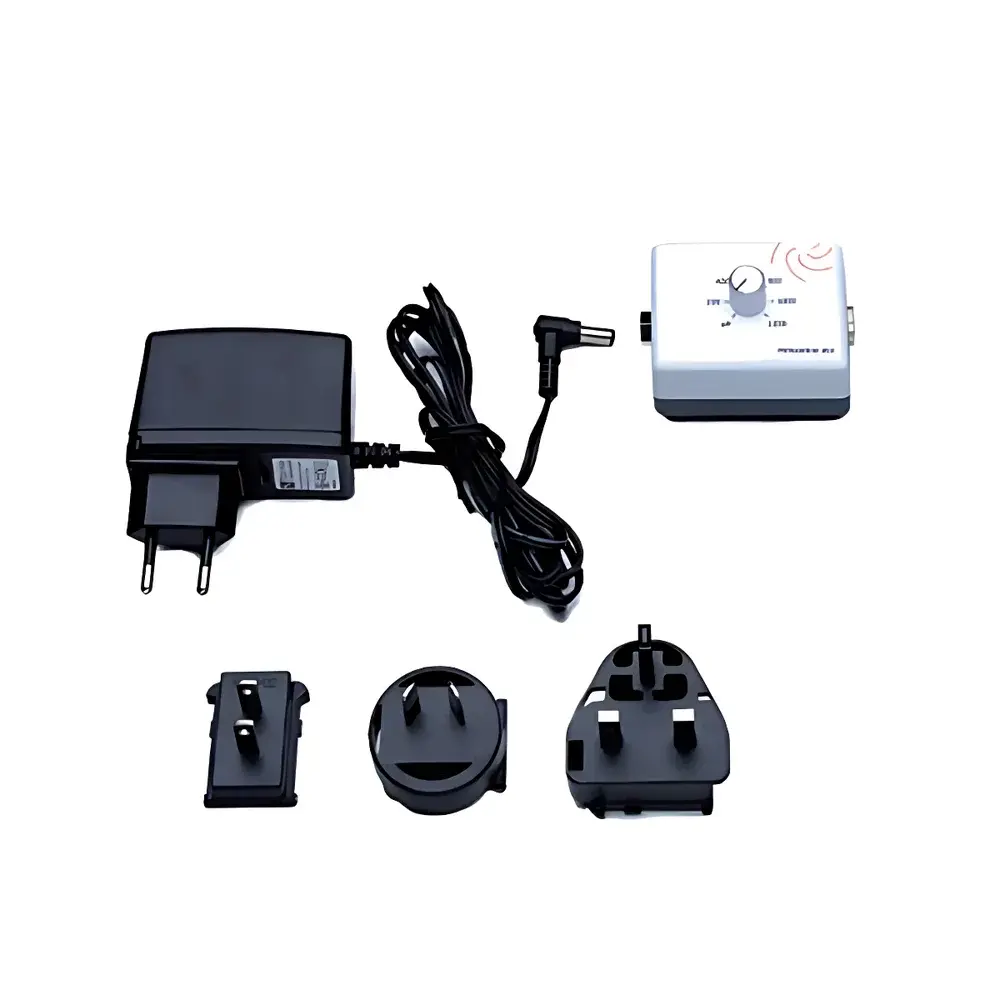

WIGGENS Control 40 / Control 20 / Control eco Separated Magnetic Drive Stirrer Controller

Overview

The WIGGENS Control series represents a purpose-engineered family of external controllers for modular magnetic drive stirrer systems. Designed for high-duty-cycle laboratory environments—including QC labs, process development units, and long-duration synthesis workflows—the Control units decouple control intelligence from the motorized base, enabling flexible system architecture, enhanced thermal management, and scalable multi-station operation. Unlike integrated stirrers, these controllers utilize closed-loop speed regulation via feedback from Hall-effect sensors embedded in compatible WIGGENS magnetic drive stirrer heads (e.g., MMS series), ensuring consistent rotational velocity across varying load conditions—from low-viscosity aqueous solutions to highly viscous polymer melts. The core architecture supports precise torque delivery through pulse-width modulation (PWM) of the drive current, with real-time compensation for back-EMF fluctuations. This engineering approach delivers stable rotation even at the lower end of the speed range (100 rpm), eliminating cogging or stalling behavior commonly observed in open-loop magnetic stirrers under heavy or asymmetric loads.

Key Features

• Modular dual-channel capability: Control 40 supports simultaneous operation of two independent magnetic drive stirrer units, enabling parallel reaction monitoring or comparative viscosity profiling.
• High-fidelity speed control: 100–2000 rpm range (Control 40) with ±1% speed accuracy across full load spectrum; soft-start algorithm ensures reliable stir bar capture and smooth acceleration without overshoot.
• Configurable power staging: 10-step power adjustment (Control 40) allows fine-tuned energy delivery—critical for heat-sensitive reactions or extended overnight stirring where thermal drift must be minimized.
• Rugged industrial enclosure: Electropolished stainless steel housing (Control 40/20) provides corrosion resistance, mechanical durability, and compatibility with routine lab cleaning protocols including ethanol wipe-downs and mild alkaline detergents.
• Digital interface readiness: Optional analog (0–10 V, 4–20 mA) and digital (RS232, USB, Ethernet) I/O ports support integration into centralized lab automation frameworks, SCADA systems, or custom LIMS interfaces.
• MIX Watch safety protocol: An optional firmware-enabled feature that continuously monitors rotational stability and magnetic coupling integrity; triggers automatic stop-reposition-restart sequence upon detection of stir bar misalignment, vortex collapse, or sudden torque loss—essential for unattended operation in opaque vessels or sealed reactors.

Sample Compatibility & Compliance

The Control units are validated for use with WIGGENS’ full line of hermetically sealed magnetic drive stirrer bases (MMS-100, MMS-200, MMS-400), which comply with DIN EN 61000-6-3 (EMC emission standards) and carry CE marking per Directive 2014/30/EU. Their non-contact drive mechanism eliminates shaft seals and mechanical wear, making them suitable for sterile applications (ISO 14644 Class 7 cleanrooms), solvent-resistant environments (compatible with chlorinated hydrocarbons, DMF, DMSO), and pressure-rated reactor systems up to 6 bar (when paired with appropriate MMS housings). While not intrinsically rated for hazardous areas, their IP20 ingress protection aligns with standard indoor laboratory installation requirements per IEC 60529. No regulatory certification (e.g., FDA 21 CFR Part 11) is claimed for standalone controllers; however, when integrated with audit-trail-capable software (e.g., custom LabVIEW or Python-based control suites), full GLP/GMP data integrity compliance can be achieved.

Software & Data Management

WIGGENS provides optional OEM-compatible communication drivers for RS232 and USB interfaces, enabling bidirectional command execution (e.g., “SET SPEED=1450”, “QUERY TORQUE”) and real-time parameter logging. Custom software development support includes API documentation for TCP/IP over Ethernet, facilitating integration with enterprise-grade laboratory information management systems (LIMS) or electronic lab notebooks (ELN). All digital interfaces support timestamped event logging—including start/stop commands, speed changes, fault codes (e.g., “STIRBAR_LOST”), and thermal warnings—with configurable CSV or JSON export formats. When deployed with third-party SCADA platforms (e.g., Ignition, Siemens Desigo), the controller supports OPC UA connectivity for centralized dashboard visualization and alarm routing.

Applications

• Pharmaceutical formulation development: Controlled shear history during emulsion preparation and nanoparticle dispersion, supporting ICH Q5A and USP particulate matter testing protocols.
• Chemical synthesis under inert atmosphere: Stable low-RPM agitation in Schlenk lines and glovebox-integrated reactors, minimizing stir bar ejection risk during gas evolution.
• Materials science rheology screening: Paired with temperature-controlled hotplates, enables controlled ramp-and-hold viscosity assessment of thermosetting resins and battery electrolytes.
• Biotechnology fermentation support: Long-term aerobic mixing of high-density microbial cultures in baffled bioreactors, leveraging MIX Watch to prevent dead-zone formation during extended runs.
• Quality control laboratories: Multi-unit synchronization for parallel dissolution testing (USP ) or uniformity-of-dose validation per EP 2.9.40.

FAQ

Can the Control 40 operate two stirrer units at different speeds simultaneously?
Yes—each channel is independently addressable via front-panel controls or serial command sets, allowing asynchronous speed, power, and timer settings.
Is MIX Watch compatible with all WIGGENS magnetic drive stirrer bases?
MIX Watch requires firmware version ≥v2.3 on MMS-series bases and is only enabled when paired with Control 40 or Control 20 units equipped with RS232 or Ethernet modules.
Does the controller support external temperature feedback for speed modulation?
Not natively—but analog input (0–10 V) can be wired to an external PT100 transmitter; custom scripting via USB/Ethernet enables closed-loop speed adjustment based on temperature-derived setpoints.
What is the maximum cable length between the Control unit and the stirrer base?
For optimal signal integrity and torque response, WIGGENS recommends ≤3 m for standard shielded cables; extended lengths up to 10 m are feasible with twisted-pair + ground cabling and noise-suppression ferrites.
Are firmware updates available, and how are they performed?
Firmware updates are distributed as signed .bin files via WIGGENS technical support; installation requires USB connection and the proprietary WIGGENS Flash Utility (Windows/Linux).
