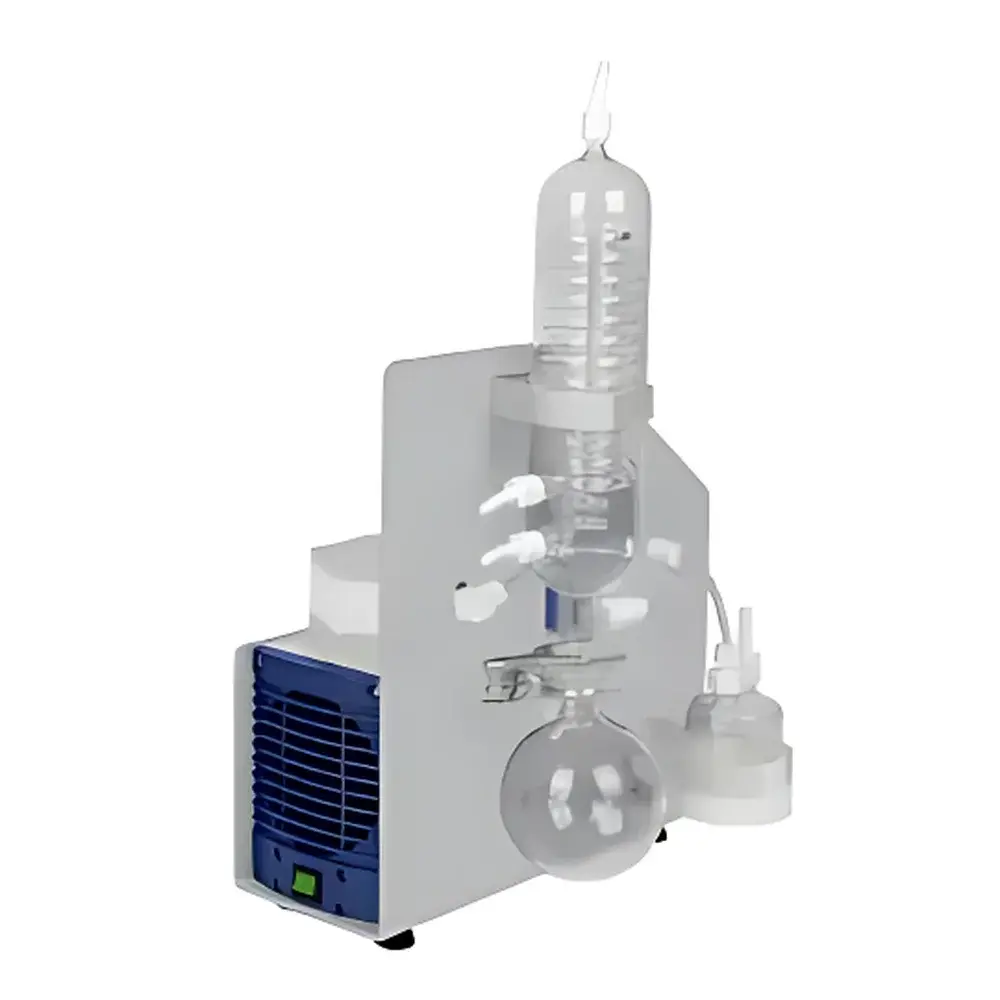

WIGGENS CSH520 Corrosion-Resistant Solvent Recovery Diaphragm Vacuum Pump

Overview

The WIGGENS CSH520 Corrosion-Resistant Solvent Recovery Diaphragm Vacuum Pump is an engineered solution for laboratories requiring chemically inert, oil-free vacuum generation in aggressive chemical environments. Designed around a robust PTFE-coated diaphragm and stainless-steel valve assembly, the CSH520 operates on positive displacement principles—utilizing reciprocating elastomeric diaphragms to alternately expand and compress the gas chamber—thereby achieving reliable, pulse-free vacuum without lubricants or hydrocarbon contamination. Its primary application domain includes solvent recovery during rotary evaporation, fractional distillation, crystallization, freeze-drying, and vacuum filtration of corrosive, volatile, or moisture-sensitive compounds. Unlike rotary vane or water-ring pumps, the CSH520 eliminates risk of oil backstreaming, pump fluid degradation, or condensate-induced corrosion—making it suitable for handling halogenated solvents (e.g., chloroform, DCM), organic acids (e.g., acetic, trifluoroacetic acid), alkaline solutions, and low-boiling-point media such as ether or acetone.

Key Features

• Chemically resistant wetted parts: PTFE-coated diaphragms, FKM (Viton®) seals, and 316 stainless-steel valves ensure long-term stability under exposure to strong acids, bases, and oxidizing agents.
• Integrated modular architecture: Pre-assembled system includes vacuum pump, gas-liquid separator (inlet buffer flask), condenser unit, rigid aluminum base with support rods, and calibrated digital vacuum gauge—all factory-aligned for immediate deployment.
• Wide operational vacuum range: Adjustable from 2 mbar to 30 mbar via integrated electronic control; enables precise pressure staging for multi-step evaporation protocols (e.g., gentle removal of heat-labile fractions followed by high-rate bulk solvent stripping).
• Low-noise, maintenance-free operation: Optimized motor-damping design achieves ≤52 dB(A) at 1 m distance; no oil changes, filter replacements, or valve servicing required during normal use.
• Thermally stable performance: Continuous-duty 150 W brushless motor maintains consistent pumping speed across ambient temperatures from 10 °C to 40 °C, with built-in thermal overload protection.

Sample Compatibility & Compliance

The CSH520 is validated for use with Class I, II, and III solvents per ASTM E1252-98 and IEC 61000-6-3 emission standards. Its sealed, non-lubricated design complies with ISO 8573-1:2010 Class 0 air purity requirements for oil-free compressed gases—critical in pharmaceutical cleanroom applications and semiconductor wafer processing where hydrocarbon residue must be avoided. The system meets GLP documentation requirements when paired with optional audit-trail-enabled vacuum controllers (not included standard). All electrical components conform to EN 61010-1:2019 for laboratory equipment safety, and the device carries CE marking under the EU Machinery Directive 2006/42/EC and EMC Directive 2014/30/EU.

Software & Data Management

While the base CSH520 operates as a standalone analog-controlled unit, its vacuum interface supports optional integration with WIGGENS’ ChemVak Control Suite (v3.2+), enabling remote monitoring via RS485 Modbus RTU or USB-to-serial communication. The software provides real-time logging of vacuum setpoint, actual pressure, pump runtime, and temperature-compensated flow estimates. It supports up to 8-stage programmable vacuum ramps, customizable alarm thresholds (e.g., overpressure, condensate overflow detection via optional level sensor), and export of CSV-formatted datasets compliant with 21 CFR Part 11 requirements when used with validated user authentication and electronic signature modules.

Applications

• Solvent recovery in R&D-scale rotary evaporators (up to 5 L flasks) and short-path distillation systems.
• Vacuum-assisted crystallization of APIs under controlled partial pressure to modulate polymorph formation.
• Deaeration of polymer precursors and photoresist formulations prior to spin-coating or casting.
• Acid digestion fume extraction in trace metal analysis (ICP-MS, AAS) where chloride or fluoride vapors would corrode conventional pumps.
• Lyophilization cycle development in biopharmaceutical process characterization studies.
• Gas purging and inert-atmosphere drying of lithium-ion battery electrode slurries.

FAQ

Is the CSH520 compatible with explosive or flammable solvent vapors?
Yes—the pump housing is rated for use in Zone 2 hazardous locations when installed with appropriate grounding and vapor-tight conduit connections; however, intrinsic safety certification (ATEX/IECEx) requires third-party validation of the full system configuration.
Can the CSH520 replace a traditional water aspirator in acid digestion setups?
Yes—it eliminates water consumption and wastewater generation while providing superior ultimate vacuum (8 mbar vs. ~30 mbar for water aspirators) and resistance to HNO₃/HF/HCl fumes.
What is the expected service life under continuous operation?
Based on accelerated lifetime testing per ISO 13849-1, the diaphragm assembly demonstrates ≥15,000 hours MTBF at 40% duty cycle; full system recalibration is recommended every 24 months for GMP-regulated workflows.
Does the standard configuration include vacuum regulation capability?
Yes—the integrated digital vacuum controller allows manual setpoint adjustment and maintains pressure within ±0.5 mbar of target value across the 2–30 mbar range.
Are replacement diaphragms and seals available as spare parts?
Yes—WIGGENS offers genuine OEM kits (Order No. 900515-SP) with PTFE/FKM components, certified to original performance specifications and traceable to batch-level material certifications.
