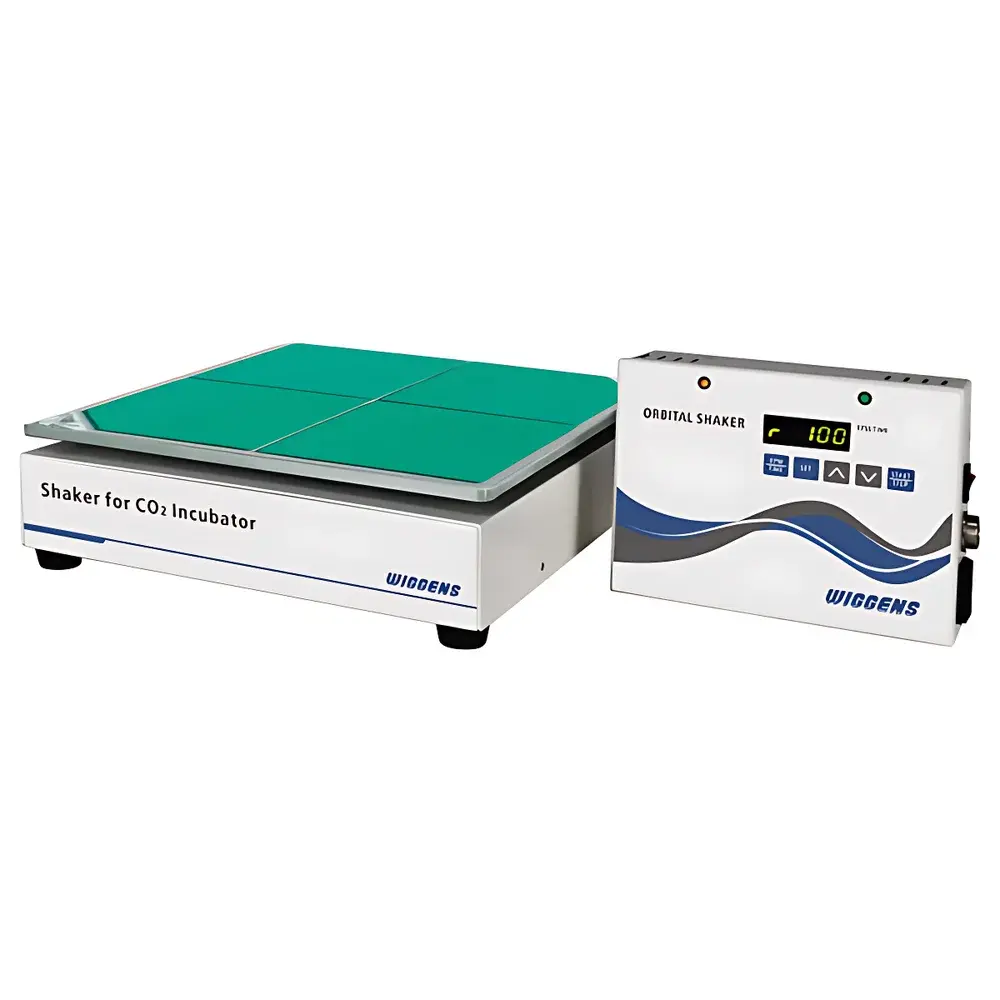

WIGGENS MRC CO₂ Incubator-Compatible Orbital Shaker
| Brand | WIGGENS |
|---|---|
| Origin | Germany |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | MRC |
| Price Range | USD 2,700–4,100 (est.) |
| Instrument Type | Incubator-Integrated Orbital Shaker |
| Timer Range | Continuous or 99 h 59 min |
| Oscillation Speed | 30–300 rpm |
| Amplitude | 25 mm |
| Temperature Range Compatibility | 4–60 °C |
| Platform Quantity | 1 |
Overview
The WIGGENS MRC CO₂ Incubator-Compatible Orbital Shaker is an engineered solution for dynamic cell culture under strictly controlled atmospheric and thermal conditions. Designed exclusively for integration into standard CO₂ incubators—without internal power supply or heat-generating components—the MRC operates via contactless electromagnetic induction drive technology. This principle eliminates mechanical friction, brush wear, and resistive heating at the motor level, ensuring zero thermal load transfer to the incubator chamber. As a result, temperature uniformity (±0.3 °C typical within 37 °C setpoint) and CO₂ concentration stability (< ±0.1% deviation during door-closed operation) are preserved throughout extended shaking protocols. Its compact footprint and low-profile platform (300 × 330 mm) accommodate common multi-well plates (6–96-well), Erlenmeyer flasks (up to 2 L), and roller bottles—making it suitable for suspension cultures, microbial growth kinetics, transfection optimization, and bioprocess seed train expansion.
Key Features
- Electromagnetic induction drive: No internal motor, no brushes, no heat generation—ideal for thermally sensitive CO₂ incubator environments.
- Hermetically sealed coil assembly with epoxy resin encapsulation: IP54-rated protection against condensation and saturated humidity (>95% RH at 37 °C).
- Externally mounted remote control unit: Full parameter display (speed, time, status) and real-time adjustment without opening the incubator door.
- Ultra-thin, feedthrough-compatible cable (≤3 mm diameter): Passes through standard incubator glass door gaskets without compromising seal integrity.
- Modular mounting options: Magnetic base, adhesive hook, or top-panel placement—enabling flexible positioning on stainless-steel or painted incubator exteriors.
- Microprocessor-based control with LED interface: Precise speed resolution of ±1 rpm and programmable ramping profiles (optional firmware upgrade).
Sample Compatibility & Compliance
The MRC supports standardized laboratory vessels including Corning Costar plates, Falcon tubes, Nunc EasYFlasks, and Sartorius BPC bioreactor bags (with compatible holders). Platform loading capacity is validated per ASTM D4169-22 for vibration-induced container integrity under continuous orbital motion. The device complies with IEC 61000-6-3 (EMC emission limits) and IEC 61010-1:2010+AMD1:2019 (safety requirements for electrical equipment in laboratory use). While not certified for GMP manufacturing environments, its design aligns with GLP documentation practices—including audit-ready event logging when paired with optional USB data export (via WIGGENS LabLink v3.2 software).
Software & Data Management
The MRC operates as a standalone instrument but integrates with WIGGENS LabLink v3.2 (Windows/macOS) for protocol archiving, run history export (.csv), and time-stamped event logs (start/stop, speed change, timeout). All data records include UTC timestamps, user ID fields (configurable), and checksum validation—supporting traceability requirements under FDA 21 CFR Part 11 when deployed with institutional electronic signature policies. Remote controller firmware supports over-the-air updates via micro-USB port; no disassembly required.
Applications
- Adherent and suspension mammalian cell culture (CHO, HEK293, hybridoma) under 5% CO₂ and 95% air.
- High-density bacterial fermentation (E. coli, Pseudomonas) requiring dissolved oxygen enhancement via orbital agitation.
- Stem cell expansion in hypoxic incubators (2–5% O₂) where thermal drift must remain <0.2 °C/h.
- Antibody production workflows involving transient transfection in 125–1000 mL shaker flasks.
- Quality control testing of media formulations under ISO 13485-compliant environmental monitoring protocols.
FAQ
Can the MRC be used outside a CO₂ incubator?
Yes—it functions independently in ambient lab environments or environmental chambers, though its thermal isolation and humidity resistance are optimized for incubator deployment.
Is the 25 mm amplitude fixed, or can it be adjusted?
The standard MRC model delivers a fixed 25 mm orbital diameter; 50 mm amplitude variants (e.g., MRC-50) require separate ordering and platform recalibration.
Does the remote controller require external power?
Yes—the controller uses a universal 100–240 V AC adapter; battery backup is not supported.
What is the maximum flask size supported on the standard platform?
Up to four 1000 mL Erlenmeyer flasks (with optional clamping kit W610-MRC-CLAMP), or twelve 250 mL flasks using the universal rubber mat configuration.
Is validation documentation available for IQ/OQ protocols?
WIGGENS provides factory calibration certificates (traceable to PTB, Germany) and a configurable IQ/OQ checklist template upon request—intended for customer-led qualification under ISO/IEC 17025-accredited labs.
