WIGGENS PC524 Safety Temperature Protector

Overview

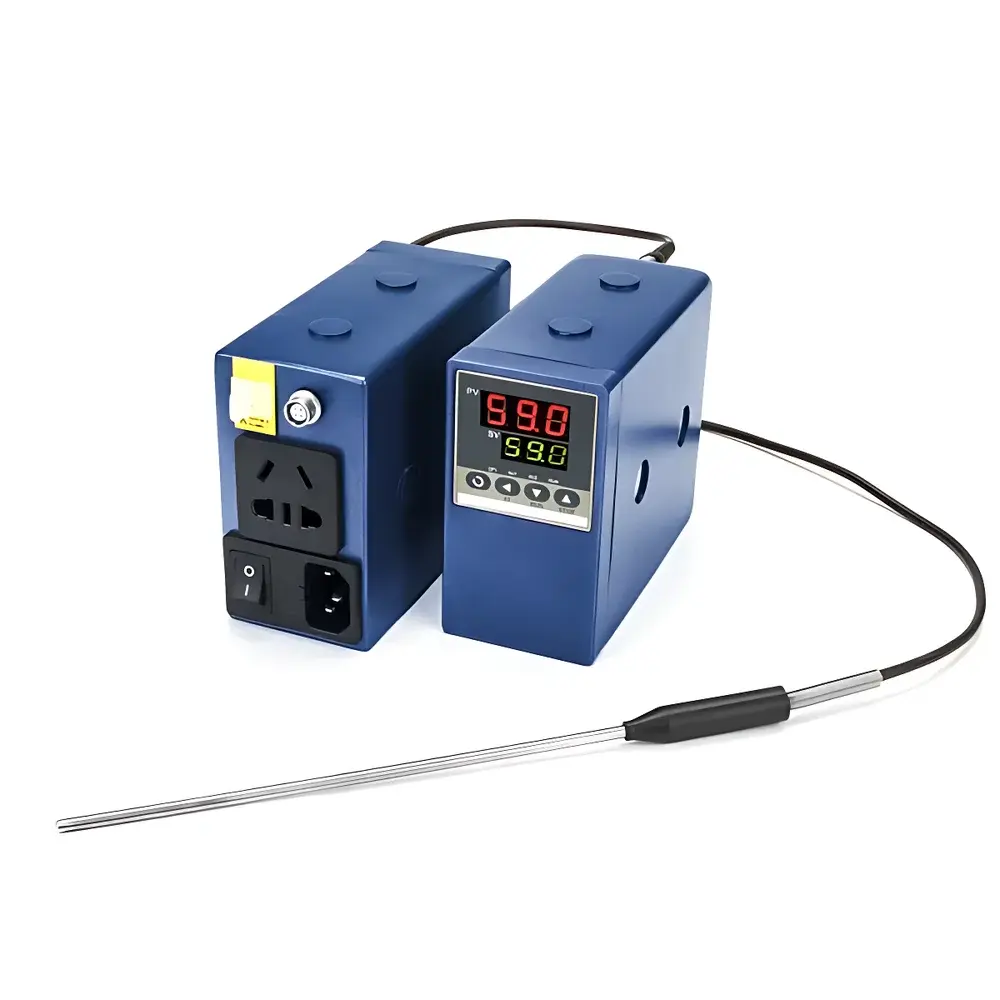

The WIGGENS PC524 Safety Temperature Protector is a dedicated, standalone thermal safeguard device engineered for fail-safe monitoring in laboratory heating, cooling, and reaction systems. Unlike primary temperature controllers, the PC524 operates independently—receiving input from an external temperature sensor (typically a Pt100 RTD) to continuously verify process temperature against a user-defined safety limit. Upon detection of an overtemperature condition exceeding the preset threshold, the device triggers a hardwired output signal to interrupt power to heaters, circulators, or other critical components. This dual-channel, sensor-based architecture complies with the principle of functional separation defined in IEC 61508 for Safety Integrity Level (SIL) 2-capable applications, ensuring redundancy where primary control systems may fail due to software error, sensor drift, or actuator malfunction.

Key Features

• Independent safety monitoring circuitry—electrically and logically isolated from primary temperature controllers
• LED display with real-time temperature readout and status indicators (normal operation, alarm active, sensor fault)
• User-configurable safety trip point with adjustable hysteresis to prevent nuisance cycling
• Relay output rated for 250 VAC / 3 A resistive load, suitable for direct interfacing with contactors, SSRs, or PLC emergency stop circuits
• Pt100 RTD input as standard (IEC 60751 Class B, 2-/3-/4-wire compatible); thermocouple input (Type K or J) available via optional firmware configuration
• Robust DIN-rail mounting design (35 mm top-hat rail) for seamless integration into laboratory equipment enclosures and utility cabinets
• EMC-compliant construction per EN 61326-1 for electromagnetic immunity in shared lab environments

Sample Compatibility & Compliance

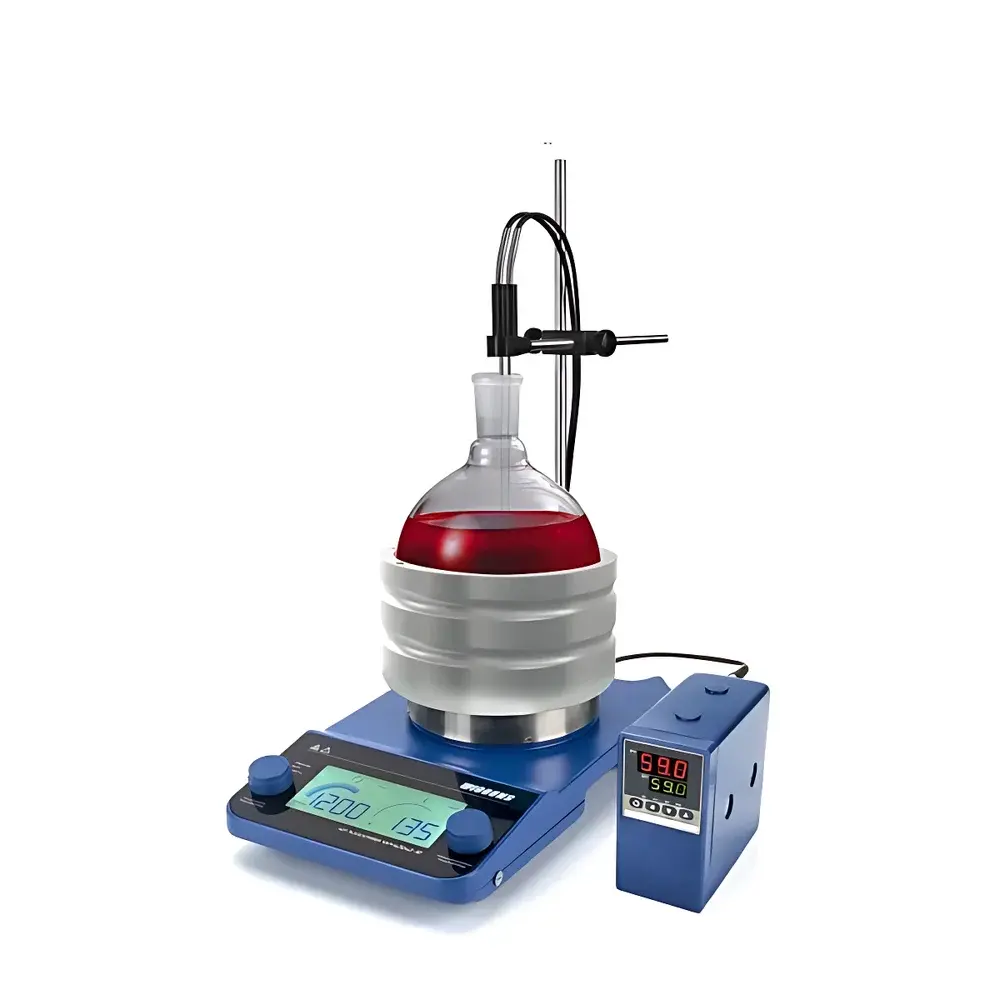

The PC524 does not interface directly with samples but serves as a critical layer of protection for any temperature-sensitive process involving liquids, solids, or gases in glassware, reactors, ovens, or environmental chambers. It is routinely deployed alongside WIGGENS heating mantles, immersion circulators, and orbital shakers—though fully agnostic to brand or topology when wired per manufacturer wiring diagrams. From a regulatory standpoint, the device supports compliance workflows under GLP and ISO/IEC 17025-accredited laboratories by enabling documented, auditable thermal safety interlocks. Its relay action log (via optional external event recorder) satisfies traceability requirements aligned with FDA 21 CFR Part 11 when integrated into validated systems with electronic audit trails.

Software & Data Management

The PC524 is a hardware-centric safety instrument with no embedded firmware update capability or network connectivity. All configuration—including setpoint, hysteresis, sensor type, and relay behavior—is performed locally via front-panel buttons and confirmed on the LED display. This design eliminates cybersecurity attack surfaces and ensures deterministic response timing (< 100 ms typical relay activation delay). While it does not generate digital data logs, its discrete relay output can be connected to external data acquisition systems (e.g., LabVIEW, DeltaV, or custom SCADA) for time-stamped event recording. For laboratories requiring full electronic records, pairing the PC524 with a compliant DAQ unit enables alignment with ALCOA+ data integrity principles—particularly attributable, legible, contemporaneous, original, and accurate entries.

Applications

• Redundant overtemperature protection for jacketed reactors and synthesis blocks during exothermic reactions
• Safety interlock for vacuum ovens and drying cabinets to prevent thermal degradation of sensitive materials
• Backup safeguard in cell culture incubators and stability chambers where uninterrupted temperature control is mission-critical
• Integration into custom-built electrochemical cells or battery testing rigs requiring strict thermal envelope enforcement
• Secondary monitoring layer in ISO 17025 calibration labs for temperature-controlled reference baths and metrology workbenches

FAQ

Does the PC524 replace my primary temperature controller?
No—the PC524 is not a controller but a dedicated safety monitor. It must be used in conjunction with, and independent of, your main temperature regulation system.
Can I use a thermocouple instead of a Pt100 sensor?
Yes—thermocouple support (Type K or J) is available as a factory-configurable option; contact technical support prior to ordering to confirm firmware version and wiring requirements.
Is calibration required before installation?
The device itself does not require calibration; however, the connected Pt100 or thermocouple sensor must be verified per ISO/IEC 17025 or internal SOP prior to commissioning.
What is the maximum cable length between the PC524 and the temperature sensor?
For Pt100 sensors, maximum recommended length is 10 m using shielded, twisted-pair cable (AWG 24) to maintain measurement fidelity and noise immunity.
Does the PC524 meet UL or CSA certification standards?
The unit carries CE marking and conforms to EN 61000-6-2/6-4 and EN 61326-1; UL/cUL listing is not held, but it may be incorporated into UL-listed systems under component recognition guidelines.
