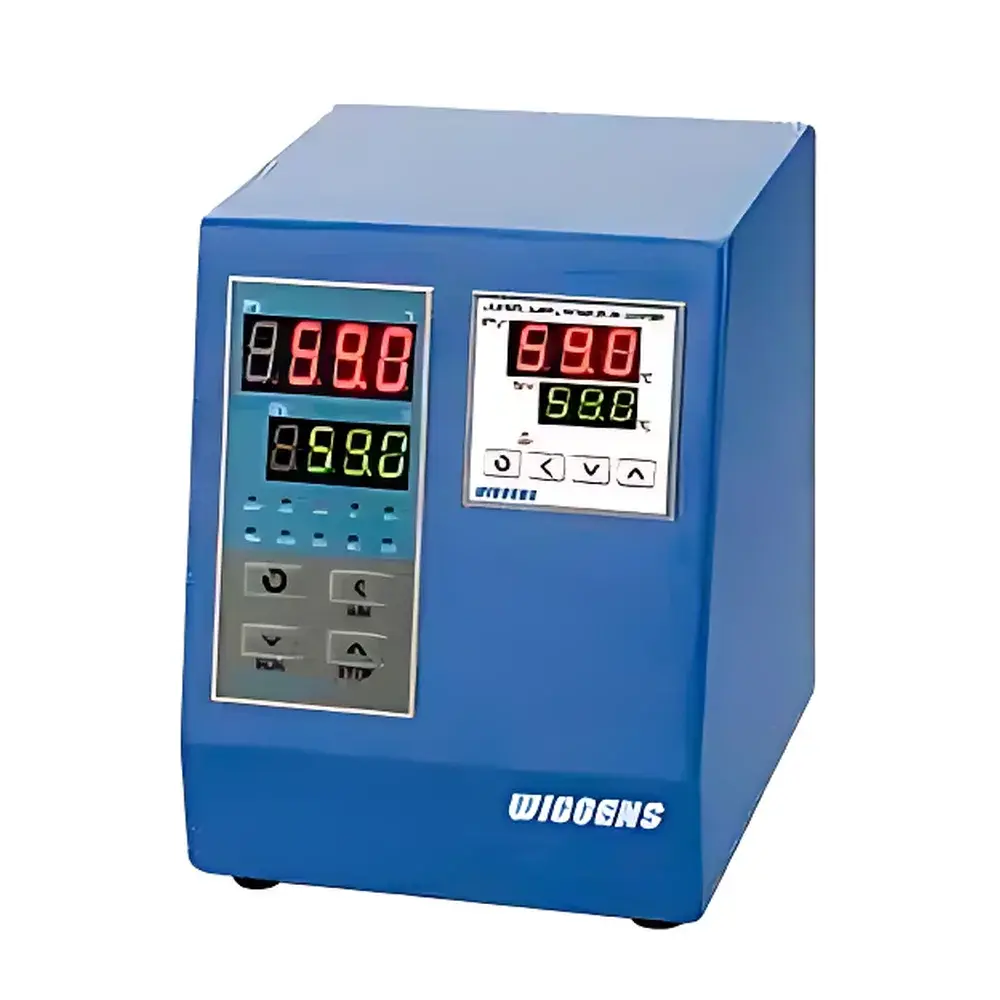

WIGGENS PL524 Pro Professional Intelligent Temperature Controller

Overview

The WIGGENS PL524 Pro Professional Intelligent Temperature Controller is an industrial-grade, microprocessor-based temperature regulation system engineered for high-reliability thermal process control in laboratory, pilot-scale, and light industrial environments. It operates on the principle of closed-loop feedback control using precision resistance temperature detectors (RTDs) or thermocouples to continuously monitor process temperature and dynamically adjust power delivery to heating elements—or trigger external cooling actuators—via dual independent output channels. Its core architecture integrates adaptive artificial intelligence (AI) into the PID control algorithm, enabling real-time parameter optimization without manual tuning. This ensures stable setpoint maintenance with minimal overshoot or undershoot, even under variable load conditions or thermal inertia shifts. Designed for seamless integration into distributed automation frameworks, the PL524 Pro meets stringent electromagnetic compatibility (EMC) requirements per IEC 61326-1 for operation in electrically noisy industrial settings.

Key Features

• High-precision temperature measurement with Class 0.1 accuracy (±0.1 °C at 25 °C) using calibrated Pt100 or Type K/J thermocouple inputs.
• Dual-output capability: primary heating channel (up to 4 kW resistive load) and secondary alarm/cooling channel (220 V AC relay output, configurable for solenoid valve actuation).
• AI-PID control engine with auto-tuning and self-learning functions—eliminates manual controller configuration and adapts to changing thermal dynamics over time.
• 5-inch full-color TFT touchscreen interface with intuitive graphical navigation, real-time trend visualization, and LED status strip indicating operational mode (heating, cooling, alarm, standby).
• Multi-mode alarm logic including upper/lower limit, deviation-based (absolute or relative), and configurable power-on alarm suppression to prevent false triggers during system startup.
• User-access security framework supporting role-based parameter visibility and modification, enforced via customizable password protection.
• Industrial EMC compliance certified to IEC 61326-1, ensuring robust performance in environments with variable-frequency drives, RF sources, or switching power supplies.
• Flexible connectivity: standard RS-232 port; optional RS-485 (Modbus RTU), Ethernet (TCP/IP), or USB-A interfaces for integration with SCADA, DCS, or paperless recorder systems.

Sample Compatibility & Compliance

The PL524 Pro supports a wide range of thermal accessories—including WIGGENS WH260-series heating mantles, stirrer-integrated heating jackets (e.g., WB2000-C, WB1800-D), and 220 V AC refrigeration solenoid valves—enabling precise temperature control across liquid-phase reactions, distillation setups, crystallization studies, and material curing processes. It is compatible with both two-wire and four-wire Pt100 sensors as well as grounded/ungrounded thermocouples, accommodating diverse sensor placement constraints and calibration traceability needs. The device conforms to essential regulatory expectations for laboratory instrumentation, including CE marking (EMC & LVD directives), RoHS compliance, and design alignment with GLP/GMP documentation practices. While not inherently FDA 21 CFR Part 11 compliant out-of-the-box, its audit-trail-capable firmware (with optional Ethernet logging) supports validation protocols required for regulated QC/QA workflows.

Software & Data Management

The controller’s embedded firmware enables local data logging to internal memory (configurable sampling intervals from 1 s to 60 min) and supports export via USB-A to CSV-formatted files for post-processing in Excel or statistical analysis platforms. When equipped with RS-485 or Ethernet modules, it functions as a Modbus slave node or TCP server, allowing bidirectional communication with supervisory software such as LabVIEW, Ignition SCADA, or custom Python-based monitoring dashboards. Optional analog I/O modules (0–10 V / 4–20 mA) permit integration with third-party chart recorders or PLC analog input cards. All configuration changes are timestamped and logged internally, forming the basis for electronic record integrity in validated environments.

Applications

• Precise thermal control of chemical synthesis reactors and jacketed glass vessels.
• Stabilized temperature management in enzymatic assays, cell culture incubators, and stability chambers.
• Process-critical heating/cooling coordination in fractional distillation, reflux, and solvent recovery systems.
• Calibration laboratories requiring traceable, repeatable thermal setpoints for probe verification.
• Integration into modular lab automation platforms where decentralized, intelligent temperature nodes reduce central controller load.

FAQ

Does the PL524 Pro support both heating and active cooling control simultaneously?
Yes—it provides independent relay outputs for heating and alarm/cooling functions. The cooling output is typically used to drive 220 V AC solenoid valves in chiller or refrigerant circuits.
What sensor types are supported, and how many are required?
The PL524 Pro requires two temperature sensors for redundancy and differential control logic (e.g., process vs. jacket sensing). Compatible sensors include Pt100 (2-/3-/4-wire) and thermocouples (K, J, T, E, N, R, S, B).
Is remote configuration possible without physical access?
Yes—when equipped with RS-485 or Ethernet, the unit supports remote parameter read/write and real-time setpoint adjustment via Modbus or TCP commands.
Can the controller be validated for GxP-regulated environments?
Its design supports IQ/OQ documentation; optional Ethernet logging and user-access controls facilitate Part 11-compliant implementation when paired with appropriate software infrastructure.
What is the maximum load capacity for the heating output?
The main heating output is rated for resistive loads up to 4 kW at 220–240 V AC, suitable for large-volume heating mantles and immersion heaters.
