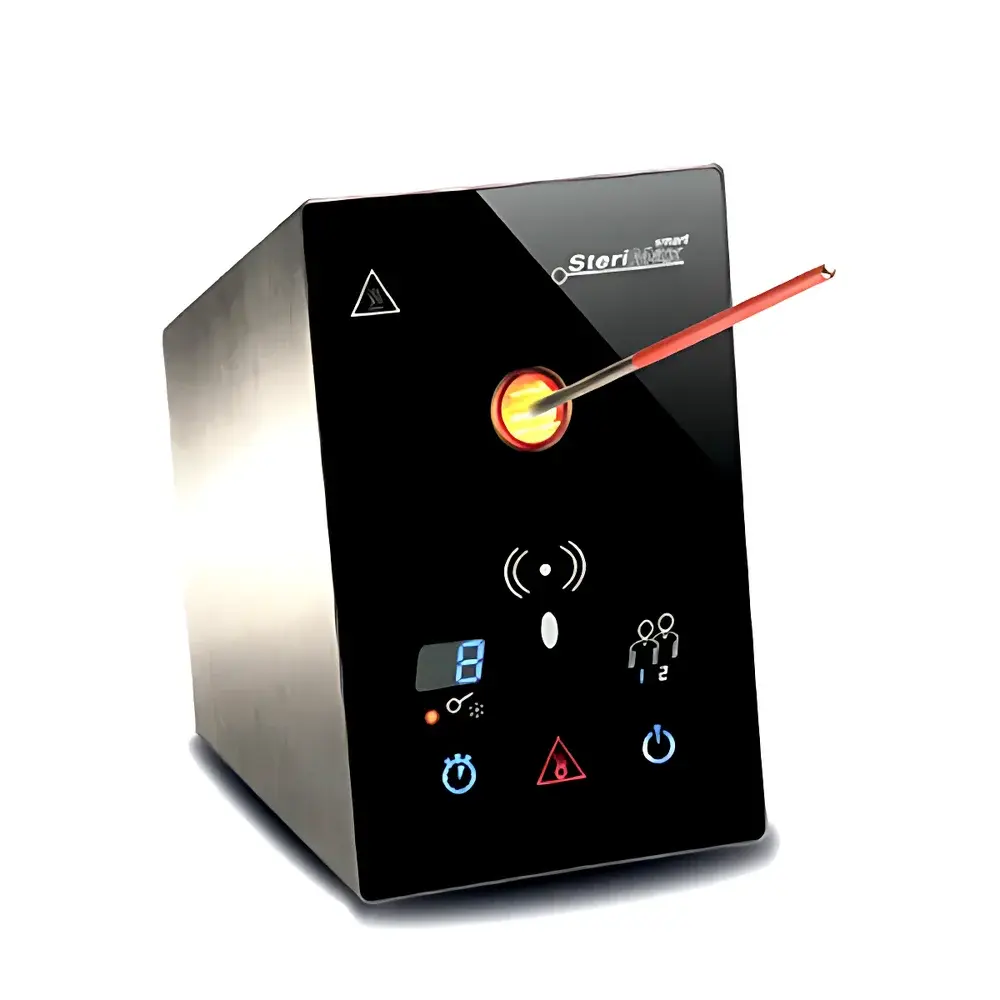

WIGGENS SteriMax Smart Infrared Microbial Loop Sterilizer

Overview

The WIGGENS SteriMax Smart Infrared Microbial Loop Sterilizer is an engineered solution for rapid, contactless thermal sterilization of inoculation loops, needles, forceps tips, and other small laboratory instruments. Unlike conventional flame-based or hot-air sterilizers, the SteriMax Smart employs high-intensity infrared radiation emitted from a precisely focused quartz-encapsulated IR lamp. This design enables instantaneous heating—no preheating required—and delivers consistent surface temperatures between 750 °C and 1000 °C within the sterilization tube. The device operates on the principle of radiant heat transfer, ensuring efficient microbial inactivation (including spores, vegetative bacteria, and fungi) via rapid thermal denaturation of proteins and nucleic acids. Its compact footprint and low ambient heat emission make it suitable for use in biosafety cabinets, laminar flow hoods, glove boxes, and standard laboratory benches—even under low-oxygen or ventilated conditions where open flames are prohibited.

Key Features

• Contactless activation via 8-level adjustable infrared proximity sensor—eliminates manual switch operation and minimizes cross-contamination risk.
• Quartz glass sterilization tube (Ø19 mm OD / Ø16 mm ID / 112 mm L) with sealed distal end to prevent aerosol ingress and microbial recontamination; chemically inert and UV-resistant.
• Touch-sensitive glass control panel with intuitive interface for real-time adjustment of sterilization duration (5–10 s) and cooling delay (0–25 s), accompanied by audible feedback during parameter setting.
• Intelligent power management system enabling soft-start IR emission, residual heat retention between cycles, and automatic energy suspension during idle periods—reducing thermal load and improving electrical efficiency.
• Stainless steel housing with IP20-rated enclosure ensures mechanical durability and compatibility with routine decontamination protocols using common lab disinfectants.
• Integrated thermal circuit breaker and auto-shutdown timers (15/30/60 min) provide redundant safety layers aligned with IEC 61010-1 requirements for laboratory electrical equipment.

Sample Compatibility & Compliance

The SteriMax Smart is validated for sterilizing metallic implements up to 3 mm in diameter—including platinum, nickel-chromium, and stainless-steel inoculation loops, micro-spatulas, and micro-pipette tips. It is not intended for sterilizing plastic, coated, or temperature-sensitive materials. The device conforms to multiple international safety and electromagnetic compatibility standards: EN 61010-1 (electrical safety for lab equipment), EN 61326-1 (EMC for measurement/control devices), and EN 62471 (photobiological safety for lamps). It also meets the essential requirements of EU Directives 2006/95/EC (Low Voltage Directive), 2004/108/EC (EMC Directive), and 2006/25/EC (physical agents—optical radiation). While not a medical device per ISO 13485, its performance supports GLP-compliant workflows where documented, repeatable loop sterilization is required prior to microbiological isolation or subculturing.

Software & Data Management

The SteriMax Smart operates as a standalone hardware unit without embedded firmware-based data logging or network connectivity. All operational parameters—including sterilization time, cooling delay, and sensor sensitivity—are configured locally via the capacitive touch interface. No software installation, driver dependencies, or cloud synchronization is required. However, the device supports audit-ready usage through its built-in visual indicators (preheat status LED, active-cycle illumination) and programmable auto-off intervals—facilitating procedural documentation in environments adhering to FDA 21 CFR Part 11 principles for manual instrumentation. Laboratory personnel may record cycle timestamps and settings manually in electronic lab notebooks (ELNs) or paper-based logs to fulfill traceability requirements.

Applications

• Routine sterilization of inoculation loops and needles in clinical microbiology, pharmaceutical QC, and academic research labs.
• Aseptic technique support in Class II biosafety cabinets and laminar airflow workstations where open flames pose explosion or contamination hazards.
• High-frequency sterilization in teaching laboratories requiring rapid instrument turnover between student users.
• Field-deployable sterilization in mobile diagnostic units or cleanroom-adjacent preparation areas with limited ventilation infrastructure.
• Complementary use alongside autoclaves for immediate “between-sample” sterilization without batch delays.

FAQ

Does the SteriMax Smart require calibration or periodic verification?
No formal calibration is specified by the manufacturer; however, users should verify sterilization efficacy periodically using biological indicators (e.g., Bacillus stearothermophilus spore strips) in accordance with ISO 14644-3 or local SOPs.
Can the quartz sterilization tube be replaced in the field?
Yes—the tube is designed for tool-free removal and replacement; spare parts (Art. No. ST-QZ-TUBE) are available directly from WIGGENS authorized distributors.
Is the device compatible with 110 V power supplies?
No—it is rated exclusively for 220–240 V, 50/60 Hz input and must be used with appropriate voltage conversion if deployed outside EU/UK/APAC mains regions.
What maintenance is required beyond cleaning the quartz tube and housing?
Routine inspection of the IR lamp’s optical clarity and integrity of the sensor window is recommended every 6 months; no lubrication or internal servicing is necessary.
Does the device meet requirements for ISO 13485-certified quality systems?
While the SteriMax Smart itself is not certified to ISO 13485, its CE marking and conformity with EN 61010-1 allow integration into ISO 13485 quality management systems when used per defined operating procedures and maintained according to WIGGENS guidelines.
