WIGGENS TM611 Electric Heating Mantle for Beakers

Overview

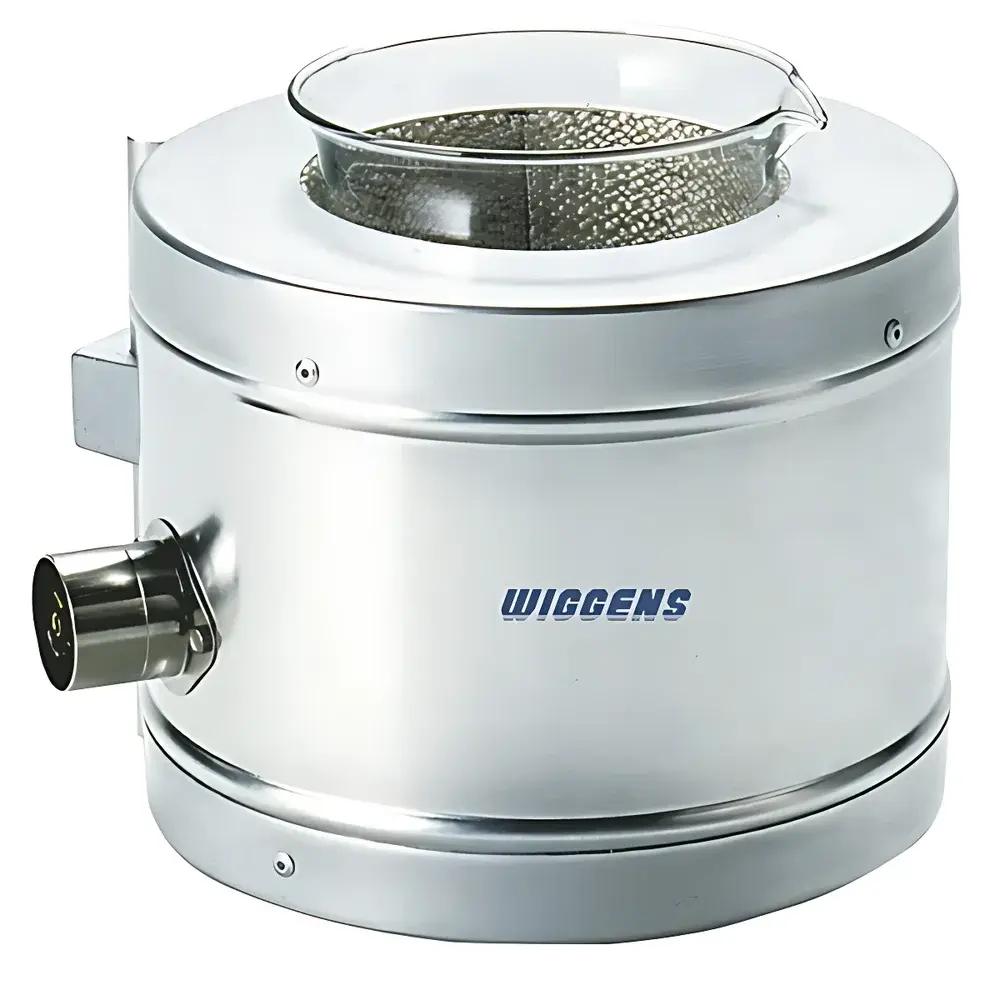

The WIGGENS TM611 Electric Heating Mantle is a precision-engineered, thermostatically compatible heating solution designed specifically for uniform, controllable thermal input to standard laboratory beakers and Griffin-style low-form flasks. Unlike open-heating plates or hotplates with exposed elements, the TM611 employs a fully enclosed, flexible ceramic-fiber insulated mantle architecture that conforms closely to the vessel’s curvature—minimizing heat loss, eliminating hot spots, and reducing thermal stress on glassware. Its operation is based on resistive Joule heating via embedded nickel-chromium alloy windings, delivering stable surface temperatures across the entire contact area. The device is intended for use in conjunction with external temperature controllers (e.g., PID-based circulators or digital thermoregulators) to achieve closed-loop thermal management—commonly required in reflux, solvent evaporation, reaction initiation, and viscosity-temperature profiling applications.

Key Features

• Fully flexible, soft-weave internal lining ensures full circumferential contact with beaker walls—enhancing thermal transfer efficiency and protecting delicate glassware from mechanical abrasion or thermal shock.
• Ceramic-fiber insulation layer provides high thermal resistance and low thermal mass, enabling rapid warm-up and precise response to controller signals.
• Integrated 3-conductor, 4-foot power cord with NEMA 5-15P locking plug meets North American grounding safety standards (UL/CSA Class 2 compliance).
• Robust fiberglass-reinforced polymer housing resists chemical splashes and mechanical impact during routine lab handling.
• No built-in thermostat or digital interface—engineered explicitly for integration into validated, externally controlled heating workflows compliant with GLP and GMP documentation requirements.

Sample Compatibility & Compliance

The TM611 is dimensionally optimized for 600 mL Griffin beakers (standard taper, low-form design) with a maximum outer diameter of 91 mm and height up to 95 mm. Its internal geometry accommodates common borosilicate 3.3 and Pyrex® glassware without deformation or compression-induced stress. The mantle does not generate electromagnetic interference (EMI) above 30 MHz and is suitable for use in ISO Class 5–7 cleanrooms when operated within ambient humidity limits (≤80% RH, non-condensing). It complies with IEC 61010-1:2010 for electrical safety in laboratory equipment and carries CE marking per EU Directive 2014/30/EU (EMC) and 2014/35/EU (LVD). No intrinsic safety rating is assigned; it is not rated for use in explosive atmospheres (ATEX/IECEx).

Software & Data Management

As a passive heating element, the TM611 does not incorporate embedded firmware, Bluetooth/Wi-Fi connectivity, or onboard data logging. Its design prioritizes traceability and audit readiness in regulated environments: all operational parameters—including setpoint temperature, ramp rate, dwell time, and power delivery—are managed exclusively through validated external controllers. When paired with FDA 21 CFR Part 11–compliant systems (e.g., LabVIEW-based PID platforms or DeltaV DCS modules), full electronic record retention—including operator ID, timestamped setpoint changes, and real-time temperature acquisition—is achievable. Calibration certificates for associated thermocouples or RTDs must be maintained per ISO/IEC 17025 requirements.

Applications

• Controlled heating of aqueous and organic solutions during gravimetric analysis preparation.
• Pre-warming reagents prior to titration or spectrophotometric assays to minimize thermal drift in absorbance readings.
• Sustained low-power heating for enzymatic reactions requiring narrow (±0.5 °C) temperature bands over extended durations.
• Supporting ASTM D129, D86, and IP 123 distillation assemblies where uniform flask-wall heating prevents localized boiling and foaming.
• Integration into automated sample digestion workflows (e.g., EPA Method 3050B) when used with programmable temperature ramps and hold profiles.

FAQ

Is the TM611 compatible with temperature controllers from third-party manufacturers?
Yes—its resistive load profile (325 W nominal at 120 VAC) is compatible with any industrial-grade SCR or SSR controller rated for ≥5 A resistive load and equipped with Type K thermocouple or 100 Ω Pt RTD input.
Can the TM611 be used with round-bottom flasks?
No—it is engineered specifically for cylindrical, straight-walled beakers and Griffin flasks. Round-bottom flasks require mantles with hemispherical contouring (e.g., WIGGENS TM series models designated “RB” or “RBF”).
Does the unit include overtemperature protection?
No independent thermal cutoff is integrated. Overtemperature safeguards must be implemented at the system level via external high-limit sensors and fail-safe relays per IEC 61508 SIL-1 requirements.
What maintenance is required?
Periodic visual inspection for fabric wear, insulation integrity, and cord strain relief condition is recommended. Cleaning is limited to dry wiping with lint-free cloth; no solvents or immersion is permitted.
Is calibration required for the TM611 itself?
No—calibration applies only to the temperature-sensing element (thermocouple/RTD) and controller. The mantle functions as a transducer and requires no periodic metrological verification.
