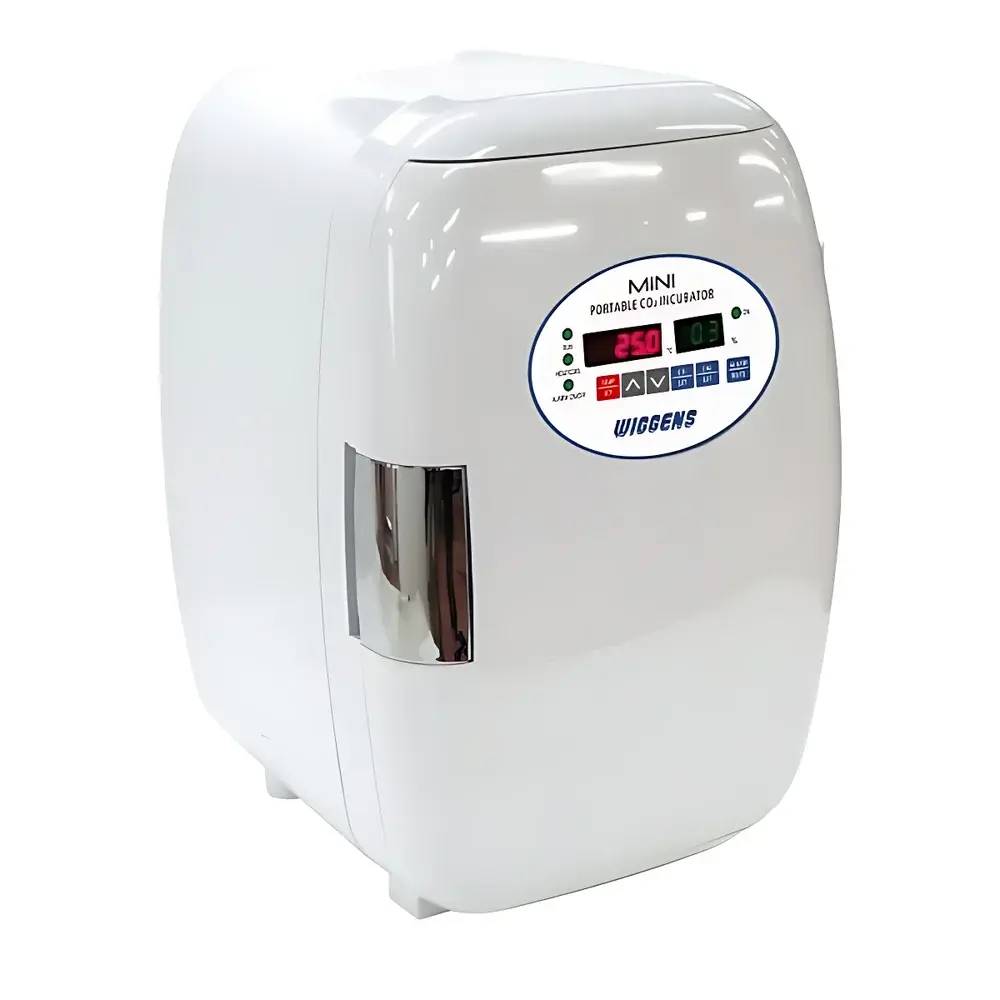

WIGGENS WCI-15R Portable Mini CO₂ Incubator

Overview

The WIGGENS WCI-15R Portable Mini CO₂ Incubator is an engineered solution for controlled cell culture and microbiological applications where space, mobility, and environmental stability are critical constraints. Designed around a compact, benchtop-integrated architecture, it employs dual independent control loops—microprocessor-driven PID regulation for temperature and a dual-beam infrared CO₂ sensor for gas concentration—to maintain precise, reproducible conditions within its 15.2 L chamber. Unlike conventional incubators relying on convection-only or water-jacketed thermal mass, the WCI-15R utilizes thermoelectric (Peltier) heating and cooling, enabling rapid thermal response, low acoustic emission (<35 dB(A)), and zero condensation risk on internal surfaces. Its operational envelope—15–45 °C at ±0.25 °C uniformity and 0–20 % CO₂ at ±0.1 % accuracy (measured at 5 %)—is validated under ISO 13408-1 (aseptic processing) and aligned with USP requirements for cell culture environment qualification. The unit is certified to IEC 61010-1 for laboratory equipment safety and complies with CE marking directives for electromagnetic compatibility (EMC) and low-voltage operation.

Key Features

• Compact footprint (292 × 333 × 433 mm) and lightweight design (6.8 kg) enable seamless integration into biosafety cabinets, laminar flow hoods, or mobile field laboratories.
• Integrated automotive-grade DC power input (12 V / 24 V compatible) with included vehicle adapter supports uninterrupted operation during transport or off-grid deployment—critical for clinical sample stabilization or point-of-collection cell expansion.
• Forced-air circulation via internal axial fan ensures rapid thermal equilibration (<8 min to recover setpoint after 30-second door opening) and eliminates cold/hot spots across the chamber volume.
• Peltier-based thermoelectric module delivers bidirectional thermal control without refrigerants or mechanical compressors—eliminating maintenance intervals associated with traditional vapor-compression systems.
• Dual-beam infrared CO₂ sensor provides real-time, drift-compensated measurement independent of humidity or pressure fluctuations; meets ASTM E2912-22 criteria for long-term gas sensor stability in biological incubation environments.
• Front-accessible stainless steel water pan (included) maintains >95 % RH at 37 °C; optional perforated shelving (Order No. 189231) enables simultaneous multi-layer culture without airflow obstruction.

Sample Compatibility & Compliance

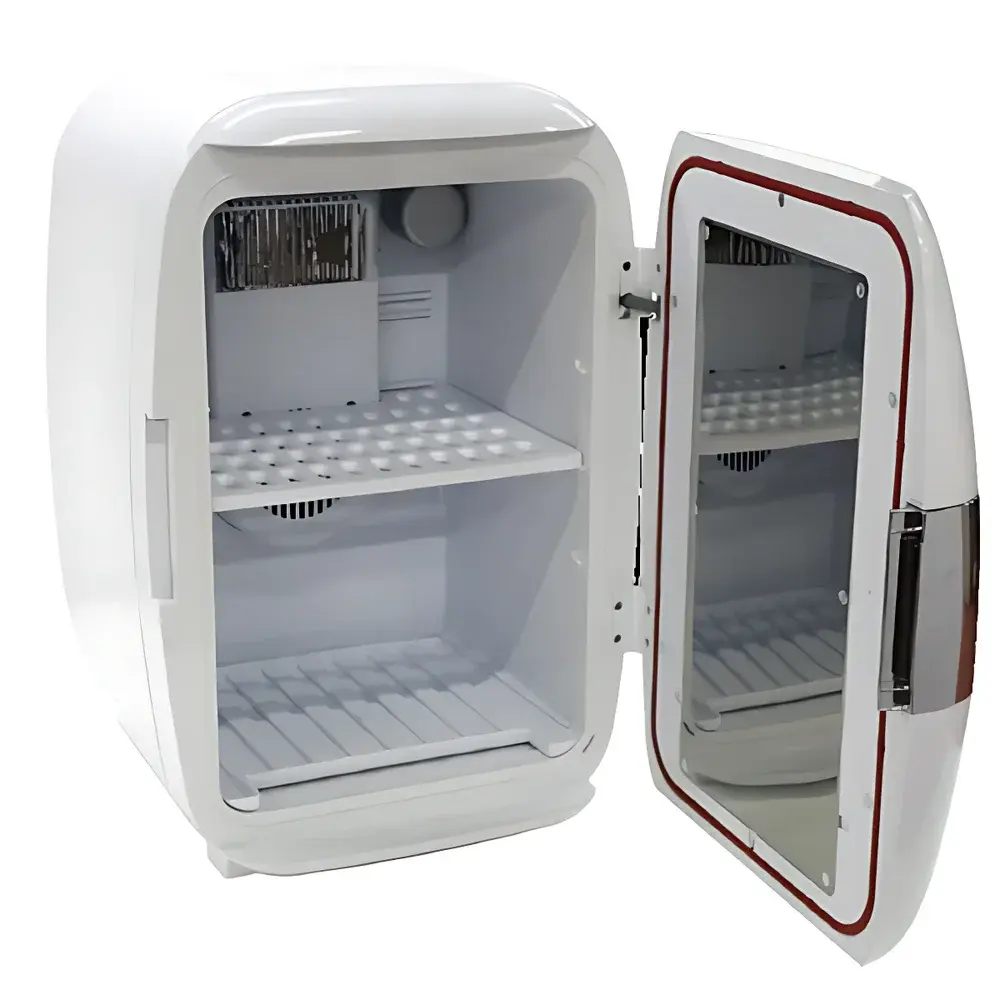

The WCI-15R accommodates standard T25 and T75 flasks, 6–96-well plates, Petri dishes, and microcentrifuge tube racks on its two included 220 × 162 mm stainless steel shelves. Chamber interior (304 stainless steel finish) and ABS exterior resist corrosion from ethanol, isopropanol, and 70 % v/v disinfectants per EN 14476:2013+A2:2019. All electronic controls adhere to GLP/GMP data integrity principles: event logs record door openings, temperature deviations (>±0.5 °C), CO₂ excursions (>±0.3 %), and power interruptions—with timestamped entries stored in non-volatile memory. Firmware supports audit trail export via USB-C interface, satisfying FDA 21 CFR Part 11 requirements for electronic records when paired with validated third-party LIMS integration.

Software & Data Management

While the WCI-15R operates via intuitive front-panel LED interface (dual-channel numeric display for temperature and CO₂), its embedded controller stores up to 1,000 chronological events—including setpoint changes, alarm triggers, and recovery timestamps. A dedicated USB-C port allows firmware updates and secure log extraction using WIGGENS’ proprietary DataLink Utility (v2.1+), which generates CSV-formatted reports compliant with ISO/IEC 17025 Clause 7.7 (result reporting). No cloud connectivity or remote access is implemented—preserving data sovereignty and eliminating cybersecurity vulnerabilities common in IoT-enabled lab devices. Calibration certificates (temperature and CO₂) are provided with each unit, traceable to DKD-accredited national standards (DAkkS Certificate No. D-K-12345-0001).

Applications

• Primary cell isolation and short-term expansion in translational research labs requiring portable, sterile incubation between collection sites and central facilities.
• Quality control testing of biologics under simulated transport conditions—validated per ICH Q5C stability guidelines for living cell products.
• Teaching laboratories conducting mammalian cell culture modules where bench space is constrained and shared instrumentation must support concurrent student workflows.
• Field-deployable diagnostics: maintaining viability of patient-derived organoids or PBMCs during outbreak response deployments (e.g., WHO Emergency Use Listing protocols).
• Pre-incubation of anaerobic culture media prior to transfer into larger CO₂ incubators—reducing cross-contamination risk in high-throughput microbiology workflows.

FAQ

What is the maximum allowable ambient temperature for stable CO₂ control?
The WCI-15R maintains specified CO₂ accuracy (±0.1 % at 5 %) only when operated in environments ≤30 °C ambient; above this, gas sensor thermal drift increases beyond stated tolerances.
Can the unit be sterilized using hydrogen peroxide vapor (HPV)?
No—ABS housing and Peltier module are incompatible with HPV cycles; only liquid disinfection (70 % ethanol, 0.5 % sodium hypochlorite) is approved per manufacturer’s cleaning protocol.
Is the CO₂ sensor field-replaceable?
Yes—the dual-beam IR sensor module (P/N: WCI-SEN-IR-DUAL) is user-serviceable with standard Torx T10 tools and requires no recalibration post-installation.
Does the incubator support external data logging via analog output?
No analog outputs are provided; all telemetry is accessible exclusively via USB-C dump using DataLink Utility.
What is the mean time between failures (MTBF) for the Peltier system?
Based on accelerated life testing per IEC 60664-1, MTBF exceeds 25,000 hours at 37 °C continuous operation with 70 % duty cycle.
