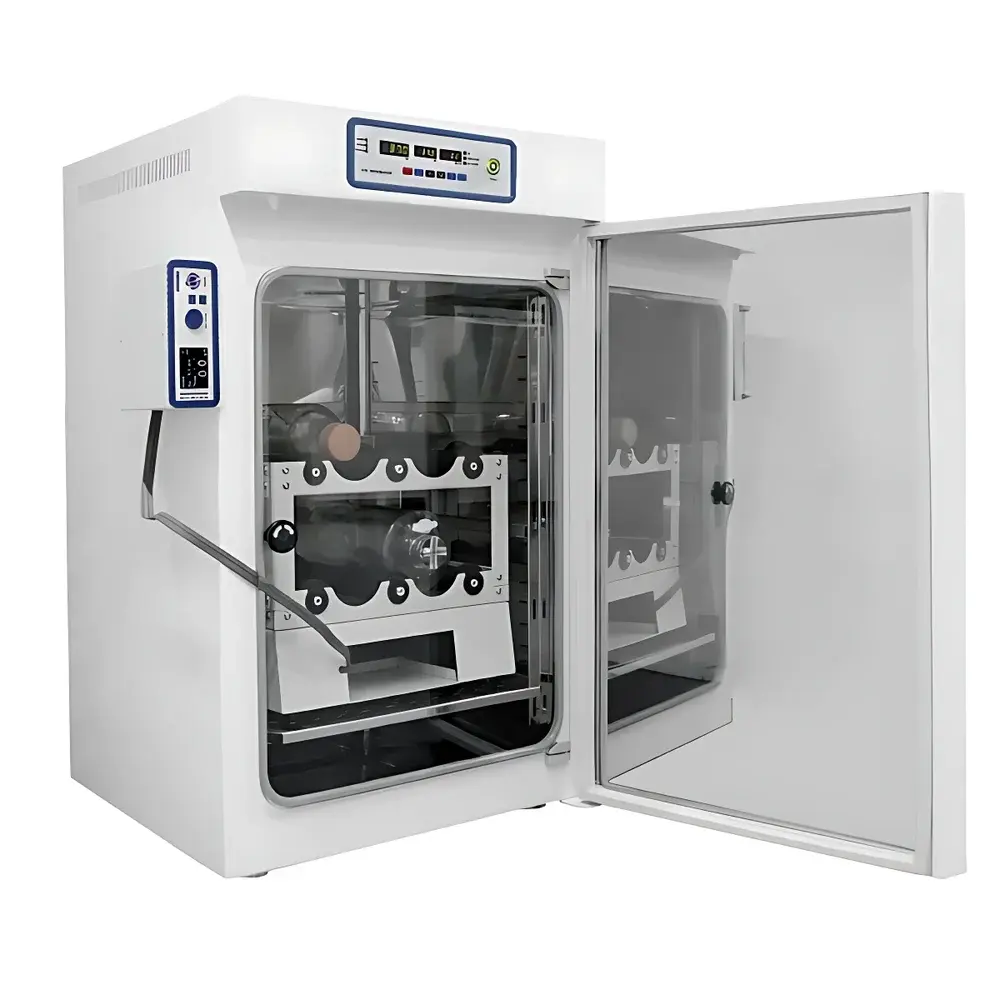

WIGGENS WCI-180R Air-Jacketed CO₂ Incubator with Integrated Roller Bottle Platform

Overview

The WIGGENS WCI-180R is an air-jacketed CO₂ incubator engineered specifically for advanced adherent and suspension cell culture applications requiring simultaneous environmental control and mechanical agitation. Unlike conventional static incubators, the WCI-180R integrates a precision roller bottle platform or magnetic drive shaker directly into its stainless-steel chamber—enabling uninterrupted, contamination-minimized cultivation of anchorage-dependent cells (e.g., primary fibroblasts, hybridomas) and suspension-adapted mammalian lines (e.g., CHO, HEK293) under tightly regulated CO₂, temperature, and humidity conditions. Its six-sided air-jacket heating architecture ensures rapid thermal equilibration (<15 min from ambient to 37°C), exceptional spatial uniformity (±0.3°C across chamber volume), and minimal thermal overshoot during door openings—critical for maintaining physiological fidelity in long-term cultures. The dual-beam infrared CO₂ sensor delivers drift-free, cross-sensitivity-free gas monitoring independent of ambient humidity or temperature fluctuations, satisfying ISO 13485-aligned validation requirements for bioprocess development environments.

Key Features

• Six-face direct air-jacket heating system with three independently calibrated platinum resistance thermometers (Pt100) for real-time multi-zone thermal verification
• Heated anti-condensation double-glazed observation door and frame-integrated thermal management prevent dew formation on interior surfaces—eliminating moisture-related contamination risks
• Bottom-mounted heated water pan coupled with low-turbulence circulation fan achieves ≥70% RH at 37°C without ultrasonic misting or external humidification modules
• Brushless DC motor-driven roller platform (WNB-180R configuration) accommodates up to four standard roller bottles (Ø100–120 mm); magnetic shaker variant (WNB-101S integration) supports 100–1000 mL Erlenmeyer flasks with vibration amplitude <0.5 µm RMS
• Externally accessible control interface enables independent adjustment of rotation speed (2–30 rpm, 0.1 rpm step), temperature (ambient +5°C to 60°C), and CO₂ setpoint (0–20%) without opening the chamber
• Removable agitation module allows conversion to static incubation mode; standard flat shelf included; optional adhesive plates and specialized carriers for conical flasks (100/250/500/1000 mL), tube racks, and 96-well microplates

Sample Compatibility & Compliance

The WCI-180R supports a broad range of culture formats including T-flasks, roller bottles, spinner flasks, and shake flasks—making it suitable for upstream bioprocess optimization, vaccine production seed train expansion, and stem cell differentiation protocols. Its 304 stainless-steel interior (electropolished finish, radius-curved corners) meets ISO 14644-1 Class 5 cleanroom compatibility standards when operated with HEPA-filtered airflow accessories. The microprocessor-based control system logs timestamped operational parameters (temperature, CO₂, humidity, rotation status) with audit trail capability, supporting compliance with FDA 21 CFR Part 11 Annex 11 requirements when paired with validated data export protocols. All thermal and gas control subsystems are factory-calibrated per DIN EN 61000-6-3 EMC and IEC 61010-1 safety directives.

Software & Data Management

While the WCI-180R operates via an embedded LED interface with real-time parameter display and manual PID tuning, it features RS-232/RS-485 communication ports for integration into centralized laboratory information management systems (LIMS) or SCADA platforms. Optional firmware upgrades enable automated calibration logging, alarm history export (CSV), and configurable event-triggered notifications (e.g., door-open duration >30 s, CO₂ deviation >±0.3%). Data integrity safeguards include write-protected memory storage, password-protected parameter modification, and cyclic redundancy check (CRC) validation for all transmitted commands—ensuring traceability in GMP-regulated QC laboratories.

Applications

• Scalable adherent cell expansion for monoclonal antibody manufacturing
• High-yield suspension culture of recombinant protein-expressing mammalian lines
• Virus propagation in roller bottle systems for vaccine development
• Stem cell maintenance and directed differentiation under dynamic mechanical stimulation
• Microcarrier-based 3D tissue model development requiring precise O₂/CO₂ gradient control
• Long-term stability studies of biologics in simulated physiological environments

FAQ

Can the roller platform be removed for static incubation?
Yes—the integrated roller bottle module is fully detachable, allowing the chamber to function as a standard CO₂ incubator with one adjustable stainless-steel shelf.
Is the CO₂ sensor user-calibratable?
The dual-beam infrared sensor is factory-calibrated and does not require routine user recalibration; however, optional NIST-traceable verification kits are available for periodic performance validation.
What is the maximum allowable flask volume for the magnetic shaker configuration?
When using the WNB-101S magnetic drive unit, the supported vessel range is 100–1000 mL Erlenmeyer flasks with fill volumes ≤70% of nominal capacity.
Does the incubator support remote monitoring via Ethernet or Wi-Fi?
The base model includes RS-232/RS-485 serial connectivity; Ethernet/Wi-Fi gateway modules are available as certified add-ons for secure cloud-based telemetry and alarm forwarding.
How often does the water pan require refilling during continuous operation at 37°C?
With standard 2 L capacity and ≥70% RH target, the pan typically requires replenishment every 4–5 days under sealed-door conditions; usage frequency increases proportionally with door access events.
