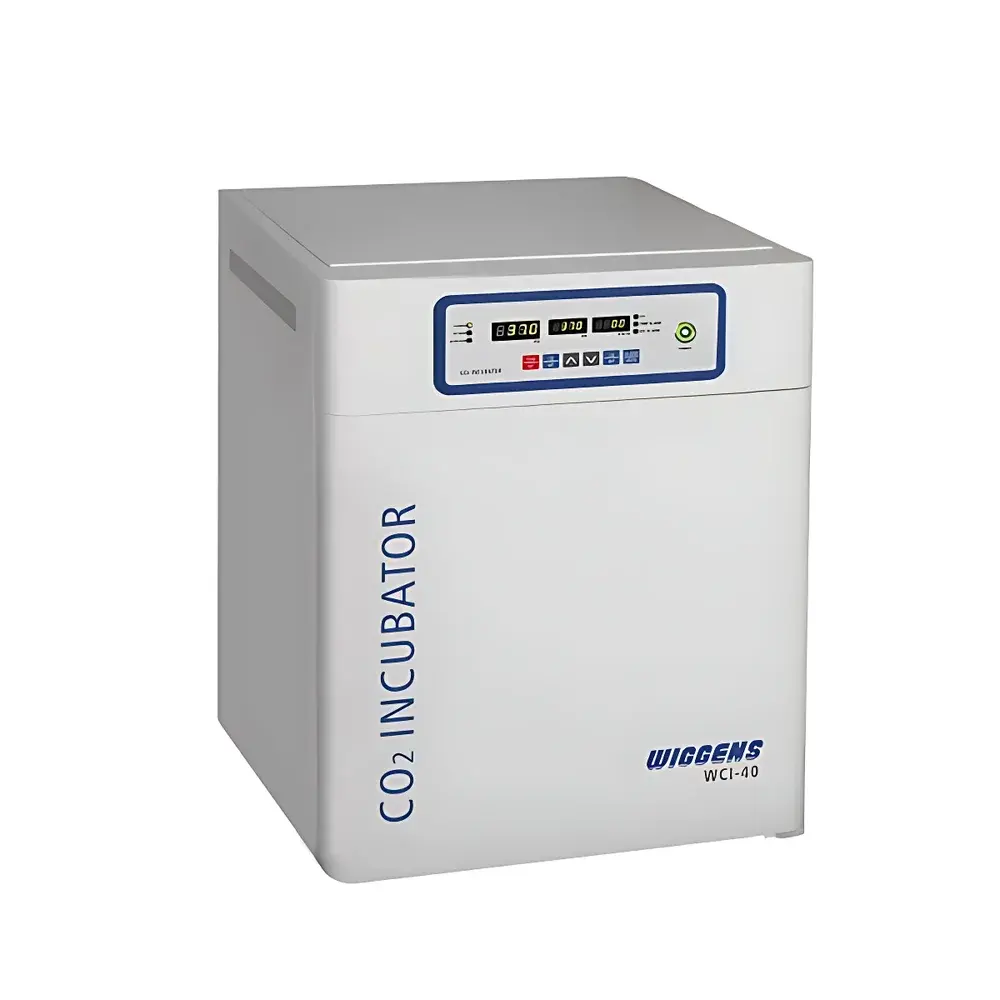

WIGGENS WCI-40 Air-Jacketed CO₂ Incubator

Overview

The WIGGENS WCI-40 Air-Jacketed CO₂ Incubator is an engineered platform for reliable, contamination-controlled mammalian cell culture under physiologically relevant conditions. Designed for laboratories requiring stringent environmental stability—particularly in stem cell research, hybridoma production, and routine passage of sensitive primary cultures—the WCI-40 employs a six-sided air-jacket heating architecture combined with forced convection and dual-beam infrared CO₂ sensing to deliver high reproducibility across temperature, humidity, and gas composition parameters. Unlike water-jacketed systems, its air-jacket design eliminates thermal inertia, enabling rapid temperature recovery (<15 min from 37 °C after a 30-second door opening) while minimizing energy consumption and eliminating the need for periodic water refills or microbial monitoring of jacket fluid. The chamber is constructed entirely from electropolished AISI 304 stainless steel, ensuring corrosion resistance and compatibility with standard laboratory decontamination protocols including ethanol wiping, hydrogen peroxide vapor (HPV), and dry-heat sterilization (optional configuration available).

Key Features

• Six-face independent heating elements with three-zone thermal monitoring—each face equipped with a calibrated Pt100 sensor—ensuring uniform thermal distribution and eliminating cold spots.
• Air-jacket insulation layer positioned between the chamber wall and outer casing provides passive thermal retention without maintenance requirements; no condensation forms on interior surfaces due to heated anti-fog glass door and frame-integrated heating circuitry.
• Dual-beam non-dispersive infrared (NDIR) CO₂ sensor delivers real-time, drift-free concentration measurement with immunity to ambient humidity and temperature fluctuations—critical for long-term culture stability.
• Integrated HEPA filtration (≥99.97% efficiency at 0.3 µm) on both intake and recirculation pathways maintains ISO Class 5-equivalent air cleanliness inside the chamber.
• Microprocessor-based PID control system manages CO₂ concentration (0–20%, resolution 0.1%), temperature (ambient +5 °C to 60 °C, resolution 0.1 °C), and relative humidity (via heated water pan + fan-driven vapor dispersion) with independent setpoints and alarm thresholds.
• Programmable upper temperature limit and configurable audio/visual alarms provide fail-safe response to deviations—fully compliant with GLP documentation requirements when paired with external data loggers.

Sample Compatibility & Compliance

The WCI-40 supports standard T-flasks (up to 175 cm²), multi-well plates (6–96-well), Petri dishes, and roller bottles within its 40 L stainless steel chamber. Its design conforms to core bioprocessing safety and quality expectations: chamber materials meet USP Class VI biocompatibility standards; HEPA filtration satisfies ISO 14644-1 Class 5 particulate limits for critical environments; and the absence of internal plastic components minimizes VOC outgassing—a prerequisite for sensitive assays such as metabolomics or single-cell RNA-seq sample preparation. While not certified for GMP manufacturing use out-of-the-box, the incubator’s architecture supports 21 CFR Part 11-compliant data integrity workflows when integrated with validated third-party logging software and electronic signature modules.

Software & Data Management

The WCI-40 operates via a dedicated LED interface with dual-channel membrane keypad navigation—no touchscreen to compromise sterility or introduce electrostatic discharge risks. All operational parameters (temperature, CO₂, elapsed time, alarm status) are continuously logged to non-volatile memory with timestamping. Optional RS-232 or USB interfaces enable connection to LIMS or ELN platforms for automated data export. For audit-ready environments, users may implement external validation-grade data loggers meeting ASTM E2874-22 (Standard Practice for Validation of Environmental Chambers) and ISO/IEC 17025 traceability requirements. Firmware updates are performed via secure offline protocol to prevent network exposure.

Applications

• Routine maintenance of adherent and suspension mammalian cell lines (e.g., HEK293, CHO-K1, A549) under 5% CO₂ and 37 °C conditions.
• Long-term co-culture experiments requiring stable O₂ modulation (when equipped with optional hypoxia module).
• Embryonic stem cell expansion where minimal thermal gradient and ultra-low particulate exposure are mandatory.
• Biobanking workflows involving cryopreserved vial recovery and pre-thaw equilibration.
• Quality control testing of therapeutic proteins and monoclonal antibodies in compliance with ICH Q5D guidelines for cell substrate characterization.

FAQ

What is the recovery time after door opening?
Temperature recovers to ±0.3 °C of setpoint within ≤12 minutes following a 30-second door opening at 37 °C—verified per ASTM E2874 Annex B.
Can the WCI-40 be validated for IQ/OQ/PQ protocols?
Yes. The unit includes factory calibration certificates for temperature and CO₂ sensors traceable to NIST standards; full validation kits—including thermocouple mapping hardware and CO₂ challenge gas protocols—are available upon request.
Is humidification performance documented across temperature ranges?
Relative humidity remains ≥95% RH at 37 °C (measured at center position); at 5% CO₂ and 37 °C, RH drops to ~85% at 50 °C due to reduced water saturation pressure—consistent with ISO 13408-2 Annex C guidance for incubator humidification limits.
Does the incubator support remote monitoring?
Remote status readout is supported via optional analog output (4–20 mA) or Modbus RTU over RS-485; full SCADA integration requires external gateway hardware.
What maintenance intervals are recommended?
HEPA filters should be replaced every 12 months under continuous operation; water pan cleaning is required weekly; CO₂ sensor zero-point verification is advised quarterly using certified 0% CO₂ gas.
