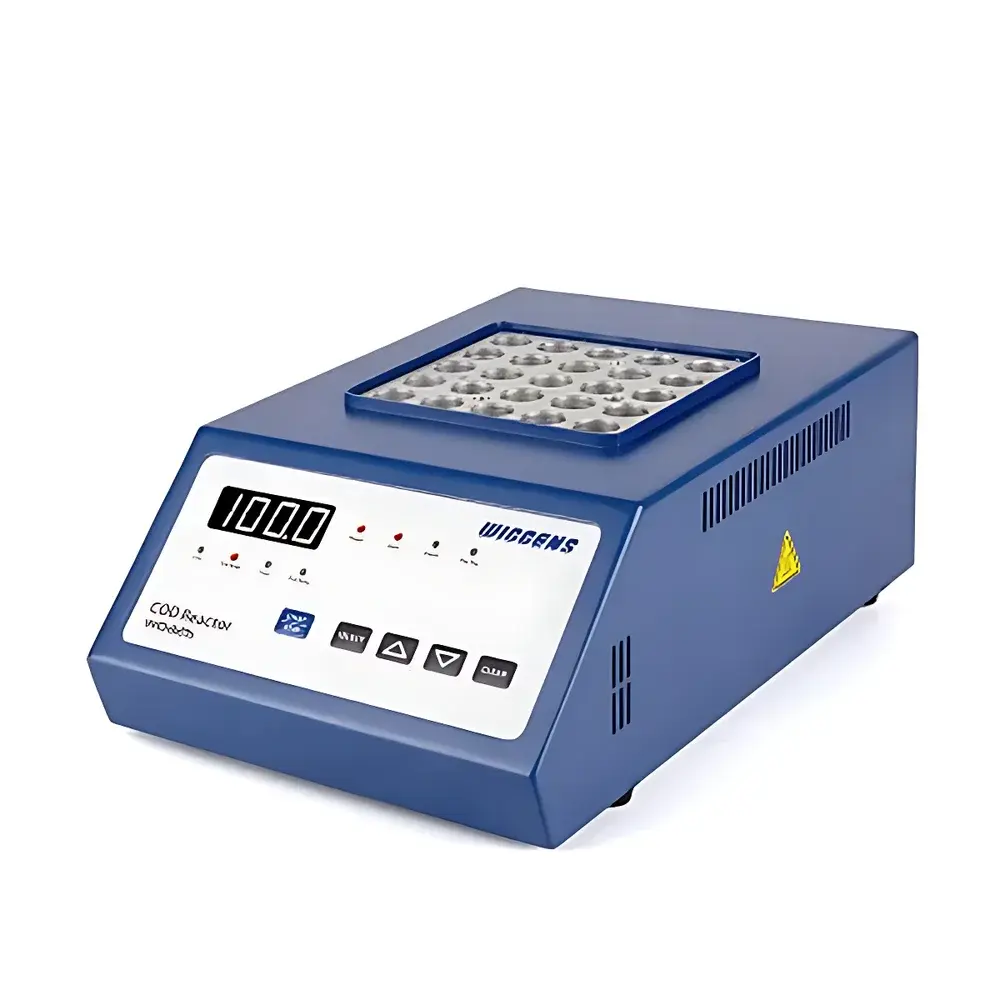

WIGGENS WD325 High-Temperature Heating Block for COD Digestion

Overview

The WIGGENS WD325 High-Temperature Heating Block is a precision-engineered thermal digestion system designed specifically for chemical oxygen demand (COD) analysis in accordance with USEPA Method 410.4. It operates on the principle of controlled conductive heating via a solid aluminum heating block, ensuring uniform thermal distribution across all sample positions. Unlike open-bath or oil-based digesters, the WD325 employs direct contact heating with calibrated temperature stability and programmable time control—critical for reproducible oxidation of organic matter in aqueous samples under acidic potassium dichromate conditions. Its fixed 150 °C COD protocol eliminates manual temperature adjustment, reducing operator variability and supporting method traceability in environmental and wastewater laboratories. The device complies with fundamental requirements for thermal consistency, safety interlocks, and procedural repeatability as defined in ISO 6060 and ASTM D1252, serving as a core pre-analytical module prior to titrimetric, colorimetric, or spectrophotometric quantification of residual oxidant.

Key Features

• Dedicated 150 °C COD digestion program with auto-start, two-hour countdown, and audible completion alert—fully aligned with USEPA 410.4 thermal conditioning requirements.
• Adjustable temperature range from 60 °C to 200 °C in 1 °C increments, enabling method flexibility for BOD incubation, Kjeldahl digestion, or other thermal pretreatment protocols.
• Three independent programmable memory slots allow storage and rapid recall of frequently used temperature/time combinations—supporting multi-method workflows without reconfiguration.
• Integrated dual-stage safety architecture: visual amber warning LED activates at >70 °C to prevent accidental contact burns; hardware-based thermal cutoff disables power at >240 °C to protect internal components and ensure long-term reliability.
• High-density aluminum heating block (Ø16.5 × 55 mm well geometry) optimized for standard 16-mm COD vials, delivering <±2 °C accuracy at setpoint and <±0.5 °C well-to-well uniformity under steady-state conditions.
• 4-digit LED display provides real-time readout of current temperature and remaining time, supporting GLP-compliant documentation when paired with external loggers or LIMS integration.

Sample Compatibility & Compliance

The WD325 accommodates up to 25 standard 16-mm round-bottom digestion tubes per cycle, compatible with glass or quartz vials rated for prolonged exposure to sulfuric acid and dichromate solutions at elevated temperatures. Its mechanical design conforms to IEC 61010-1:2010 for laboratory electrical equipment safety, including protection against overheating, electric shock, and mechanical instability. While the instrument itself does not perform analytical measurement, its thermal performance supports compliance with regulatory frameworks requiring documented digestion parameters—including USEPA 410.4, ISO 6060:1989 (E), and APHA Standard Methods 5220B. Optional accessory blocks (e.g., for 12-mm or 20-mm tubes) are available under WIGGENS part numbers to extend application scope without compromising thermal fidelity.

Software & Data Management

The WD325 operates as a standalone, microprocessor-controlled thermal platform with no embedded software stack or network interface. All operational parameters are entered manually via front-panel keys, and no data logging, USB export, or remote control capability is provided—intentionally minimizing complexity and validation burden in regulated environments. This architecture aligns with FDA 21 CFR Part 11 principles for “simple devices,” where audit trails are maintained externally (e.g., lab notebooks, electronic records systems) rather than within the instrument firmware. For laboratories implementing computerized system validation (CSV), the WD325 qualifies as a Category A device per GAMP 5: its function is deterministic, its outputs are directly observable, and its configuration remains static post-installation—reducing qualification effort while preserving analytical integrity.

Applications

• Routine COD determination in municipal and industrial wastewater treatment plants, environmental monitoring agencies, and contract testing laboratories.
• Preparatory thermal digestion for total phosphorus, total nitrogen, and heavy metal extraction (e.g., EPA 3015A, 3050B) where precise temperature ramping and hold times are required.
• Controlled heating of reagent blanks, calibration standards, and quality control samples in accordance with ISO/IEC 17025 clause 7.7 on sampling and preparation.
• Method development studies requiring systematic variation of digestion temperature (60–200 °C) and duration (1–1999 min), such as optimization of dichromate reduction kinetics or interference mitigation.
• Teaching laboratories performing APHA-standard water quality experiments, where robustness, ease of use, and built-in safety features support undergraduate instruction.

FAQ

Does the WD325 meet USEPA 410.4 requirements for COD digestion?
Yes—the instrument’s fixed 150 °C program, ±2 °C accuracy at setpoint, and 120-minute timed hold satisfy the thermal specification outlined in USEPA Method 410.4, Section 7.1.
Can the WD325 be validated for GMP or ISO 17025 compliance?
Yes—it supports IQ/OQ protocols through documented temperature mapping (using NIST-traceable probes), timer verification, and safety interlock testing; no PQ is required as it performs only thermal conditioning, not measurement.
Is the heating block interchangeable with other WIGGENS models?
No—the WD325 uses a proprietary block mounting interface; however, optional blocks (e.g., for 12-mm or 20-mm tubes) are available under distinct WIGGENS catalog numbers and maintain identical thermal performance specifications.
What maintenance is required for long-term reliability?
Annual verification of temperature accuracy using a calibrated reference thermometer and periodic inspection of the aluminum block surface for corrosion or pitting—especially after repeated exposure to acidic digestates.
Does the device support external data capture or RS232 output?
No—the WD325 has no digital communication ports; temperature and timer values must be recorded manually or via external thermal data loggers placed adjacent to the block.
