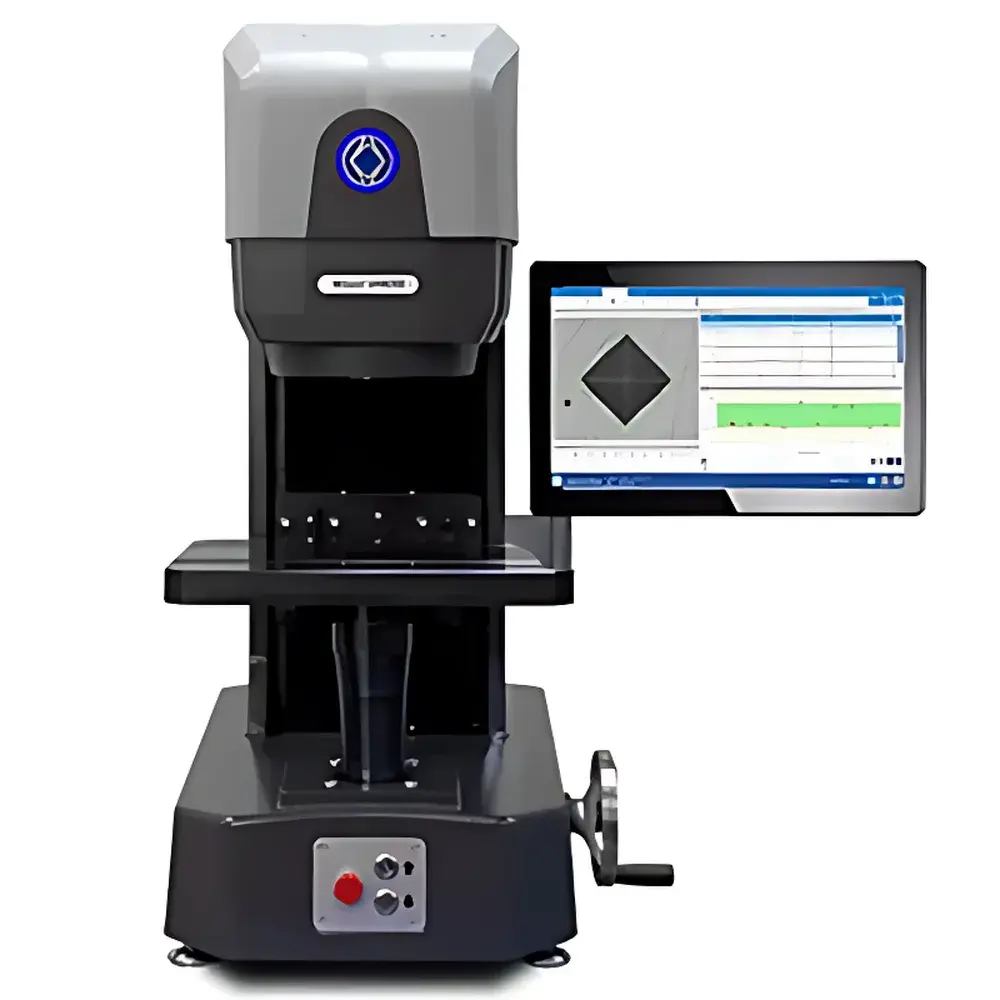

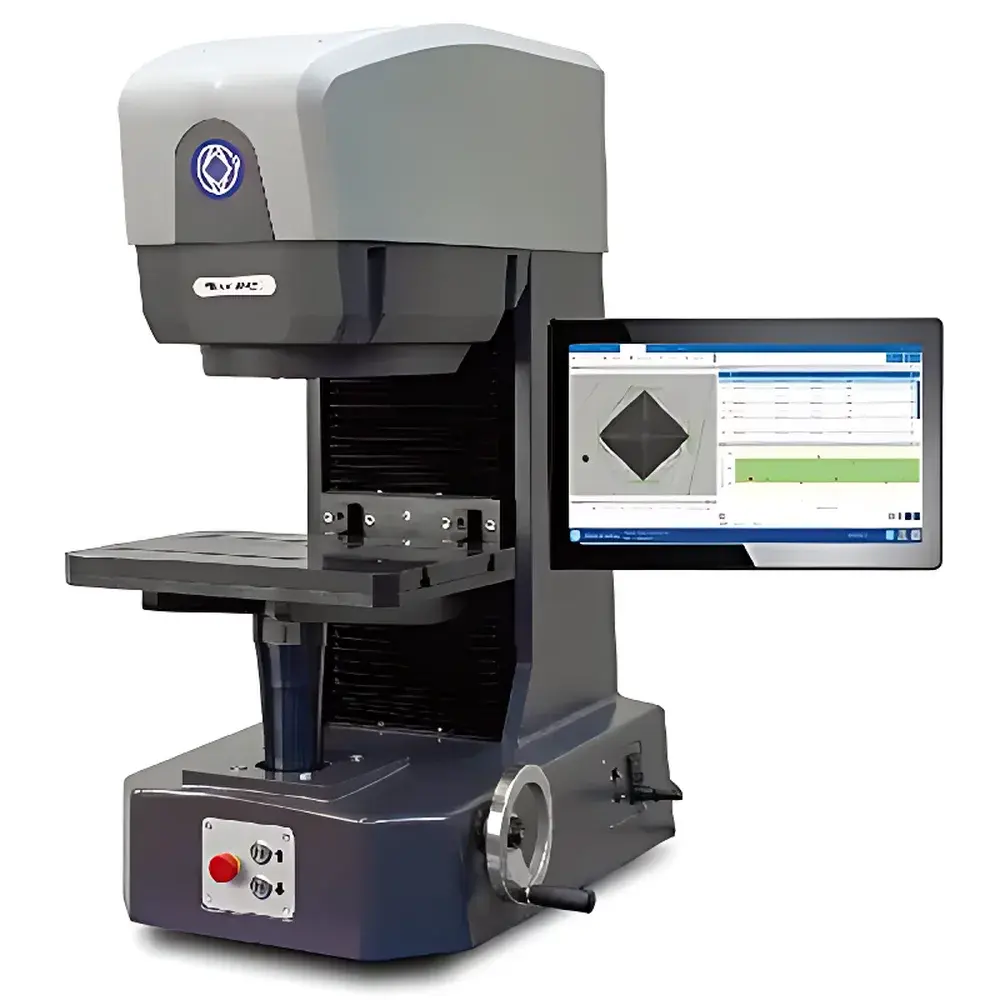

Wilson UH4250 Universal Hardness Tester

Overview

The Wilson® UH4250 Universal Hardness Tester is an industrial-grade, fully automated hardness testing platform engineered for high-throughput quality control environments—including production floors, metallurgical laboratories, and R&D facilities requiring traceable, repeatable, and multi-standard hardness evaluation. Built upon Wilson’s legacy in precision mechanical metrology, the UH4250 employs closed-loop load-cell force feedback to ensure exact test force application across all hardness scales—eliminating hydraulic drift and mechanical hysteresis inherent in traditional dead-weight systems. Its modular architecture integrates Brinell, Vickers, Rockwell (including superficial Rockwell), Knoop, and Leeb (HLD) testing methods into a single instrument, enabling seamless transitions between macro-, micro-, and superficial-scale indentation tests without manual reconfiguration. The system operates under deterministic mechanical principles: indentation depth (Rockwell), diagonal length (Vickers/Knoop), or impression diameter (Brinell) is optically measured and converted to standardized hardness values per internationally recognized calculation algorithms defined in ISO and ASTM standards.

Key Features

• 8-position motorized turret with programmable indexing—supports simultaneous mounting of multiple indenters (e.g., diamond pyramid, tungsten carbide ball, conical diamond) and objective lenses (2.5×, 5×, 10×, 20×), eliminating manual intervention during multi-method testing.
• Robust cast-iron frame with integrated shock-dampening base and protective turret shroud—designed for long-term stability in vibration-prone shop-floor environments and certified for operation at ambient temperatures from 10 °C to 35 °C (50 °F to 95 °F).
• Large T-slot test table (300 mm × 400 mm, 12 mm groove width) rated for specimens up to 70 kg; optional auxiliary small-part stage available for precision micro-indentation on thin foils or small components.
• Dual-mode Z-axis actuation: motor-driven vertical travel (0–300 mm) with position memory and safety-limited speed control, plus ergonomic manual handwheel for fine positioning and emergency override.
• Integrated red crosshair laser alignment system and LED work-area illumination—enables rapid, unambiguous targeting of test locations on large or irregularly shaped parts (e.g., turbine blades, forged crankshafts, weld joints).
• Circumferential LED ring light with adjustable intensity—optimized for high-contrast imaging of Brinell impressions on soft metals (e.g., aluminum, copper alloys), significantly improving measurement repeatability (R&R < 1.5% per ASTM E23).
• USB 3.0 5-megapixel digital imaging system with real-time autofocus, digital zoom (up to 100× equivalent), and sub-pixel edge detection—automatically measures indentation dimensions with ≤0.1 µm resolution and exports raw image metadata for audit trail compliance.

Sample Compatibility & Compliance

The UH4250 accommodates a broad spectrum of specimen geometries and material classes—from bulk structural steels and heat-treated tooling to polymers, sintered carbides, and case-hardened surfaces. Its 300 mm maximum specimen height and 70 kg weight capacity support direct testing of machined castings, extrusions, and welded assemblies without sectioning. All hardness measurements comply with mandatory requirements for ISO/IEC 17025-accredited laboratories: force calibration traceable to NIST, optical magnification validated per ISO 6507-2, and indenter geometry certified per ISO 6507-3 and ASTM E92. The system supports full GLP/GMP documentation workflows—including electronic signatures, audit logs, and 21 CFR Part 11–compliant user access controls when paired with Wilson’s Win-Hardness™ software suite.

Software & Data Management

Controlled via Win-Hardness™ v5.x (Windows 10/11 compatible), the UH4250 delivers comprehensive data governance capabilities: customizable test templates per material grade and specification (e.g., ASTM A370, EN 10002-1), statistical process control (SPC) charting with Cp/Cpk calculation, batch reporting with PDF/Excel export, and automated pass/fail flagging against user-defined tolerance bands. Raw image archives, force-vs.-time curves, and environmental sensor logs (optional temperature/humidity monitoring) are stored in encrypted SQLite databases with immutable timestamps. Data export formats include ASTM E1447-compliant XML, CSV, and industry-standard .hdx binary archives for third-party LIMS integration.

Applications

• Automotive powertrain QA: Rockwell C-scale verification of crankshaft hardening depth and surface hardness gradients.
• Aerospace component certification: Vickers microhardness mapping across Ti-6Al-4V weld zones per AMS 2644.
• Tool steel manufacturing: Brinell hardness uniformity checks on large-diameter hot-work dies (HBW 10/3000).
• Medical device validation: Knoop hardness profiling of nitinol stent coatings per ISO 14286.
• Plastics R&D: Ball indentation hardness (ISO 2039-1) and penetration resistance (ISO 2039-2) on thermoplastic composites.
• Failure analysis labs: Cross-method correlation studies (e.g., HV ↔ HRC conversion validation per ASTM E140) for root-cause determination.

FAQ

Does the UH4250 support ASTM E18-compliant Rockwell testing with “fast mode”?

Yes—the instrument implements ASTM E18 Annex A1 “Rapid Cycle Testing” for continuous Rockwell sequences (e.g., HRC on 100+ points per minute), with dwell time, preload, and major load parameters fully programmable and logged.
Can the system be integrated into a factory MES or SAP QM module?

Absolutely—Win-Hardness™ provides OPC UA server capability and RESTful API endpoints for bidirectional data exchange with enterprise systems, including test request initiation, result posting, and equipment status polling.
Is calibration verification performed per ISO 6507-3 for Vickers indenters?

All supplied diamond pyramid indenters are individually certified per ISO 6507-3 and shipped with NIST-traceable calibration certificates; annual verification kits and accredited third-party service are available through Wilson Service Centers.
What safety certifications does the UH4250 carry?

The unit complies with IEC 61000-6-2 (EMC immunity), IEC 61000-6-4 (EMC emissions), and UL 61010-1 / CSA C22.2 No. 61010-1 for electrical safety; CE marking includes Machinery Directive 2006/42/EC and Low Voltage Directive 2014/35/EU.
Is remote diagnostics supported?

Yes—via secure TLS-encrypted connection, Wilson Field Support engineers can perform real-time health monitoring, firmware updates, and guided troubleshooting without physical site visits.
