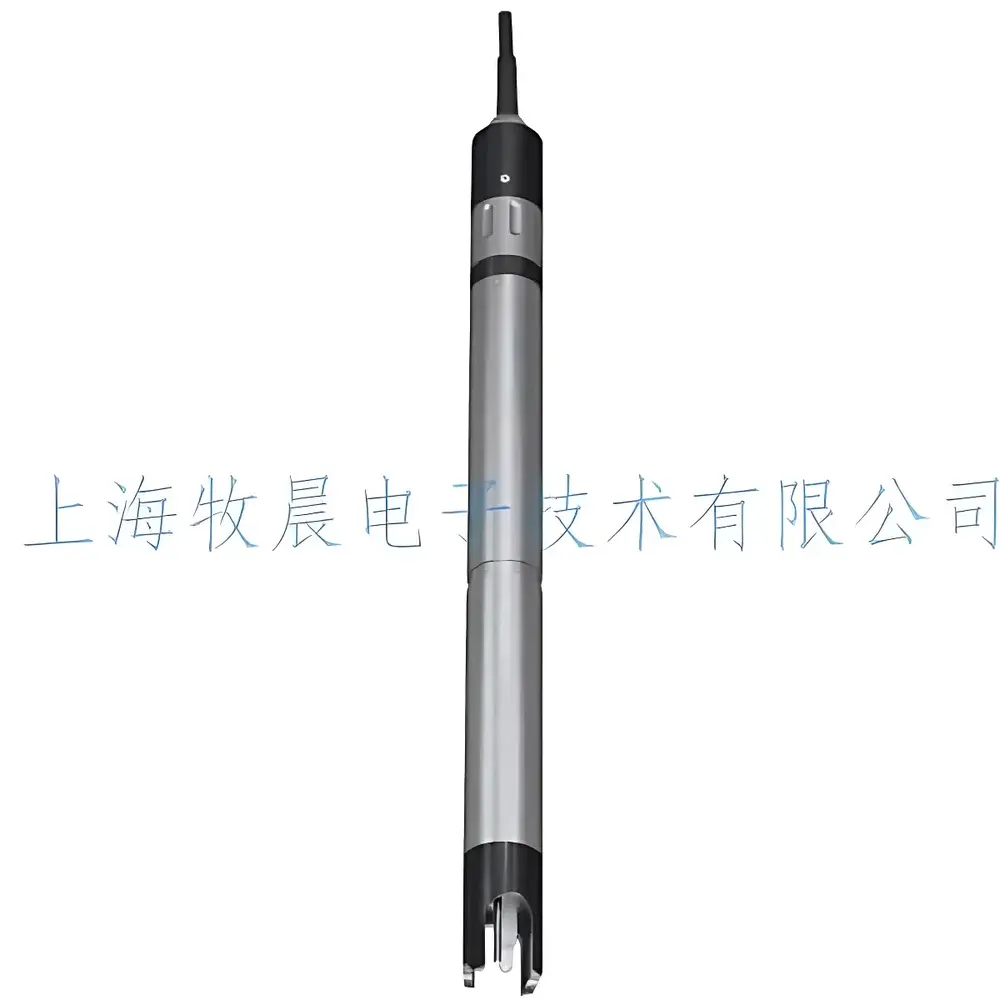

WTW SensoLyt 700IQ Intelligent pH/ORP Sensor

Overview

The WTW SensoLyt 700IQ is an intelligent, in-line pH and ORP sensor engineered for continuous, high-reliability water quality monitoring in demanding environmental and industrial applications. Built upon WTW’s proven electrochemical platform, it employs a robust glass membrane electrode architecture combined with integrated signal conditioning to deliver stable, low-noise measurements under variable conductivity, temperature, and mechanical stress conditions. Its core measurement principle relies on the Nernst equation-based potentiometric response of a pH-sensitive glass membrane versus a stable reference system—augmented by real-time temperature compensation via an embedded NTC thermistor. Unlike conventional sensors requiring external preamplification, the SensoLyt 700IQ integrates a high-impedance buffer amplifier directly within the probe housing. This converts the microvolt-level, high-impedance electrode output into a low-impedance, noise-immune signal suitable for transmission over distances exceeding 100 meters without degradation—critical for distributed monitoring systems where transmitters are remotely mounted in control cabinets or analyser shelters.

Key Features

• Intelligent self-diagnostic capability: continuously monitors glass membrane integrity and alerts users to microfractures or coating-induced drift before measurement failure occurs.
• Modular, tool-free electrode replacement: field serviceable without disassembly of the sensor body—reducing downtime and eliminating calibration recalibration after routine maintenance.
• Integrated dual-function electronics: combines a precision preamplifier and a Class B NTC temperature sensor (IEC 60751) in a single compact housing for simultaneous pH/ORP and temperature acquisition.
• Robust mechanical protection: chemically resistant PVDF or titanium housing rated IP68; designed to withstand abrasion, hydraulic shock, and particulate-laden flow conditions common in wastewater influent channels or raw water intakes.
• Built-in lightning and surge protection: meets IEC 61000-4-5 Level 3 requirements with integrated transient voltage suppression, ensuring operational continuity in outdoor or ungrounded installations.
• Multi-mode calibration support: compatible with automatic CAL TEC AUTO (using WTW-certified traceable buffers), manual 1-point (CAL CON 1P), and 2-point (CAL CON 2P) calibration protocols—all with full audit-trail logging including timestamp, slope (%), offset (mV), and temperature at time of calibration.

Sample Compatibility & Compliance

The SensoLyt 700IQ supports five interchangeable electrode variants—each optimized for specific matrix challenges. The SensoLyt SEA utilizes a dual-pinhole ceramic junction and solid-polymer electrolyte, delivering immunity to AgCl precipitation and sulfide poisoning in high-TSS municipal effluents and anaerobic digesters. The SensoLyt PtA provides identical mechanical design with platinum sensing element for redox potential monitoring in biogas scrubbers or denitrification basins. The SensoLyt SEA-HP extends pressure tolerance to 10 bar for pressurized pipe monitoring per DIN EN 14114. For low-conductivity applications such as drinking water distribution networks, the SensoLyt DWA features a low-resistance reference system minimizing liquid junction potential error. All variants comply with ISO 7888 (pH measurement of water), ASTM D1293 (Standard Test Method for pH of Water), and support GLP-compliant data integrity through secure, tamper-evident calibration history storage. Optional ATEX/IECEx certification enables deployment in potentially explosive atmospheres (Zone 1, Group IIC).

Software & Data Management

The sensor communicates via analog 4–20 mA output and digital RS-485 Modbus RTU protocol—enabling seamless integration with SCADA, DCS, or WTW’s own IQ SensorNet platform. Calibration events, diagnostic flags (e.g., “glass break,” “junction clog,” “temperature out-of-range”), and real-time slope/offset values are logged internally with UTC timestamps. When connected to IQ SensorNet controllers (e.g., IQMUL, IQM200), all records are automatically archived with user-accessible export in CSV or PDF format. Audit trails conform to FDA 21 CFR Part 11 requirements when paired with validated IQ software versions—supporting electronic signatures, role-based access control, and immutable record retention for regulatory inspections.

Applications

• Continuous pH and ORP monitoring in municipal wastewater treatment plants: primary sedimentation, activated sludge basins, disinfection contact tanks, and final effluent discharge points.
• Industrial process water and cooling tower control: chemical dosing feedback for acid/base neutralization, corrosion inhibitor optimization, and biocide efficacy verification.
• Drinking water production: post-filtration pH stabilization, chlorine residual correlation, and distribution network corrosivity assessment per EN 806-2.
• Environmental compliance monitoring: regulated discharge points subject to EPA NPDES permits or EU Urban Wastewater Treatment Directive reporting.
• Biogas upgrading and anaerobic digestion: real-time redox potential tracking for volatile fatty acid accumulation detection and process stability assessment.

FAQ

Does the SensoLyt 700IQ require external power for its internal preamplifier?

Yes—the sensor operates on 12–30 V DC supplied via the same cable used for 4–20 mA signal transmission (2-wire loop-powered configuration) or independently (3-wire mode for enhanced noise immunity).
Can calibration data be retrieved remotely without physical access to the sensor?

Yes—when integrated into an IQ SensorNet network, calibration logs, diagnostic status, and measurement history are accessible via web interface or IQ Mobile app without site visit.
Is the SensoLyt 700IQ compatible with third-party PLCs or DCS systems?

Yes—RS-485 Modbus RTU implementation follows standard function codes (03h, 06h) and register mapping documented in WTW’s open protocol specification, enabling interoperability with Siemens, Rockwell, Schneider, and Yokogawa platforms.
What is the recommended recalibration interval under continuous operation?

For critical applications (e.g., regulatory discharge monitoring), WTW recommends bi-weekly verification using CAL CON 2P; for stable drinking water systems, quarterly calibration suffices—subject to documented performance trending per ISO/IEC 17025 QA procedures.
How does the sensor handle fouling in high-solids wastewater?

The dual-pinhole junction design minimizes clogging; optional air-pulse cleaning adapters (sold separately) can be mounted directly onto the sensor body for automated periodic purging without interrupting measurement.
