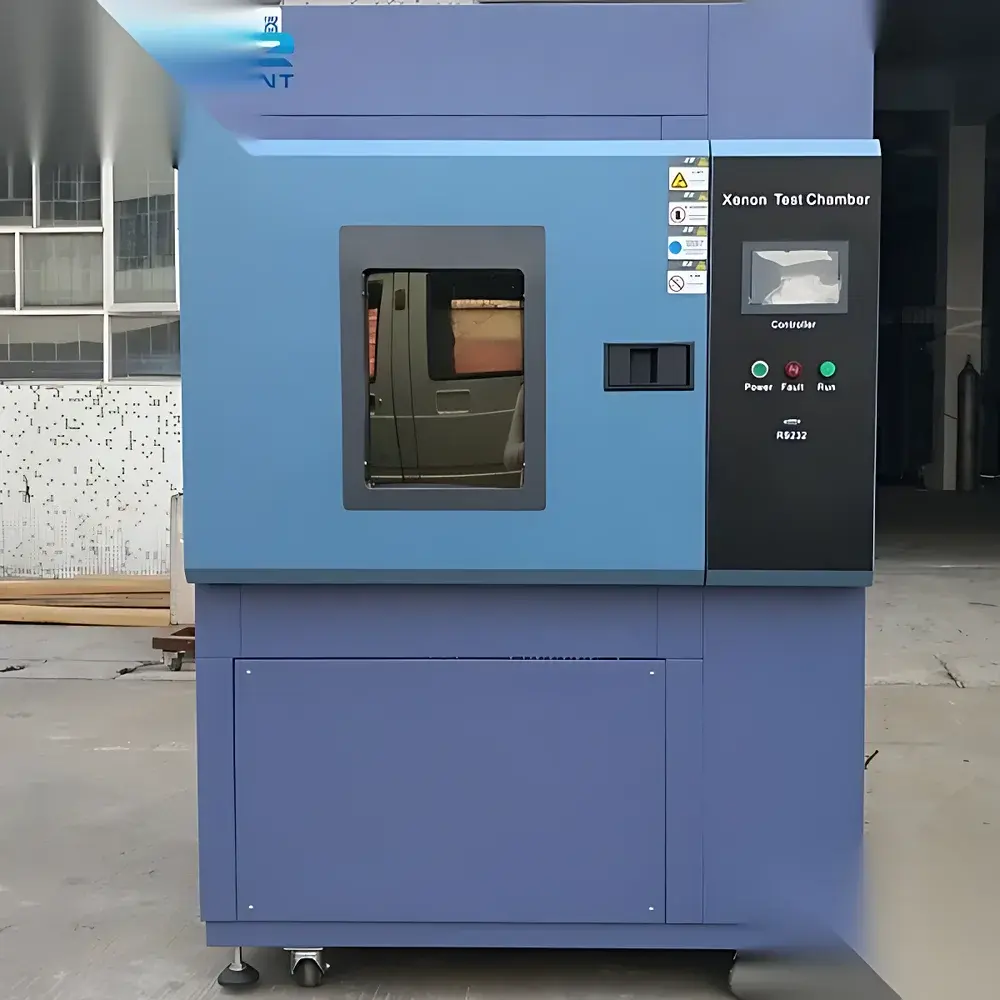

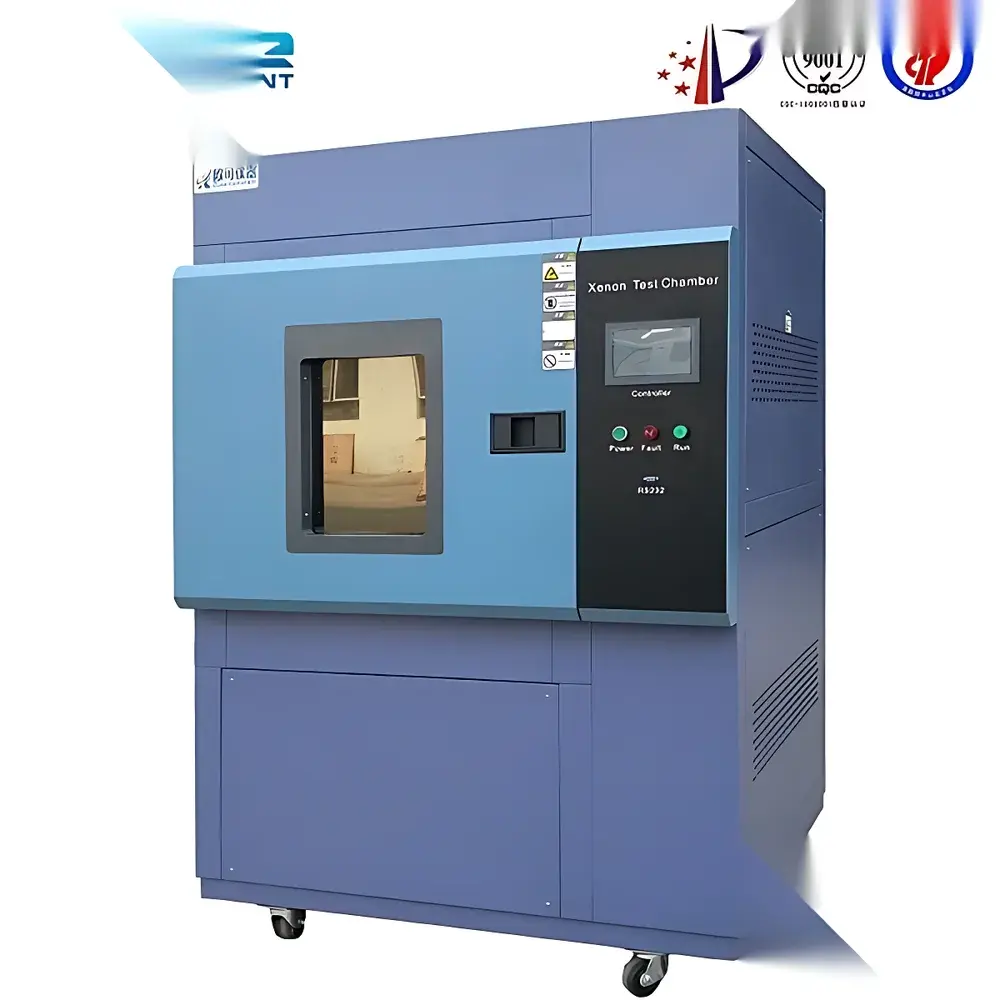

Xenon Arc Weathering Test Chamber – Model XW-750
| Key | Brand – Other Brands |
|---|---|
| Construction – Interior | SUS304 stainless steel |
| Exterior | Powder-coated steel |
Overview
The Xenon Arc Weathering Test Chamber – Model XW-750 is an engineered environmental simulation system designed to replicate the photothermal and hygrothermal stresses of natural outdoor exposure under controlled laboratory conditions. It employs a 1.8 kW air-cooled long-arc xenon lamp as its radiation source, delivering a continuous spectrum closely matching terrestrial solar irradiance (290–1000 nm), including critical UV-B, UV-A, visible, and near-infrared components. The chamber integrates precise black panel temperature (BPT) control, programmable humidity regulation (55–98 %RH), and cyclic water spray functionality—enabling accelerated weathering assessments aligned with international standards such as ISO 4892-2, ASTM G155, SAE J2527, and GB/T 16422.2. Its forced-air convection system, coupled with a closed-loop chilled water recirculation unit for lamp cooling, ensures thermal stability and operational efficiency over extended test durations.
Key Features
- Full-spectrum xenon lamp (1.8 kW, air-cooled, ≥1500 h service life) with spectral output calibrated to CIE No. 85 reference solar irradiance.
- Programmable touchscreen controller with xenon-specific algorithms for synchronized irradiance, temperature, humidity, and spray cycle management.
- Motor-driven stainless-steel sample turntable rotating at 1 rpm, ensuring uniform angular exposure across all specimens.
- Wireless black panel temperature (BPT) sensor with real-time transmission, minimizing thermal lag and improving closed-loop control fidelity.
- Fiber-optic irradiance monitoring system isolates the detector from thermal drift, enabling stable 400–1000 nm spectral irradiance measurement during operation.
- Dual-mode humidification (steam-based) and programmable water spray system with independent on/off timing (0–999 min per phase).
- Integrated safety architecture: overtemperature cutoff, leak current protection, low-water level interlock, and smoke detection circuitry.
- SUS304 stainless-steel interior chamber and corrosion-resistant structural components for long-term reliability in aggressive humidity and UV environments.
Sample Compatibility & Compliance
The XW-750 accommodates flat-panel specimens up to 600 cm² effective exposure area, with adjustable mounting positions on a precision-machined stainless-steel rack. Standard fixtures support ASTM D6675, ISO 11341, and IEC 60068-2-5 compliant specimen configurations. All operational parameters—including irradiance setpoint, BPT target, RH profile, and spray sequence—are fully traceable and auditable, supporting GLP-compliant testing workflows. The system meets electrical safety requirements per IEC 61000-6-2/6-4 and is compatible with validation protocols required for ISO/IEC 17025-accredited laboratories. Optional calibration certificates (irradiance, temperature, humidity) are available per NIST-traceable procedures.
Software & Data Management
The proprietary controller firmware supports event-logged data recording at user-defined intervals (minimum 1 s resolution), storing irradiance (W/m²), BPT (°C), chamber RH (%), and spray status in CSV format. Data export is enabled via USB interface; no cloud connectivity or remote access is implemented—ensuring full data sovereignty. Audit trail functionality records operator logins, parameter changes, and alarm events with timestamps and user IDs, satisfying FDA 21 CFR Part 11 requirements when paired with institutional electronic signature policies. Firmware updates are performed offline via secure USB media, preserving system integrity and regulatory compliance.
Applications
This chamber is routinely deployed for evaluating material degradation mechanisms in polymer composites, automotive exterior trim, architectural coatings, textile dyes, packaging films, and photovoltaic encapsulants. Typical use cases include: quantifying gloss retention and color shift (ΔE) per ASTM D2244; assessing chalking, cracking, or delamination onset; validating UV stabilizer efficacy; and generating Arrhenius-based acceleration factors for service-life prediction. Its reproducible irradiance delivery and multi-stress coupling make it suitable for comparative benchmarking across supplier qualification programs and internal R&D screening matrices.
FAQ
What spectral range does the xenon lamp emit, and how is it filtered?
The lamp emits broadband radiation from 290 nm to >1000 nm. Standard filtering uses borosilicate glass to approximate terrestrial solar UV cut-off; optional IR-cut or quartz filters are available for specialized spectral tailoring.
Is the irradiance output calibrated and traceable?
Yes—handheld irradiance meters (400–1000 nm) are supplied with NIST-traceable calibration certificates. In-chamber fiber-optic monitoring provides real-time feedback but requires periodic verification against reference instruments.
Can the chamber operate without water spray?
Yes. The spray function is fully decoupled and may be disabled while maintaining irradiance, temperature, and humidity control.
What maintenance intervals are recommended for the xenon lamp and cooling system?
Lamp replacement is advised after 1500 hours of cumulative operation. The chilled water loop requires biannual inspection of conductivity, particulate load, and refrigerant pressure; distilled or deionized water must be used exclusively.
Does the system support automated test method execution (e.g., ASTM G155 Cycle 1)?
Yes—the controller includes preloaded profiles for ASTM G155, ISO 4892-2, and SAE J2527, with editable ramp rates, dwell times, and threshold triggers.
