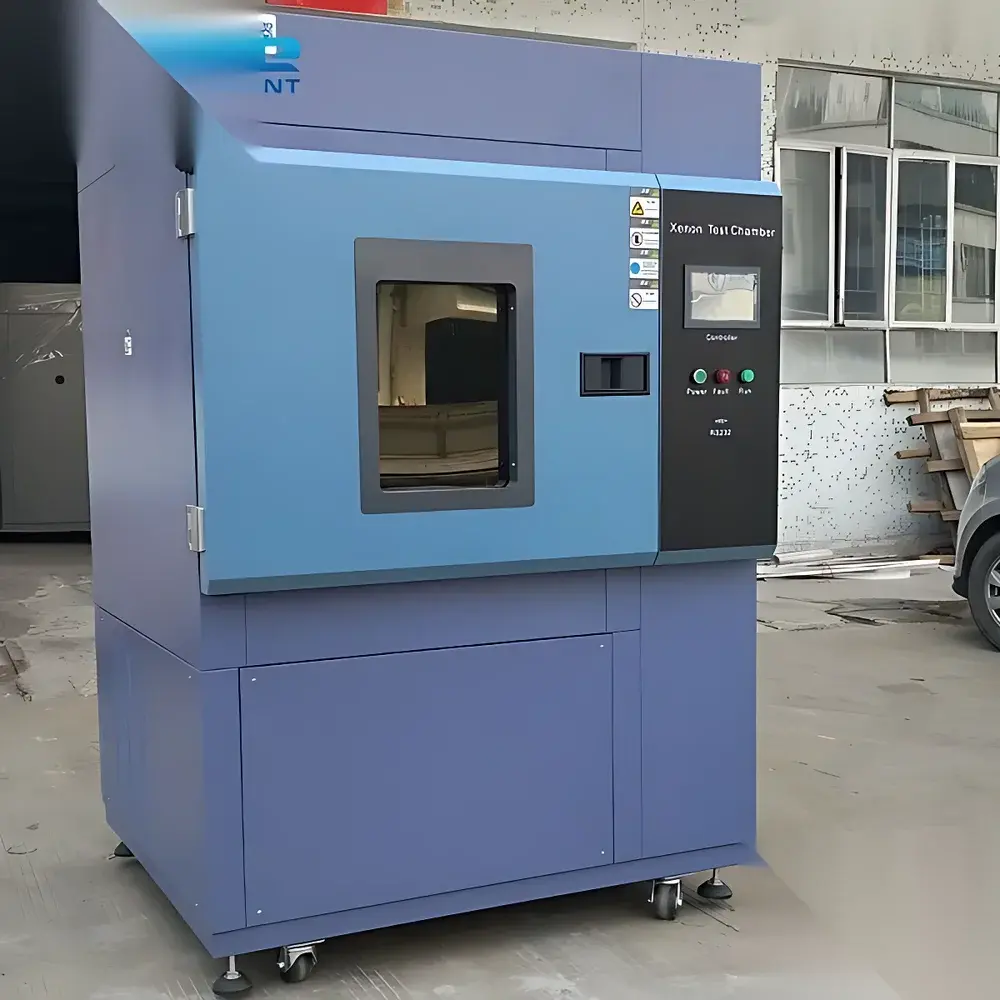

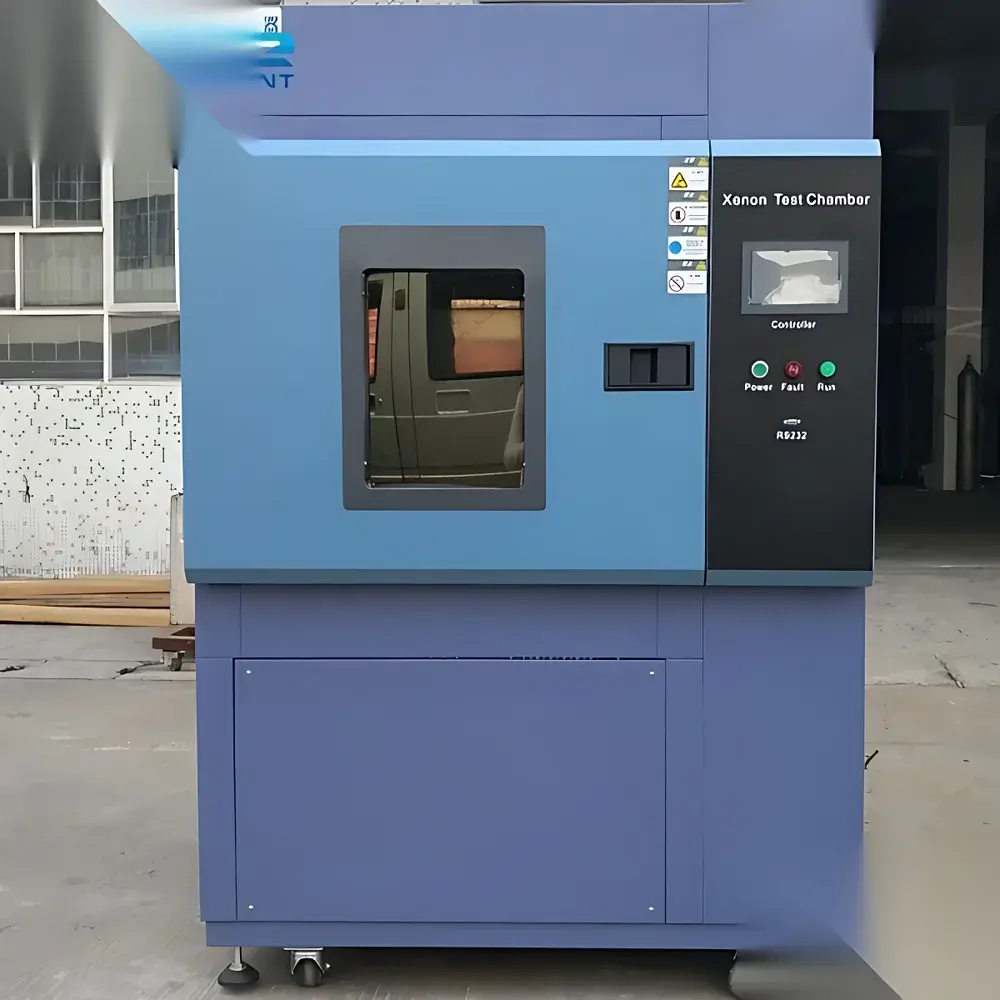

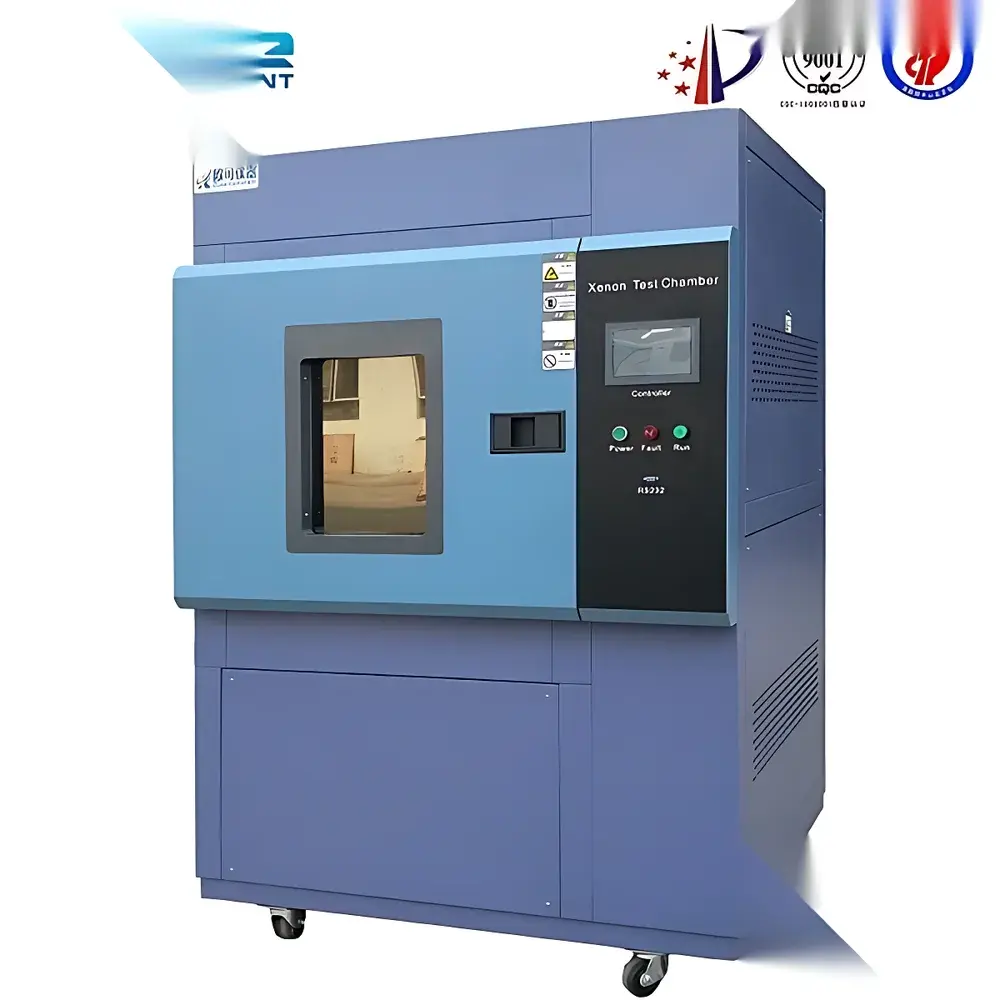

XOK-XD1000 Standard Xenon Arc Weathering Chamber
| Brand | Other Brands |
|---|---|
| Origin | Imported |
| Manufacturer Type | Authorized Distributor |
| Irradiance | ≤50 W/m² (per GB/T 19394–2003, Clause 5) |
| Chamber Dimensions (W×D×H) | 1000 × 1000 × 1000 mm |
| Temperature Range | 40–70 °C |
| Temperature Uniformity | ±2 °C |
| Temperature Stability | ±0.5 °C |
| Xenon Lamps | 4 pcs × 40 W |
| Spray Nozzle | 1 unit |
| Black Panel Thermometer | Aluminum substrate |
| Sample Mounting | Rotating turntable or stainless-steel static rack (user-selectable) |
| UV Filter Options | UV-A (295–360 nm) or UV-B (280–315 nm) |
Overview
The XOK-XD1000 Standard Xenon Arc Weathering Chamber is an engineered environmental simulation system designed to replicate full-spectrum solar radiation—including ultraviolet (UV), visible, and near-infrared (NIR) wavelengths—under controlled temperature, humidity, and moisture conditions. Based on the principles of xenon arc irradiation, this chamber complies with international accelerated weathering test standards including ISO 4892-2, ASTM G155, SAE J2527, and GB/T 19394–2003. Its primary function is to assess material degradation mechanisms—such as chalking, cracking, gloss loss, color fading, and polymer chain scission—induced by prolonged exposure to sunlight, heat, and cyclic wetting. Unlike UV fluorescent lamp systems, xenon arc sources deliver spectral power distribution closely matching terrestrial sunlight (AM1.5G), making them the reference method for evaluating coating durability, automotive trim stability, textile lightfastness, and outdoor plastic performance.
Key Features
- Four 40 W xenon arc lamps mounted in a vertical configuration, delivering stable and uniform irradiance across the test chamber volume.
- Aluminum black panel thermometer with direct thermal coupling ensures accurate surface temperature monitoring of exposed specimens, critical for correlating thermal stress with photochemical degradation.
- Programmable spray cycle system with a single precision nozzle enables controlled water exposure—simulating dew, rain, or condensation—aligned with IEC 60068-2-52 and ISO 20340 protocols.
- Chamber interior dimensions of 1000 × 1000 × 1000 mm accommodate large-format panels or multiple small samples; optional rotating turntable ensures isotropic irradiance exposure, minimizing positional bias.
- Temperature control range from 40 °C to 70 °C, with uniformity maintained within ±2 °C and short-term stability at ±0.5 °C—meeting requirements for ISO 11341 and ASTM D4329 validation.
- Selectable UV filtering options (UV-A or UV-B bandpass) allow tailoring of spectral output to match specific application environments—e.g., UV-A for general outdoor durability, UV-B for aggressive high-altitude or tropical exposure simulation.
Sample Compatibility & Compliance
The XOK-XD1000 accommodates rigid and flexible substrates up to 10 mm thick, including painted metal panels, polymer composites, architectural sealants, and coated textiles. Specimen mounting supports both static rack and motorized rotation configurations to satisfy ASTM D2565 and ISO 4892-2 repeatability criteria. All internal surfaces are constructed from non-reflective, corrosion-resistant stainless steel to prevent stray-light interference and eliminate contamination from outgassing. The system meets CE marking requirements and conforms to electromagnetic compatibility (EMC) Directive 2014/30/EU. For regulated industries, the chamber’s operational log—including irradiance setpoint, chamber temperature, spray timing, and runtime—is timestamped and exportable, supporting GLP-compliant recordkeeping and FDA 21 CFR Part 11 audit trails when integrated with validated LIMS software.
Software & Data Management
The chamber operates via an embedded microprocessor controller with a 7-inch TFT touchscreen interface. Real-time parameters—including irradiance (W/m²), black panel temperature (°C), chamber air temperature (°C), and elapsed test time—are continuously displayed and logged at user-defined intervals (minimum 1-minute resolution). Data export is supported via USB 2.0 to CSV format for post-processing in Excel or statistical analysis platforms. Optional Ethernet connectivity enables remote monitoring, alarm notification via SMTP email, and integration into centralized lab automation networks. Firmware supports multi-step test profiles with up to 99 program segments, each configurable for irradiance level, temperature ramp rate, spray duration, and dark/light cycling—enabling replication of complex natural diurnal cycles per ISO 11341 Annex B.
Applications
This xenon weathering chamber serves laboratories engaged in R&D, quality assurance, and regulatory compliance testing across sectors including automotive OEMs (for exterior trim and dashboard materials), aerospace (composite matrix stability), coatings manufacturers (primer/topcoat adhesion under UV/thermal stress), and construction product developers (roofing membranes, PVC cladding). It is routinely deployed to validate conformance to OEM-specific standards such as Ford CETP 00.00-L-467, GMW 14124, and Volkswagen PV 3929. In academic research, it supports mechanistic studies on photodegradation kinetics, antioxidant depletion profiling, and synergistic effects between hydrolysis and UV exposure in biodegradable polymers.
FAQ
What spectral filters are included with the standard configuration?
The base system ships with a quartz outer filter and a borosilicate inner filter, producing a daylight spectrum approximating CIE Illuminant D65. UV-A and UV-B bandpass filters are available as optional accessories.
Is calibration traceable to NIST or equivalent national metrology institutes?
Yes—irradiance sensors are factory-calibrated against a reference spectroradiometer traceable to PTB (Physikalisch-Technische Bundesanstalt), and calibration certificates are provided with each unit.
Can the chamber operate unattended for extended test durations (e.g., 1000+ hours)?
Yes. The system includes hardware-based overtemperature protection, lamp current monitoring, and automatic shutdown on critical fault detection—enabling safe long-term operation under ISO 17025-accredited lab conditions.
Does the chamber support humidity control?
No—this model is configured for dry-heat and spray-cycle operation only. A humidity-controlled variant (XOK-XD1000-H) is available upon request, compliant with ISO 4892-2 humidified exposure modes.
Are sample racks supplied with standardized mounting holes per ISO 4892-2?
Yes. Stainless-steel static racks include 6.35 mm diameter holes on 25.4 mm centers, conforming to ISO 4892-2 Annex A geometric specifications for specimen positioning.
