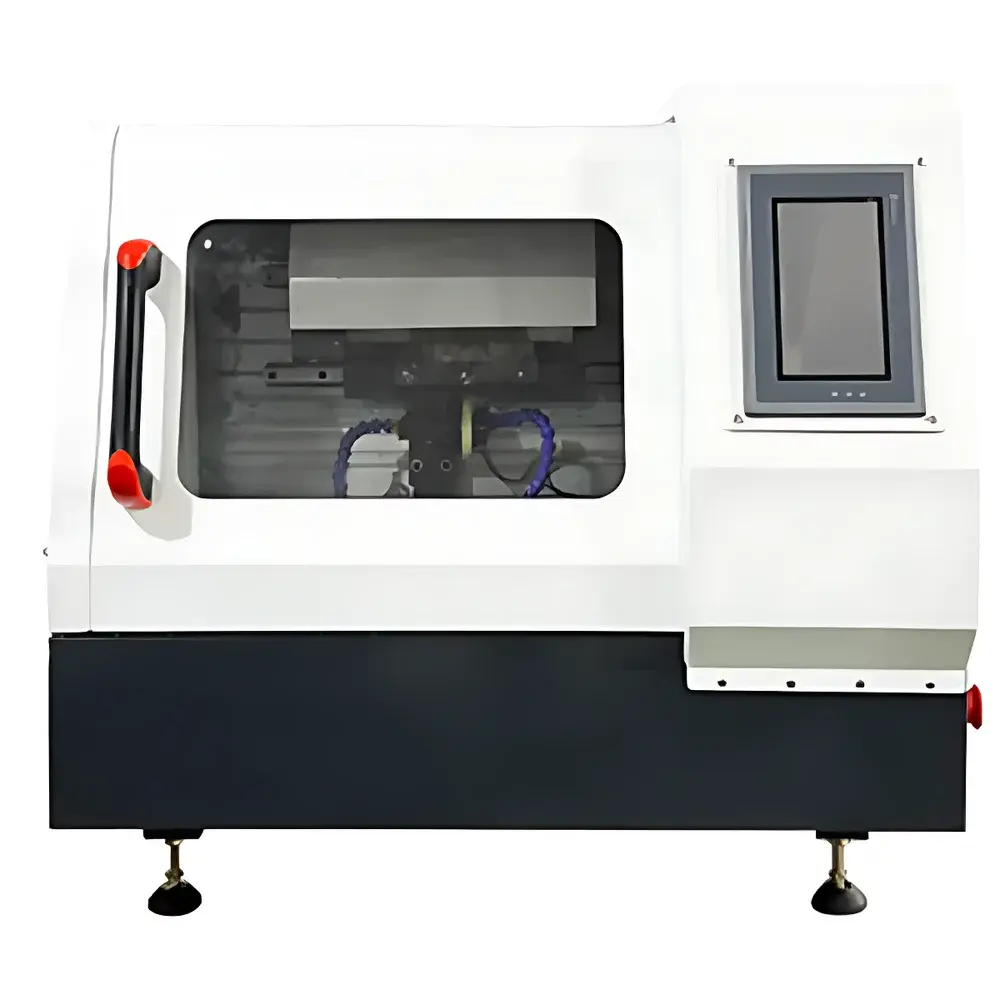

YANRUN YR-100ES Intelligent Diamond Wire Cutting Machine

Overview

The YANRUN YR-100ES Intelligent Diamond Wire Cutting Machine is a precision-engineered metallographic sample preparation system designed for high-fidelity sectioning of hard, brittle, and heterogeneous materials. It employs tension-controlled diamond-impregnated wire under continuous coolant flow to achieve low-stress, minimal-deformation cuts—critical for preserving microstructural integrity in subsequent metallographic analysis. Unlike abrasive cutoff wheels, diamond wire cutting minimizes thermal damage, mechanical smearing, and subsurface deformation, making it especially suitable for sensitive applications including aerospace superalloys, turbine blades, additively manufactured components, ceramic-matrix composites, and semiconductor wafers. The machine’s closed-loop motion control architecture—integrating servo-driven X/Y linear stages and a programmable R-axis rotary module—enables reproducible multi-angle sectioning, serial thin-sectioning, and geometrically complex specimen extraction with sub-millimeter positional repeatability.

Key Features

• Programmable 3-axis motion control (X, Y, R) with real-time digital position feedback and automatic completion tracking
• 7-inch industrial-grade color touchscreen HMI paired with a robust PLC controller for intuitive recipe-based operation and parameter logging
• Infinitely variable feed rates across all axes (0–100 mm/min for X/Y; 0–5 mm/min for wire advance; 1–100 rpm for R-axis), enabling optimization for material hardness and geometry
• Dual-mode cutting capability: planar sectioning (X/Y translation) and rotational contour cutting (R-axis synchronized with linear feed)
• Integrated 30 L recirculating coolant system with filtration and level monitoring to maintain consistent thermal management and wire life
• Modular diamond wire compatibility: supports diameters from 0.20 mm to 0.50 mm, allowing selection based on required kerf width, surface finish, and material abrasiveness
• Automated homing, tool calibration, and reset sequence—reducing operator dependency and enhancing inter-laboratory method transferability

Sample Compatibility & Compliance

The YR-100ES accommodates specimens up to 300 × 240 mm on its rigid granite-reinforced table, supporting both standard metallurgical samples (e.g., ASTM E3, ISO 14998) and irregularly shaped engineering components. It routinely processes ferrous and non-ferrous alloys (including Inconel, Ti-6Al-4V, and Mg-based castings), geological cores, optical crystals, battery electrode stacks, and biomedical hard tissues (e.g., calcified bone, dental enamel). All motion sequences and process parameters are timestamped and stored locally, supporting GLP-compliant documentation requirements. While the system does not include FDA 21 CFR Part 11 electronic signature functionality out-of-the-box, audit trail export (CSV/Excel) and user-access-level configuration enable integration into validated QA/QC workflows aligned with ISO/IEC 17025 and ASTM E883 guidelines.

Software & Data Management

Operation is managed entirely through the embedded HMI interface, which stores up to 100 user-defined cutting protocols—including axis trajectories, speed profiles, coolant activation logic, and pause/resume points. Each protocol can be duplicated, edited, and exported via USB port for cross-machine deployment or archival. Real-time display includes current axis positions, wire tension status (indirectly inferred via motor current), cumulative cutting time, and remaining coolant volume. No external PC or proprietary software license is required. For laboratories implementing LIMS integration, the machine supports RS-232 serial output of key operational events (start, pause, complete, fault) with configurable ASCII framing—facilitating automated log ingestion and traceability linkage.

Applications

• Metallography labs preparing distortion-free sections for SEM-EBSD, TEM lamella extraction, or quantitative image analysis per ASTM E112 and ISO 643
• Aerospace MRO facilities performing root-cause failure analysis on turbine disks, combustor liners, and structural fasteners
• Additive manufacturing QA centers sectioning LPBF and EBM parts for porosity mapping and grain morphology assessment
• Academic materials science departments conducting in-situ deformation studies using serial sectioning tomography
• Geosciences laboratories extracting oriented thin sections from rock cores for cathodoluminescence or micro-XRF mapping
• Battery R&D groups isolating cross-sections of layered cathode/anode stacks without delamination or lithium redistribution

FAQ

What types of diamond wire are compatible with the YR-100ES?

The system accepts commercially available electroplated and resin-bonded diamond wires with nominal diameters of 0.20 mm, 0.25 mm, 0.35 mm, and 0.50 mm. Wire spool mounting follows ISO 2093 standard flange dimensions.
Is remote monitoring or network connectivity supported?

No Ethernet or Wi-Fi interface is built-in; however, RS-232 event logging enables connection to local SCADA or lab automation systems via standard serial-to-IP gateways.
Does the machine support automated batch processing?

Yes—up to 99 sequential cutting jobs can be queued and executed unattended, with automatic reset and coolant level verification between runs.
What maintenance intervals are recommended?

Coolant should be replaced every 150 operating hours or quarterly (whichever occurs first); linear guide rails require re-lubrication every 500 hours; PLC firmware updates are issued biannually via USB.
Can the YR-100ES cut non-metallic materials such as silicon carbide or sapphire?

Yes—provided appropriate wire grit size (e.g., 45–60 µm), reduced feed rate (<1.5 mm/min), and enhanced coolant flow rate are selected per material hardness and fracture toughness data sheets.
