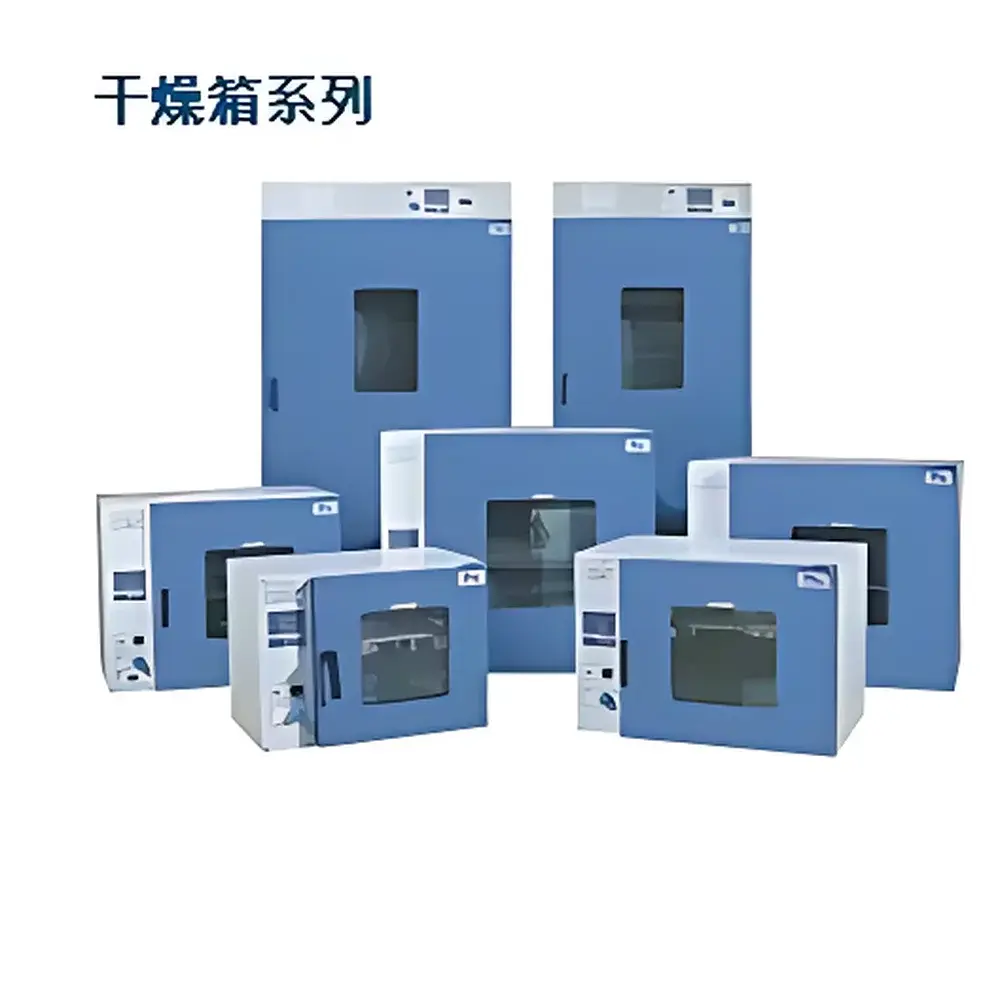

Yaohua DHG-9003 Series Forced-Air Drying Oven

Overview

The Yaohua DHG-9003 Series Forced-Air Drying Oven is an engineered solution for precise, repeatable thermal processing in research laboratories, quality control facilities, and industrial R&D settings. Utilizing convection-based heat transfer via a high-temperature-stable centrifugal blower and optimized airflow ducting, this oven ensures uniform temperature distribution across the working chamber—critical for applications requiring strict thermal consistency, such as moisture content determination, polymer curing validation, pharmaceutical stability testing, and pre-sterilization sample conditioning. Its construction adheres to fundamental principles of thermal chamber design: low thermal mass interior surfaces minimize lag during ramp-up/cool-down cycles, while robust external casing provides mechanical stability and long-term dimensional integrity under repeated thermal cycling.

Key Features

• Mirror-polished 304 stainless steel interior chamber—welded using TIG (tungsten inert gas) process for corrosion resistance, cleanability, and compliance with ISO 14644-1 Class 7 cleanroom-compatible surface requirements.
• Dual-stage temperature control architecture: primary microprocessor-based P.I.D. controller with digital display (0.1°C resolution) and independent mechanical overtemperature cut-off circuit—meeting IEC 61000-4-2 immunity standards and supporting fail-safe operation per IEC 61508 SIL-2 functional safety guidelines.
• Adjustable forced-air ventilation system: user-configurable inlet and exhaust dampers enable fine-tuning of air exchange rate (ACH), facilitating optimization for volatile solvent removal, low-oxygen drying, or accelerated aging protocols.
• High-reliability silicone rubber gasket (rated to 250°C continuous service life) with modular mounting—designed for rapid field replacement without adhesive reapplication or chamber disassembly.
• Programmable timer with non-volatile memory retention (up to 9999 minutes), supporting unattended operation and integration into standardized test sequences aligned with ASTM E145, ISO 188, and USP <1211> drying validation frameworks.

Sample Compatibility & Compliance

The DHG-9003 series accommodates a broad range of sample formats—including Petri dishes, aluminum weighing pans, glass desiccators, polymer film substrates, and ceramic crucibles—within its five standard chamber volumes (16 L to 198 L). All models meet CE marking requirements for electromagnetic compatibility (EN 61326-1) and low-voltage directive (EN 61000-6-3). The oven’s thermal performance conforms to DIN 12880 Class 2 specifications for temperature homogeneity and stability. Optional RS485 Modbus RTU communication enables audit-ready data logging compatible with FDA 21 CFR Part 11-compliant systems when paired with validated third-party software platforms. Independent limit controllers (optional) support dual-verification setups required under GMP Annex 15 and ISO/IEC 17025 clause 5.9.2 for critical drying processes.

Software & Data Management

While the base unit operates via standalone front-panel controls, optional digital interfaces extend traceability and process control capabilities. The RS485 port supports real-time temperature streaming and remote setpoint adjustment using industry-standard SCADA or LIMS integration protocols. An optional embedded thermal printer provides hard-copy output of time-stamped temperature profiles—fully compliant with GLP documentation requirements for raw data archiving. For advanced users, Yaohua-supplied configuration software (Windows-based) allows creation of multi-step temperature ramps, dwell periods, and alarm-triggered event logging. All digital modules undergo firmware validation per IEC 62304 Class B software lifecycle requirements.

Applications

• Moisture loss-on-drying (LOD) assays per USP <731> and Ph. Eur. 2.2.32 for pharmaceutical excipients and APIs.
• Accelerated stability studies (ICH Q1A) at controlled elevated temperatures (e.g., 40°C/75% RH preconditioning).
• Baking of thin-film coatings, printed circuit board substrates, and battery electrode layers prior to electrochemical characterization.
• Pre-conditioning of filter media, gaskets, and elastomeric components for compression set and tensile property evaluation (ASTM D395, ISO 815).
• Residue ashing support for gravimetric analysis workflows (EPA Method 1664, APHA Standard Methods 2540B).

FAQ

What is the maximum operating temperature for the DHG-9003 series?
Standard models operate up to 200°C; high-temperature variants (DHG-9xxxA with “A” suffix) are rated to 250°C continuous duty.
Is calibration certificate included with shipment?
A factory-as-tested temperature uniformity report is provided; NIST-traceable calibration certificates are available upon request (additional lead time and fee apply).
Can the oven be used for sterilization?
No—this is a drying oven, not a sterilizer. It lacks the validated cycle parameters, biological indicator monitoring, and chamber pressurization required for steam or dry-heat sterilization per ISO 17665 or EN 285.
Are internal shelves adjustable?
Yes—two stainless steel shelves are supplied, each supported by multiple fixed-position notches on side wall rails; load capacity per shelf is 15 kg (uniformly distributed).
Does the unit comply with energy efficiency regulations?
It meets China’s GB 30253-2013 Class 2 energy efficiency standard for laboratory ovens and exceeds EU Ecodesign Directive Lot 11 minimum efficiency thresholds for convection heating equipment.
