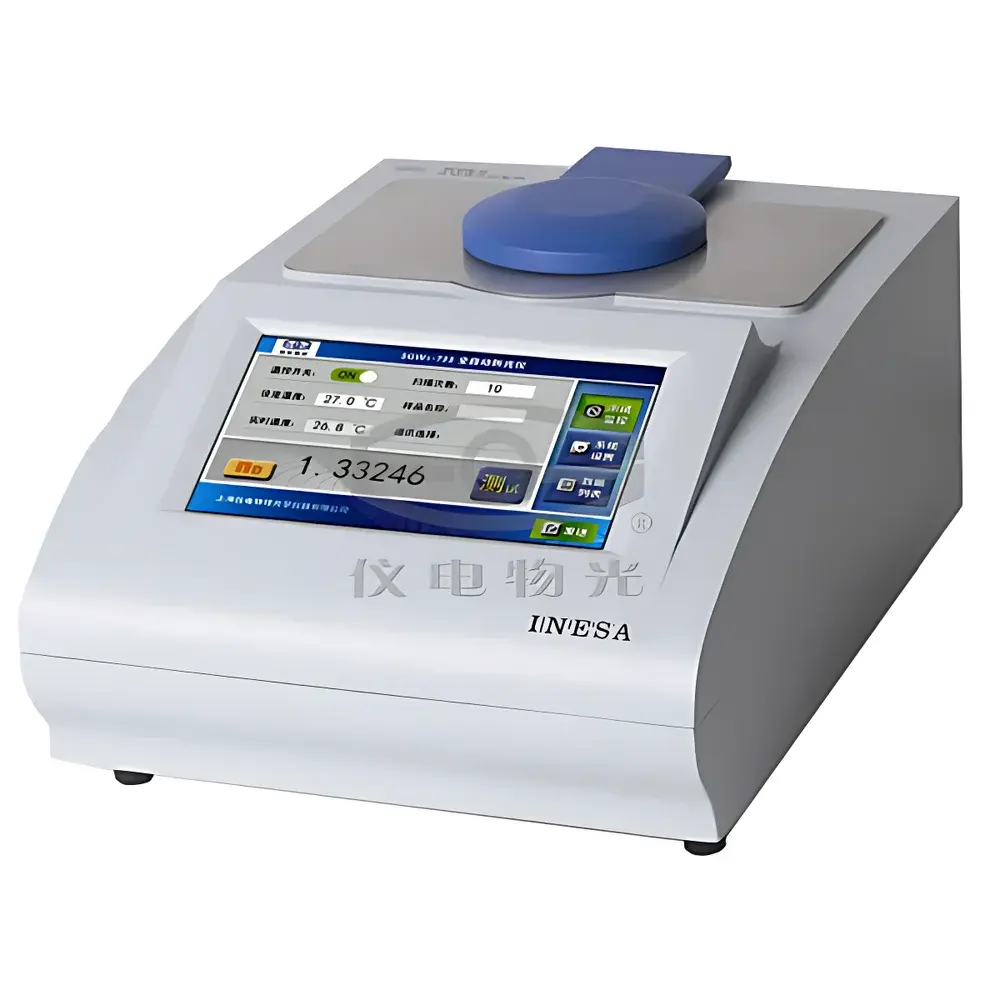

YDWG SGW®-733 Automated Temperature-Controlled Refractometer

Overview

The YDWG SGW®-733 Automated Temperature-Controlled Refractometer is a precision benchtop instrument engineered for high-reproducibility refractive index (n_D) and Brix measurements in quality control, R&D, and routine analytical laboratories. It operates on the principle of total internal reflection at the prism-sample interface, where a high-resolution CCD detector captures the critical angle shift induced by sample refractivity. Integrated Peltier-based temperature regulation ensures stable thermal conditions during measurement—critical for minimizing thermal drift and achieving metrological traceability per ISO/IEC 17025 requirements. The instrument eliminates mechanical moving parts and employs a solid-state LED light source with >100,000-hour service life, contributing to long-term operational stability and reduced maintenance overhead. Designed for compliance-driven environments, it supports audit-ready data handling and meets key Chinese national standards (GB/T 12143–2008 for beverages, GB/T 18963–2012 for honey, and GB/T 21730–2008 for fruit juices), making it suitable for GLP- and GMP-aligned workflows in food, beverage, pharmaceutical, and chemical industries.

Key Features

• Automated measurement cycle with CCD-based critical-angle detection—no manual focusing or subjective endpoint interpretation
• Peltier-controlled temperature regulation (10–60 °C, ±0.1 °C stability) enabling precise n_D correction and standardized reporting at 20 °C (n_D20)
• 7-inch full-color capacitive touchscreen interface with intuitive icon-driven navigation and multilingual menu support (English default)
• Onboard storage for up to 1000 measurement records, each timestamped and tagged with temperature, user ID, and measurement mode
• Integrated calibration verification function with built-in reference liquids (e.g., distilled water, standard sucrose solutions)
• Eight preconfigured industry-specific calculation modes: F42 & F55 HFCS, glucose, sucrose, fruit/vegetable solids, soft drink TSS, honey moisture content, and n_D20
• Robust prism assembly fabricated from high-hardness optical glass—resistant to scratching, chemical etching, and thermal shock; cleanable with ethanol or mild detergent
• Minimal sample requirement (≥0.5 mL) and non-destructive measurement protocol—enabling full sample recovery for downstream analysis

Sample Compatibility & Compliance

The SGW®-733 accommodates clear, translucent, and mildly turbid liquid samples—including aqueous sugar solutions, syrups, fruit concentrates, dairy whey, pharmaceutical excipient solutions, and industrial solvents. Viscosity tolerance extends up to ~500 mPa·s without flow-assist accessories. For opaque or highly scattering media, optional sample conditioning (filtration, centrifugation, or dilution) is recommended prior to analysis. The instrument conforms to national metrological verification regulations and supports traceable calibration using NIST-traceable reference standards. Its design aligns with fundamental principles outlined in ISO 21747 (Refractometry — General requirements) and provides documented uncertainty budgets consistent with EURACHEM/CITAC guidance. All firmware and measurement algorithms are validated under internal QA protocols compliant with ISO 9001:2015 and applicable sections of FDA 21 CFR Part 11 when used with secure data export configurations.

Software & Data Management

Data acquisition, storage, and export are managed through an embedded real-time operating system supporting dual-path connectivity: RS232 serial output for legacy LIMS integration and USB host port for direct flash drive logging (FAT32 formatted). Measurement files are saved in CSV format with UTF-8 encoding—compatible with Excel, MATLAB, JMP, and laboratory informatics platforms. Each record includes: date/time stamp, operator ID (configurable), measured n_D and Brix values, actual prism temperature, selected application mode, and pass/fail status against user-defined specification limits. Optional PC software (YDWG LabLink v3.x) enables remote instrument control, batch report generation (PDF/Excel), statistical process monitoring (X̄-R charts), and electronic signature capture for regulated environments. Audit trails are retained onboard and exportable, satisfying documentation requirements for internal audits and regulatory inspections.

Applications

• Quality assurance of incoming raw materials (e.g., sucrose purity, HFCS grade verification, glycerin concentration)
• In-process monitoring of evaporation, blending, and concentration steps in juice, jam, and syrup manufacturing
• Final product release testing for Brix compliance in soft drinks, wines, and dairy-based beverages
• Honey adulteration screening via moisture content and diastase activity correlation studies
• Solution concentration tracking in pharmaceutical formulation development (e.g., buffer preparation, API stock solutions)
• Research applications requiring high-resolution n_D mapping of binary and ternary mixtures under controlled thermal conditions

FAQ

What temperature standards does the SGW®-733 support for refractive index reporting?
The instrument reports n_D at the measured prism temperature by default and automatically calculates n_D20 using the standard Lorentz-Lorenz equation with built-in temperature coefficient tables.
Can the SGW®-733 measure viscous or particulate-laden samples?
It is optimized for low-to-moderate viscosity liquids (<500 mPa·s); particulates must be removed via filtration or centrifugation to avoid prism surface contamination and measurement interference.
Is firmware upgrade capability available?
Yes—upgrades are delivered via USB flash drive and include enhanced calibration routines, expanded application modes, and security patches aligned with current IEC 62443-4-2 recommendations.
Does the instrument support 21 CFR Part 11 compliance?
When operated with YDWG LabLink software and configured with user authentication, electronic signatures, and immutable audit logs, it fulfills core technical requirements for Part 11 adherence in regulated laboratories.
How is calibration verified between scheduled maintenance intervals?
The system includes a two-point verification protocol using certified water (n_D20 = 1.33300) and a sucrose standard (e.g., 30.00% w/w, n_D20 = 1.35026), with deviation alerts triggered if results exceed ±0.00003 n_D.
