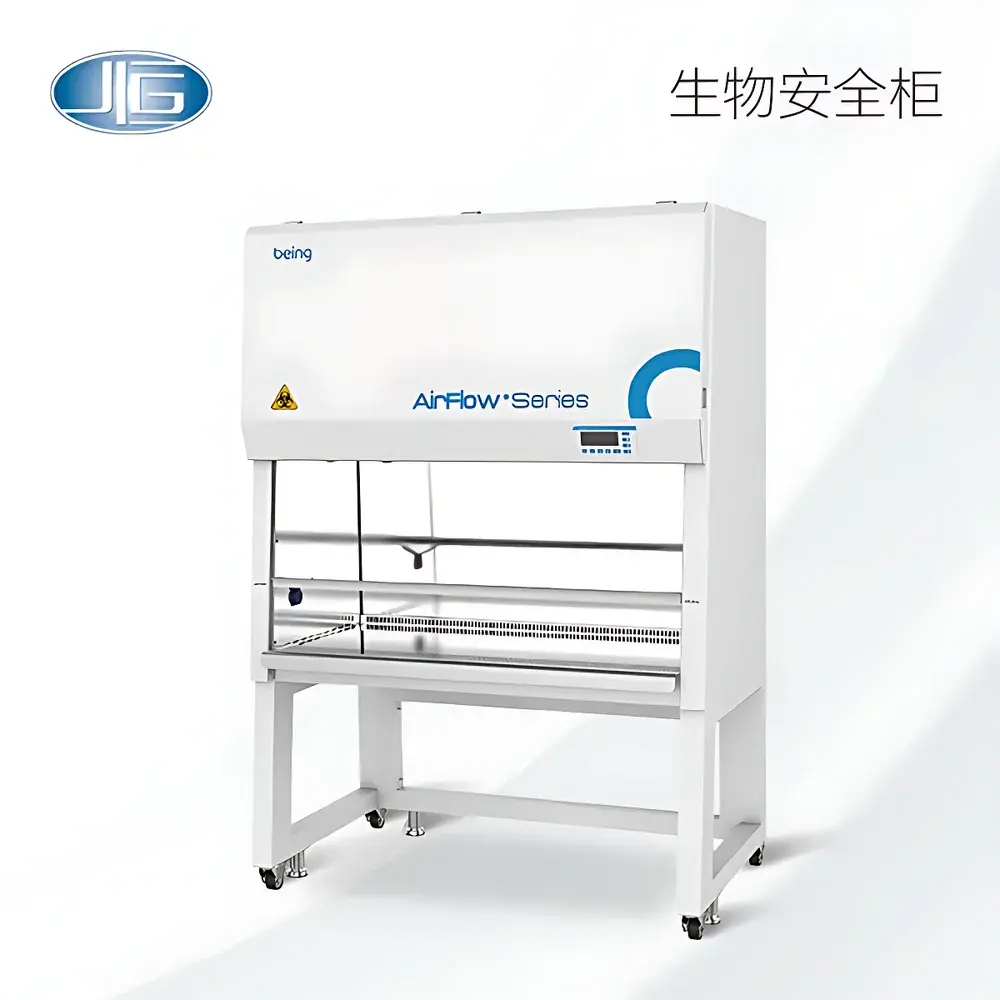

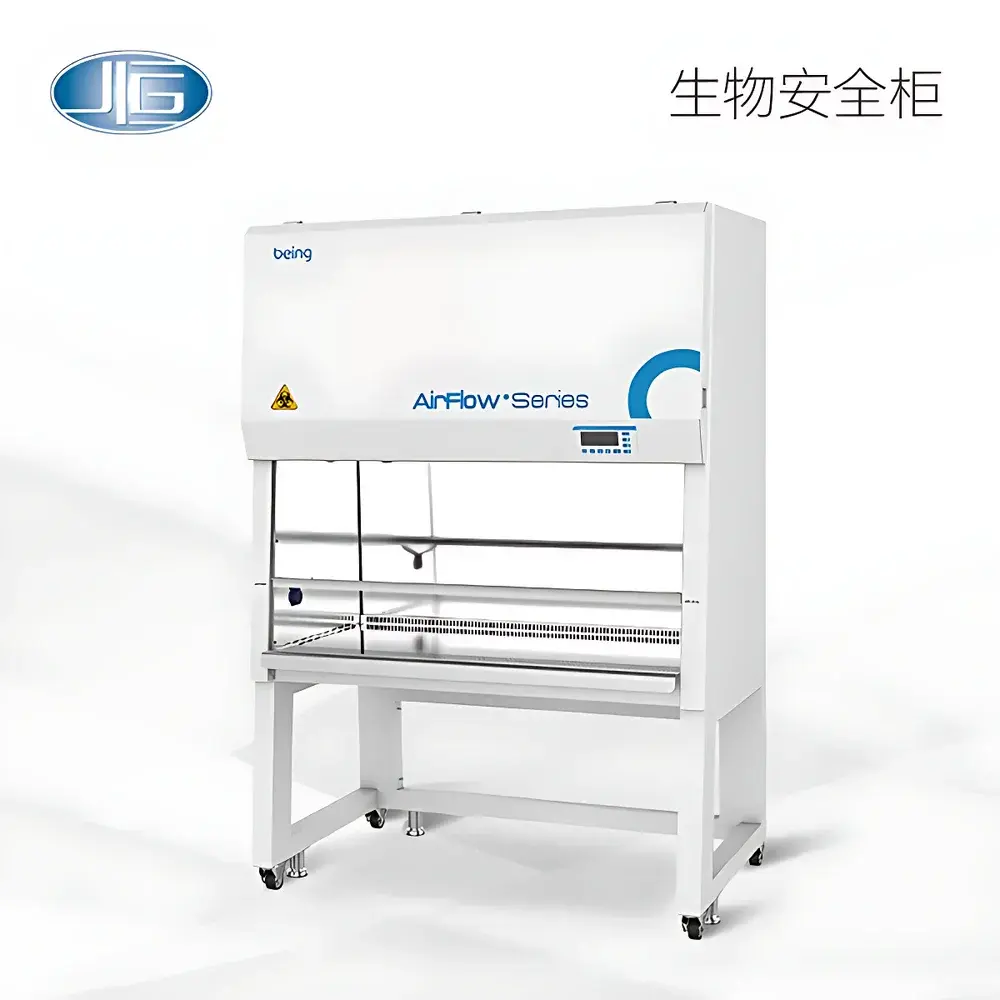

Yiheng BBC-3S1-A2 / BBC-4S1-A2 / BBC-5S1-A2 / BBC-6S1-A2 Class II A2 Biological Safety Cabinet

Overview

The Yiheng BBC-S1 Series Class II Type A2 Biological Safety Cabinets are engineered for precision containment and personnel protection in microbiology, cell culture, clinical diagnostics, and pharmaceutical R&D laboratories. Operating on the principle of inward airflow (minimum inflow velocity ≥0.5 m/s), downward laminar flow (≥0.3 m/s), and recirculation through dual HEPA filtration (supply and exhaust), these cabinets maintain ISO Class 5 (Class 100) clean air conditions within the work area while safely exhausting 70% of total airflow through a dedicated ducted or thimble-connected canopy system. The A2 configuration ensures that contaminated air is not recirculated into the lab environment—critical for handling Risk Group 2 (RG2) agents under biosafety level 2 (BSL-2) protocols. All models comply with internationally recognized performance standards including EN 12469:2000 and China’s GB/T 17219–2022, supporting GLP-compliant workflows and routine validation per ISO/IEC 17025.

Key Features

• Ergonomic Human-Centered Design: 5° sash tilt angle reduces operator neck strain; backlit LCD interface enables clear visibility during extended use; integrated platform-style armrest minimizes musculoskeletal fatigue.
• Hygienic Interior Architecture: Seamless, one-piece 304 stainless steel interior with radius-rounded corners (R ≥15 mm) eliminates crevices for effective decontamination via vaporized hydrogen peroxide (VHP) or liquid disinfectants.
• Intelligent Airflow Management: EC brushless motors deliver constant inflow and downflow velocities across variable filter loading states—ensuring consistent containment performance without manual recalibration.
• Comprehensive Monitoring & Diagnostics: Real-time display of inflow/downflow velocity, HEPA service life (cumulative runtime counter), UV lamp status, and sash position; audible and visual alarms trigger upon filter degradation, sash mispositioning, or airflow deviation beyond ±10% tolerance.
• Safety-Critical Interlocks: UV lamp and main lighting automatically deactivate when sash exceeds safe operating height; password-protected configuration prevents unauthorized parameter changes—supporting audit readiness under FDA 21 CFR Part 11 Annex 11 requirements.
• Serviceability Enhancements: Removable work surface tray facilitates rapid cleaning; externally accessible front window allows full inner/outer glass sanitization; concealed fasteners and non-threaded leveling feet simplify maintenance and reduce particulate shedding.

Sample Compatibility & Compliance

The BBC-S1 series accommodates standard laboratory equipment including centrifuges, pipette aids, microscopes, and open-flame devices (with appropriate risk assessment). It supports handling of non-volatile chemical agents at concentrations ≤5% v/v when used with optional ducted exhaust integration. All units undergo factory-certified airflow mapping and smoke pattern testing per EN 12469 Annex C. Documentation includes full traceable calibration records, filter certification (EN 1822-1:2019 H14 grade), and third-party verification reports aligned with ISO 14644-1 Class 5 cleanroom criteria. Units are suitable for GMP environments where environmental monitoring and change control procedures are implemented.

Software & Data Management

While hardware-based operation dominates daily use, the embedded controller logs timestamped events—including sash movement, alarm triggers, filter runtime, and user login attempts—for up to 30 days. Data export is supported via USB port for integration into LIMS or electronic lab notebooks (ELN). Optional firmware upgrade paths enable future compatibility with centralized facility monitoring systems using Modbus RTU protocol. Audit trails meet ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available) required for regulatory submissions.

Applications

• Primary and secondary cell culture under BSL-2 conditions
• Preparation of sterile media, reagents, and vaccines
• Molecular biology workflows involving plasmid transfection and CRISPR editing
• Clinical specimen processing for virology and mycology labs
• Quality control testing of biologics and medical devices per USP and EP 2.6.1
• Teaching laboratories requiring robust, low-maintenance containment solutions

FAQ

What safety certifications do these cabinets hold?
All BBC-S1 models are certified to EN 12469:2000 and GB/T 17219–2022. Independent test reports confirm compliance with ISO 14644-1 Class 5 airborne particle limits and HEPA filter integrity per EN 1822-3.
Can the cabinet be installed without external ducting?
Yes—the A2 configuration supports recirculating mode with canopy connection to an external thimble, eliminating need for hard-ducted exhaust in many retrofit applications.
How often must the HEPA filters be replaced?
Filter replacement interval depends on usage intensity and ambient air quality; typical service life ranges from 3 to 5 years. The built-in runtime counter and pre-failure alert system support predictive maintenance planning.
Is remote monitoring supported?
Standard configuration includes local event logging only. Modbus-enabled remote monitoring modules are available as optional accessories for integration into building management systems (BMS).
Does the unit support validation documentation packages?
Yes—factory-supplied IQ/OQ documentation templates, filter certificates, and airflow test reports are provided to accelerate qualification under GxP frameworks.
