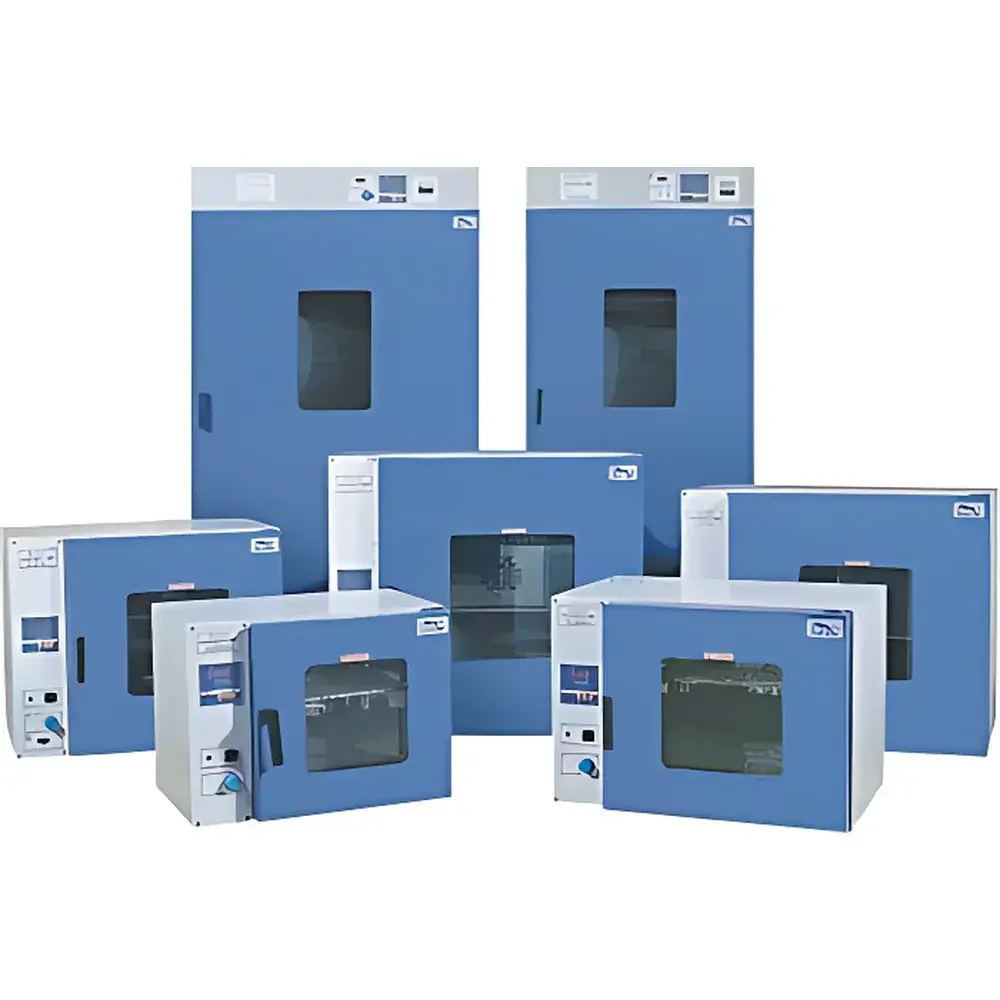

Yiheng DHG-9000 Series Forced-Air Drying Oven

Overview

The Yiheng DHG-9000 Series Forced-Air Drying Oven is an engineered solution for precise thermal processing in research laboratories, quality control facilities, and industrial R&D settings. Utilizing convection-based heat transfer via a high-reliability centrifugal fan and optimized airflow ducting, the oven ensures uniform temperature distribution across the entire chamber—critical for reproducible drying, baking, sterilization, and wax-melting applications. Its construction adheres to standard laboratory equipment design principles: a mirror-finish 304 stainless steel interior welded using argon arc technology minimizes contamination risk and facilitates cleaning, while the outer casing employs cold-rolled steel with powder-coated finish for mechanical durability and corrosion resistance. The system operates within a validated temperature range of RT+10°C to 200°C as standard, with extended capability up to 250°C available upon specification—enabling compatibility with ASTM D1654 (coating drying), ISO 712 (moisture content in cereals), and USP (sterile processing validation support).

Key Features

• Microprocessor-based P.I.D. temperature controller with digital display, offering ±1.0°C fluctuation control and 0.1°C resolution for traceable thermal regulation.
• Adjustable air inlet and exhaust dampers accessible from the front control panel—enabling fine-tuned atmospheric exchange for moisture-sensitive or volatile-sample protocols.
• High-temperature silicone door gasket rated for continuous operation up to 250°C, ensuring long service life and minimal maintenance intervals.
• Independent over-temperature cut-off circuit (optional) compliant with IEC 61000-4-2 immunity standards, automatically disabling heating elements if user-defined safety thresholds are exceeded.
• Robust thermal insulation using high-density mineral fiber—reducing external surface temperature rise and improving energy efficiency per IEC 60068-2-2 test conditions.
• Modular electrical architecture supporting optional upgrades without hardware replacement: RS485 Modbus RTU interface, embedded thermal printer, multi-segment programmable controller, and USB data-logging module.

Sample Compatibility & Compliance

The DHG-9000 Series accommodates a broad spectrum of sample formats—including Petri dishes, weighing boats, crucibles, glassware, polymer films, and metal coupons—without thermal distortion or cross-contamination. All models meet CE marking requirements for electromagnetic compatibility (EMC Directive 2014/30/EU) and low-voltage safety (LVD Directive 2014/35/EU). When configured with audit-trail-enabled controllers and time-stamped logging (via RS485 or USB), the system supports FDA 21 CFR Part 11 readiness for electronic records in regulated pharmaceutical and biotech environments. Optional wireless SMS alerting provides remote notification during out-of-specification events—aligning with ISO 13485 clause 7.5.10 on monitoring and measurement process control.

Software & Data Management

While the base configuration includes local parameter display and manual timer operation, factory-integrated options extend functionality significantly. The RS485 interface enables bidirectional communication with LabVIEW™, MATLAB®, or custom SCADA systems using standard Modbus RTU protocol—allowing real-time setpoint adjustment, data streaming, and alarm integration into centralized facility monitoring platforms. The optional embedded thermal printer produces permanent hardcopy logs compliant with GLP Annex 11 expectations for raw data integrity. U-disk data storage captures timestamped temperature profiles at user-selectable intervals (1 s to 60 min), generating CSV files compatible with Excel® and statistical process control (SPC) software such as Minitab® or JMP®.

Applications

• Moisture loss determination per AOAC 950.46 and ISO 5582 for food, feed, and pharmaceutical raw materials.
• Pre- and post-weighing desiccation of filter papers, gravimetric precipitates, and particulate matter filters (e.g., EPA Method 201A).
• Baking of ceramic substrates, printed circuit boards, and thin-film coatings under controlled ramp-hold-cool cycles.
• Accelerated aging studies per ASTM F1980 for medical device packaging validation.
• Heat treatment of calibration standards, reference materials, and metrology artifacts prior to dimensional inspection.
• Support of microbiological media preparation workflows requiring dry-heat sterilization at ≥160°C for ≥2 hours (ISO 11138-1).

FAQ

What is the maximum operating temperature for standard DHG-9000 Series units?
Standard units are rated for continuous operation up to 200°C; models configured for 250°C require explicit ordering notation and use upgraded heating elements and insulation.
Is the oven suitable for inert-atmosphere processing?
No—this is a forced-air convection oven designed for ambient air operation. For nitrogen-purged or vacuum applications, consider Yiheng’s BPG or DZF series alternatives.
Can temperature uniformity be verified and documented?
Yes—chamber mapping per ISO/IEC 17025 Clause 5.10.4 is supported using calibrated PT100 probes; validation reports may be generated using optional data-logging modules.
Are replacement shelves and gaskets available as spare parts?
All consumables—including stainless steel trays, door seals, and fan assemblies—are stocked globally and supplied with OEM part numbers for unambiguous reordering.
Does the unit comply with energy efficiency regulations such as EU Ecodesign Directive 2019/2021?
Yes—the DHG-9000 Series meets Tier 1 energy performance criteria for laboratory ovens, with standby power consumption <0.5 W and thermal efficiency exceeding 65% at 100°C steady state.
